Datavideo VP-840 1 In / 4 Out 4K HDMI Distribution Amplifier

Name: Datavideo VP-840 1 In / 4 Out 4K HDMI Distribution Amplifier
Brand: Datavideo
SKU: DV-VP-840
Price: 219.00 USD
Availability: PreSale

ITEM #: DV-VP-840 MFG #: VP-840

Datavideo

Our Price:

$219.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

VP-840 - Overview

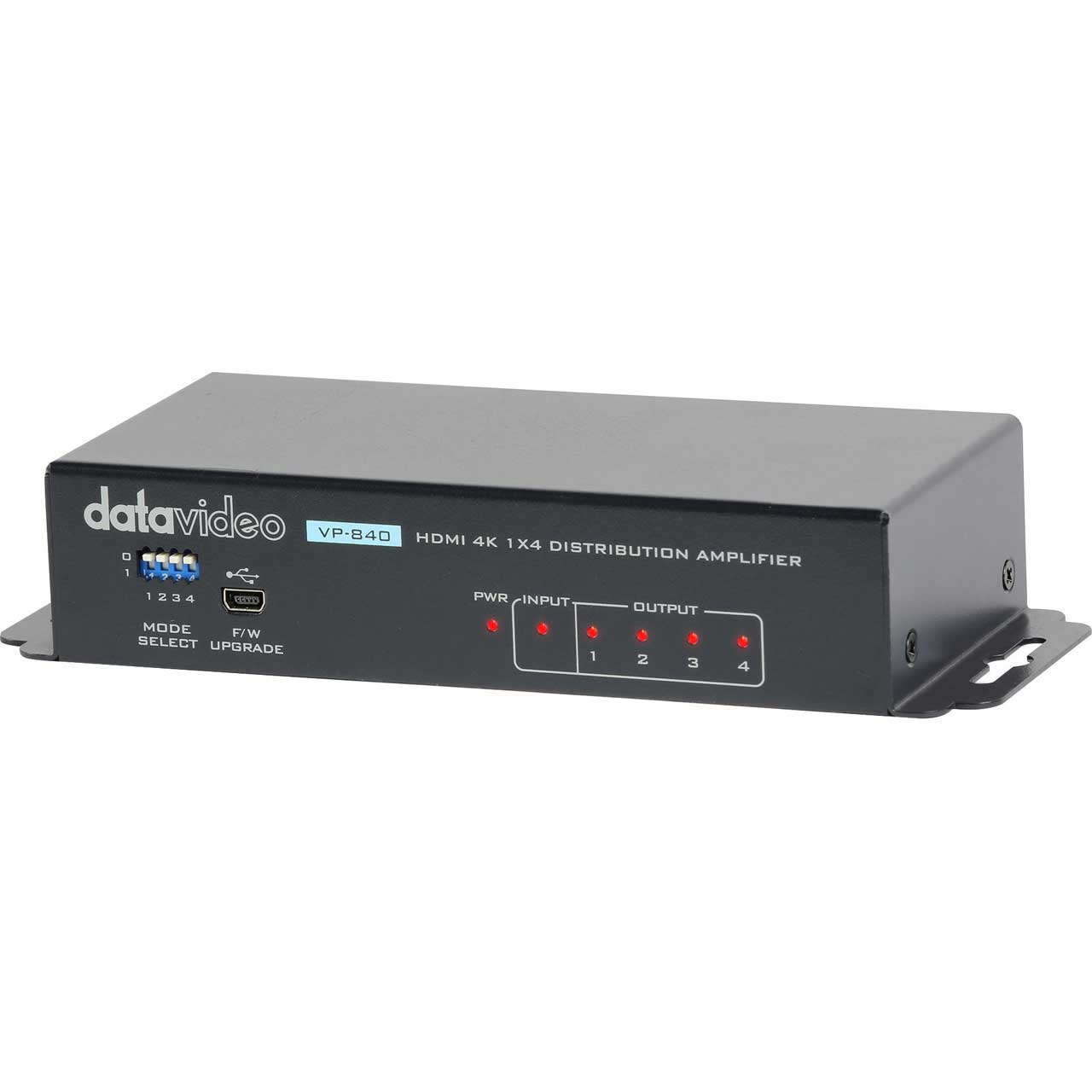

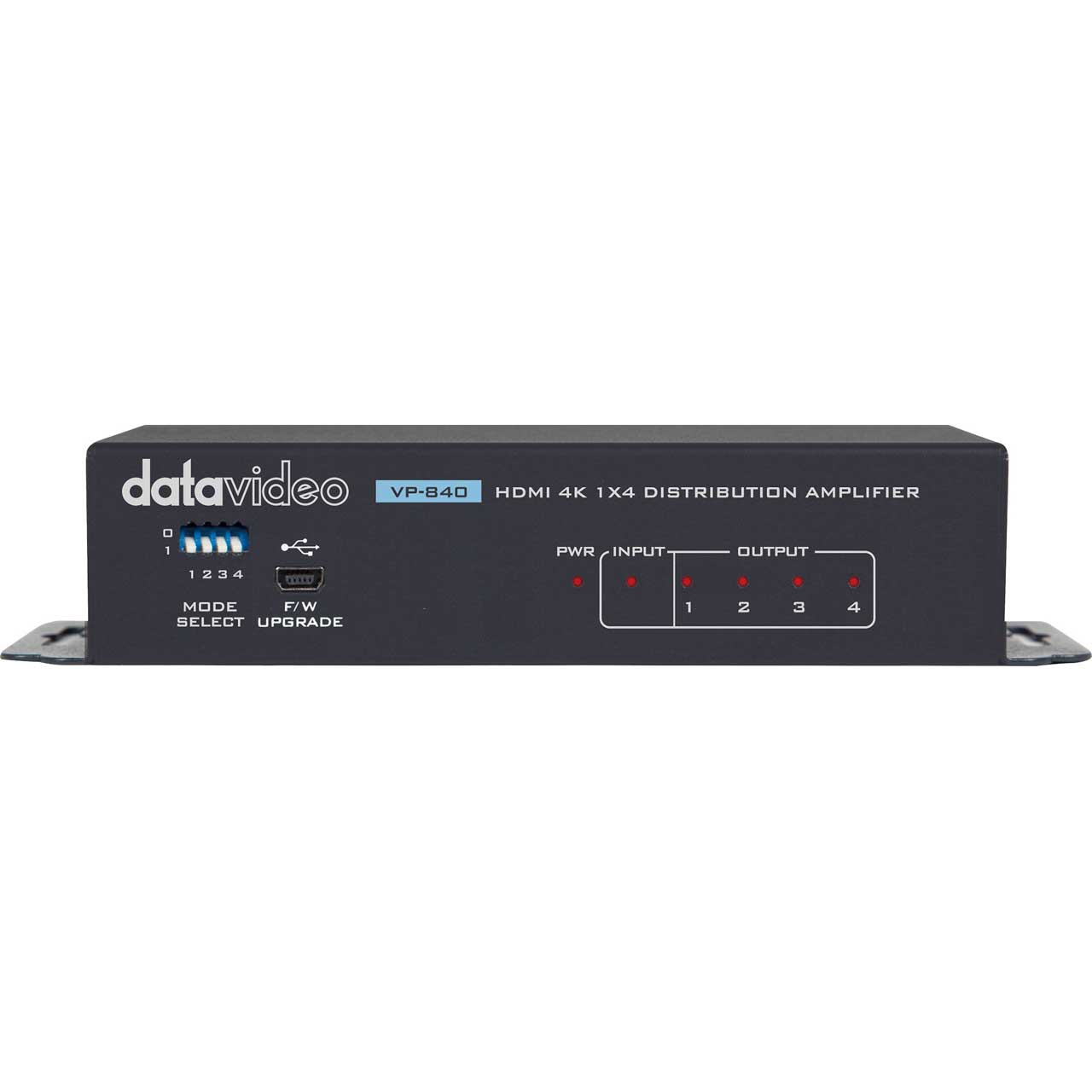

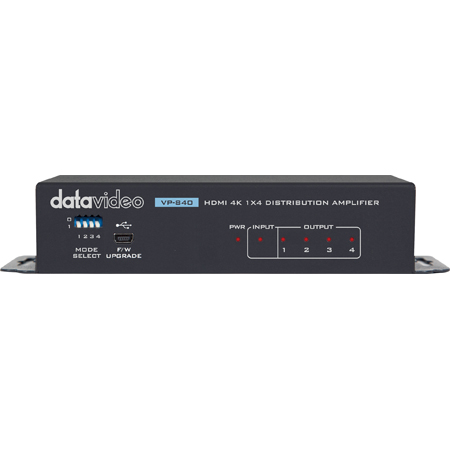

The Datavideo VP-840 is an HDMI 1x4 Distribution Amplifier featuring the capability to repeat HDMI source to 4 displays simultaneously. The VP-840 supports data rate up to 18 Gpbs and resolutions of 4K2K@60Hz, and is compliant with HDMI 2.0 and HDCP 2.2. The VP-840 features EDID management with auto downscale function, thus providing multiple EDID options for various output resolutions between all devices and ensuring that the HDMI source content is displayed correctly on the monitors.

Specifications:

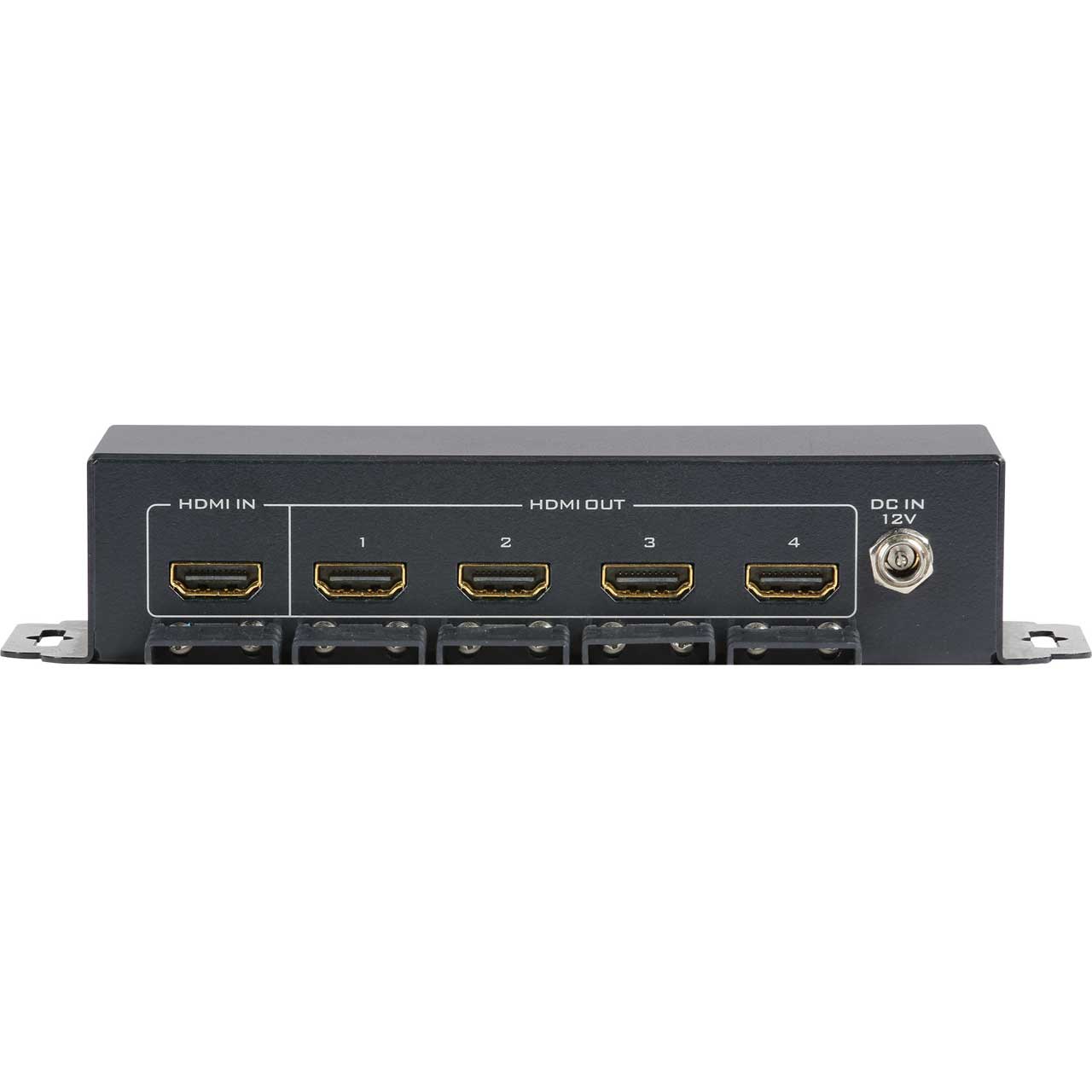

- Video Input/Output Input: 1 x HDMI, Output: 4 x HDMI.
- Video Format: 4096x2160p60/59.94/50, 4096x2160p30/29.97/25/24/23.98, 3840x2160p60/59.94/50, 3840x2160p30/29.97/25/24/23.98, 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480p, 576p, 480i, 576i.
- PC Supported Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@ 60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1680x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
- Video Processing: HDR 4K2K@60 4:2:0 10bits, 4K2K 60Hz YCbCr4:4:4 8bit/YCbCr4:2:0 10bit, 4K2K 30Hz YCbCr4:4:4 8bit
- Video bandwidth: Single-link 600MHz (18Gbps)
- Audio Format: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Power: 12V / 6W
- Dimension (LxWxH): 174 x 63 x 35 mm
- Weight: 0.35 kg
- Operating Temp. Range: 0~40 °C
