Link Electronics PFO-100TR 3G/HD/SD-SDI Fiber Optic Transmitter and Receiver

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

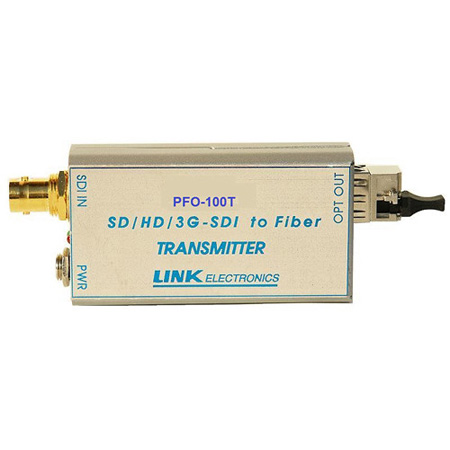

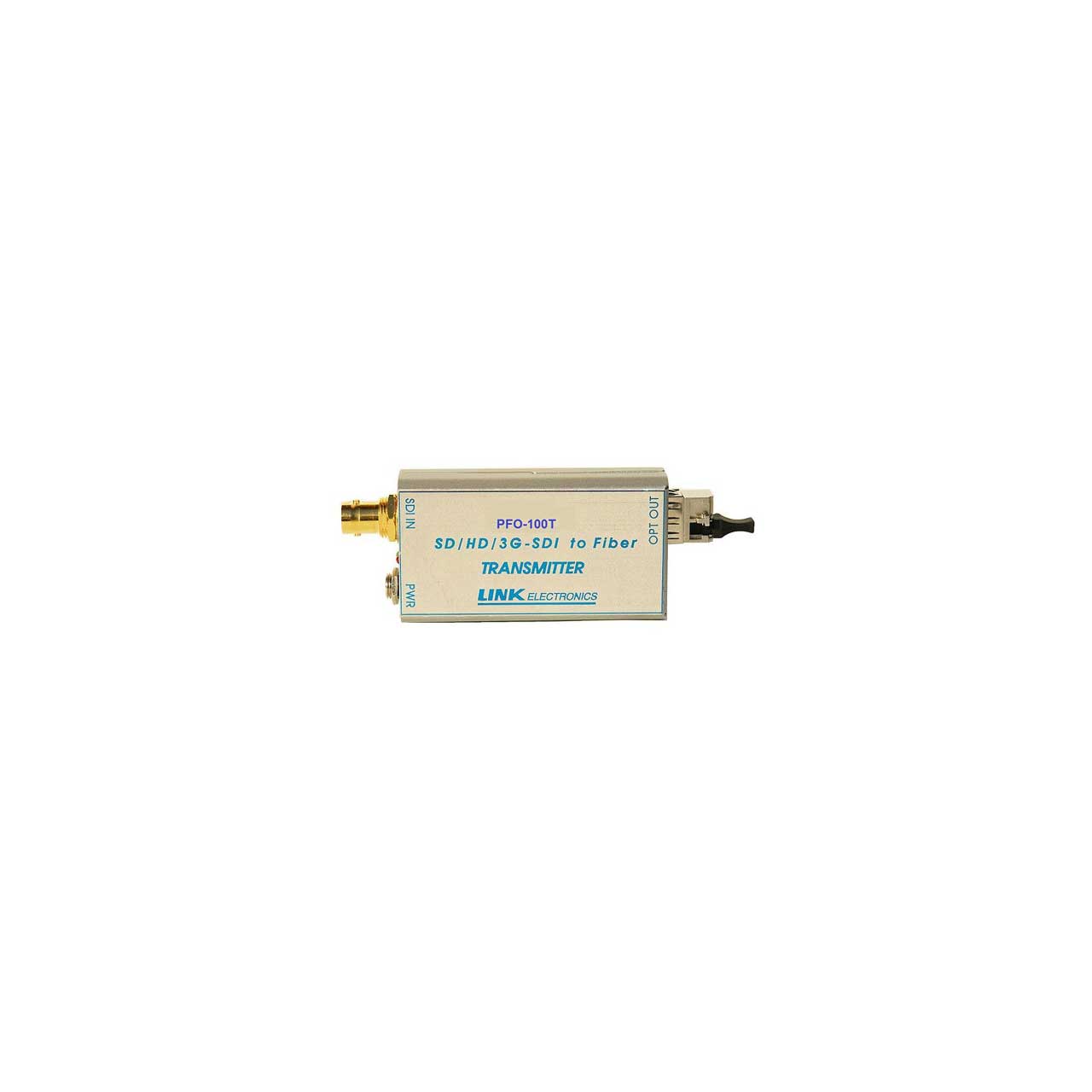

    Link Electronics PFO-100TR 3G/HD/SD-SDI Fiber Optic Transmitter and Receiver

    Manufacturer: Link Electronics, Inc

    Item #: LEI-PFO-100TR   •   MFG #: PFO-100TR



    List Price:$1,536.15
    Our Price:$1,228.95

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The Link Electronics, Inc. PFO-100TR is a compact, and high-quality 3G/HD/SD-SDI or ASI fiber optics transmission system. This unit operates with single-mode fiber optics cable or, multi-mode fiber optics cable can be requested for shorter transmission distances. The module is SDI pathological test compliant and features a built-in equalizer, cable driver, and re-clocker.

      The Link PFO series has signal jitter elimination circuitry to ensure high-quality signal transmission over long distances, with fiber optic cable on both the transmitter and receiver.

      The combined PFO-100T (transmitter) and PFO-100R (receiver) are a matched pair for specific wavelengths, either the standard 1310 nm or any requested wavelength between 1270-1610 nm. At only 4 oz., and capable of transmitting up to 24 miles (40 km).

      The portable and powerful system is ideal for a wide variety of applications, including cross-town fiber links, cross-campus production, remote camera links and pre-installed fiber venues.

      The PFO-100-T&R supports SMPTE ST 424 (3G-SDI 3Gb/s), SMPTE ST 292 (HD-SDI 1.5Gb/s), SMPTE ST 259 (SD-SDI 143/270/360 Mb/s), or SMPTE ST 310 (DVB-ASI). The modules include LED indicators to display Power ON and SDI signal presence from BNC (transmitter) or from fiber optic (receiver), providing critical system diagnostic information at a glance without the need for additional test equipment. The 3G/HD/SD-SDI or ASI fiber optical transmission system uses its own power supply or any 5-volt DC supply, with a standard latching power jack DC input. Due to the advanced digital fiber optic transmission technology, there is no need to make any adjustments with a simple set up and ease of operation.


      • Features

        • Portable, Lightweight, Reliable, Efficient and Quick
        • Easy installation
        • Class 1 FDA and IEC60825-1 Laser Safety Compliant Pathological test compliance
        • LED indicators show you:
        • Power on
        • HD/SDI data presence 19.4 Mbps to 3 Gbps SMPTE 424M/297M compliant SMPTE 292M/259M/297M compatible
        • Supports embedded audio Up to 40 km of fiber cable Low system jitter
        • Power from 5 VDC
        • Digital diagnostic function
        • High durability design

      • Specifications

        • Video
        • Transmission Method: Digital
        • Input Level: 800 mV (peak to peak)
        • Input Impendance: 75Ω
        • Equalization: [email protected] Mbps, [email protected] Gbps, [email protected] 2.97 Gbps
        • Output Impendance: 75Ω
        • Bit-Error Rate:(@-20dBm): 10-11
        • Jitter (pathological data pattern): < 120 ps
        • Rise/Fall Times: < 120 ps
          *Equalization of Belden 1694A cable: [email protected]/s, [email protected]/s, and [email protected]/s.

          Transmission
        • Operating Wavelength: 1310nm normal, (Optional 18 Ch. 1270-1610nm CWDM)
        • Video Connector In/Out: BNC
        • Optical Connector: LC (Standard)
        • Transmitter Output: -6-0 dBm (0 to +3 dB m Optional)
        • Receiver Sensitivity: -20 dBm
        • Link Margin/Distance: 13 dB/[email protected] for Single Mode
        • Fiber Type: Single mode
        • Transmission Distance: 40 kilometers

          Electrical
        • Input Voltage: 5 VDC
        • Power Connector: DC Latching Jack
        • Power Consumption, Each End: 600 mW

          Environmental
        • Operating Temperature: 77 to 131°F
        • Relative Humidity: 0 to 95%, non-condensing

          Mechanical
        • Length: 3.2"
        • Width: 0.65"
        • Height: 2.0"
        • Weight: 4 oz (150g)
        • Indicators: Power, signal, link, optical power
