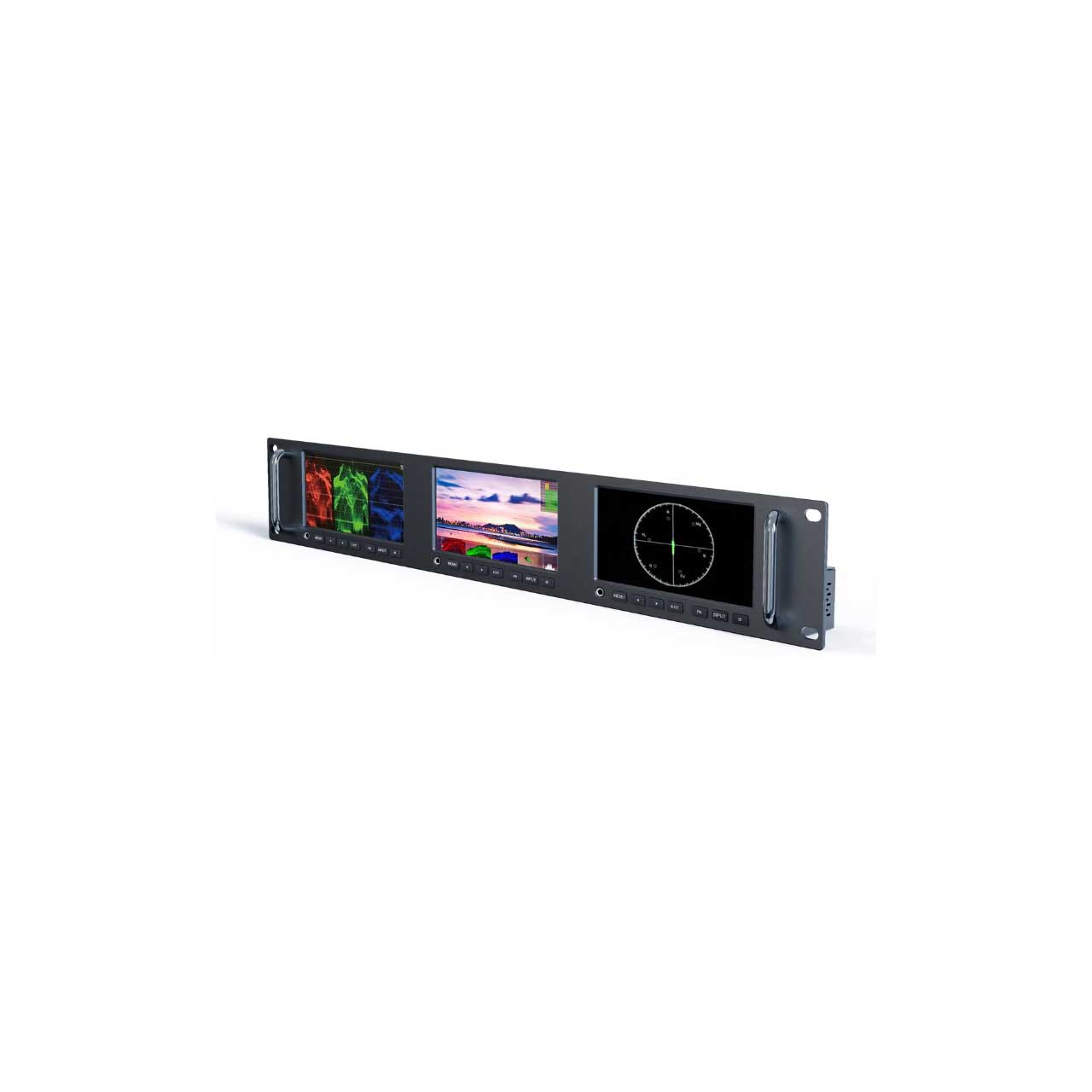

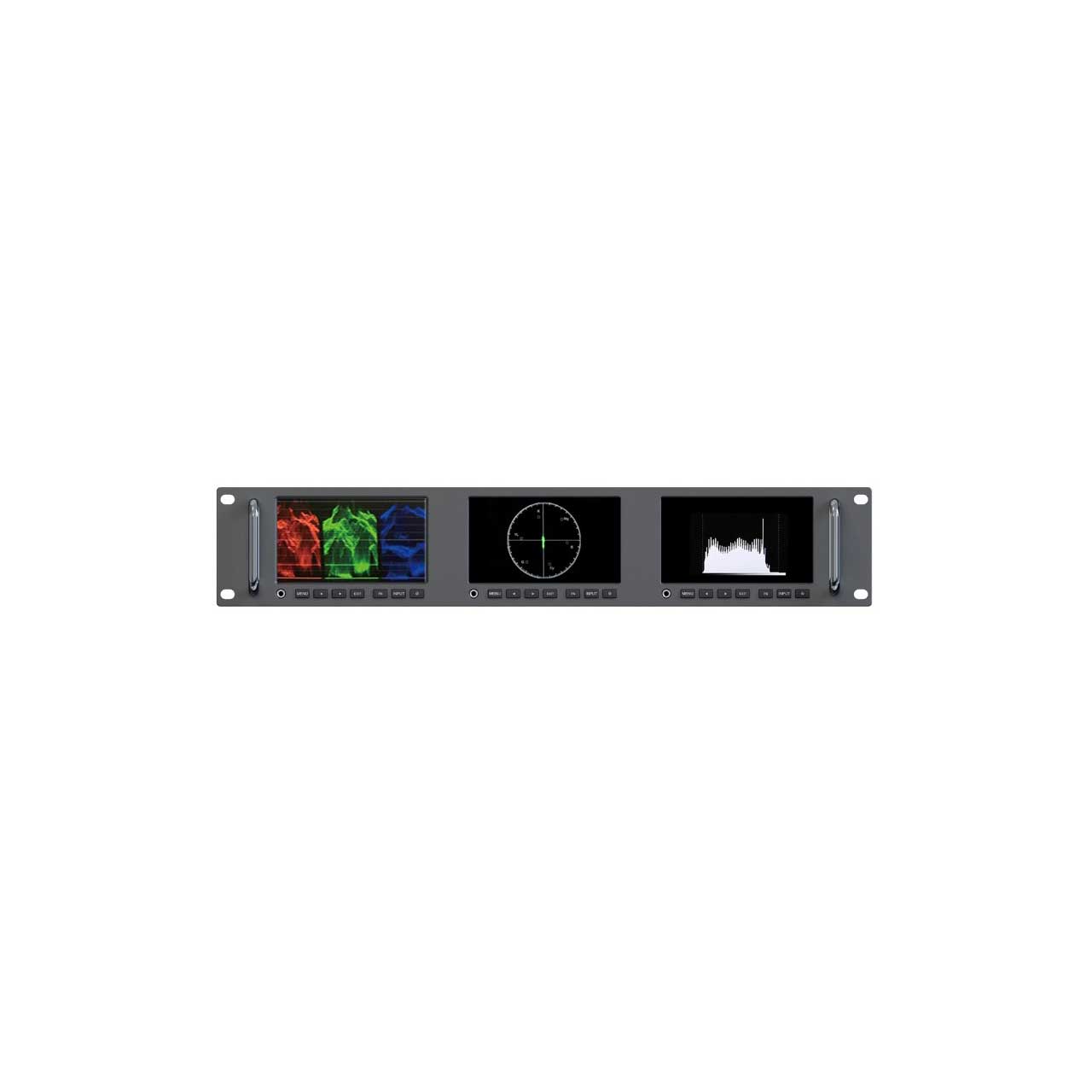

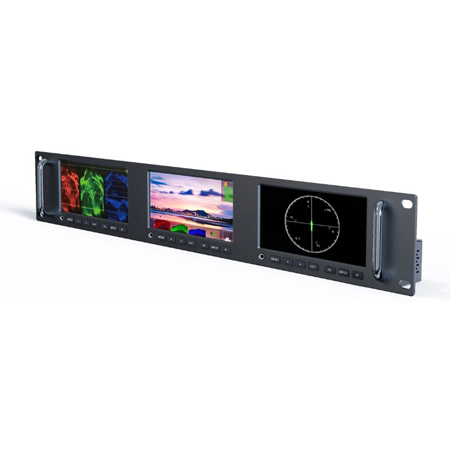

Lilliput RM-503S Triple 5in Rack Mount SDI Monitor with HDMI 3G-SDI and LAN

RM-503S - Overview

• Features:

  • Rack Mount 2U
  • High Quality Color Space
  • 3G-SDi HDMI 2.0
  • Remote Control
  • CNC Aluminum


• Specifications:

  • Display
  • Size: 3" x 5"
  • Resolution: 1920x1080
  • Brightness: 450cd/m²
  • Aspect Ratio: 16:9
  • Contrast: 1000:1
  • Viewing Angle: 160°/160° (H/V)
  • Color Space: 98% DCI-P3
  • LUT Support: 3D-LUT (.cube format)

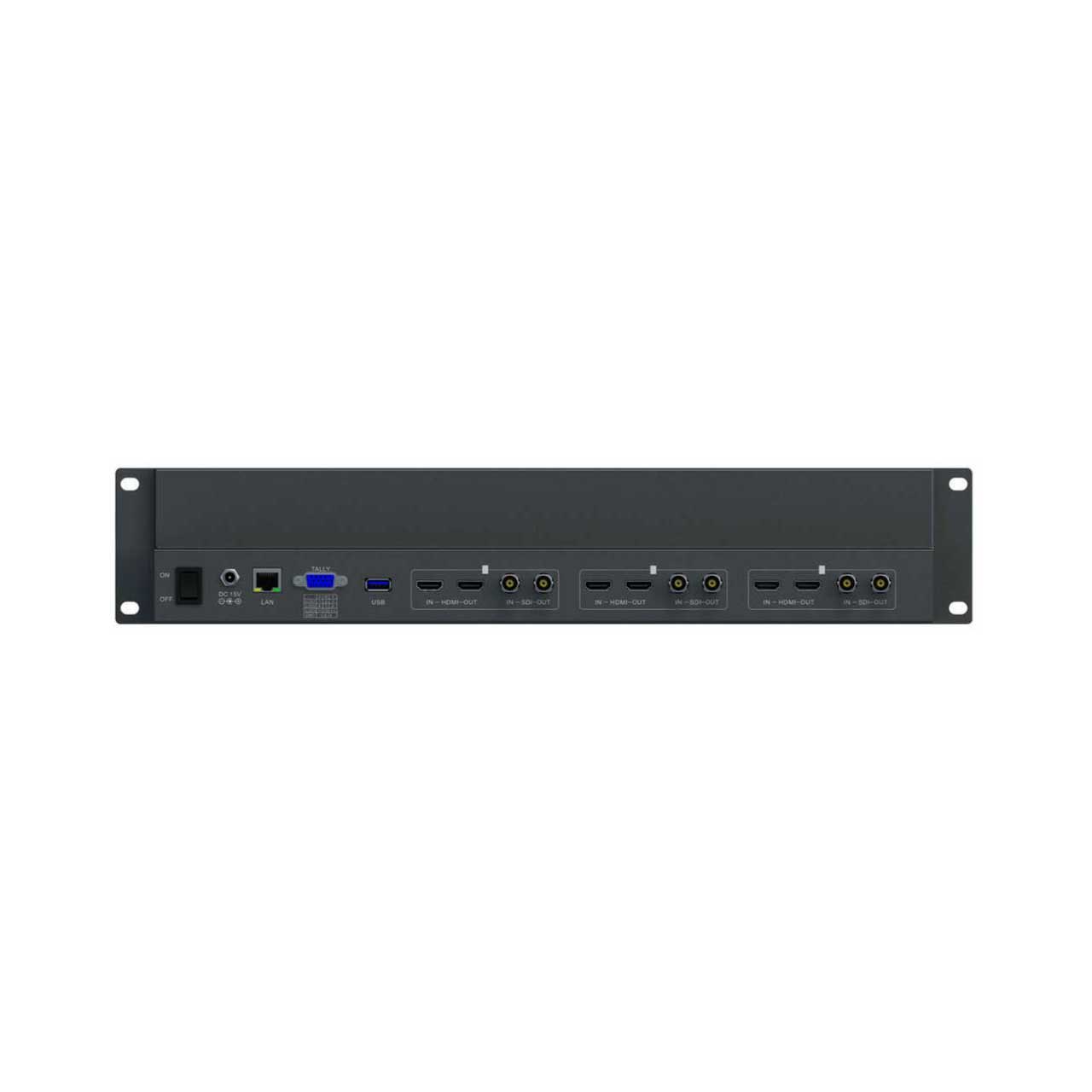

    Video Input
  • 3G SDI: 3x
  • HDMI: 3x HDMI 2.0 (supports up to 4K 60Hz)
  • LAN: 1x

    Video Loop Output
  • 3G-SDI: 3x
  • HDMI:3x HDMI 2.0 (supports up to 4K 60Hz)

    Supported In/Out Formats
  • SDI:
    - 1080p 60/50/30/25/24
    - 1080pSF 30/25/24
    - 1080i 60/50, 720p 60/50
  • HDMI:
    - 2160p 60/50/30/25/24
    - 1080p 60/50/30/25/24
    - 1080i 60/50
    - 720p 60/50

    Audio In/Out
  • Ear Phone Slot: 3x

    Power
  • Current: 2.5A (12V)
  • DC In: DC 12V - 24V
  • Power Consumption: ≤27W

    Environment
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)

    Other
  • Dimensions (LxWxD): 15.74" x 4.56" x 3.46" (480mm x 116mm x 88mm)
  • Weight: 4.63lbs (2.1kg)


• Item Includes:

  • 1x 19" Rack Mount Monitor


• GTIN:

  6950821602201
