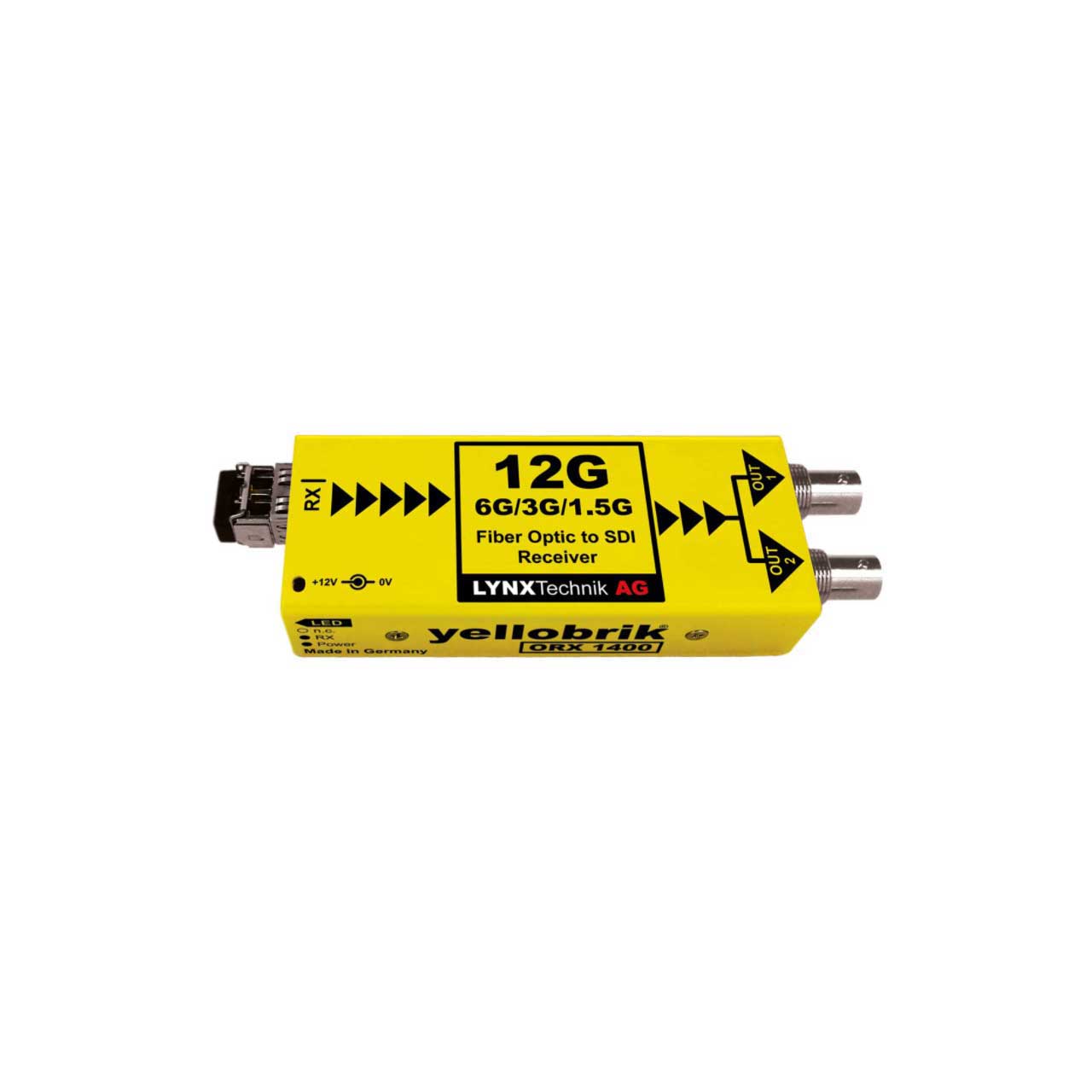

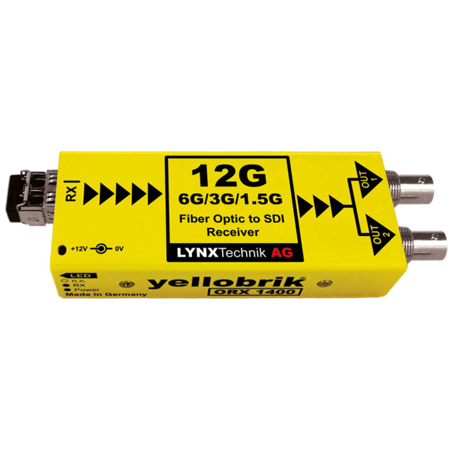

LYNX Technik ORX 1400 ST 12G Fiber Optic to SDI Receiver - ST Singlemode Option

ORX 1400 ST - Overview

• Features:

  • Supports 12G, 6G, 3G and 1.5G SDI video standards
  • 3Gbit Level A and Level B (support for all formats)
  • Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
  • Error free optical transmission
  • Two reclocked SDI outputs

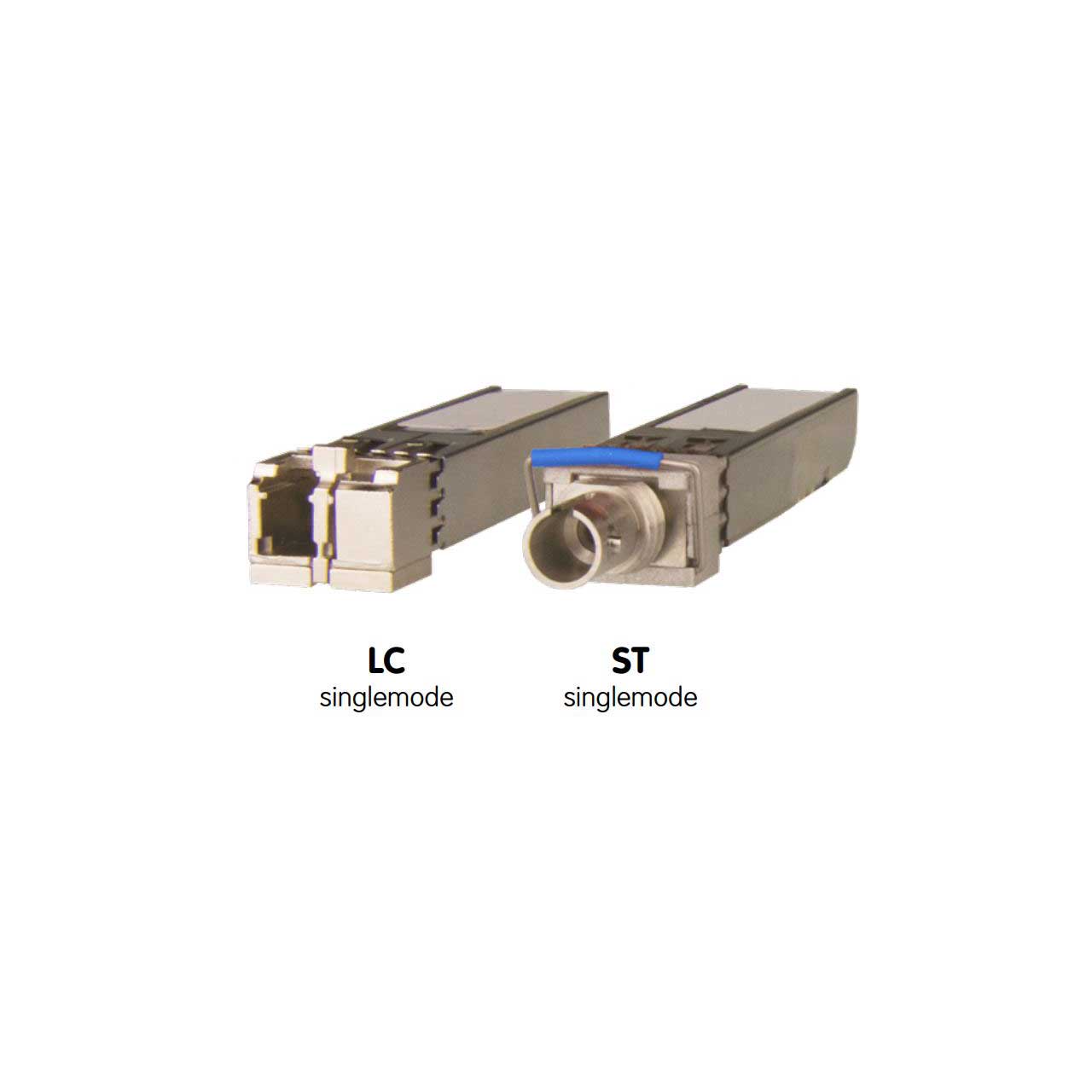

  • LC/PC and ST connection variants
  • Singlemode fiber connection
  • Input range 1260nm to 1620nm
  • Hot swappable and hot pluggable


• Specifications:

  • Optical Input
    1x fiber optic input
    Simplex LC/PC connection
    SMPTE 297M - 2006
    Input range (wavelength) 1260nm to 1620nm
    RX sensitivity -2dBm to -10dBm
    RX active LED on side of module
    SMF (Singlemode) fiber
    Hot pluggable
  • SDI Outputs
    2x SDI video on 75 Ohm BNC connector
    SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
    Multi-standard operation from 1.5Gbit/s to 12Gbit/s
    Multirate reclocking: 1.5Gbit - 3Gbit - 6Gbit - 12Gbit
  • Power: +12VDC @ 2.2W nominal - (supports 7 - 24VDC input range)
  • Physical:
  • Dimensions: 5.51 x 1.65 x 0.86" (140 x 42 x 22mm) including connectors
    Weight: 0.27Lbs (125g)
  • Ambient Temperature: 41° to 104°F (5° to 40°C) 90% Humidity (non condensing)


• Item Includes:

  • 1x ORX 1400 ST Module
  • 1x AC power supply


• Warranty:

  • 3 Year Warranty


• GTIN:

  4250479327658
