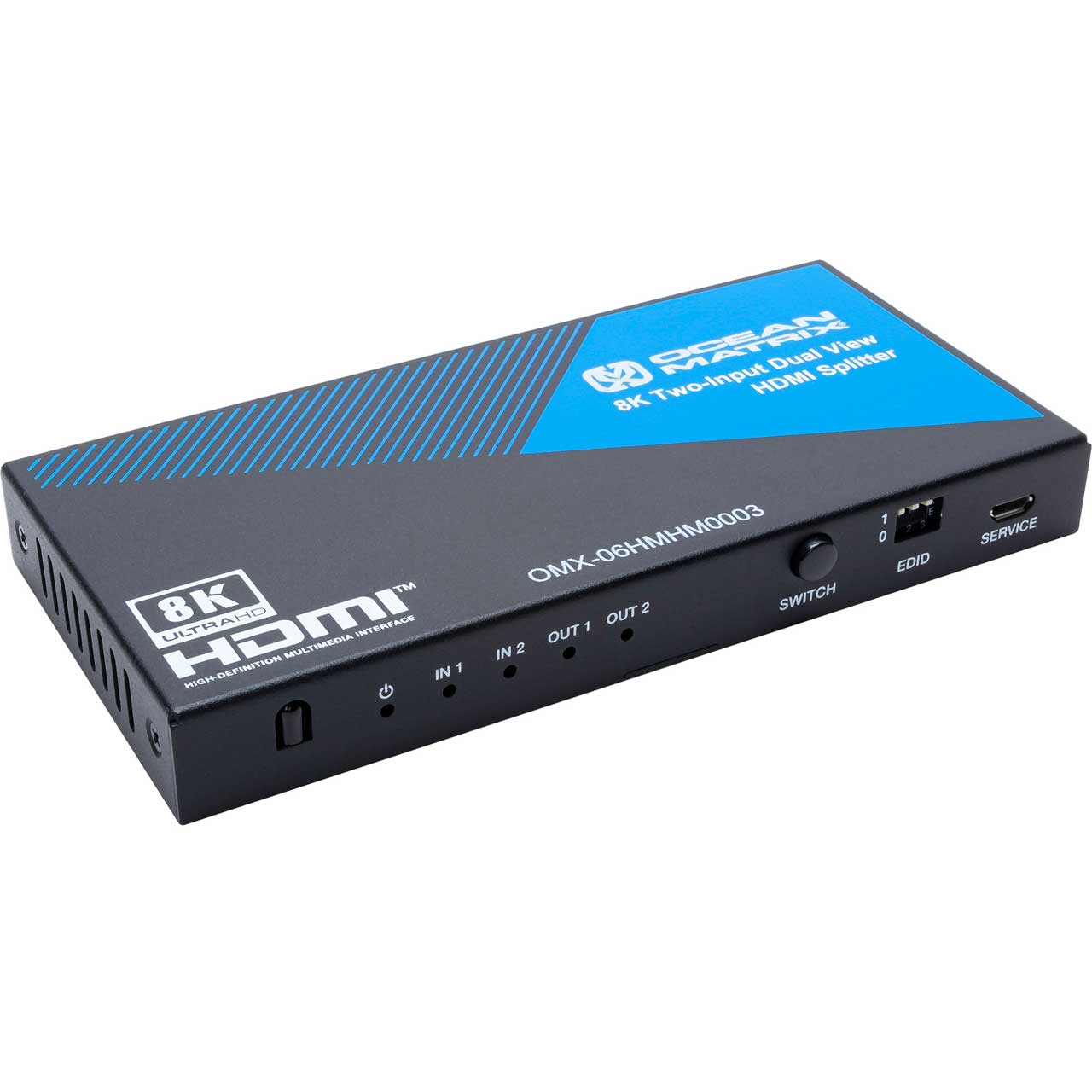

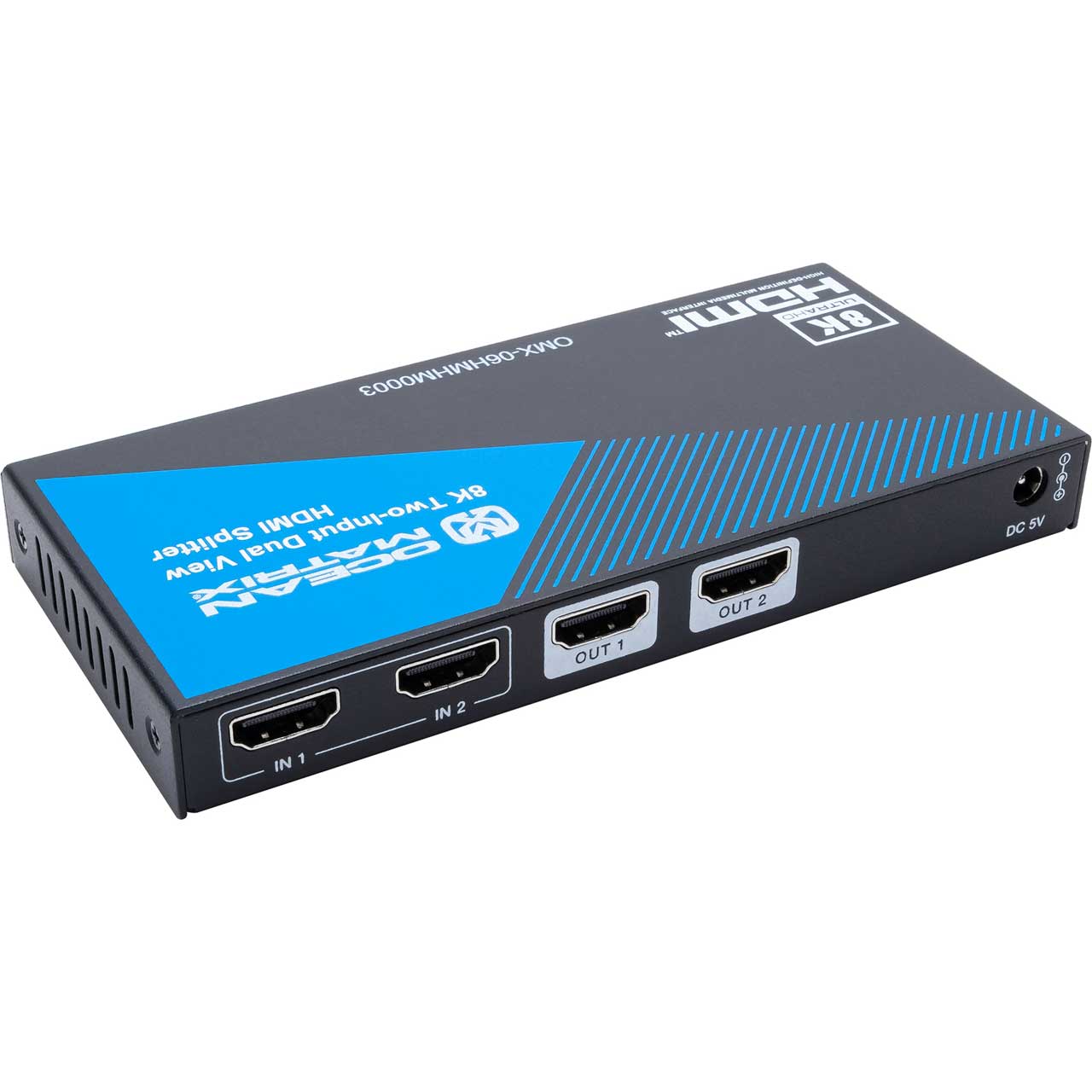

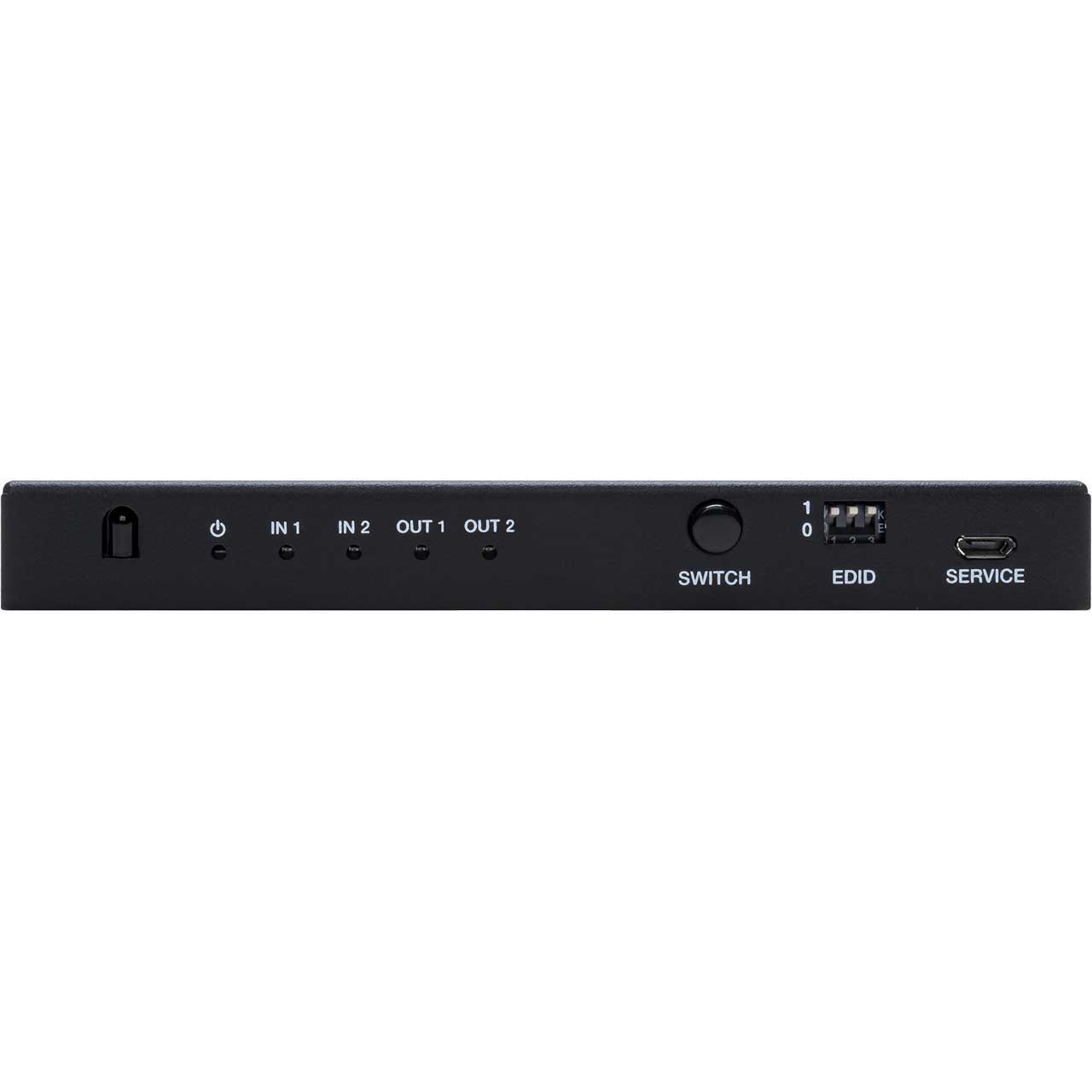

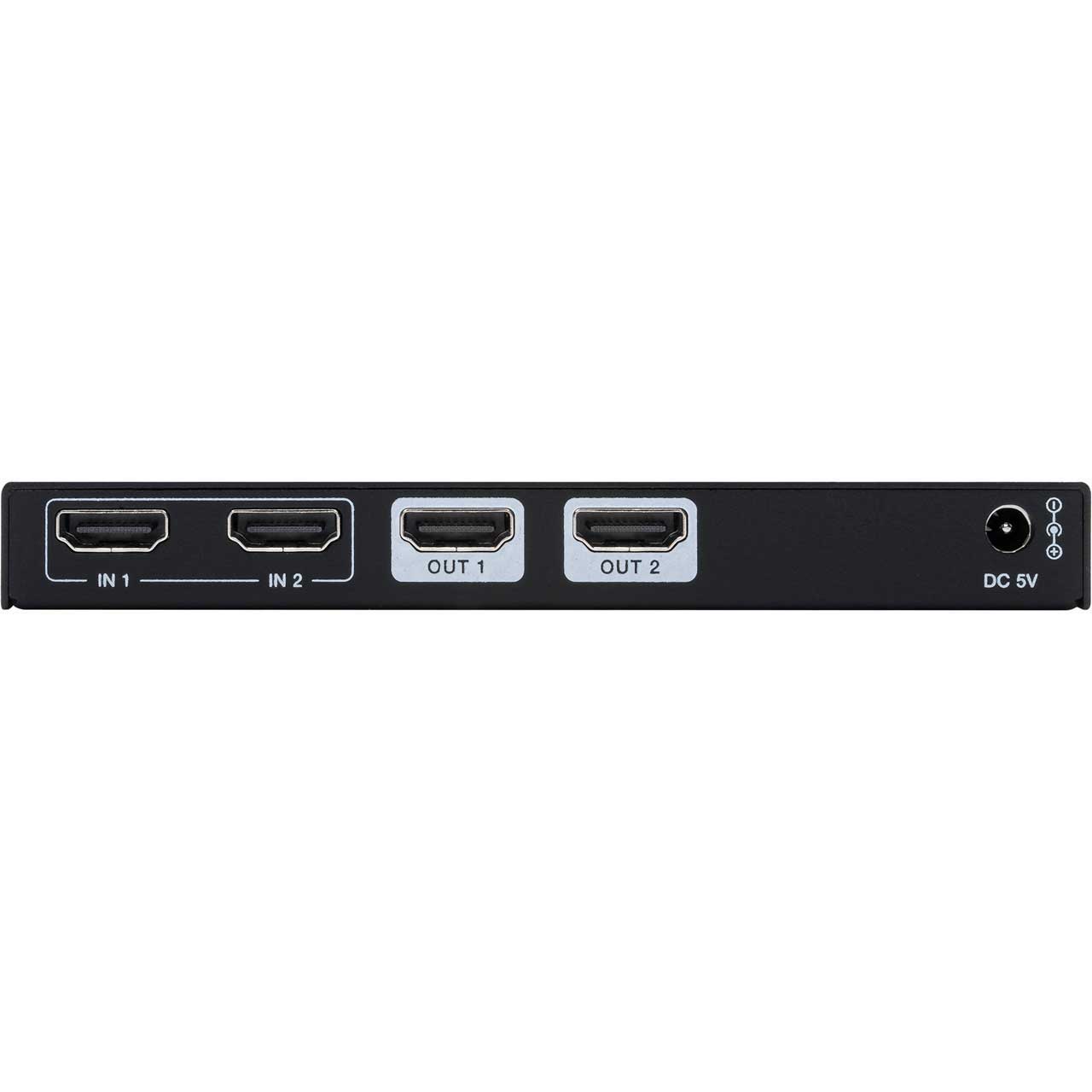

Ocean Matrix OMX-06HMHM0003 8K HDMI 2.1 and HDCP 2.3 Compliant 2x1x2 Splitter & Switcher

ITEM #: OMX-06HMHM0003 MFG #: OMX-06HMHM0003

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

List Price:

$129.95

Our Price:

$119.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OMX-06HMHM0003 - Overview

    Select between 2 HDMI sources and split your selected source to 2 displays, projectors or similar destinations with the Ocean Matrix 06HMHM0003 2x1x2 8K HDMI Switcher-Splitter. The unit provides a simple and cost effective routing means for HDMI sources up to 8K @60Hz 4:2:0 making it perfect for digital signage and educational applications.

    The Ocean Matrix 06HMHM0003 is multi-functional - use as a switcher only or a splitter only. It supports HDR, HDR10 and HDR10+ as well as multiple HDMI audio formats. Its Auto EDID Management feature provides an installation flexibility you'll appreciate. It also has an Auto-Switch function where the unit can automatically switch to the latest source signal.

    • Features:

      • 1x2 Splitter/Switch with Dual Input
      • HDMI 2.1 and HDCP 2.3 Compliant
      • Supports up to 40Gbps Video Bandwidth
      • Video Resolution up to 8k@60hz 4:2:0
      • HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR Pass-Through
      • HDMI Audio Formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
      • Built-In Cable Equalization
      • Compact Design for Easy and Flexible Installation


    • Specifications:

      • Inputs: 2 x HDMI Type A (19-pin female)
      • Outputs: 2 x HDMI Type A (19-pin female)
      • Video Bandwidth: Up to 40 Gbps
      • Video Resolution: Up to 8K@60Hz YCBCR 4:2:0 10bit, 8K@30 RGB/YCBCR 4:4:4 10bit or,4K@120 RGB/YCBCR 4:4:4 10bit
      • Color Space: RGB, YCbCr 4:4:4 / 4:2:2. YCbCr 4:2:0
      • HDMI Compliance: HDMI 2.1
      • HDCP Compliance: HDCP 2.3
      • Power Supply: Input: AC100-240V 50/60Hz, Output: DC 5V/1A (US/EU Standards, CE/FCC/UL Certified
      • Power Consumption: 2.25W (Max)
      • Operation Temperature: 0°C-40°C/32°F-104°F
      • Storage Temperature: -20°C-60°C/-4°F-140°F
      • Dimensions: 5.7in (W) x 2.7in (D) x 0.7in (H)
      • Weight: 9.2oz / 265g
