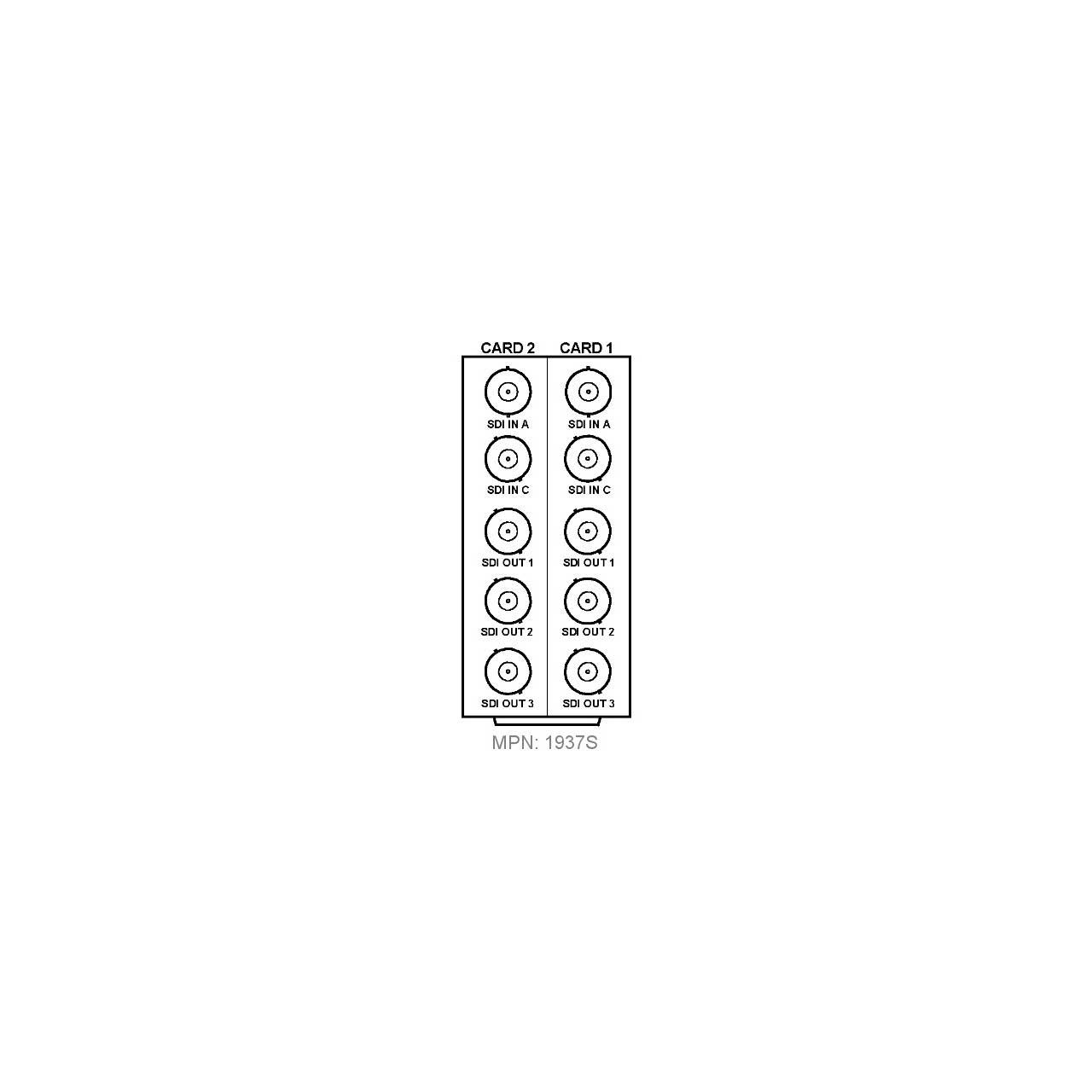

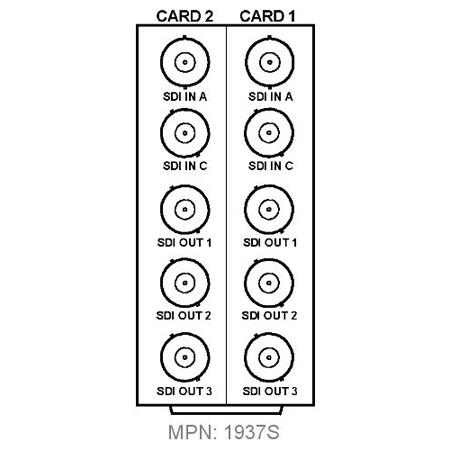

Cobalt Digital RM20-9902-2UDX-A/S 20-Slot Frame Rear I/O Module (Split supports 2 cards) (2) 3G/HD/SD-SDI Input BNC

RM20-9902-2UDX-A/S - Overview

• Features:

  • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p.
  • Multi-input, with manual selection or intelligent Auto-Changeover failover.
  • Closed-captioning absence detection and flagging, with GPO, automated alert email, go-to user preset, or other actions.
  • Auto-Changeover can be set to invoke failover for basic input loss. Quality Check option (+QC) provides failover on subjective criteria such as black/frozen frame. Threshold and hold-off are user configurable.
  • Moving-box/motion insertion enable serves as a dynamic raster confidence check even in cases where the input video image is static.
  • Low-power/high-density design - less than 18 Watts per card.
  • Up/Down/Cross Conversion with user and AFD, VI, and WSS ARC specifically tailored for broadcast video.
  • Supports import of user trouble slate graphic file for LOS failover insertion.
  • Frame Sync with full H/V offset and manual/LOS video pattern generator.
  • Dual independent burn-in text string insertion allows condition-based insertion (such as basic ID text for valid input and different text message for failover conditions).
  • Option +ANC adds full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, and other specialized user payloads.
  • Option +TTS provides Text-To-Speech synthesis, directly converting EAS text to high-quality digital audio speech with no baseband signal breakouts or add-on units.
  • Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs.
  • Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC, with output/burn-in timecode using selected format.
  • CVBS analog video I/O and analog/AES embed / de-embed available.
  • 3:2 pulldown optimization allows A-frame alignment correlated to received timecode or 6 Hz external input over GPI.
  • Audio options include loudness processing, upmixing, and Dolby decode/encode.
  • Video options include CGMS support, color correction, and keying.
  • Remote control/monitoring via DashboardT software or OGCP-9000 remote control panels.
  • Hot-swappable.
  • Five year warranty.


• Specifications:

  • Power
  • < 18 Watts

    SDI Input/Outputs
  • Up to (4) 75Ω BNC inputs
  • Up to (4) 75Ω BNC outputs (selectable as processed SDI IN or IN RCK)
  • SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
  • SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
  • SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
  • SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
  • Timing Jitter 3G/HD/SD: <2.0/1.0/0.2 UI
  • Minimum Latency (scaler and framesync disabled): SD: 127 pixels; 9.4 us, 720p: 330 pixels; 4.45 us, 1080i: 271 pixels; 3.65 us, 1080p: 361 pixels; 2.43 us

    CVBS Video Input/Outputs
  • (1) 75Ω BNC input
  • (1) 75Ω BNC output. CVBS can be upconverted to any supported SDI format; all SDI formats can be downconverted to CVBS
  • ADC resolution/sampling: 10-bit; 4x oversampling
  • DAC resolution/sampling: 10-bit; 16x oversampling
  • Y/C separation:4 line Adaptive Comb Filter
  • Freq.Response:± 0.25 dB to 5.5 MHz
  • SNR:>50 dB to 5.5 MHz (unweighted)
  • Differential Phase:<1 degree
  • Differential Gain:<1%
  • Nonlinearity:<1%

    Discrete Audio Input/Outputs
  • (1) AES-3id 75Ω BNC input
  • (1) AES-3id 75Ω BNC output
  • (2) Balanced analog audio inputs
  • (2) Balanced analog audio outputs
  • I/O conforms to 0 dBFS = +24 dBu

    Input Select/Auto-Changeover Failover
  • Manual selection (forced) of any input.
  • Failover to alternate input on loss of target input. Failover invoked upon LOS and/or (with option +QC) user configurable parametric criteria such as black/frozen frame or audio silence.
  • Black frame trigger configurable for black intensity threshold and persistence time.
  • Frozen frame trigger configurable for frozen percentage difference and persistence time.
  • Audio silence trigger configurable for dBFS floor threshold and persistence time.
  • Relay bypass SDI IN B to RLY BYP B upon loss of power.

    Timecode Insertion/Burn-In
  • Burn-in and embedded video output timecode selected via user controls from input video SMPTE embedded timecode and/or audio LTC. Burn-in enable/disable user controls. Configurable for burn-in string of seconds, seconds:frames, seconds:frames:field. User controls for text size and H/V position.

    Text Burn-In
  • (2) independent strings supported. Independent insertions controls for enable/disable and enable upon LOS. User controls for text size and H/V position.

    Frame Sync Audio/Video Delay
  • Max offset: 20 frames
  • Latency (min): 1 frame
  • Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec

    ARC
  • ARC manually configurable (custom) or automatic triggering in full compliance/conformity with AFD (SMPTE 2016), VI (RP186), and WSS triggering.

    User Audio Delay Offset from Video
  • Bulk delay control: -33 msec to +3000 msec.
  • Per-channel delay controls: -800 msec to +800 msec.

    GPIO/COMM
  • (2) GPI configurable to select input routing. (2) GPO configurable to invoke upon input selected.
  • RS-232/485 comm port. All connections via rear module RJ-45 GPIO/COMM jack.

    Frame Reference Input
  • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-L
