    DBP A5F - Overview

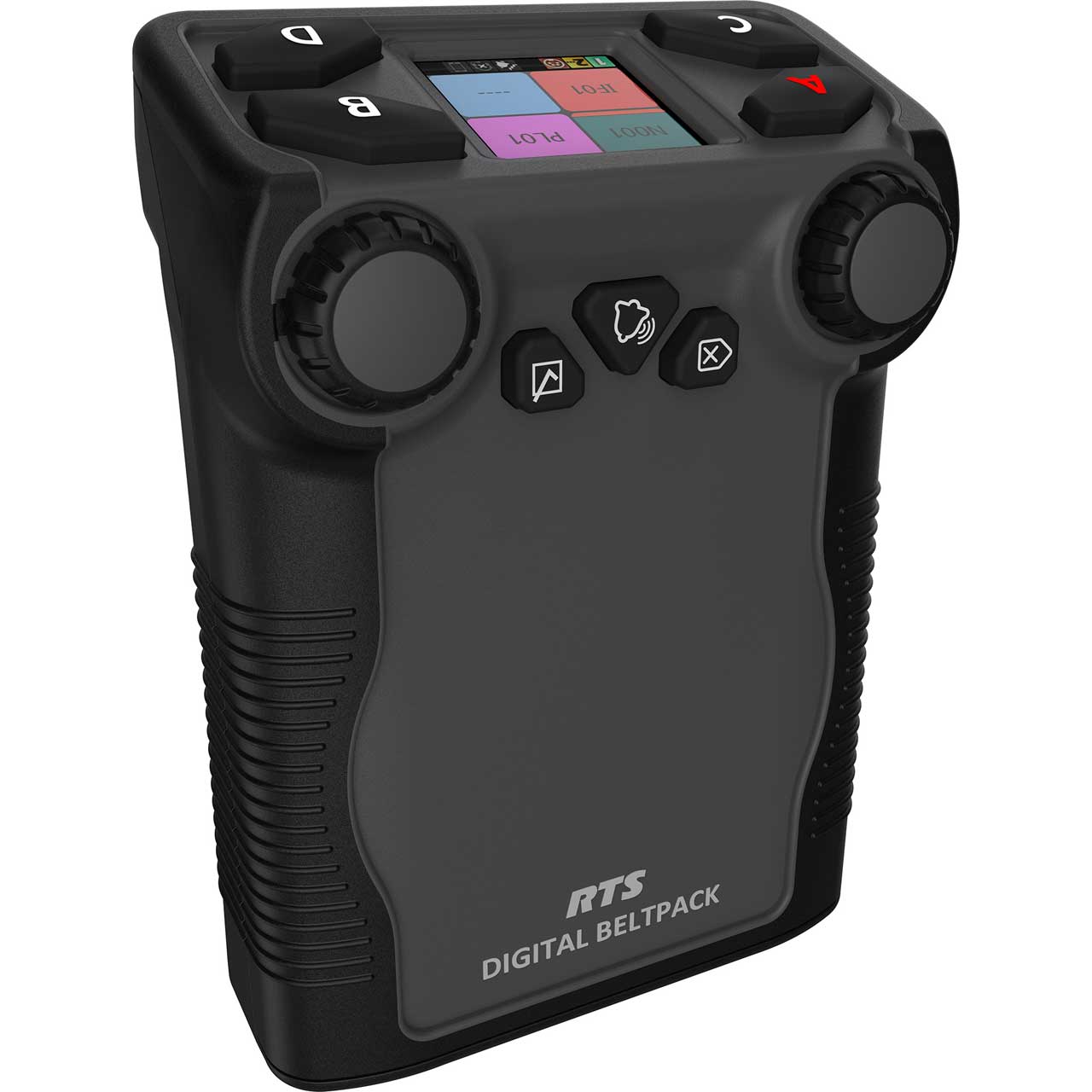

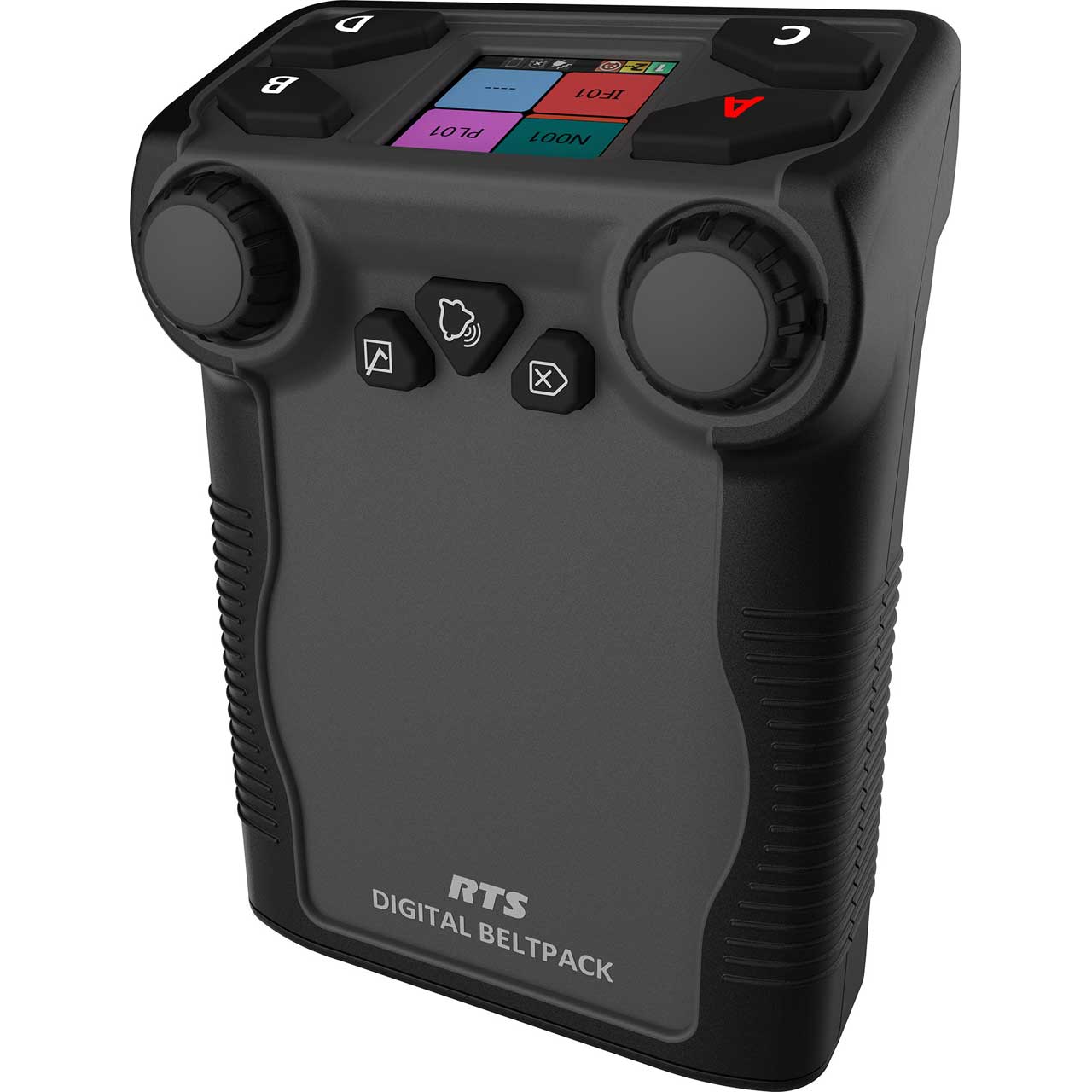

    The RTS DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO - including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

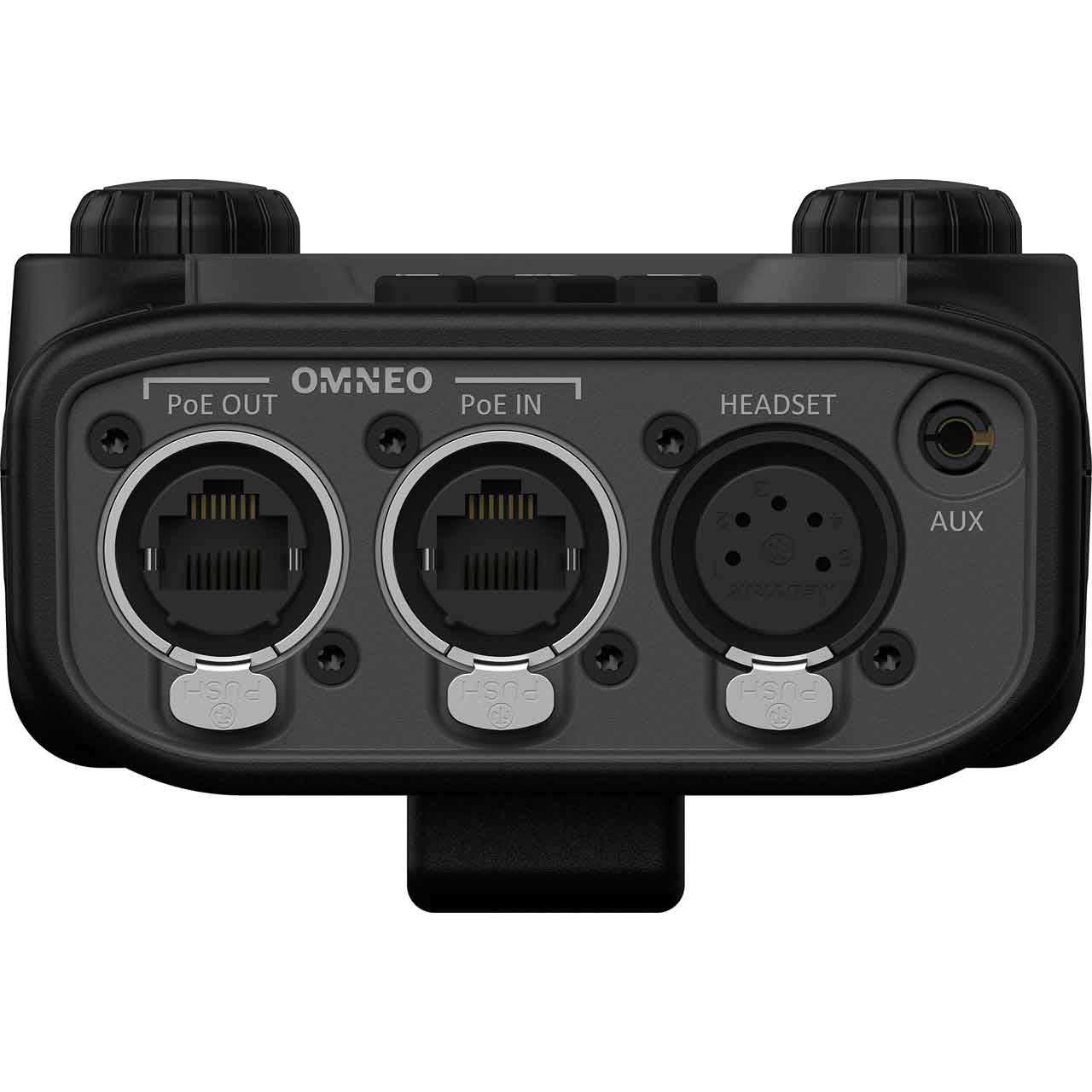

    DBP's PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system - all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.

    DBP is one device that can cover it all, whether the application is simple or sophisticated. It is ideal for new users or current partyline users looking to grow from analog systems into the superior sound quality and flexible connectivity of digital/IP communications, such as theaters, houses of worship, educational facilities, mobile applications and AV rental. Because it offers both digital partyline and matrix keypanel modes, DBP also offers excellent ROI for customers with existing RTS matrix intercom equipment. For example, users such as broadcast networks and industrial facilities can expand their comms inventory cost-effectively with digital partyline - all while continuing to leverage the scalability of their matrix equipment.

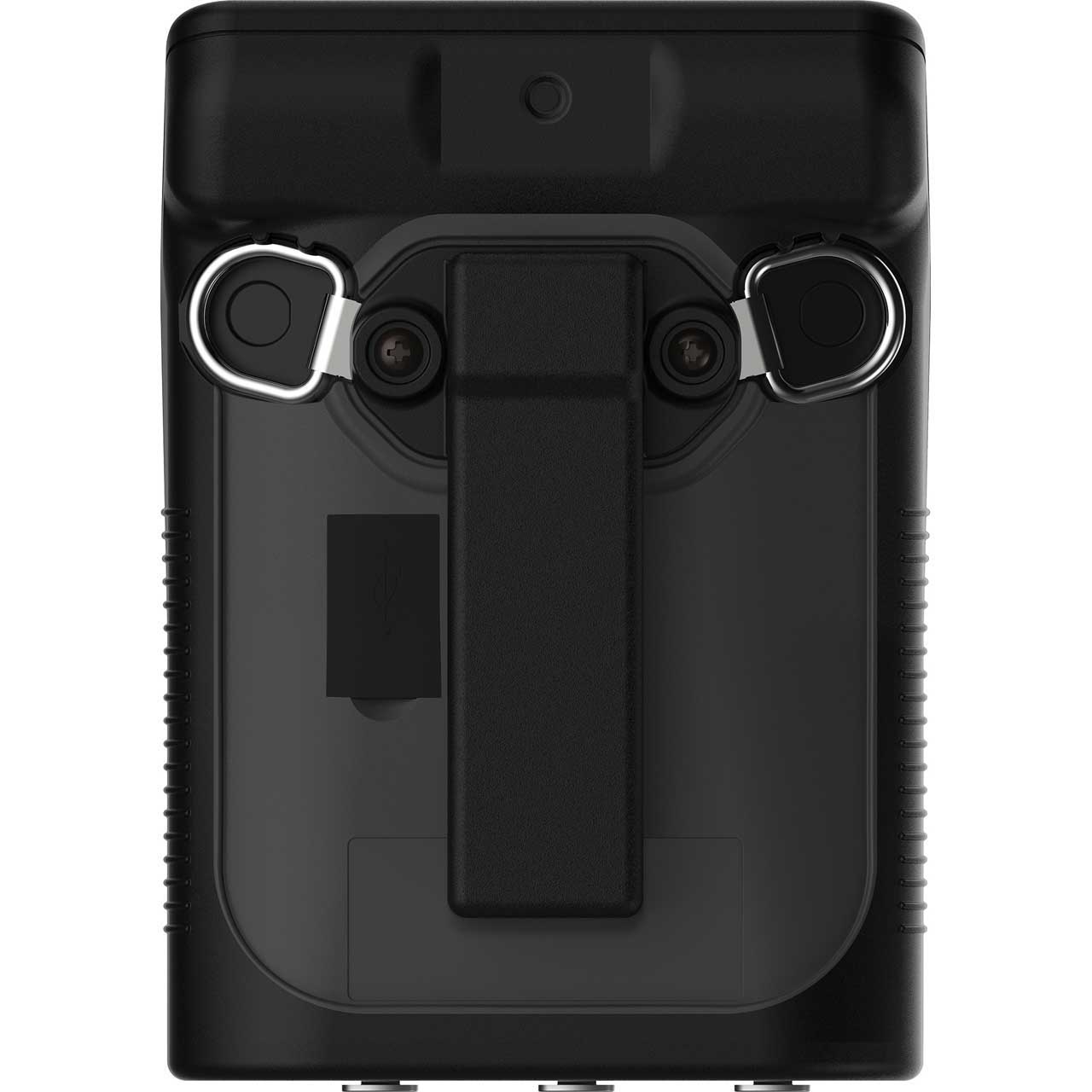

    Patent-pending design aesthetics make DBP comfortable and easy to use. Though lightweight and compact, the unit's robust construction ensures it is ready for the toughest working environments. DBP's over-molded ergonomic volume knobs and rubber enclosure detailing provide extra grip and drop resistance, and it is IP53 rated for protection against dust and water spray.

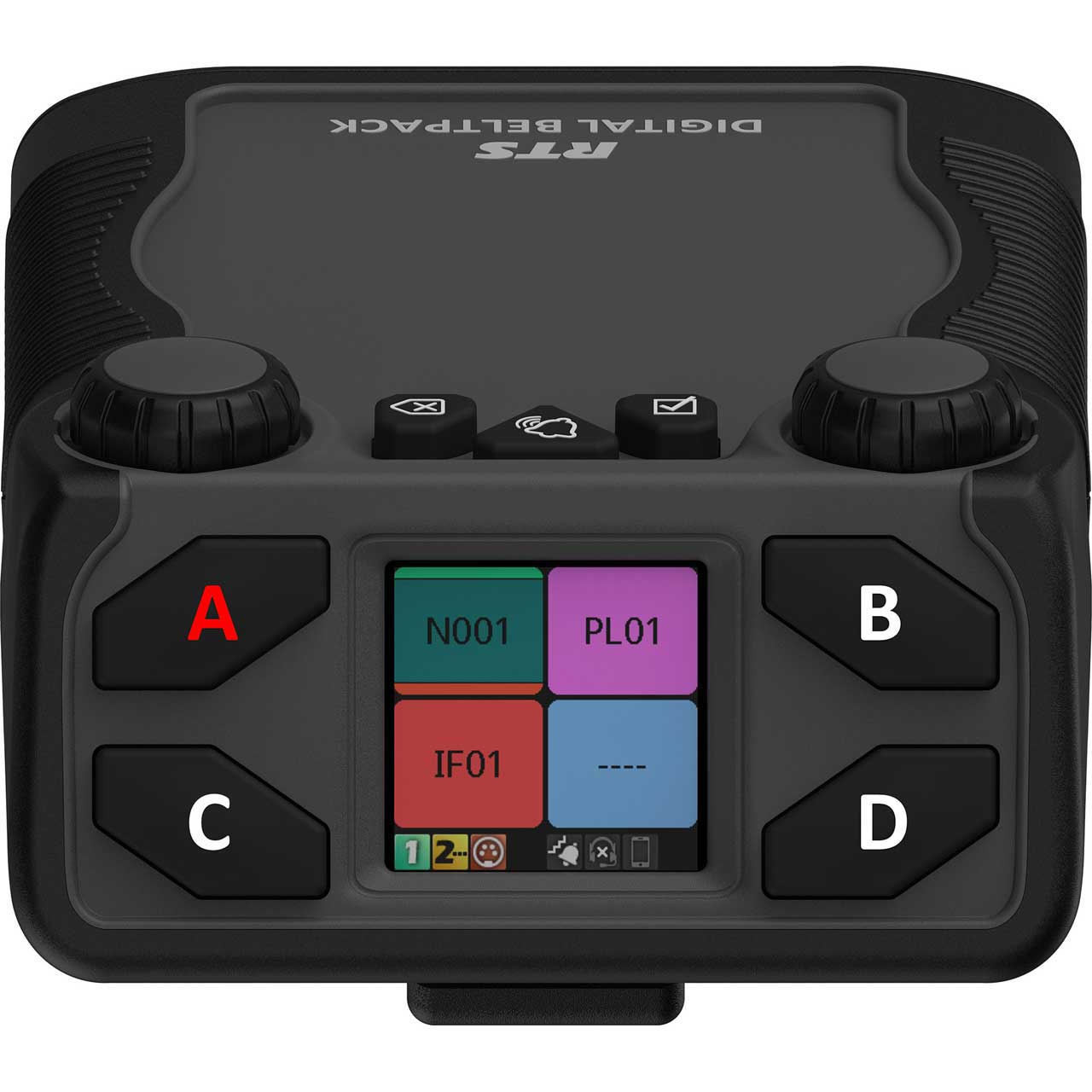

    While its control layout will be immediately familiar to partyline users, DBP offers a user experience that will exceed expectations. Its intuitive icon-based menu navigation system is presented via a full-color, sunlight-readable TFT display with anti-reflective lens, making configuration quick yet precise for users of all levels, in any light conditions. TALK and LISTEN capability for up to four simultaneously active partylines (i.e. access to a pool of up to 16 partylines) is controlled via four large backlit channel buttons, which can also be assigned for dedicated resources such as relay control.

    Please Note: The DBP-A5F is the Digital Partyline Beltpack with a 5-pin Female Connector

    • Features:

      • Hybrid functionality
      • Daisy chaining
      • User friendly
    • Specifications:

      • Power Supply:
      • DC PoE: 802.3af / 802.3at
      • Maximum Power Consumption: 4.0W (PoE DC Input)

      • Operating Temperature: -4° F to 113° F (-20° C to 45° C) 5% to 90% relative humidity
      • Storage Temperature: -4° F to 158° F (-20° C to 70° C) 15% to 90% relative humidity

      • 5.51 in. (140mm) L x 3.94 in. (100mm) W x 2.64 in. (67mm) D

      • DBP: 0.75 lbs (340 g)

        Microphone Pre-Amplifier:
      • XLR Input:
      • Electret Mic Input: -42.5 dBu Nominal
      • Dynamic Mic Input: -50 dBu Nominal
      • Frequency Response (LEC Disabled): 120 Hz to 20 kHz
      • Frequency Response (LEC Enabled): 120 Hz to 7.4 kHz

        3.5mm Input:
      • Electret Mic Input: -42.5 dBu Nominal
      • Frequency Response (LEC Disabled): 120 Hz to 20 kHz
      • Frequency Response (LEC Enabled): 120 Hz to 7.4 kHz

        Bluetooth Input:
      • Frequency Response (LEC Disabled): 70 Hz to 3.4 kHz

        Headphone Amplifier:
      • XLR Headphone Repsonse (150 Ohm load): 30 Hz to 19 kHz
      • 3.5 mm Headphone Repsonse (32 Ohm load): 50 Hz to 19 kHz
      • Bluetooth Headphone Response: 30 Hz to 3.4 kHz

        Aux In
      • Nominal Input: -4.3 dBu
      • Frequency Response (600 Ohm load): 50 Hz to 20 kHz

        Aux Out
      • Nominal Output: 2.2 dBu
      • Frequency Response (600 Ohm load): 25 Hz to 20 kHz

        OMNEO Ports (PoE In and PoE Out)
      • Maximum Capacity: 2 Full-duplex ports
      • Copper Connector Type: RJ-45
      • Format: IEEE 802.3 compliant
      • Copper Ethernet Speed: 100/1000 Mbps

      • Bluetooth Version: 4.0
      • Approved Dongles: IO Gear GBU522, LM Technologies LM506
      • Range: 15 ft (5 m)
      • Audio Codec: SBC

        TFT Display
      • Active Area: 27.72 mm (wide) x 27.72 mm (high)
      • Dot Resolution: 240 x 240 pixels
      • Color Resolution: 16-bit (64K) RGB color
      • View Angle: 80° (typical, all directions)
      • Protective Lens: Anti-Glare / Anti-Reflective
      • Approvals: CE Compliant, UL Certified
    • Item Includes:

      • 1x DBP-A5F Beltpack (5-pin Female Connector)
