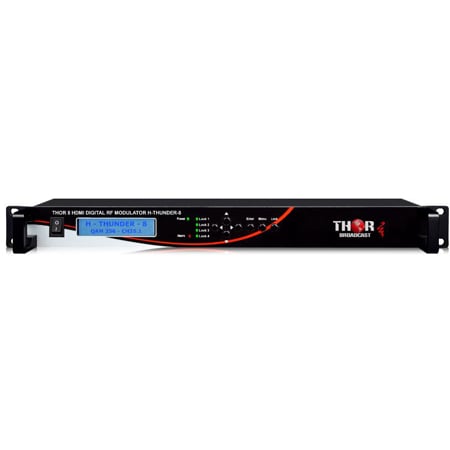

Thor H-THUNDER-8 Eight HDMI Digital RF Encoder Modulator - Full HD up to 1080P - 1RU

ITEM #: THR-H-THUNDER-8 MFG #: H-THUNDER-8

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,098.80

Our Price:

$4,249.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    H-THUNDER-8 - Overview

    HDCP compliant!

    The THOR H-THUNDER-8 is a HDMI Digital RF Encoder Modulator for Full HD up to 1080P that supports 8 HDMI inputs. The signal source can be from any STB, satellite receiver, closed-circuit television camera or antenna source and the output signal is designed to work with any TV or STB. It comes standard with multiple RF modulation standards built in to assure this device can work anywhere in the world in a plug and play format.

    This unit is similar to Thor's popular H-1, 2 and 4 HDMI-QAM-IPLL product line, but it has some differences. It's less expensive and each program is modulated on its own frequency and has a CATV RF output only, no IPTV output.

    • Features:

      • 8 HDMI Inputs
      • HDCP compliant! Works with any HDMI source like DVD Players or Cable, Satellite STBs up to 1080p/60 resolution
      • MPEG2 Video Encoding
      • 1080p/60, 1080i, 720p, 576i, 480i Video Resolution
      • Low Latency (50~100ms)
      • MPEG layer 2, AAC, and DD AC3 Audio Encoding
      • CC (Closed Caption), EIA 608
      • LCN
      • DVB-C DIGITAL QAM, ATSC, DVB-T, ISDB-T RF in one device
      • Modulation dynamic switching
      • Control Via Web-Based NMS with easy updates Via Web
      • LCD Display and front panel control

    • Specifications:

      • Input: 8x HDMI Inputs and/or 8 x HD/SD-3G SDI Inputs
      • Supported Resolutions: 480i - 1280x720P 60 / 59.94 / 50 Hz - 1920x1080I 60 / 59.94 / 50 Hz - 1920x1080P 60 / 59.94 / 50 Hz
      • Video Codecs: MPEG-2 HD: 1.5 - 24 Mbps
      • Audio Codecs: MPEG1 Layer 2 Encoding/AAC Encoding/AC3 Dolby Encoding
      • Audio Sample Rate: 48 kHz
      • Audio Bit Rates: 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
      • Modulation Standard:
        1) DVB - C QAM - J.83B, J.83B, QAM 64/256, (US Cable)
        2) DVB - C QAM - J.83A, QAM 16/32/64/128/256, (European Cable)
        3) ATSC - Constellation 8VSB ( US Off Air TV)
        4) DVB-T ( European Off Air TV)
        5) ISDB-T ( Latin America Off Air TV)
      • RF Frequency Range: 50 Mhz to 950 MHz 1 KHz Step
      • RF Power Level: 5 - 35 dBmV Adjustable
      • SDI Input: 8 x BNC Connector, support SD-SDI, HD-SDI and 3G SDI Input
      • HDMI Input: 8 x HDMI Input connector - HDCP compliant, 480i, 720p, 1080i, 1080p input resolution
      • Cables Included: 8 HDMI/SDI Cables & Power Cord
      • Power Input: 100-240 VAC Auto Switching ~ 20 W
      • Operating Temperature: 32-110 F

    • Warranty:

      • 2 Year Warranty
