Theatrixx XVVRM-HDMIDA Reversible Module - HDMI2.0 DA 1:4

ITEM #: TTX-XVVRM-HDMIDA MFG #: XVVRM-HDMIDA

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$415.00

Our Price:

$324.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XVVRM-HDMIDA - Overview

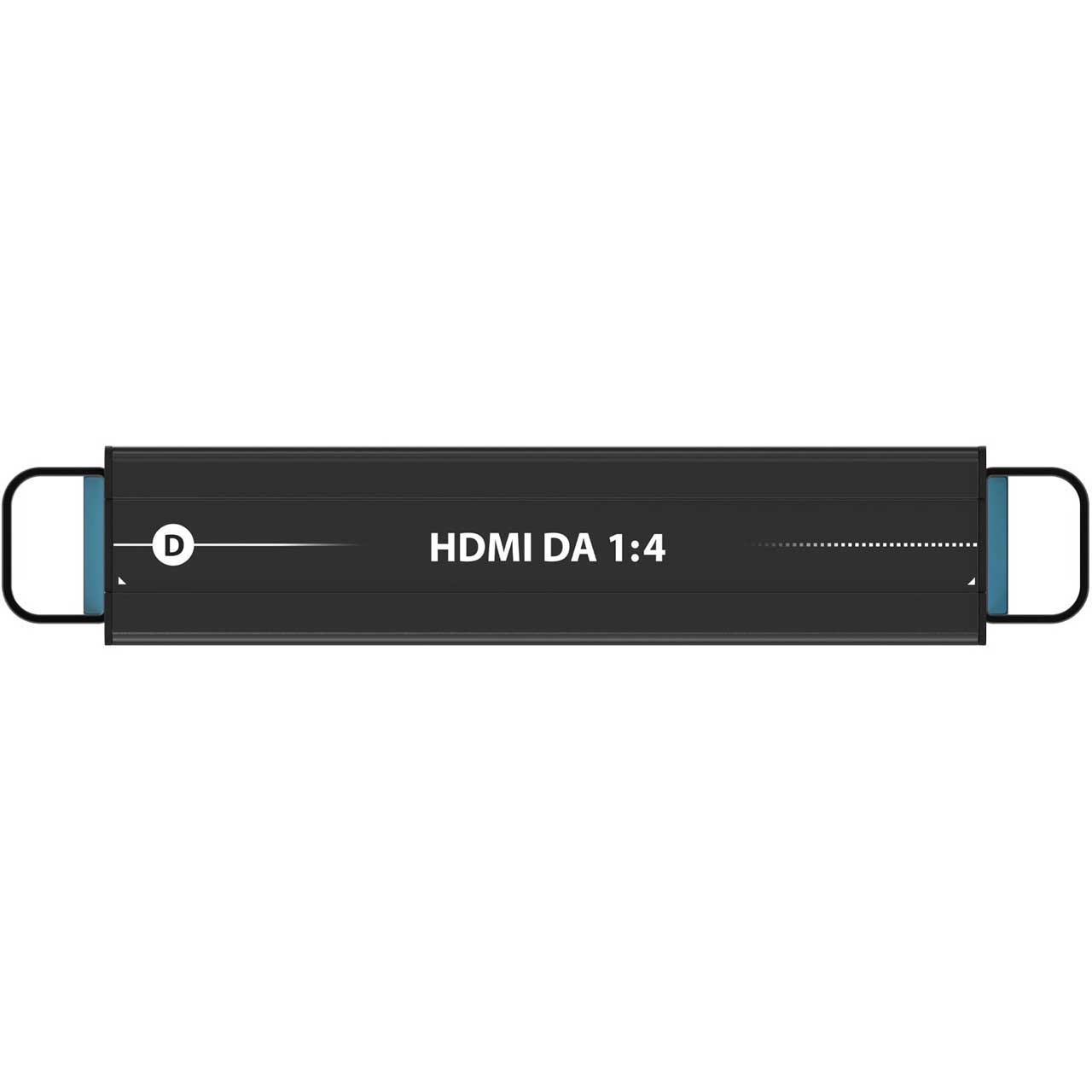

    The Theatrixx XVVRM-HDMIDA is an HDMI Distribution Amplifier 1:4 Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

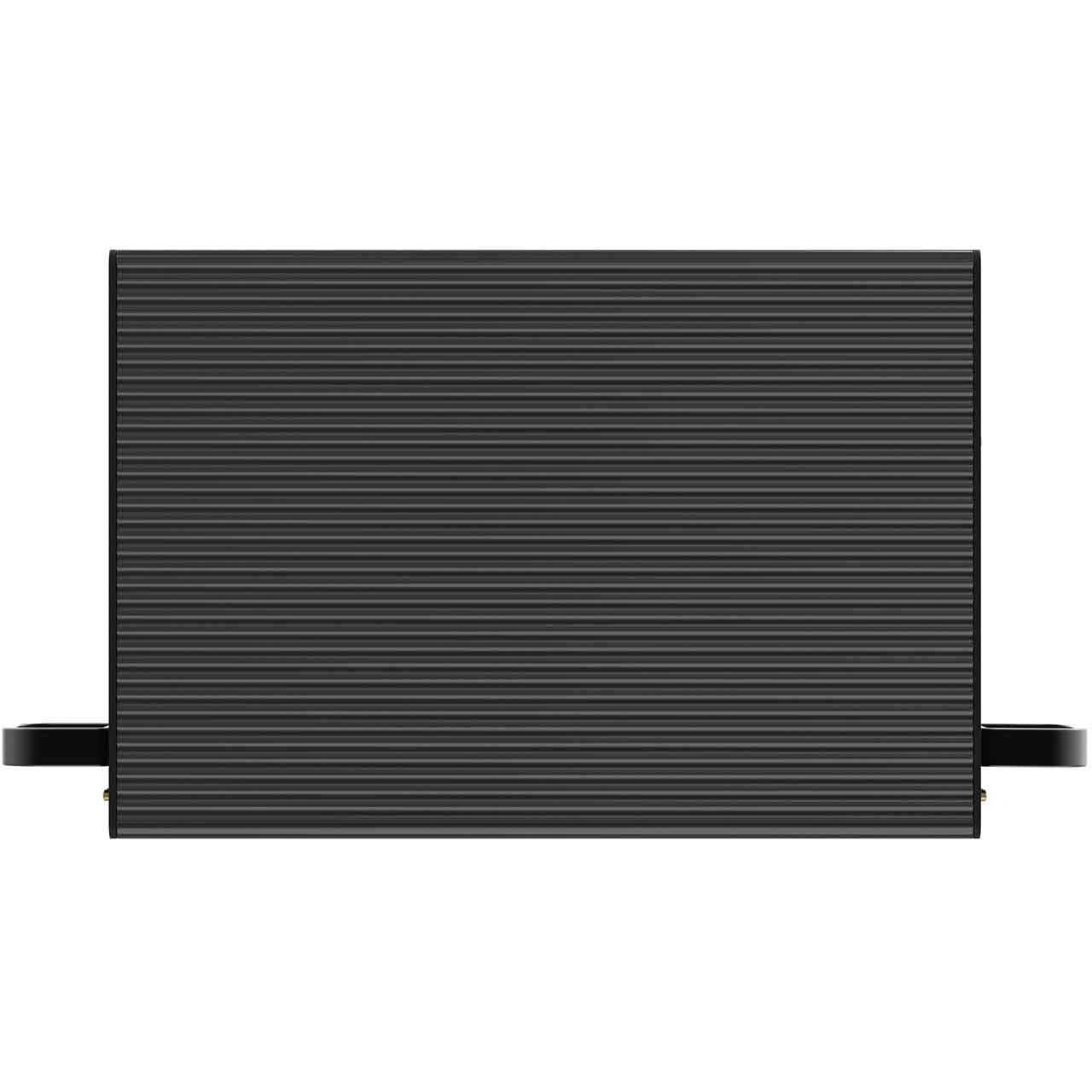

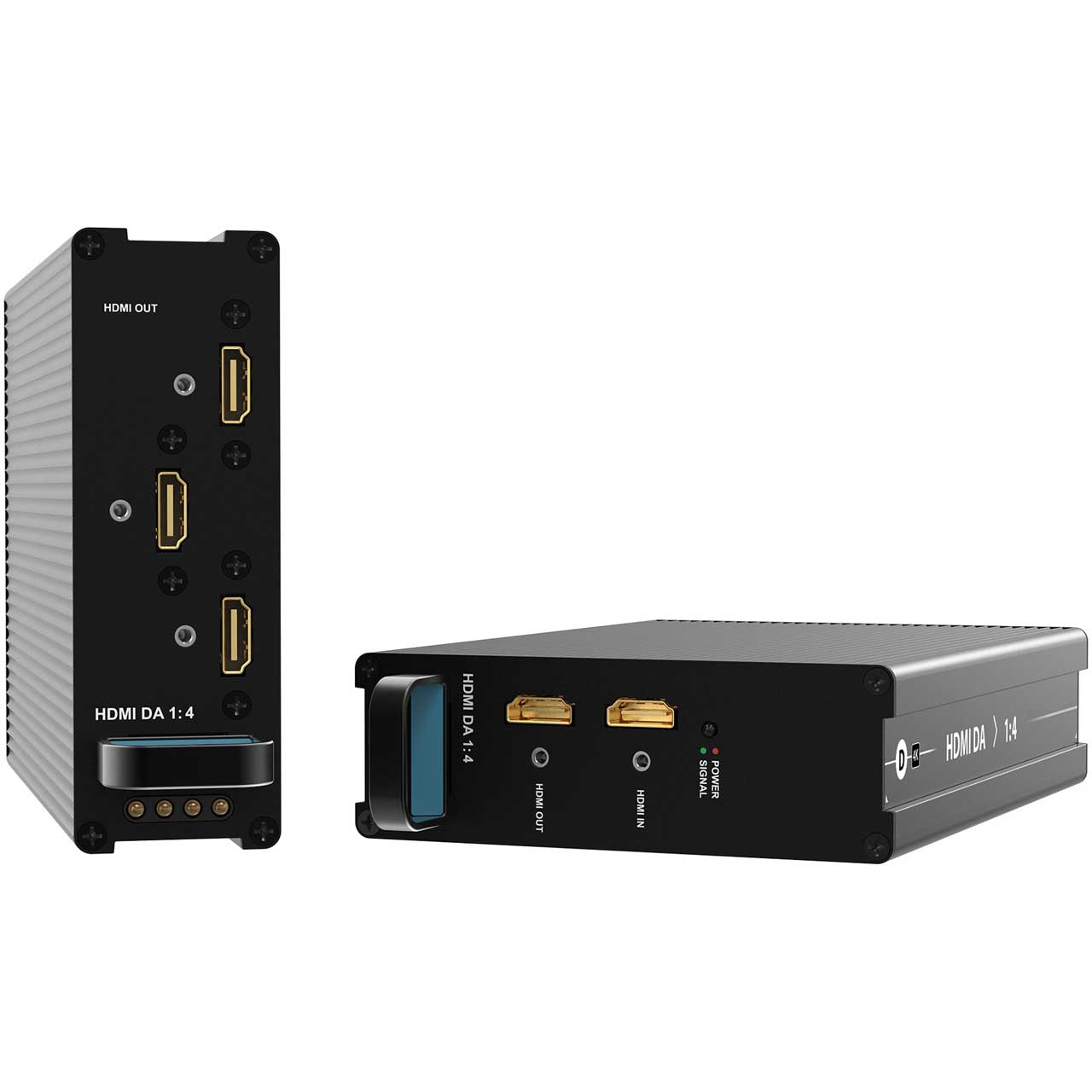

    The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections
      • Video Input: 1x HDMI 2.0 type A with locking system

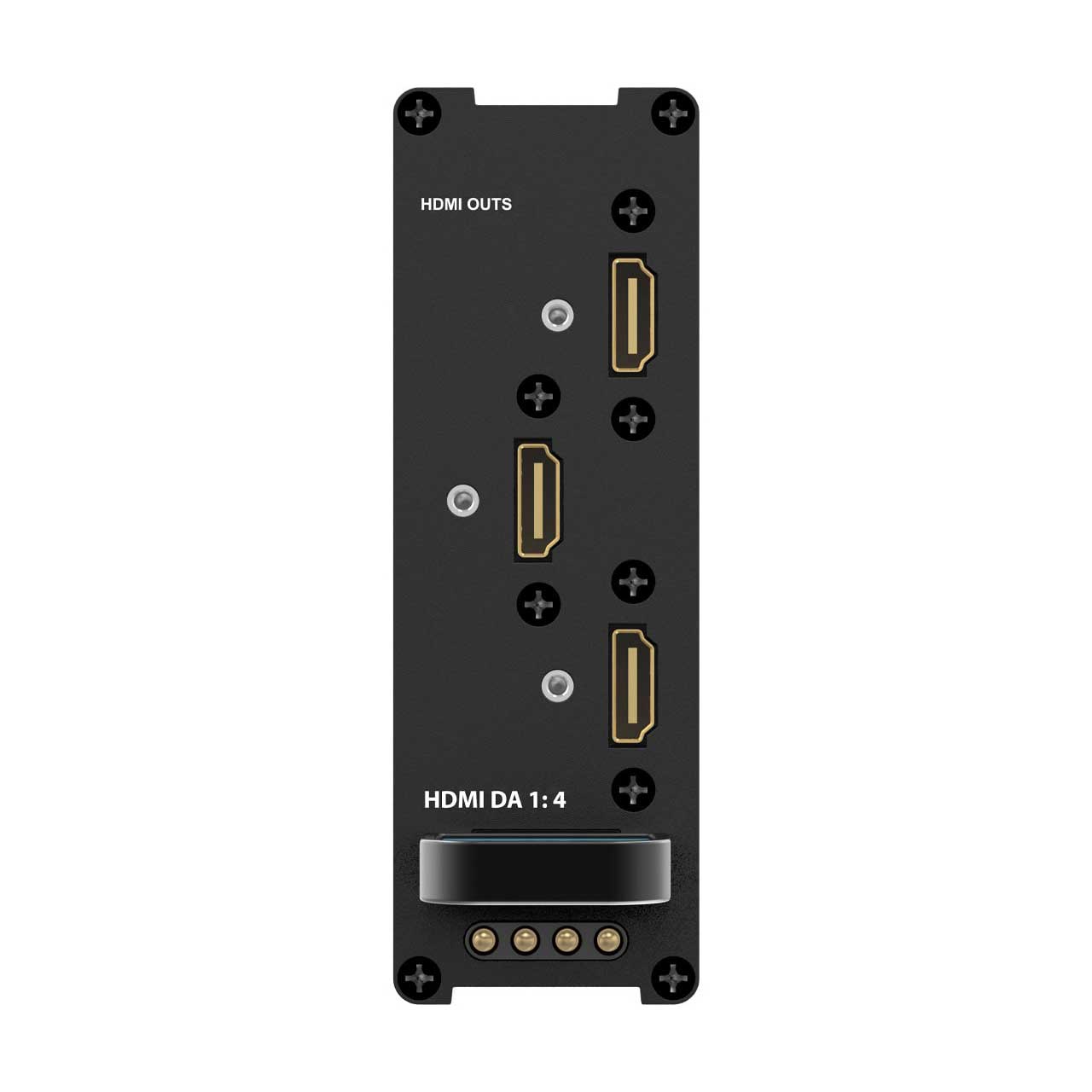

      • Video Output: 4x HDMI 2.0 type A with locking system (Individual downscaling per port)

        Supported Signals
      • Video Format Support:
        HDR 4K/2K @ 60 fps (4:2:0 10 bits)
        4K/2K @ 60 fps (4:4:4 8 bits)
      • HDCP Compliance: HDCP 2.2/1.4
      • Video Bandwidth: Single-link 600 MHz (18 Gbps)
      • Embedded Audio: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM

        Physical
      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module HDMI Distribution Amplifier 1:4
