VigilLink VLSP-18CTH20 1x8 18Gbps HDMI 2.0 4K2K Distribution Amplifier over CAT6/6a/7 - 196 Foot/60m

VLSP-18CTH20 - Overview

• Features:

  • HDMI 2.0, HDCP 2.2 / 1.x, and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K @ 50/60Hz 4:4:4
  • Supports 3D, HDR, HDR10+, HLG, and Dolby vision
  • Supports up to 7.1CH HD audio pass-through
  • Supports digital and analog audio de-embedded output
  • Extends the signal transmission distance up to 35 meters at the resolution of 4K2K @ 60Hz, 50 meters at 4K2K @ 30Hz, 60 meters at 1080p @ 60Hz via a single CAT6/6a/7 cable
  • Supports 1 HDMI input, 1 HDMI loop output, and 8 CAT outputs.
  • Supports one-way IR control signal pass-through
  • Advanced EDID management
  • Supports one-way POC function (only from transmitter to receiver)
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: Up to 4k2k @ 50/60Hz 4:4:4
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
    - 8-bit, 10-bit, 12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
    - 8-bit (4K2K @ 60Hz YUV 4:4:4)
  • Color Space: RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
  • HDR: Support HDR10, HDR10+, HLG, Dolby vision
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Coaxial Audio Formats: LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH
  • Analog Audio Formats: PCM 2.0CH
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

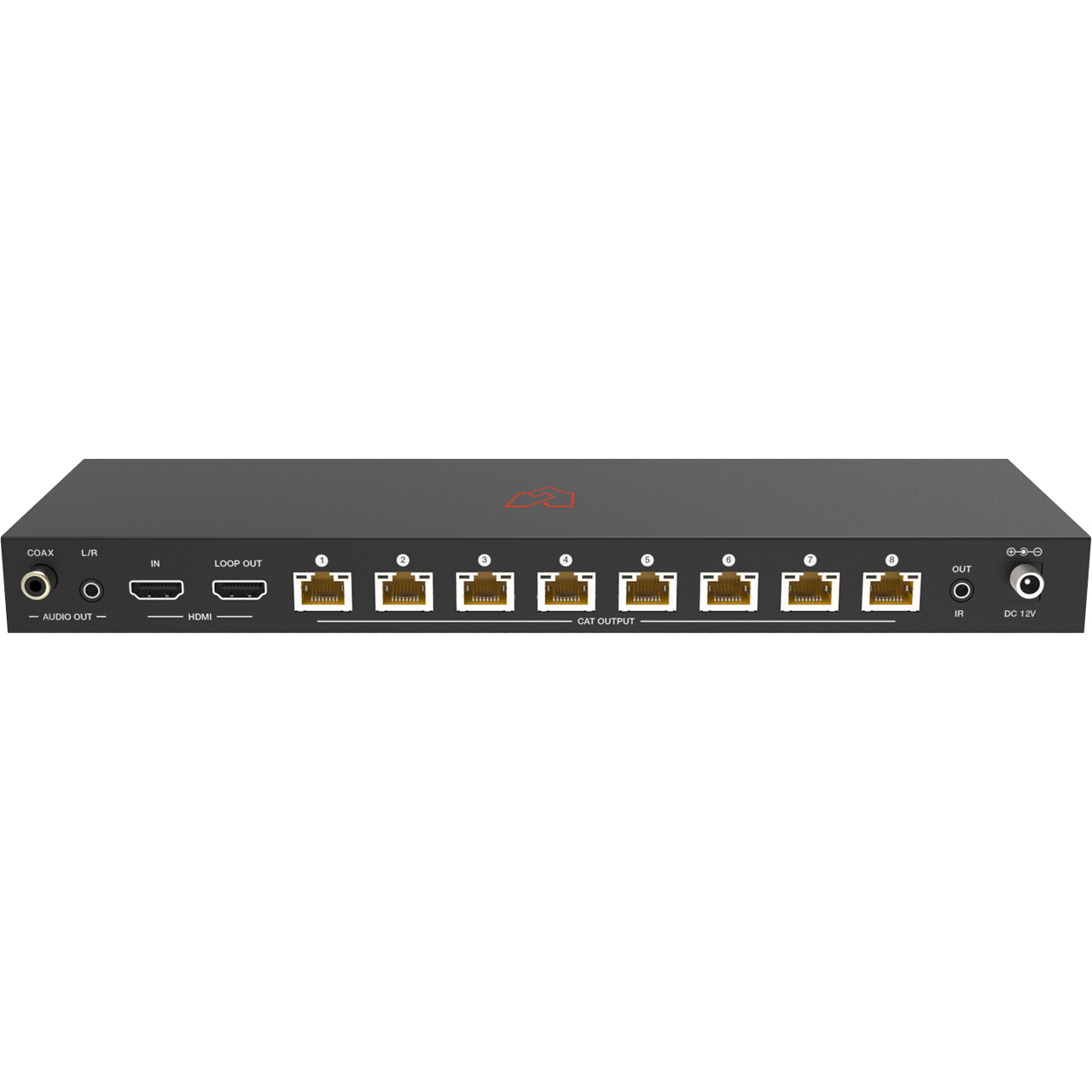

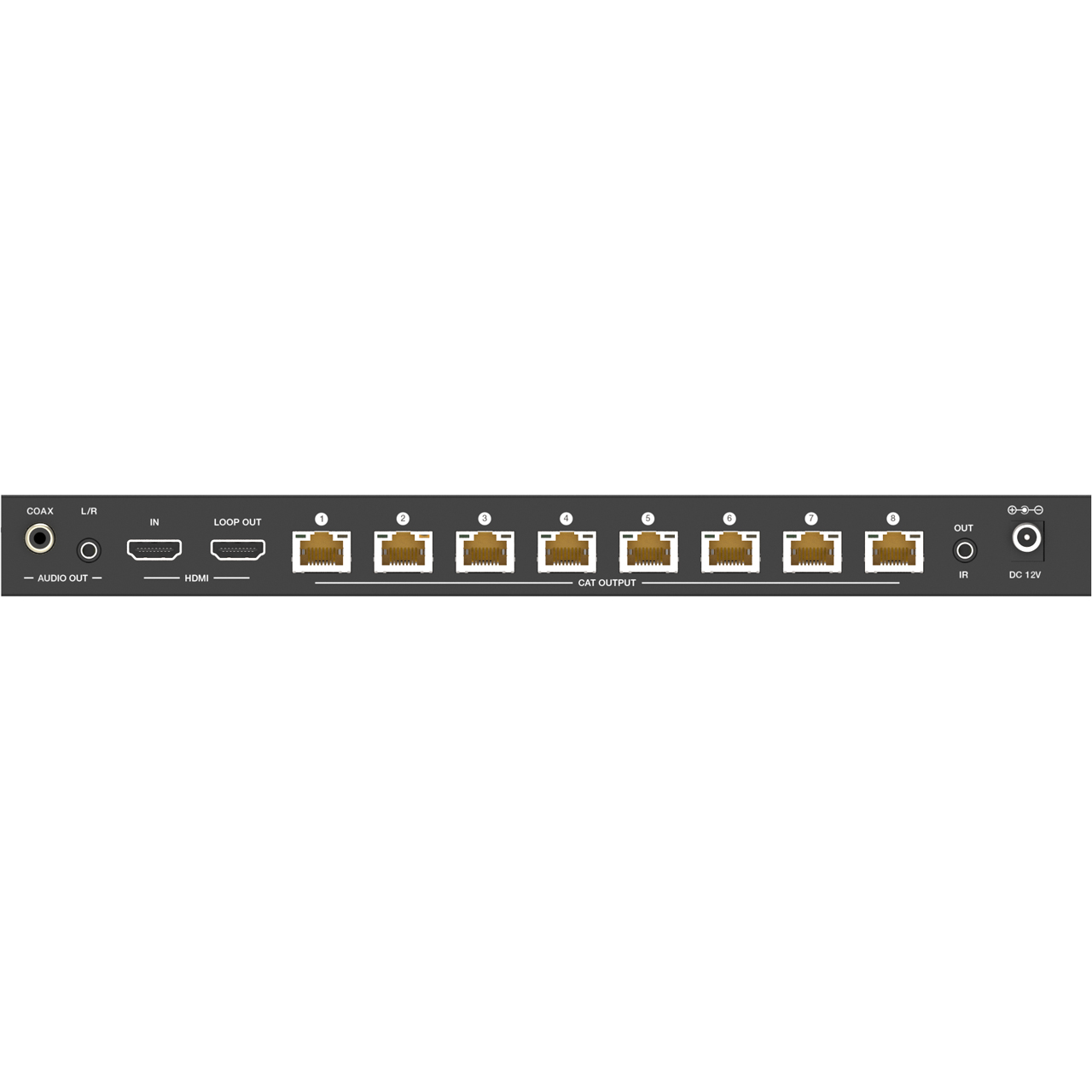

    Connections
  • Input: 1x HDMI Type A (19-pin female)
  • Output:
    - 1x HDMI LOOP OUT (Type A, 19-pin female)
    - 8x CAT OUTPUT (RJ45, 8-pin female)
    - 1x COAX AUDIO OUT (RCA)
    - 1x L/R AUDIO OUT (3.5mm Stereo Mini-jack)
  • Control:
    - 1x SERVICE (Micro USB, Update port)
    - 1x EDID DIAL switch (5-pin)
    - 1x IR OUT (3.5mm Stereo Mini-jack)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions:
    - Transmitter: 6.89" x 3.94" x 0.98" (175mm x 100mm x 25mm)
    - Receiver: 3.46" x 2.40" x 0.71" (88mm x 61mm x 18mm)
  • Weight:
    - Transmitter: 1.81lbs (823g)
    - Receiver: 0.34lbs (155g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/1A (US/EU standards, CE/FCC/RoHs certificated)
  • Power Consumption: 8.28W (max.)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

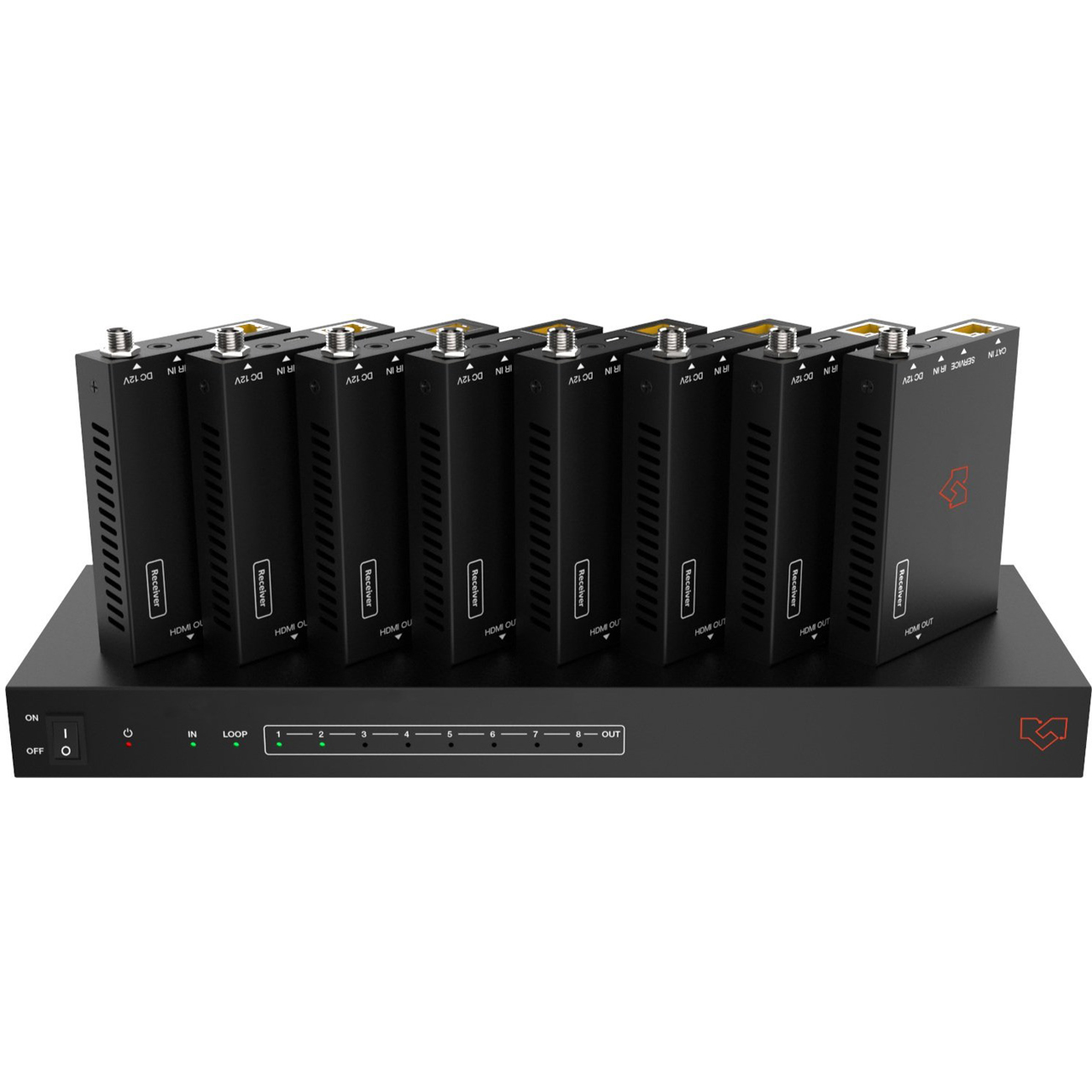

• Item Includes:

  • 1x 18Gbps 1x8 HDMI Splitter over 60m CAT
  • 8x CAT Receiver
  • 1x IR Blaster Cable (1.5 meters)
  • 8x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 1x 12V/2.5A DC Locking Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
