Wohler RM-4210W-3G2 Dual 10.0 Inch Widescreen LCD Video Monitor Dual Input 3G/HD/SD-SDI Composite and HDMI IN/OUT 4RU

ITEM #: WOH-RM-4210W-3G2 MFG #: RM-4210W-3G2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WOH-RM-4210W-3G2

RM-4210W-3G2 - Overview

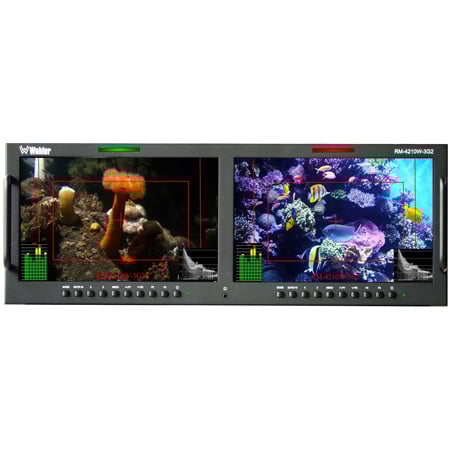

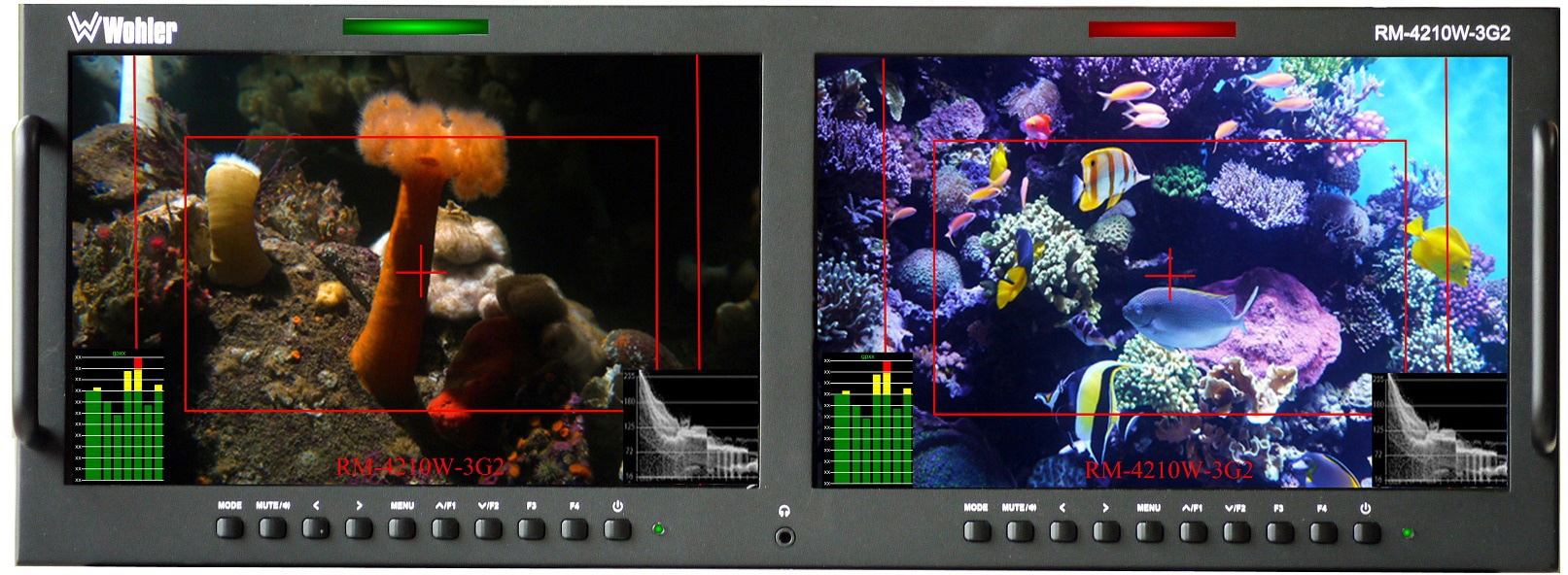

The RM-4210W-3G2 is a full-featured slim, in-rack video monitor ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These tilting monitors come standard with in-monitor level metering, selectable video waveform/vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and assistive video features such as zoom controls and focus assist.

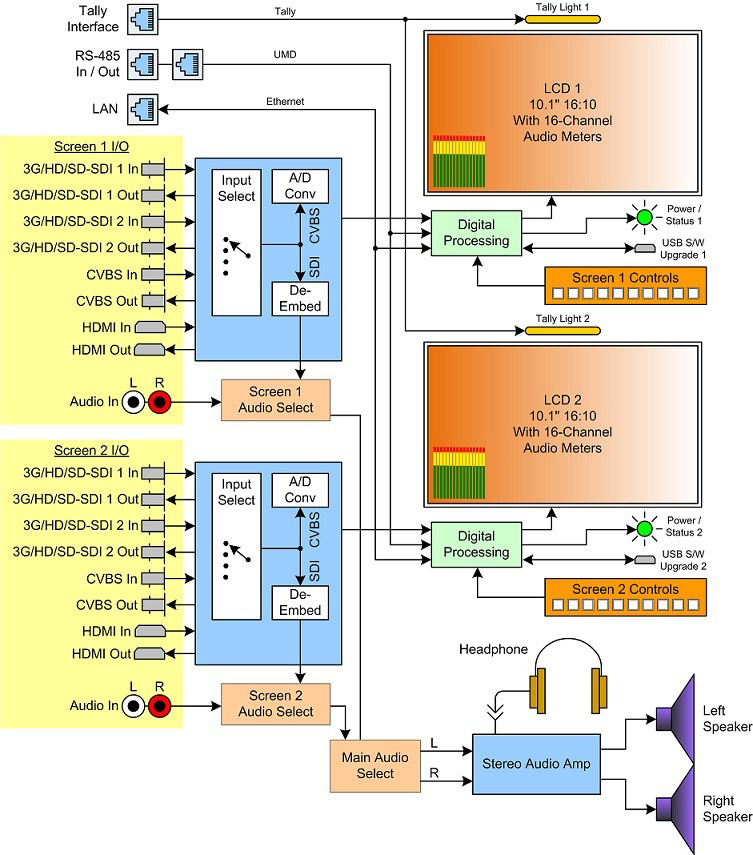

All standard frame rates and resolutions are supported from 3G-SDI, HDMI or Analog input sources and each input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers to the rear of the unit allow the selected screen to be audibly monitored, while a 3.5mm headphone socket provides optional private monitoring.

Each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Parameters are selected and adjusted using an on-screen display menu.

  • Features:

    • On-screen level meters up to 16 channels provide confidence audio monitoring
    • Tally and on-screen labeling provide quick and easy signal identification
    • Image controls allow video image enhancement for each screen, individually
    • On-screen video waveform, vectorscope and histogram displays
    • Ratio and Safe Area markers
    • Built-in color bars
    • Intuitive on-screen menu
    • Headphone output
    • Client/Server GUI network control, ideal for configuring difficult to reach wall-mounted monitors
  • Specifications:

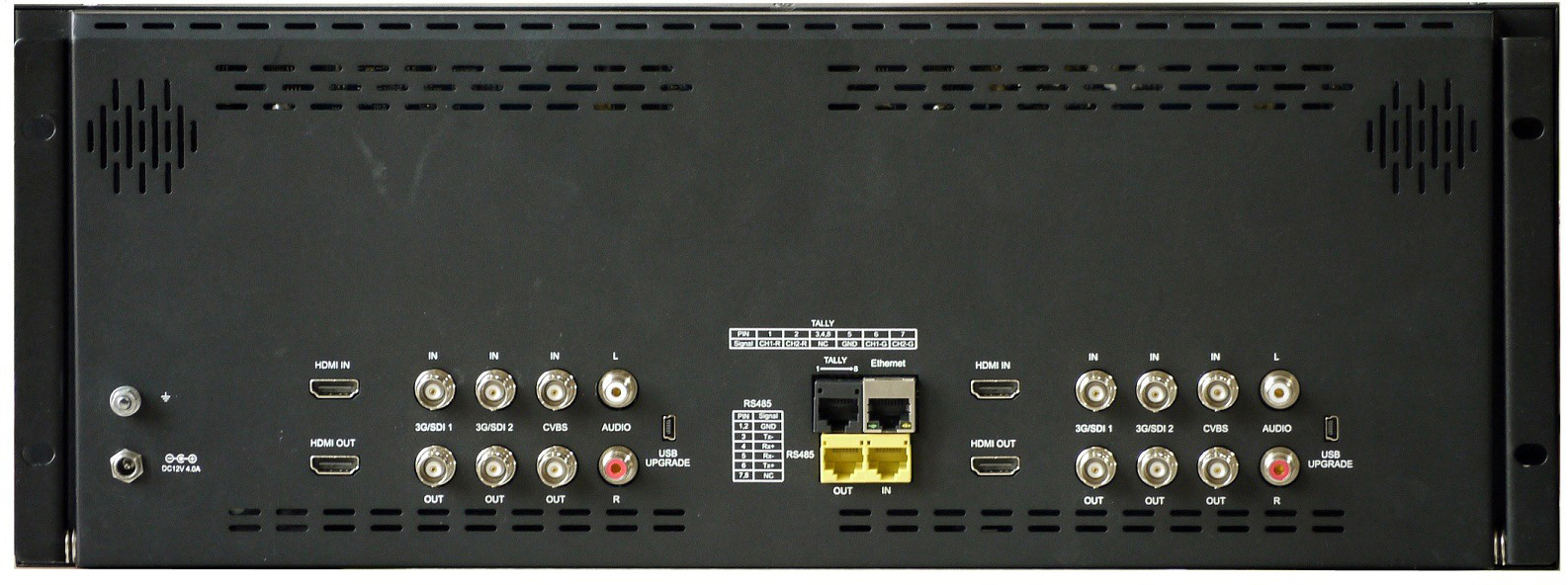

    • Signal I/O
    • 3G/HD/SD-SDI Input: 2 x auto-sensing 3G/HD/SD-SDI (per screen)
    • 3G/HD/SD-SDI Output: 2 x looped 3G/HD/SD-SDI (per screen)
    • Analog Input: 2 Analog Audio Inputs on RCA (per screen)
    • HDMI Input: 1 x HDMI on type A (per screen)
    • CVBS Input: 1 CVBS Video Inputs on BNC (per screen)
    • CVBS Output: 1 x looped CVBS on BNC (per screen)
    • Data Ports: 2 x RS485 (IMD) on RJ-45; 1 x RJ-45 (tally); 1 USB S/W Upgrade per screen

    • Analog Input Impedance: 52 kOhms
    • Meter Dynamics: VU
    • Meter Scale: VU
    • Power Output: 5 Watts

    • Color Depth: 16.7M
    • Contrast: 800:1
    • Diagonal Display Size: 10.1 Inch
    • Display Modes: LCD
    • Display Resolution (HxV): 1920 (H) x 1200(V)
    • Display Type: IPS-LCD with LED Backlight
    • Luminance: 320 cd/m²
    • Native Aspect: 16:9
    • Number of screens: 2
    • Pixel Response: 25 ms, typical
    • Viewing Angle: 170 (H) x 170 (V)

    • Front Panel Controls: Signal Select; Mute; OSD Menu Controls; F1-F4, Power
    • Remote User Interface: Yes
    • Headphone Jack: Yes
    • Ethernet GbE: Yes
    • USB Port: Yes, for upgrades

    • Rack Height: 4RU
    • Dimensions (W x H x D): 19" x 7" x 1.7" (484 mm x 176 mm x 43 mm)
    • Speakers: Yes
    • Net Weight: 6.0 lbs (2.7 kg)
    • Shipping Weight: 8.0 lbs (3.6 kg)
    • Power Consumption: 35 Watts
    • Power Supply: External 120V to 240 VAC +- 10%, CE & UL approved
