Theatrixx XVV-SDIDA-TRUE1 xVision Video Converter SDI DA- Powercon True1 In/Thru
  • Theatrixx XVV-SDIDA-TRUE1 xVision Video Converter SDI DA- Powercon True1 In/Thru
  • Theatrixx XVV-SDIDA-TRUE1 xVision Video Converter SDI DA- Powercon True1 In/Thru
  • Theatrixx XVV-SDIDA-TRUE1 xVision Video Converter SDI DA- Powercon True1 In/Thru

Questions? Ask a Markertek Expert:
800-522-2025 Email

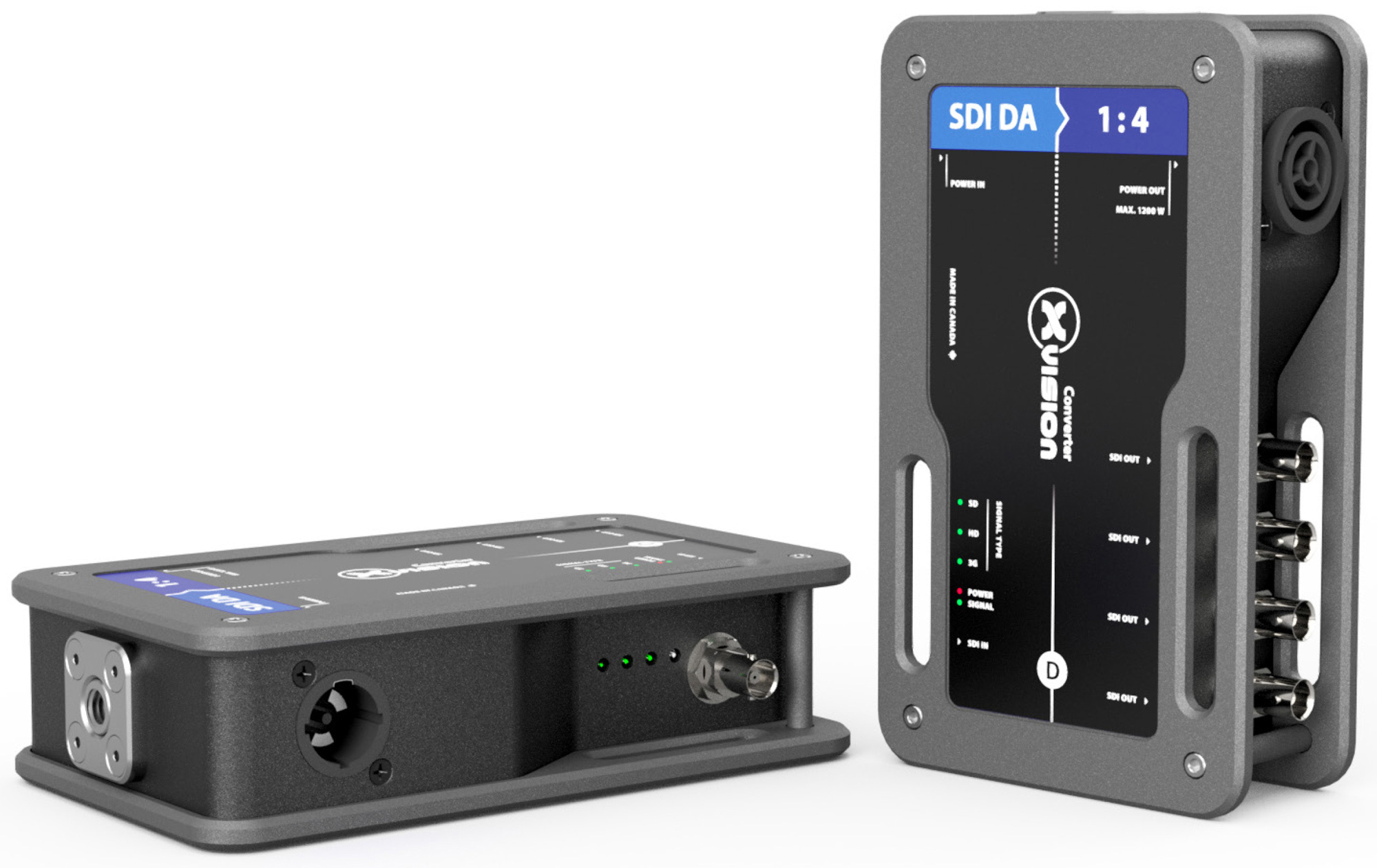

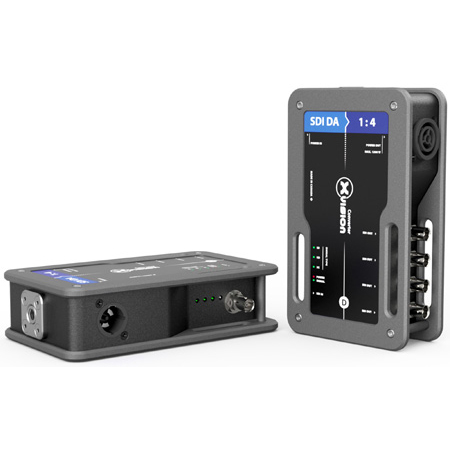

Theatrixx XVV-SDIDA-TRUE1 xVision Video Converter SDI DA- Powercon True1 In/Thru

Item #: XVV-SDIDA-TRUE1   •   MFG #: XVV-SDIDA-TRUE1



List Price:$816.00
Our Price:$510.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Professional equipment in mission-critical applications is all about reliability and confidence. Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. They wanted to change that, so they designed the xVision Video Converters.


    • Features

      • Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector. Power bar to power both the converter and device not required anymore.

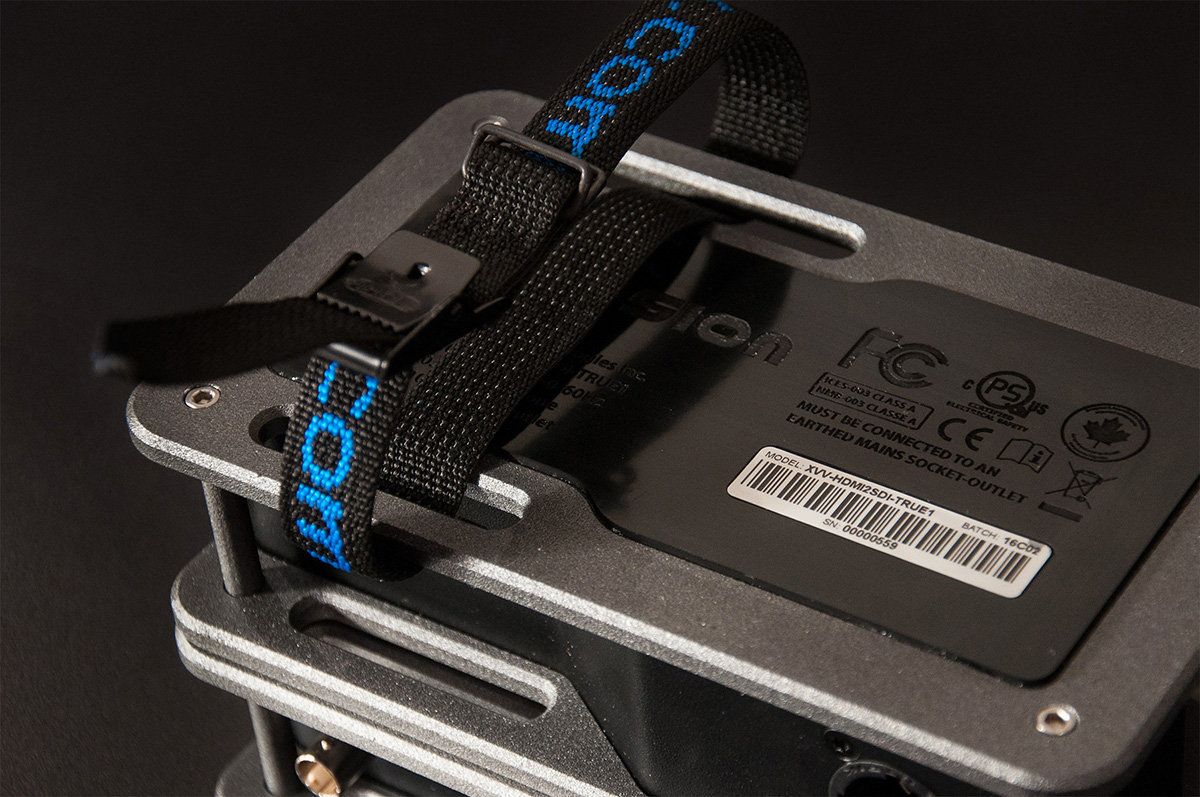

      • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.

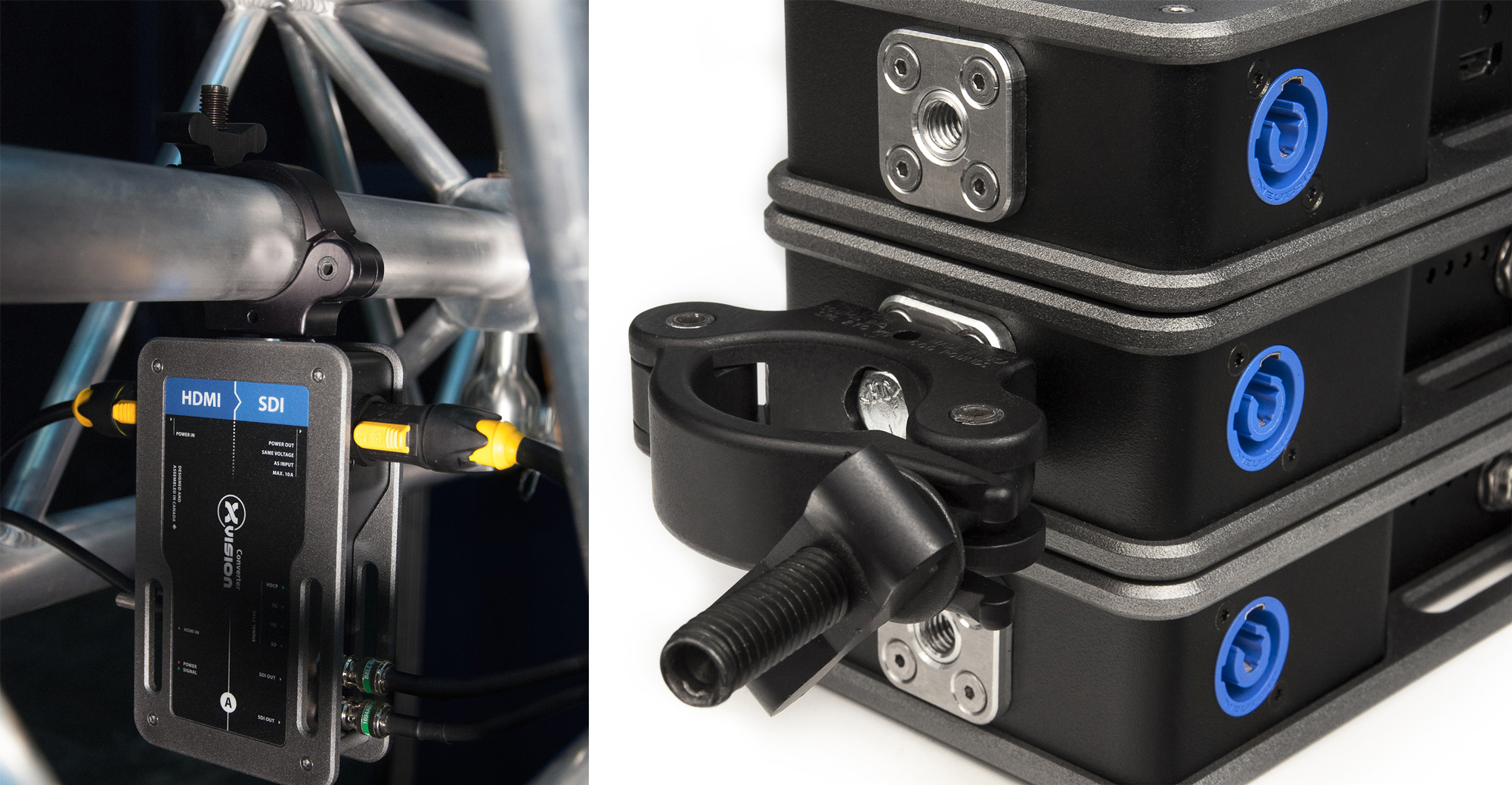

      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • All ouputs fully reclocked and amplified.
      • Proudly designed and assembled in Canada.

    • Specifications

      • Connections
      • Video Input: 3G/HD/SD SDI BNC
      • Video Output: 4 x 3G/HD/SD SDI BNC
        Supported Signals
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit.
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format.
        Physical Specifications
      • Height: 1.97in
      • Depth: 7.08in
      • Width: 4.21in
      • Weight: 2.2lbs
      • Relative Humidity: 0% to 90% non-condensing
        Power Requirements
      • Power Supply: Built-in power supply, PowerCON True1 input, PowerCON True1 output
      • Power Consumption: 25W
      • Operational Voltage Range: 90-250V with True1 Connectors
      • Courtesy Outlet: Max 10A, same voltage as input

    • Item Includes

      • xVision converter
      • SDI DA 1:4 (True1)
