Delvcam DELV-8LCD-SDI OctoMon 3G-SDI 8-Panel LCD 1RU Rackmount Video Monitor

ITEM #: DELV-8LCD-SDI MFG #: DELV-8LCD-SDI

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$1,799.95

Our Price:

$1,769.49

Availability: In Stock
iAvailability Description Popup


    DELV-8LCD-SDI - Overview

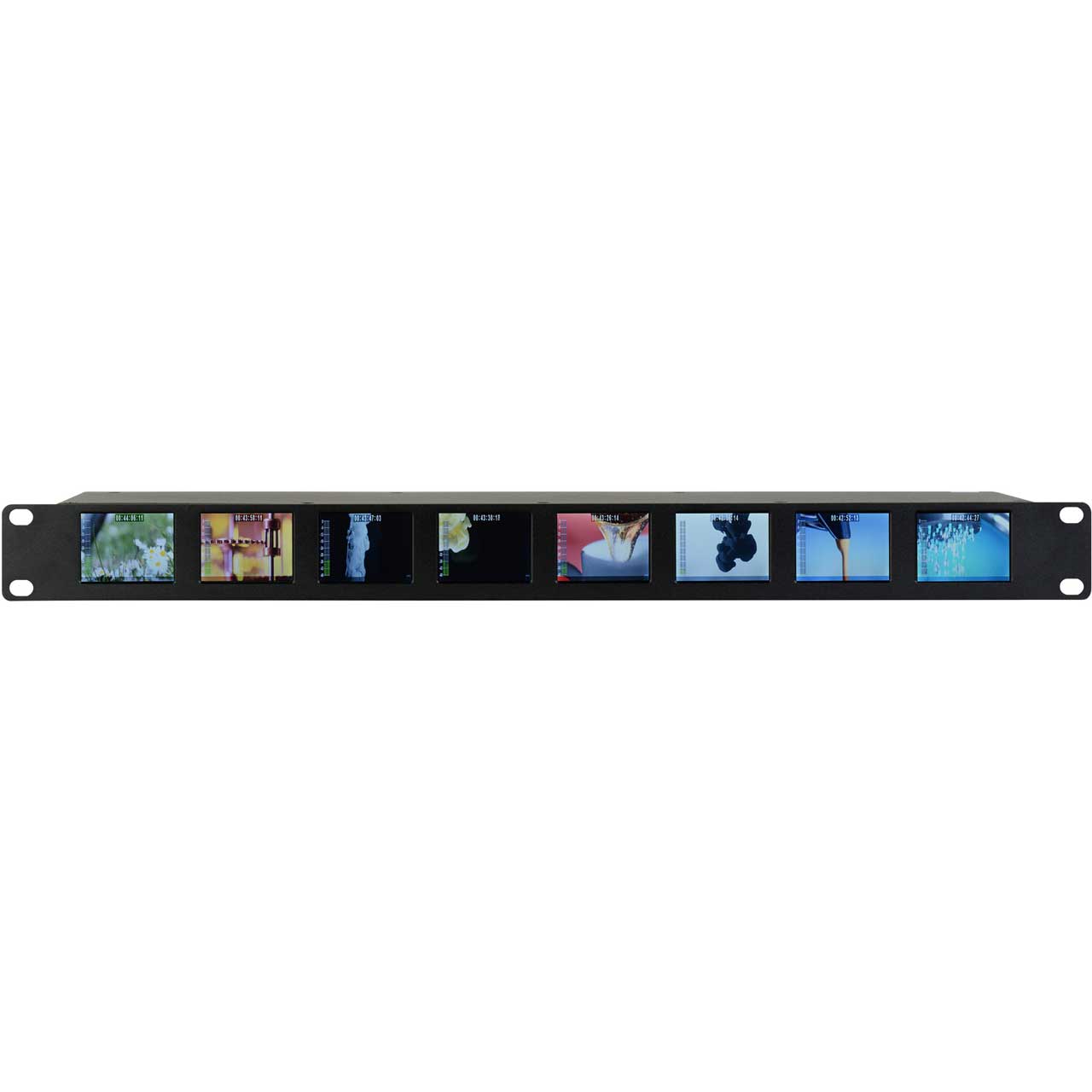

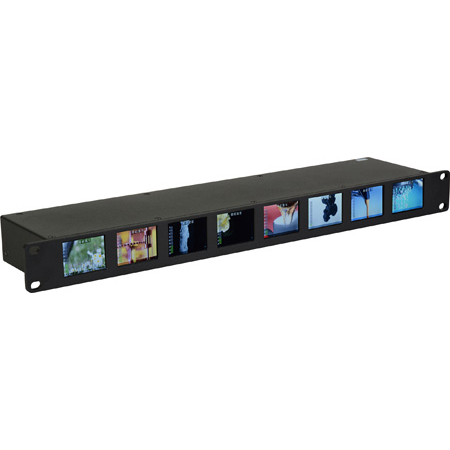

    Monitor up to eight 3G-SDI channels at once with the DELV-8LCD-SDI OctoMon. Each 2-Inch monitor is a LED backlit LCD that supports resolutions up to 1920 x 1080 with a 4:3 aspect format. Monitors have a looping output, on-screen audio metering and timecode functionality making them an ideal choice for rackmounting in a production truck, ENG van or anywhere space savings is paramount. Functions for each monitor in the DELV-8LCD-SDI can be controlled through rear DIP switch activation or via RS422 Ethernet & GUI interface via PC.

    • Features:

      • Eight 2-inch LED Backlit LCD Monitors
      • Supports 3G-SDI
      • Looping Outputs
      • Embedded Audio Meters
      • Equalization & Reclocking
      • UMD 32 Half-Width Character Function
      • RS422 Input Computer Interface
      • Metal Enclosure

    • Specifications:

      • Screen: 2" LCD
      • Resolution: 640 x 240, supports up to 1920x1080
      • Brightness: 250cd/m²
      • Aspect Ratio: 4:3
      • Contrast: 300:1
      • Viewing Angles: 80° H / 70° V
      • Input: 1 - RS422 Remote Control

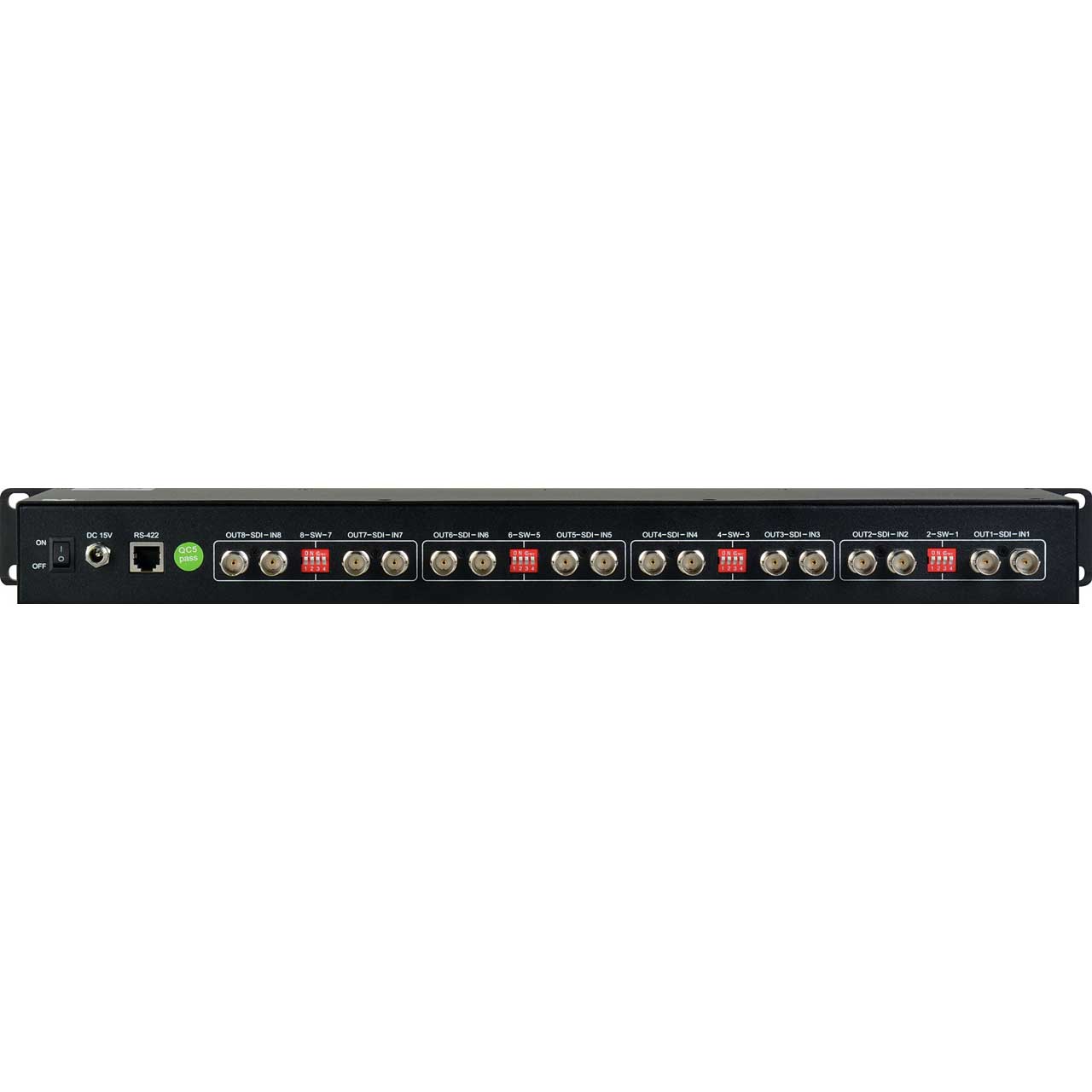

      • Each Screen: Input: 3G-SDI & Output: 3G-SDI
      • Power: 2.5A/15VDC
      • Input Voltage: 12-24VDC
      • Power Consumption: 23W
      • Dimensions: 19 x 4.13 x 1.73 in / 482.5 x 105 x 44mm
      • Weight: 3.43 lb / 1.55 kg

    • Item Includes:

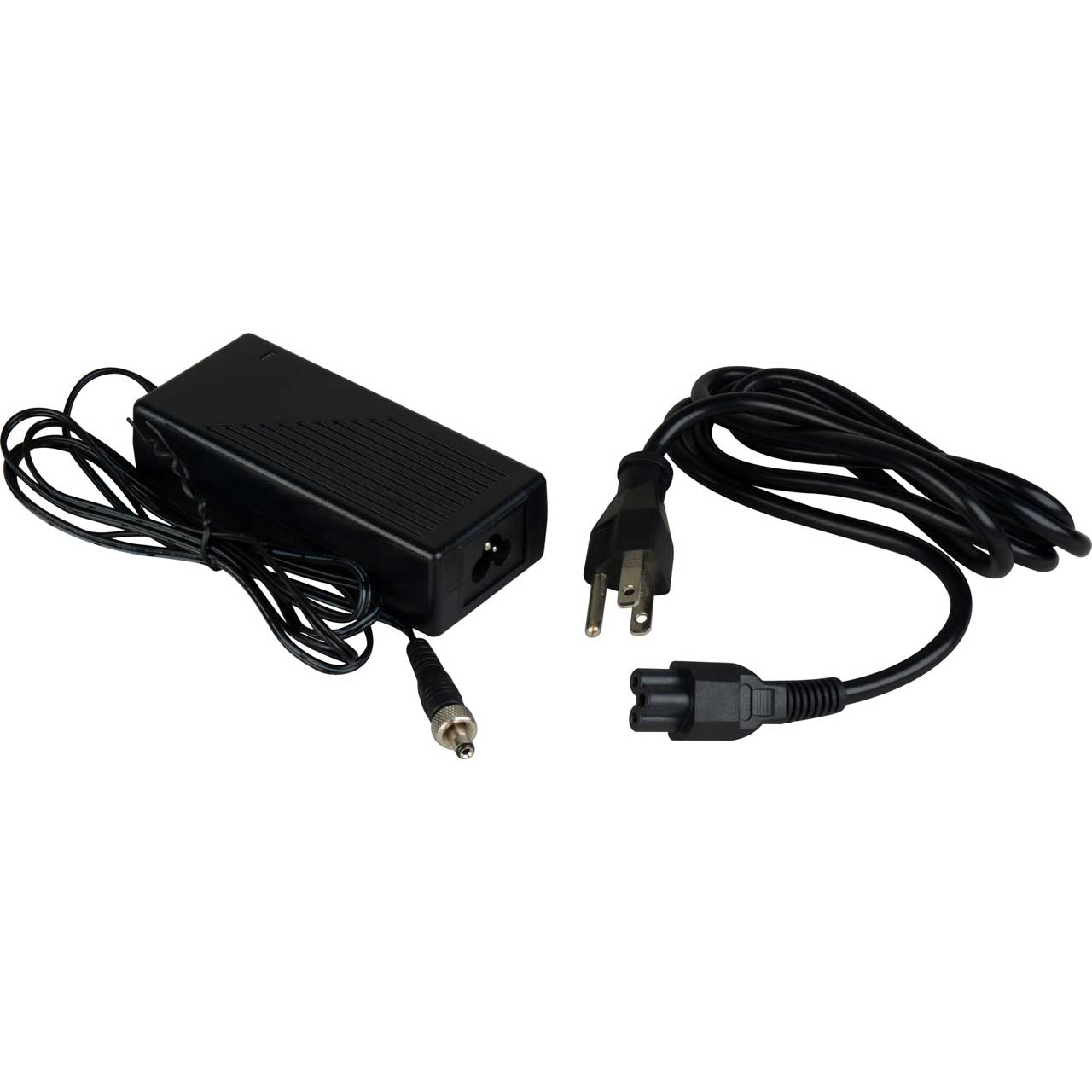

      • 15VDC Power Cable

    • Warranty:

      • 1 Year

    • GTIN:

      0854554007585
