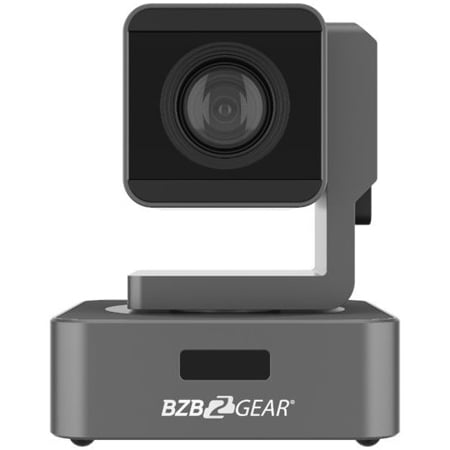

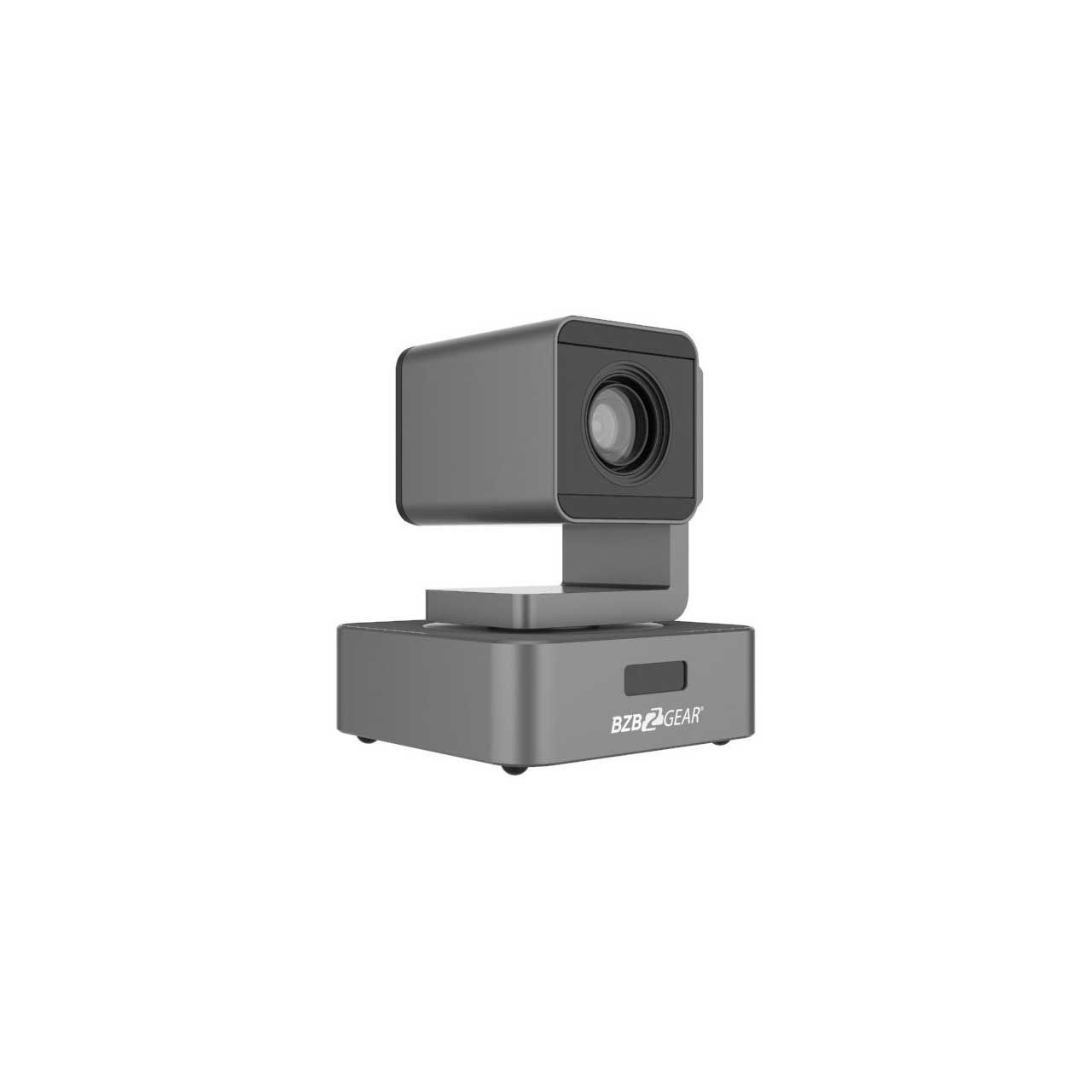

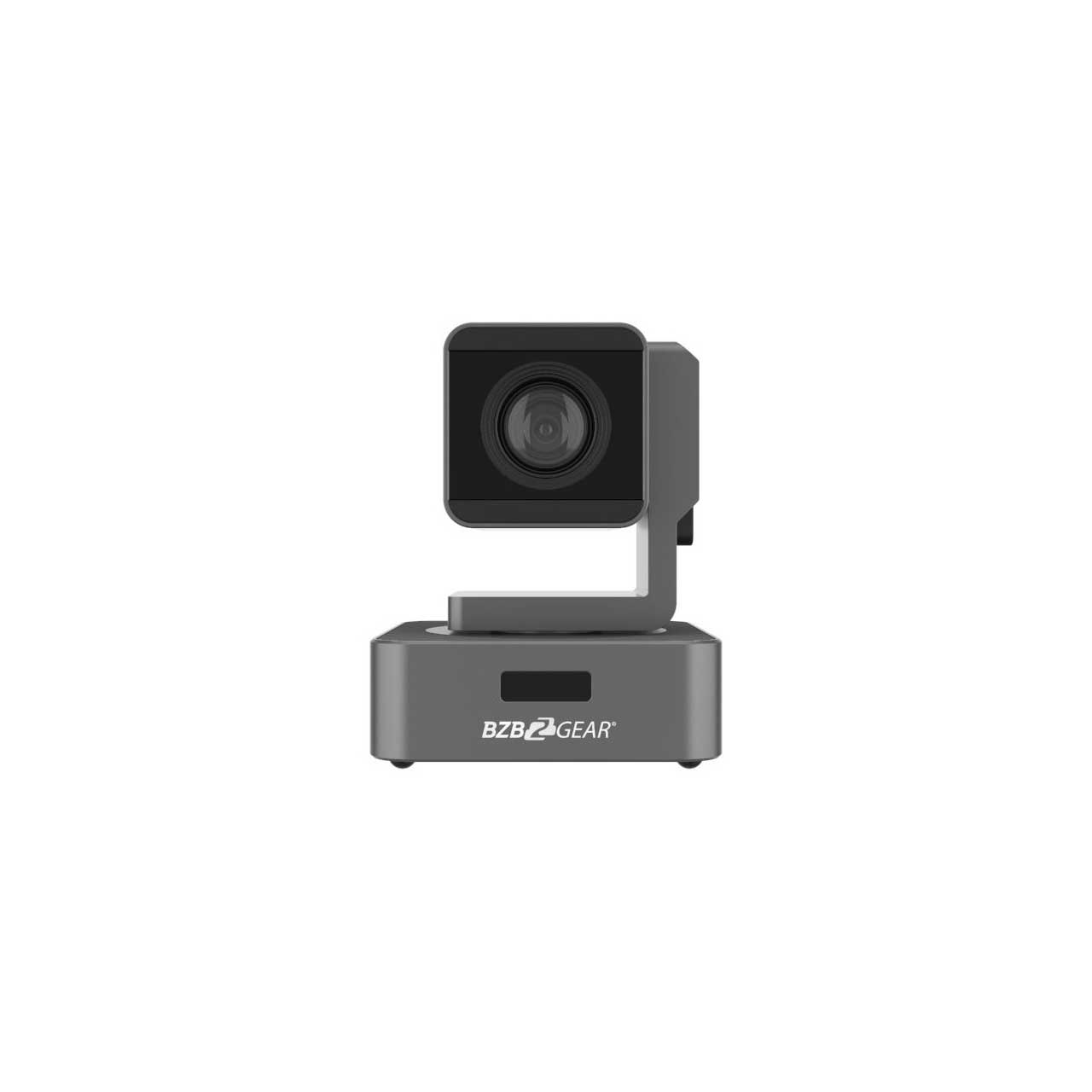

BZBGEAR BG-VPTZ-30HSU3 PTZ Camera - Full HD 1080P - 30X Zoom - HDMI/SDI/USB 3.0/Live Streaming - Gray

BG-VPTZ-30HSU3 - Overview

• Features:

  • Multiple control options
  • All-aluminum high-stability chassis
  • AAC audio encoding support
  • Smart menu & WebGUI Interface
  • Resolutions up to 1080p@60Hz
  • Advanced video image processing
  • Includes 2D/3D noise reduction functions
  • Small form factor for tight installs
  • Main and sub streams available


• Specifications:

  • Image Sensor: 1/2.7" Exmor CMOS (10X), 1/2.8" Exmor CMOS (20X), 1/2.8" Exmor CMOS (30X)
  • Frame Rate: 1080p@60/ 59.94 / 50 /30 / 29.97 /25, 1080i@60/59.94 / 50 / 30 / 29.97 / 25, 720p@60/50/ 30 / 25, 480i@60, 576i@50
  • Zoom: Optical - 10X/20X/30X
  • F-number: 1.6(W)-3.5(T) (10X), 1.6(W)-3.5(T) (20X), 1.3(W)-4.8(T) (30X)
  • Focus: f=5.1mm~51mm (10X), f=4.7mm~94.0mm (20X), f=5.2mm~148.4mm (30X)
  • Effective Pixels: 2.70 Megapixel (10X), 2.38 Megapixel (20X), 2.70 Megapixel (30X)
  • View Angle (H): 72° (10X), 65° (20X), 65.4° (30X)
  • Min Illumination: 0.5lux (F 1.8, AGG ON)
  • Shutter Speed: 1 to 1/10000s
  • Image Adjustment: Vertical Flip & Mirror Supported

    Input/Output Interface

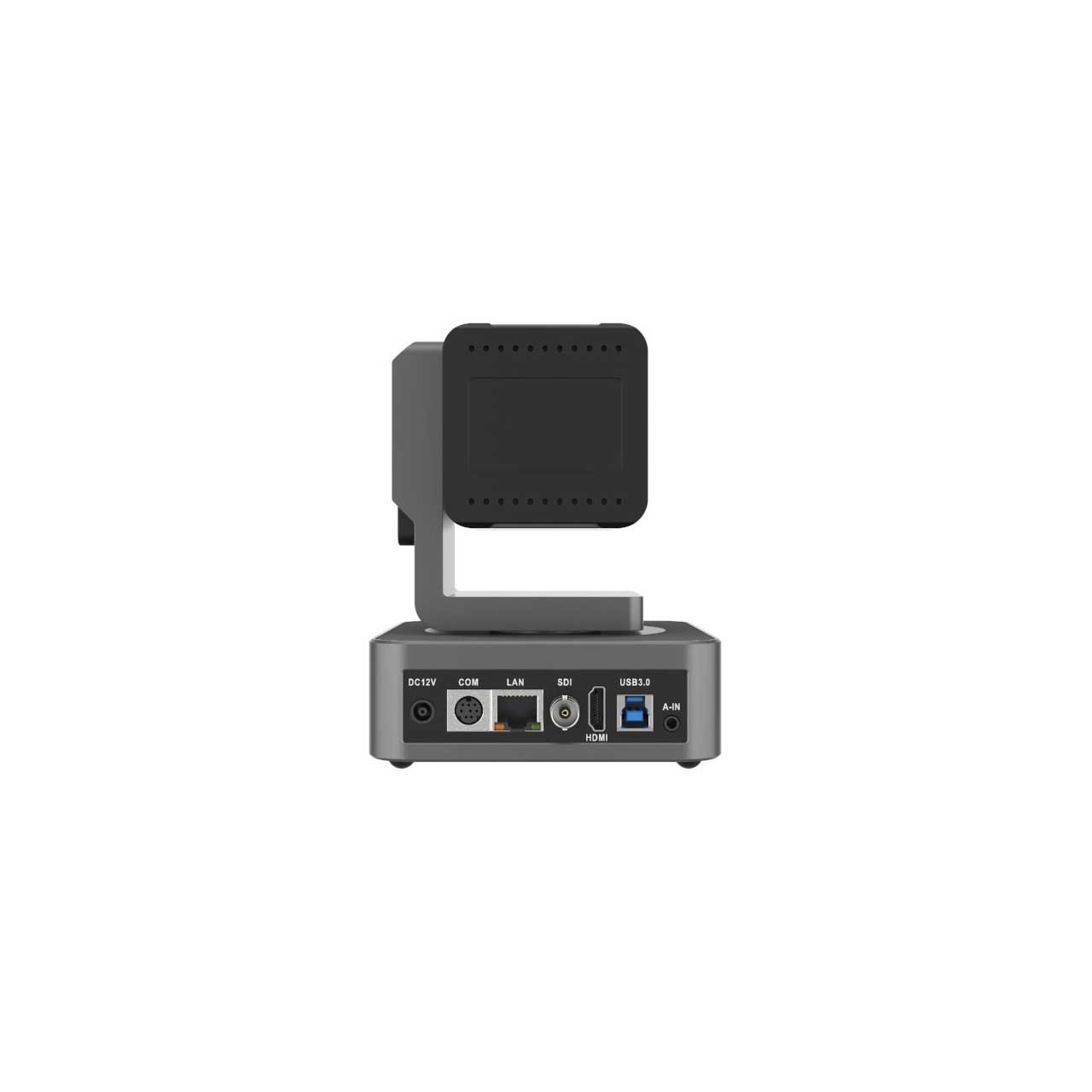

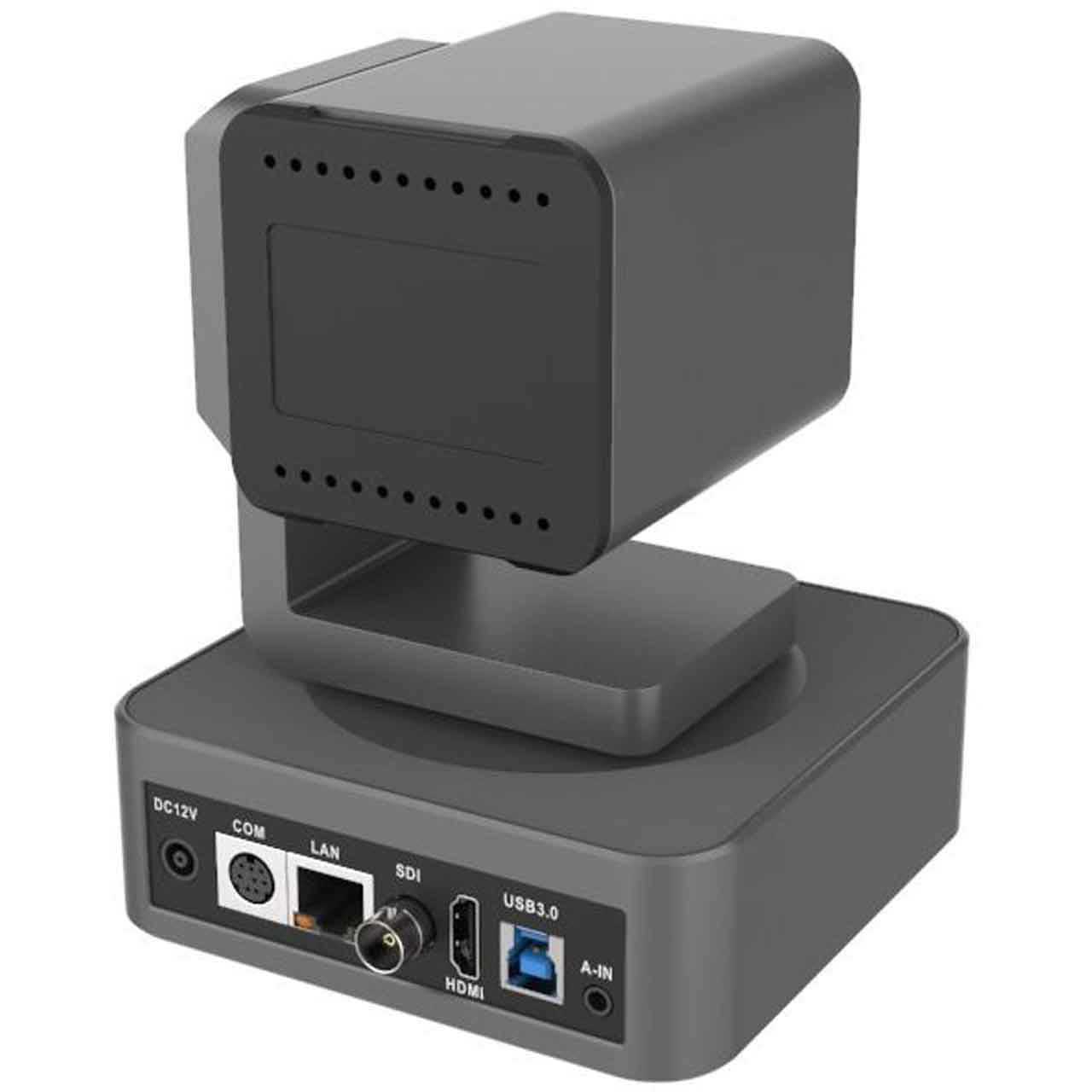

  • Video Output: HDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)
  • Audio Input: 1-ch 3.5mm audio interface, Line In
  • Communication interface: 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
  • Power Connection: DC IN 12V, Power over Ethernet

    Mechanical
  • Pan/Tilt Rotation: ±178°, Tilt Rotation Angle -30°~ +90°
  • Pan 90°/s; Tilt: 90°/s
  • Presets: Max 255 Presets ( Remote 9 Presets)
  • Network Protocol: VISCA, PELCO P/D, ONVIF Protocol

    IPC Video Features
  • Video standard: H.265/H.264/MJPEG
  • Video Stream: Main stream, Sub stream
  • Main stream resolution: 1920x1080, 1280x720
  • Sub stream resolution: 720x480, 320x240
  • Bit Rate: 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
  • Bit Rate Type: Variable rate, Fixed rate
  • Maximum Frame: 60fps
  • Audio encode standard: G.711, G.722, G.722.1, G.728, G.722.1C AAC
  • Audio stream rate: 96K, 128K, 256K
  • Supported protocols: TCP/IP, RTSP, RTMP

    Generic
  • Dimensions: (L*W*H) 120mm x 120mm x 145mm
  • Gross Weight: 3.5 lbs [1.6kg]
  • Operating Temperature: -10°C ~ 50°C
  • Max Consumption: 12W DC12V@1A


• Item Includes:

  • 1x BG-VPTZ-HSU3 Camera
  • 1x IR Remote Controller
  • 1x RS-232 to DB 9pin cable
  • 1x 12V/ 2.0 A DC Power Adapter
  • 1x User Manual


• GTIN:

  0850023208842
