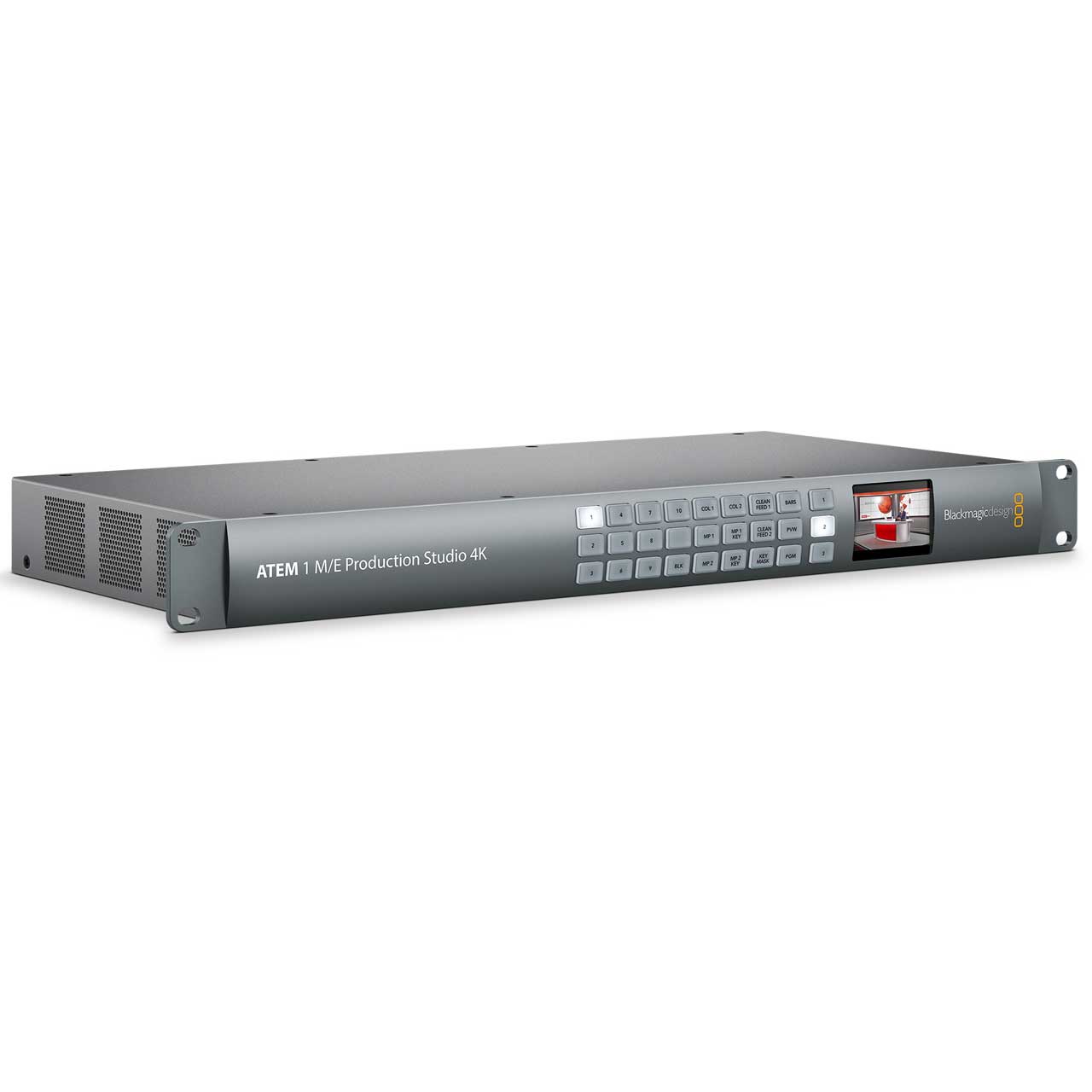

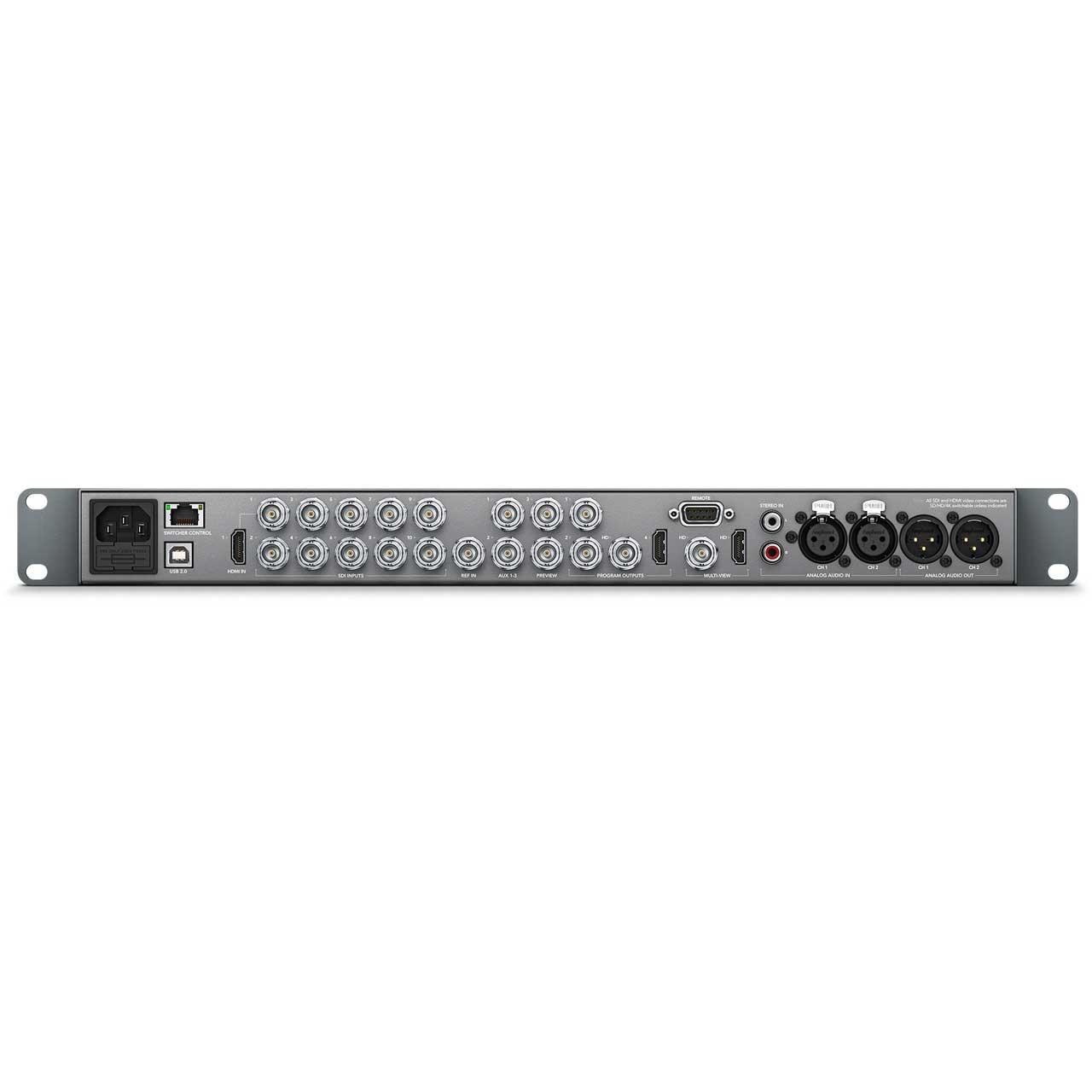

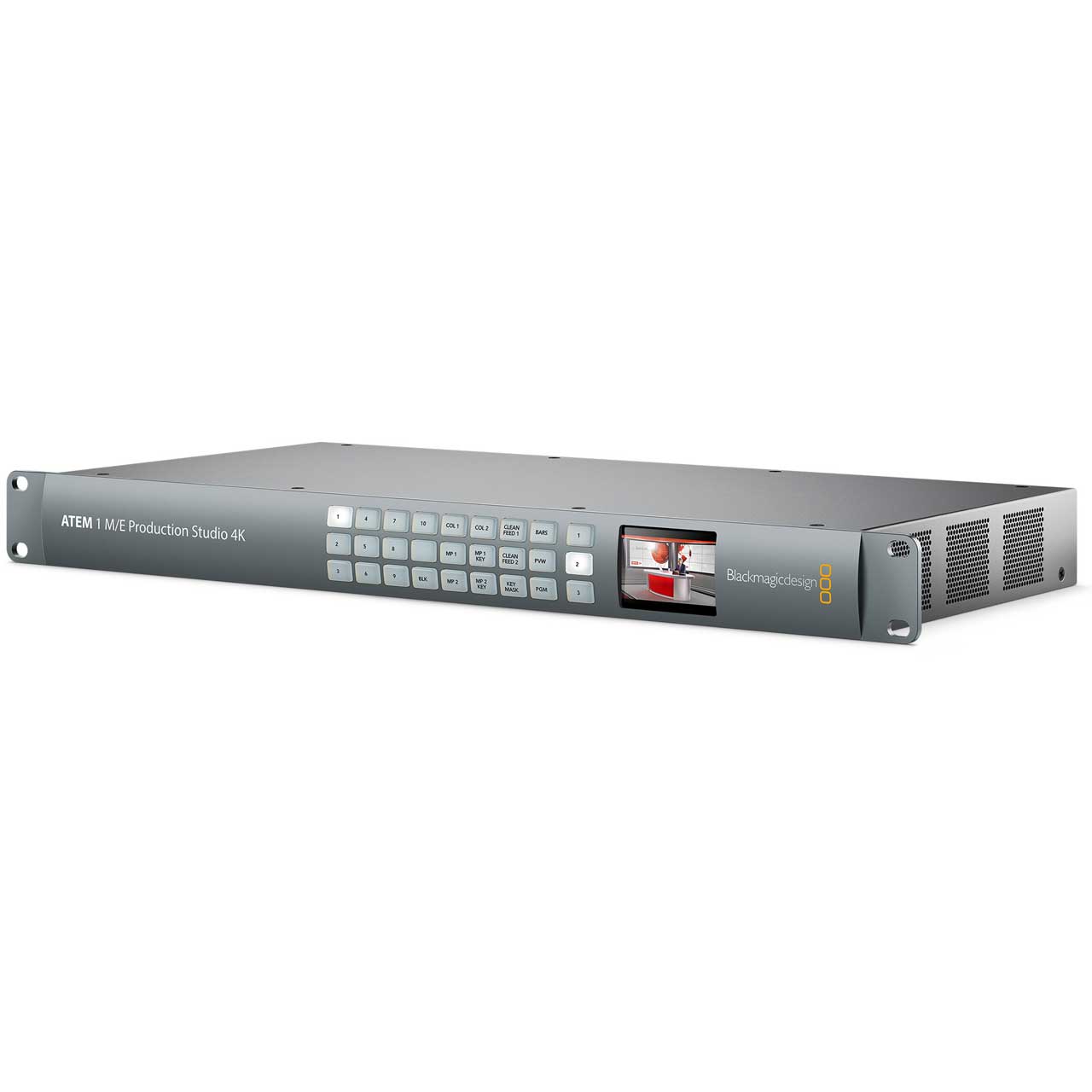

Blackmagic Design SWATEMPSW1ME4K ATEM 1 M/E Production Studio 4K Production Switcher

ITEM #: BMD-ATEM-1MEPS4K MFG #: SWATEMPSW1ME4K

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$2,705.00

Availability: In Stock
iAvailability Description Popup


    SWATEMPSW1ME4K - Overview

    The World's Most Advanced Live Production Switcher!

    The Blackmagic Design BMD-SWATEMPSW1ME4K ATEM 1 M/E Production Studio 4K Switcher allows you to create stunning multi camera live production with the world's most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers.

    You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The advanced ATEM 1 M/E Production Studio 4K features extra inputs, full motion DVE, stinger transitions, larger media pool with full motion clips and 3 auxiliary outputs!

    • Features:

      • 10 inputs
      • Chroma key
      • Transitions
      • Media pool
      • 4 upstream keyers
      • Downstream keyers
      • Audio mixer
      • Multi view
      • Full motion DVE
      • Stinger transitions
      • Large media pool with full motion clips and 3 auxiliary outputs

    • Specifications:

      • Total Video Inputs: 11 with 10 active
      • Total Video Outputs: 10
      • Total Aux Outputs: 3
      • SDI Rates: 270Mb, 1.5G, 3G, 6G
      • Total Audio Inputs: 2x XLR. 2x RCA.
      • Total Audio Outputs: 2x XLR Program.
      • Timecode Connections: None
      • Reference Input: Tri-Sync or Black Burst.
      • Video Input Re Sync: On all 10 inputs.
      • SDI Video Inputs: 10x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
      • HDMI Video Input: 1x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
      • Analog Audio Outputs: 2x XLR.
      • SDI Audio Outputs: 2 Ch embedded into SDI output on all outputs
      • SDI Program Outputs: 2x 10-bit SD/HD/Ultra HD 4K switchable
      • Down Converted SDI Program Output: 1x 10-bit (Ultra HD 4K to HD)
      • SDI Preview Output: 1x 10-bit SD/HD/Ultra HD 4K switchable
      • Total Multi Views: 1
      • SDI Multi View Outputs: 1
      • HDMI Multi View Outputs: 1
      • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
      • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
      • Computer Interface: 1x USB 2.0 port
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94,1080i50, 1080i59.94
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M
      • Video Sampling: 4:2:2
      • Color Precision: 10-bit
      • Color Space: REC 601, REC 709, REC 2020
      • HDMI Input Resolutions for Computers: 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080,9.94Hz,3840 x 2160 23.98Hz,3840 x 2160 24Hz,3840 x 2160 25Hz,3840 x 2160 .97Hz
      • Upstream Keyers: 4 with Chroma/Linear/Luma key.
      • Downstream Keyers: 2
      • Chroma Keyers: 4
      • Linear/Luma Keyers: 7
      • Transition Keyer (Stinger/DVE): 1 Stinger, 1 DVE.
      • Total Number of Layers: 8
      • Pattern Generators: 7
      • Color Generators: 2
      • DVE with 3D Borders & Drop Shadow: 1
      • Control Panel Compatibility: ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Includes ATEM Software Control Panel.
      • Media Players: 2
      • Channels: Fill and key for each Media Player
      • Media Pool Still Image Capacity: 32 with fill and key.
      • Media Pool Clip Capacity: 2 with fill and key.
      • Media Player Clip Length in 720 HD: 1600 frames.
      • Media Player Clip Length in 1080 HD: 720 frames.
      • Media Player Clip Length in Ultra HD: 180 frames
      • Maximum Clip Length in NTSC/PAL: 3600 frames.
      • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
      • Media Pool Video File Format: TGA Sequence
      • Media Pool Audio File Format: WAV, MP3 and AIFF
      • Multi View Monitoring: 1x 10 views
      • Routable Windows: 8
      • Windows Source Labels: Yes
      • Multi View Video Standard: HD
      • Interface: Minimum monitor resolution of 1366 x 768.

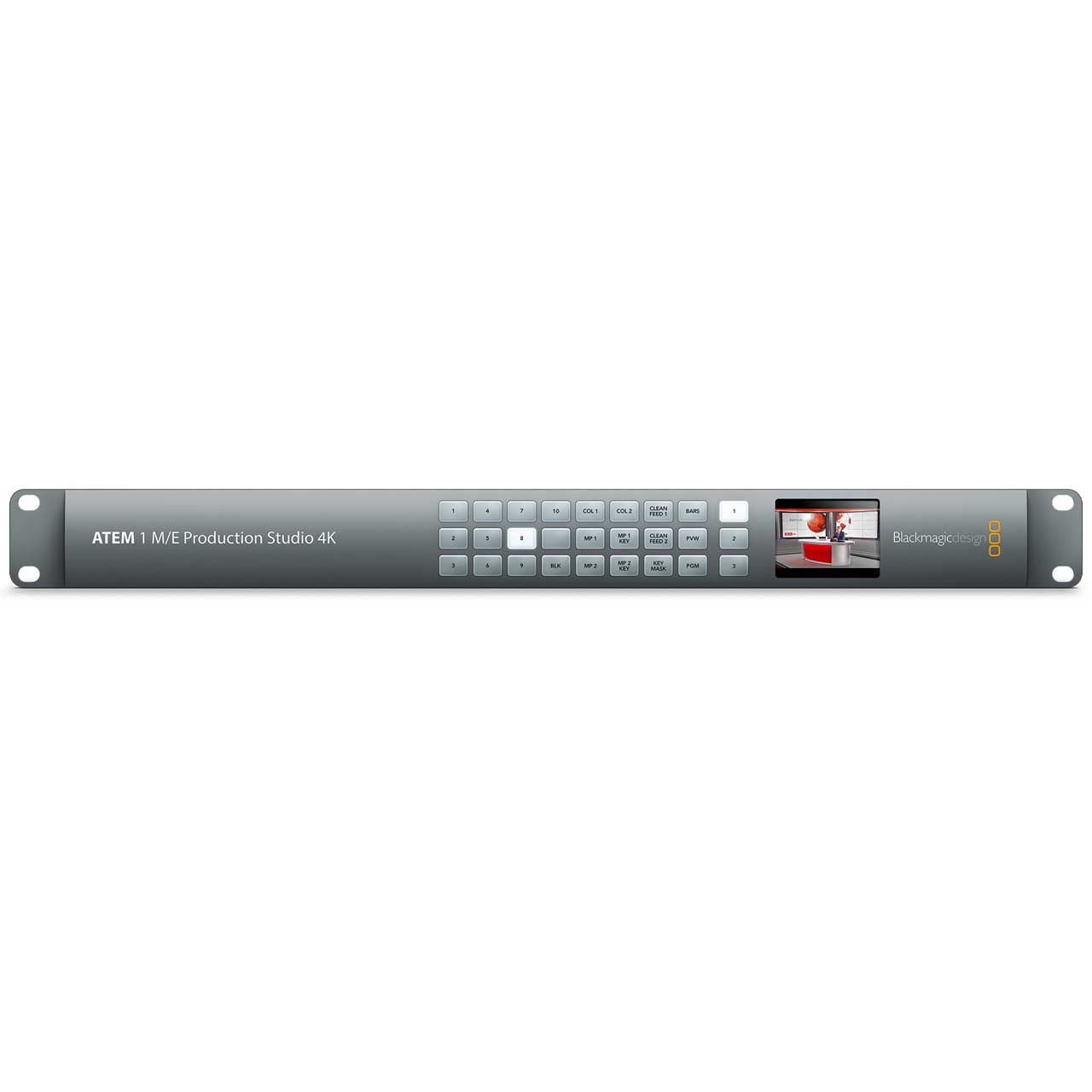

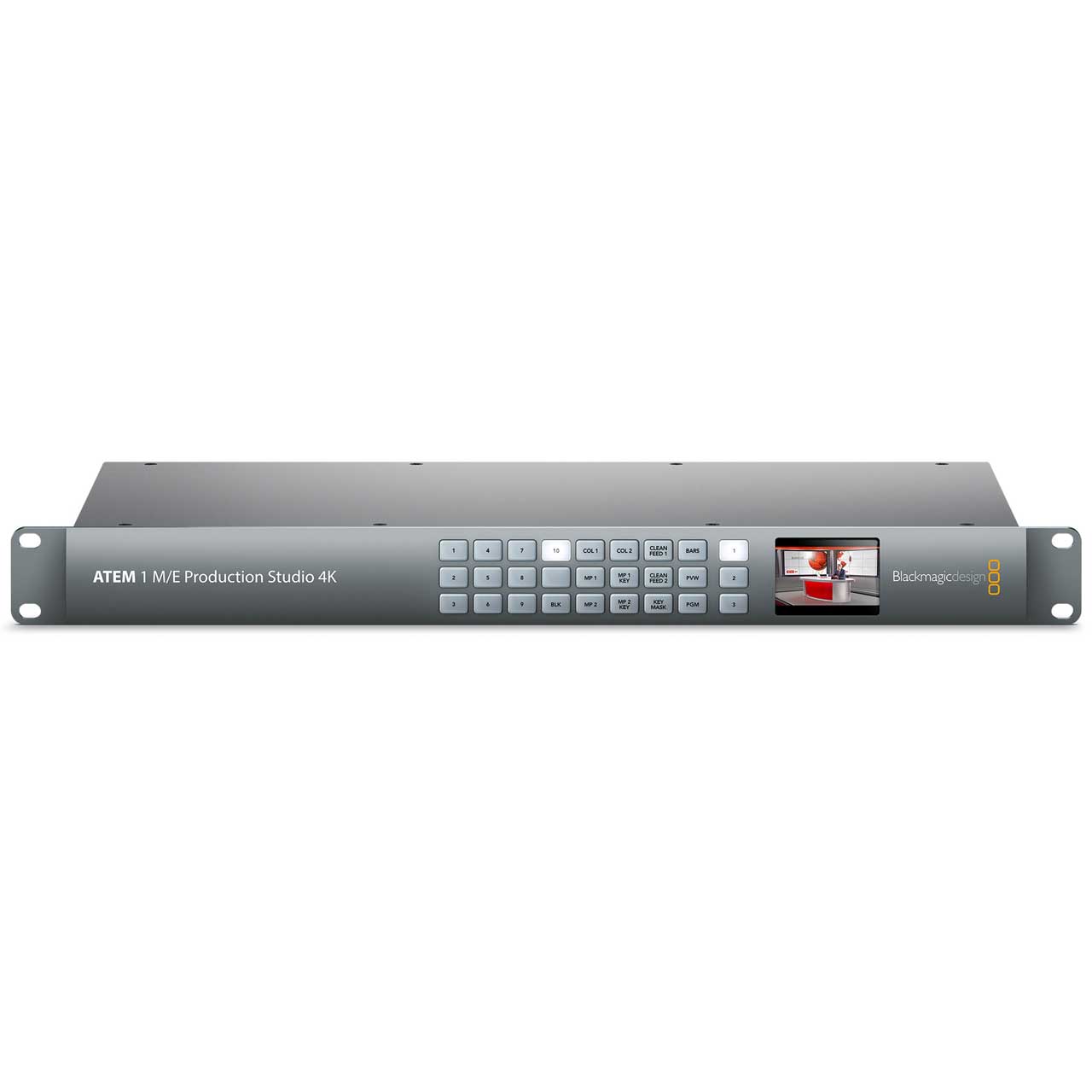

      • Front Panel: Built in LCD monitor for video and 42 LED buttons for Aux switching

    • GTIN:

      9338716002195
