Camplex TACNGO-12GTR 12G-SDI Fiber Optic Converter/Extender & Tactical Cable Reel System - 1000 Foot

ITEM #: CMX-TACNGO-12GTR MFG #: CMX-TACNGO-12GTR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,995.95

Our Price:

$1,894.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in December.


CMX-TACNGO-12GTR - Overview

Extend 12G-SDI video over fiber in an easy to deploy field system with the Camplex Tac-N-Go 12GTR. This tactical fiber reel system is perfect for outside broadcast and live events to run camera signals back to truck or home base while providing the superior ruggedness of tactical fiber.

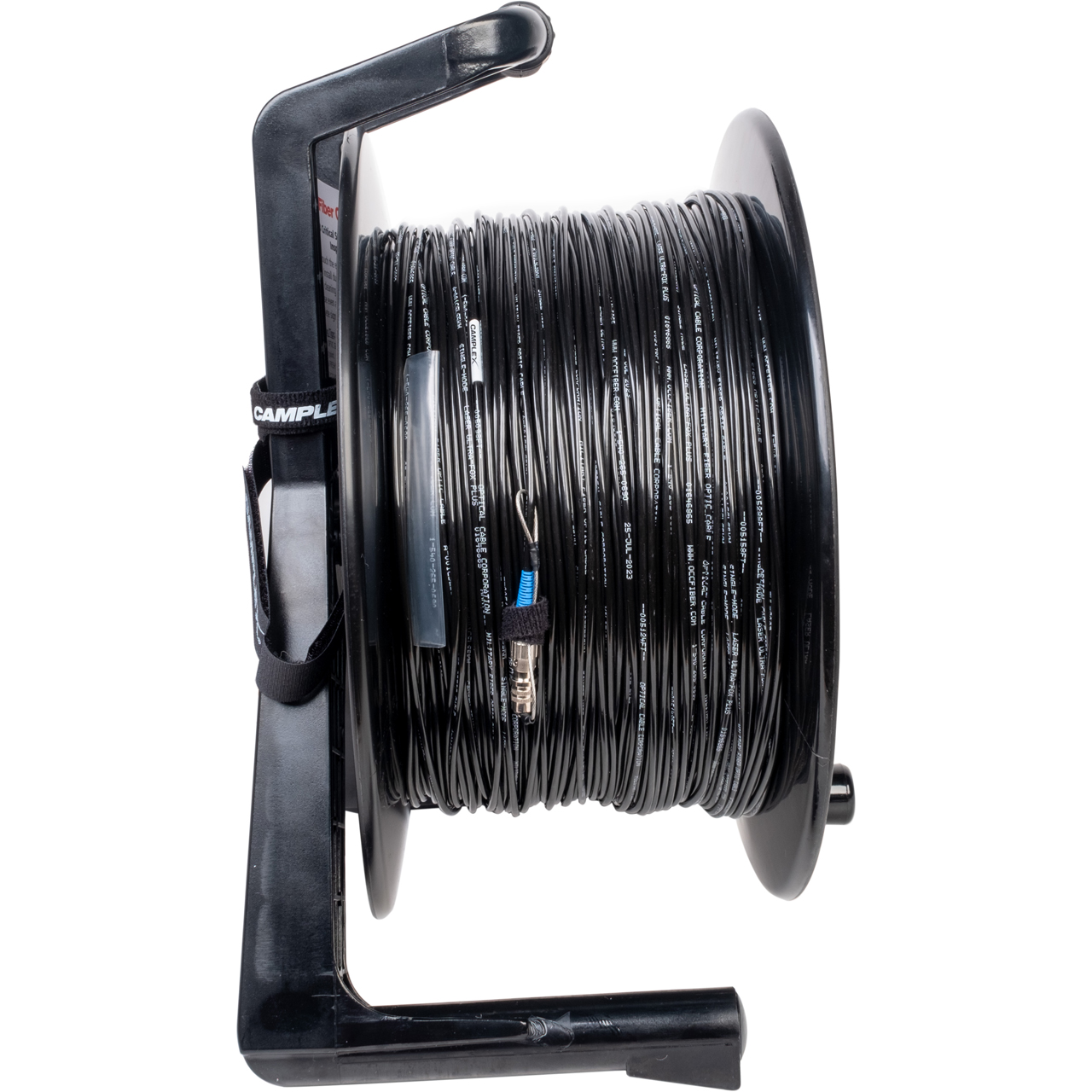

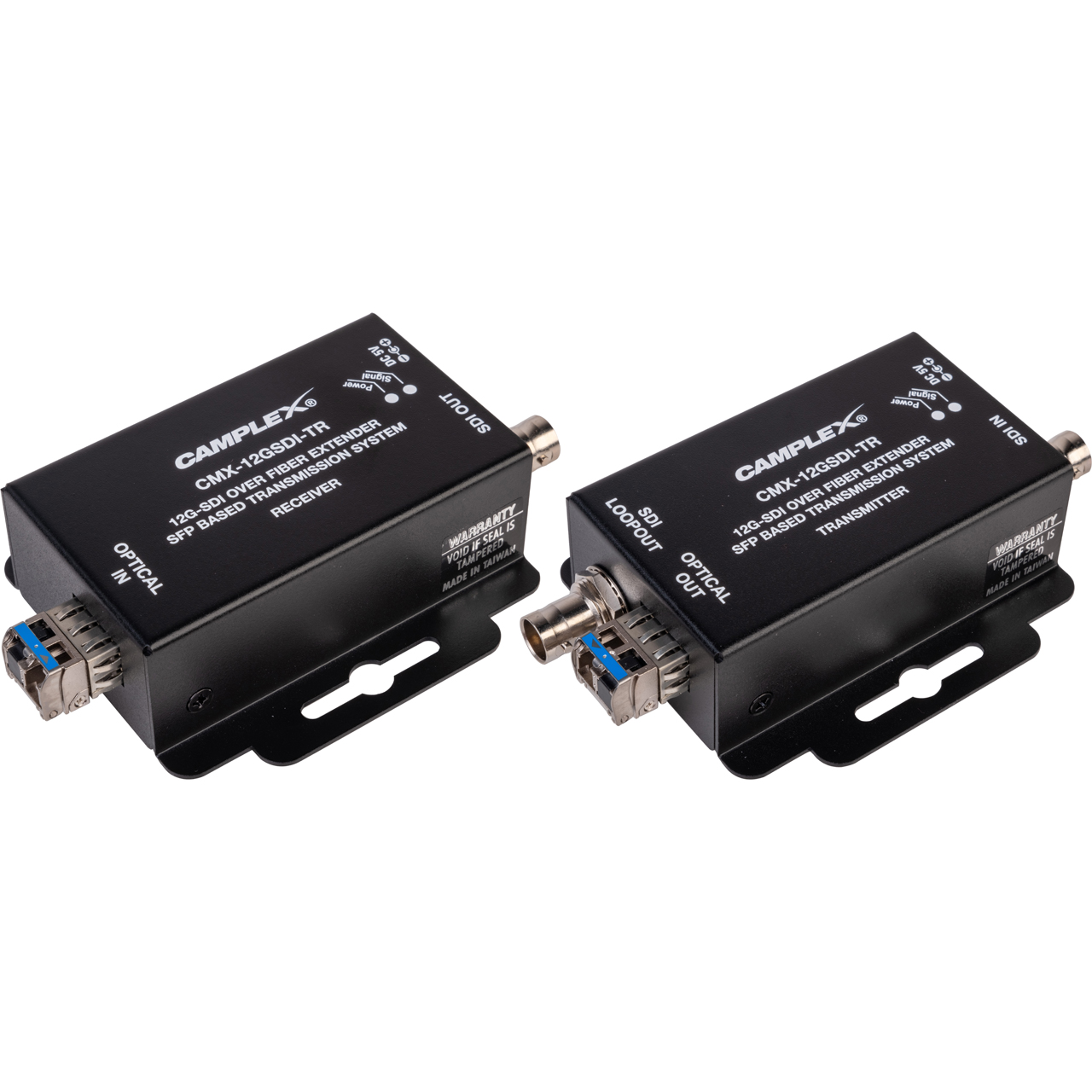

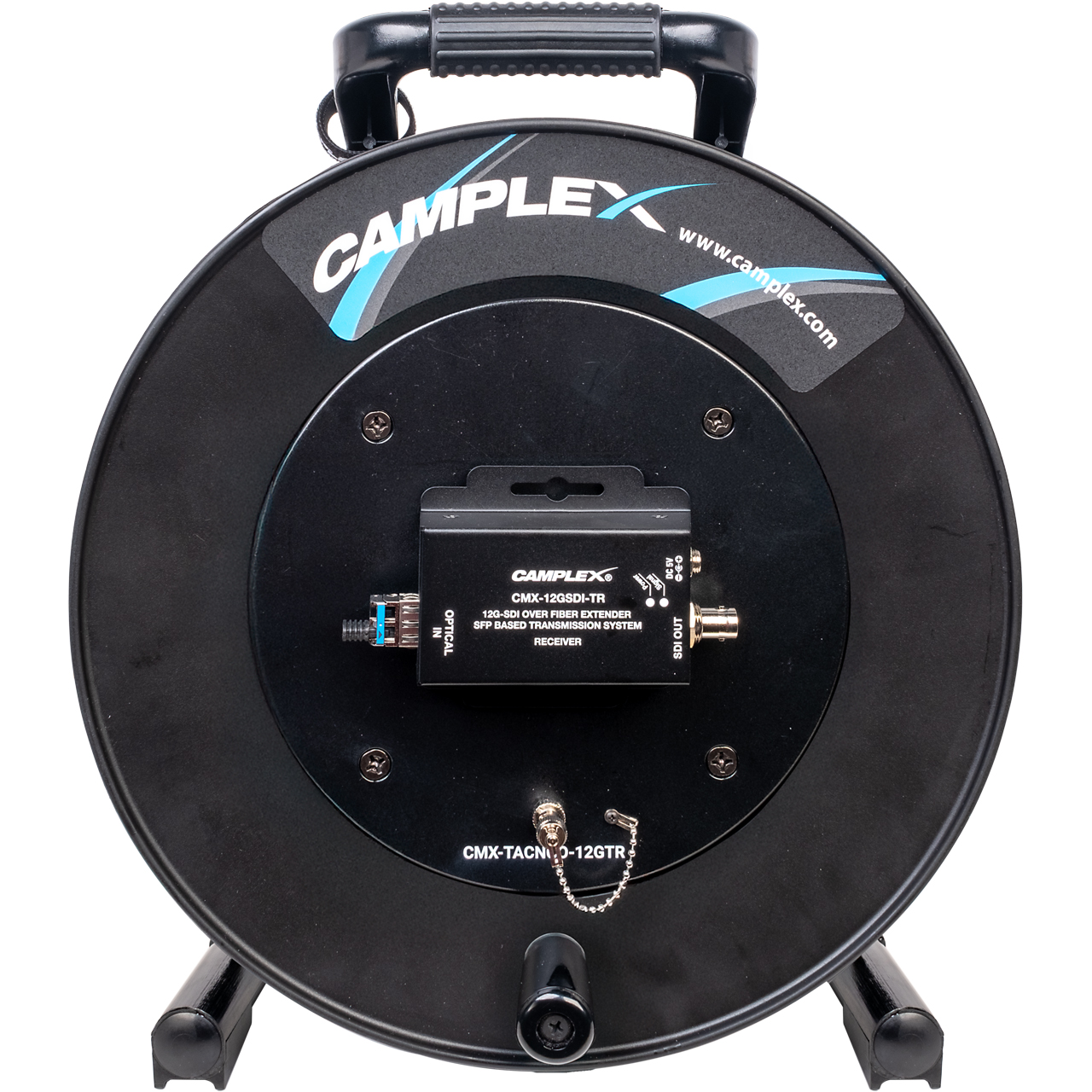

The system utilizes the Camplex CMX-12GSDI-TR SFP-based 12G-SDI fiber converter. The SFP units deliver the advantages of interchangeability for cleaning or changing speed, distance or connector. The CMX-12GSDI-TR receiver is built into the included 1,000 foot LC single-mode fiber tactical cable reel. Both transmitter and receiver only need 5-volts of power making this system perfect for field use.

The system can also handle 6G, 3G, HD, or SD signals. The transmitter features a reclocking SDI loop out for added versatility. LC to ST adapter cables are included to connect the extender kit to the cable.

The system fully Supports SMPTE-292M (270Mbps), SMTPE- 259M (360Mbps), SMPTE-292M / HDTV (1.485Gbps and 1.485/1.001Gbps), SMPTE 424M (2.97Gbps and 2.97/1.001Gbps), SMPTE 2082-1/ HDTV (5.94Gbps and 5.94/1.001Gbps), SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps), DVB ASI (270Mbps)

  • Features:

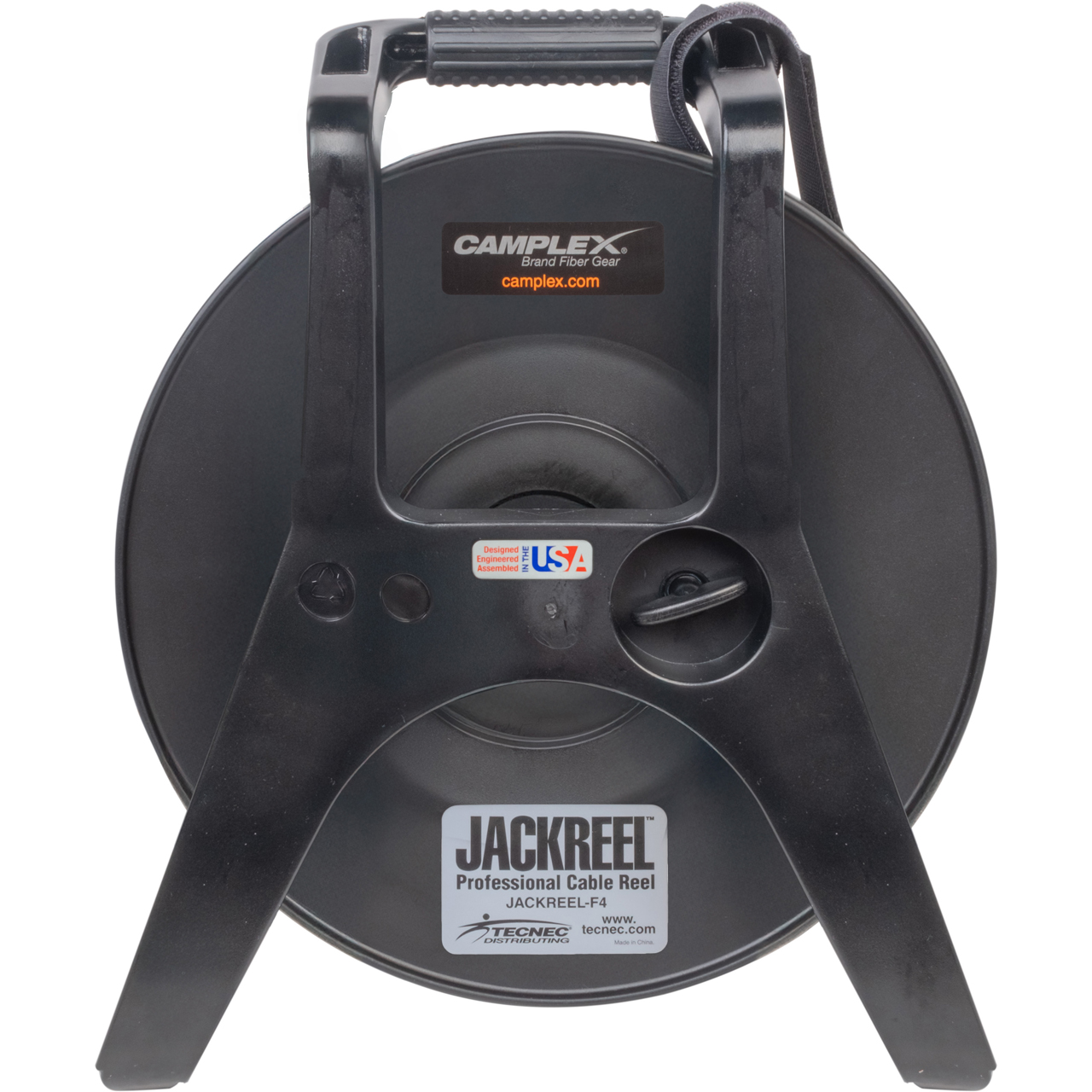

    • Rugged Cable Reel for Fast and Easy Field Deployment
    • 12G-SDI Fiber Converter/Extender
    • Interchangeable SFP-Based System
    • Single Mode LC Connections
    • LC to ST Adapter Cables Included
    • Supports SMPTE-292M, SMTPE-259M, SMPTE-292M, SMPTE 424M, SMPTE 2082-1, SMPTE 2082-2, DVB ASI

  • Specifications:

    • Extends 12G/6G/3G/HD/SD-SDI up to 6.2 miles over single mode fiber
    • Data Rates: 270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880 Mbps
    • Embedded Audio
    • 1 Reclocking SDI Loop Out on TX
    • Immune to RP-198 Interference
    • Input Impedance 75 Ohm

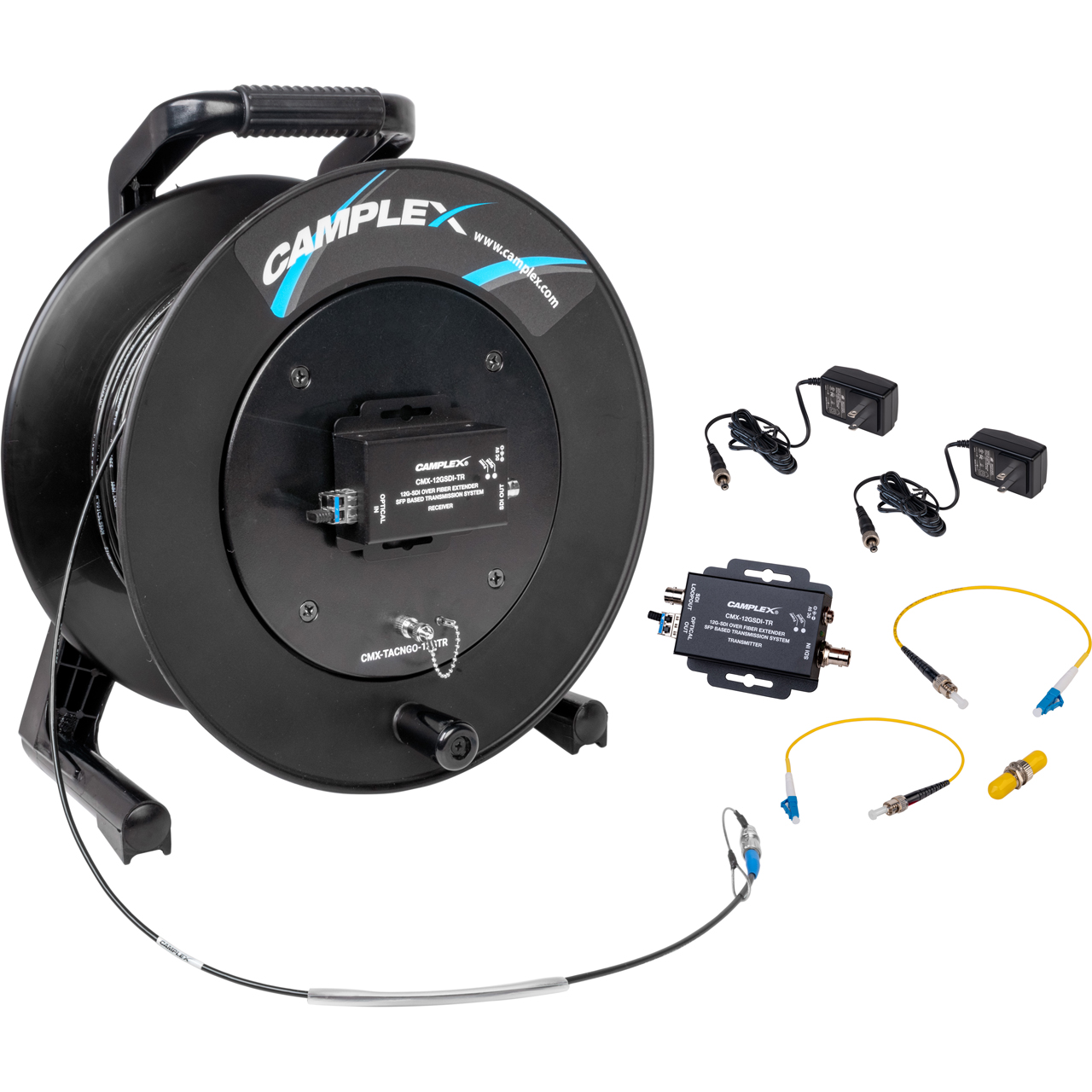

  • Item Includes:

    • (1) CMX-12GSDI-TR 12G SDI over singlemode fiber extender SFP-based kit
    • (2) SFP modules
    • (2) LC to ST adapters
    • (2) power supplies
    • 3M Dual Lock fasteners
    • 1000 ft tactical fiber cable on reel

  • Warranty:

    • 1 Year
