    CAP-1 - Overview

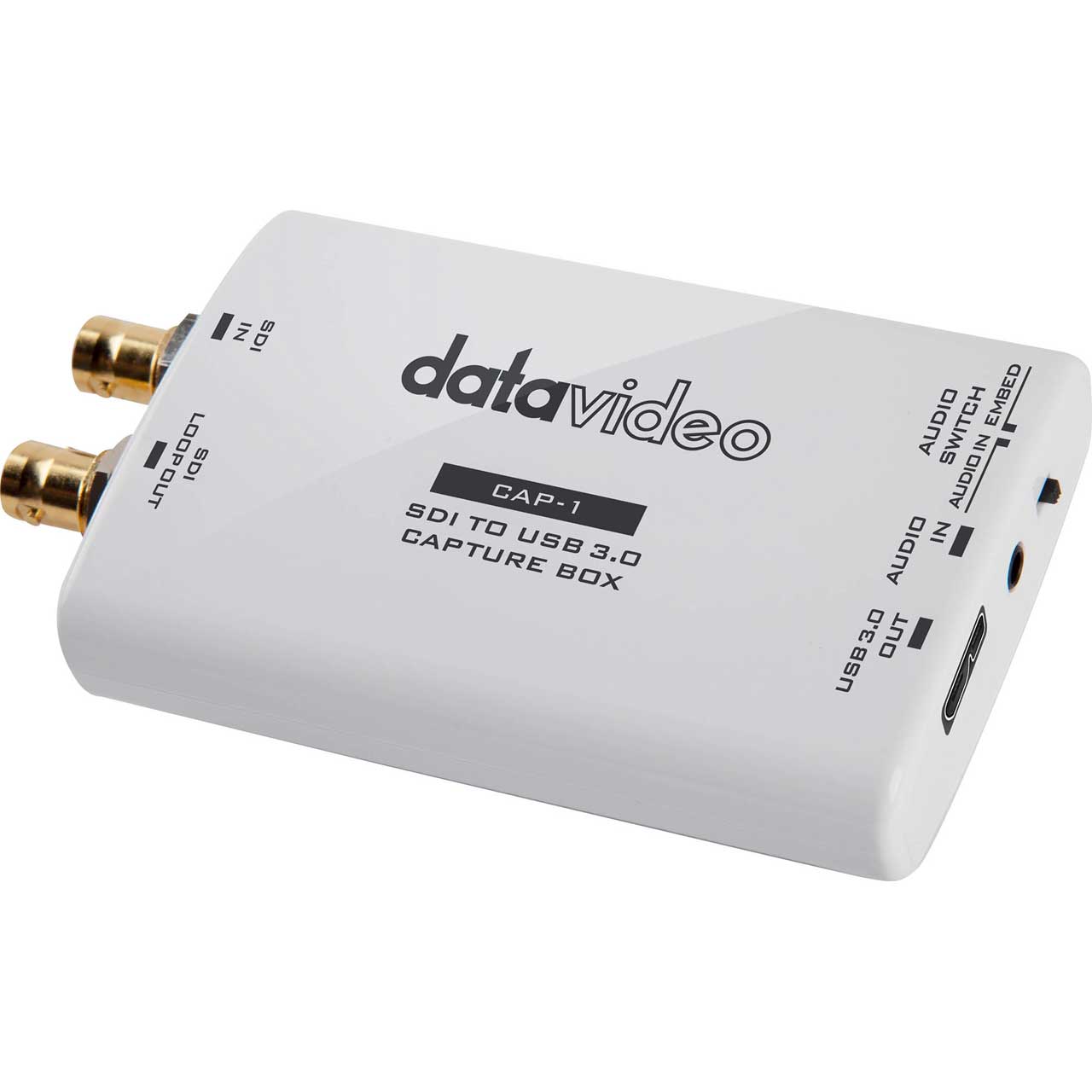

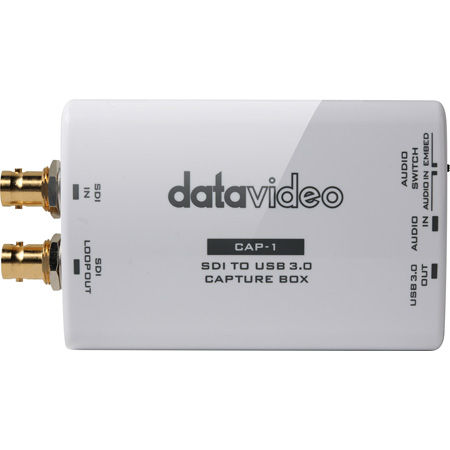

    Datavideo CAP-1 SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

    • Features:

      • This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing. The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it's plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.
    • Specifications:

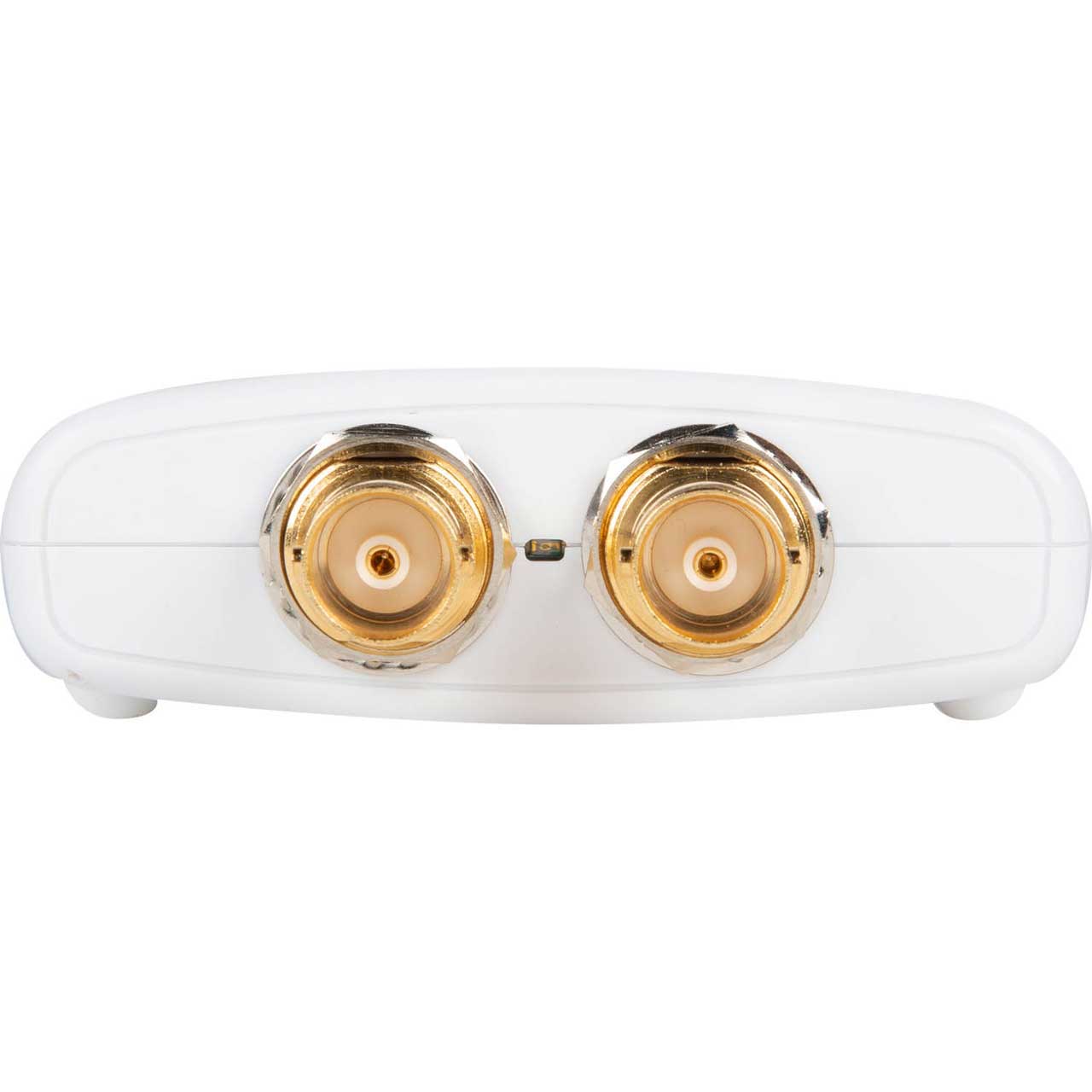

      • Input: 1x HD/3G-SDI
      • Output:

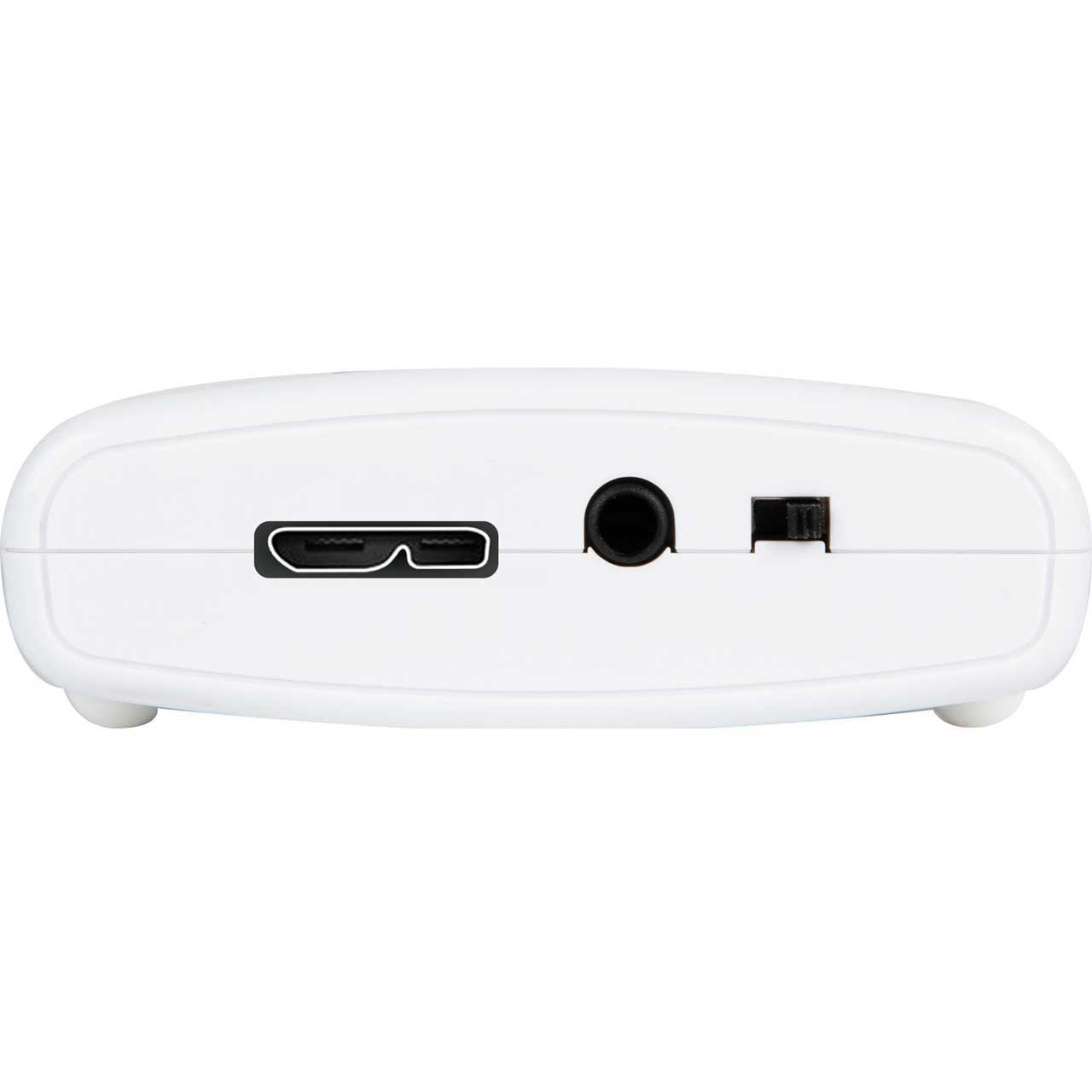

        1x USB 3.0 (Micro B)
        1x SDI loopthrough
      • Input Video Bandwidth: 150MHz (pixel clock rate)
      • Output Video Bandwidth: Up to 350Mbps (USB)
      • Supported Input /Output Video Formats:
        1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
        1280 x 720p 60/59.94/50
      • Audio Input: SDI Embedded Audio & 3.5 mm stereo in
      • Audio Format: 2-Channel, 16-bit PCM
      • Recording Video Format: YUY2 (USB3.0), MJPG (USB2.0/3.0)
      • Firmware Update: Via USB Port
      • Software Compatibility:
        Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster,
        Linux: VLC, OBS
        Mac OS X: OBS, Quicktime player, VLC, Facetime
      • Supported OS: Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
      • Power Supply: Via USB
      • Power Consumption: 3W
      • Operation Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Humidity: 20 to 90% RH
      • Minimum System Requirement:
        Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64) Note: The driver is required for Windows 7 OS
        OS X (10.10 or above)
        Linux Ubuntu 14.04
        PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
        Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher
      • Dimension (LxDxH): 4.76 x 2.68 x 0.90" (121 x 68 x 23mm)
    • Item Includes:

      • 1x CAP-1
      • 1x Thank You Card
      • 1x USB 3.0 Cable
    • GTIN:
