KanexPro WP-EXTHDBTKIT Single HDMI 2.0 Wallplate Transmitter over HDBaseT 70M (230 Feet) with IR and POC Receiver Set


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    WP-EXTHDBTKIT - Overview

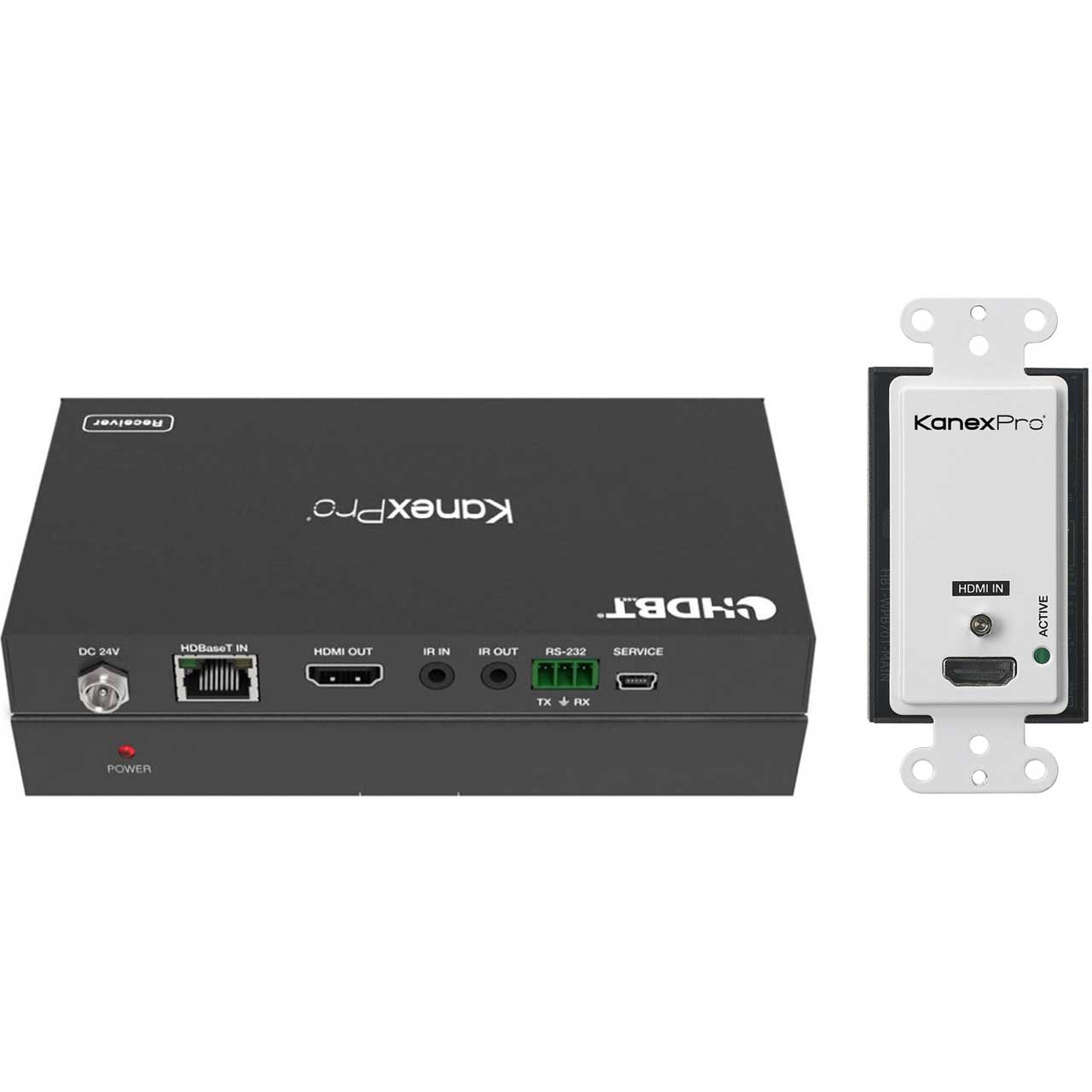

    The KanexPro WP-EXTHDBTKIT is a US Decora style single gang HDMI 2.0r wall plate transmitter - receiver set designed for connecting one HDMI device such as a laptop, Blu-ray, or a 4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via HDBaseT port and the receiver is included in the box. It supports full 18 Gbps bandwidth with true 4K video resolutions up to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to 40m delivering color sampling rate of 4:4:4.

    PoC & Control

    The wall plate transmitter supports PoC - power over cable requiring only power supply from the Receiver. Additional receivers can be purchased separately, part# EXT-WP70POC. It also supports bi-directional IR control and RS-232 control for devices to and from the display.

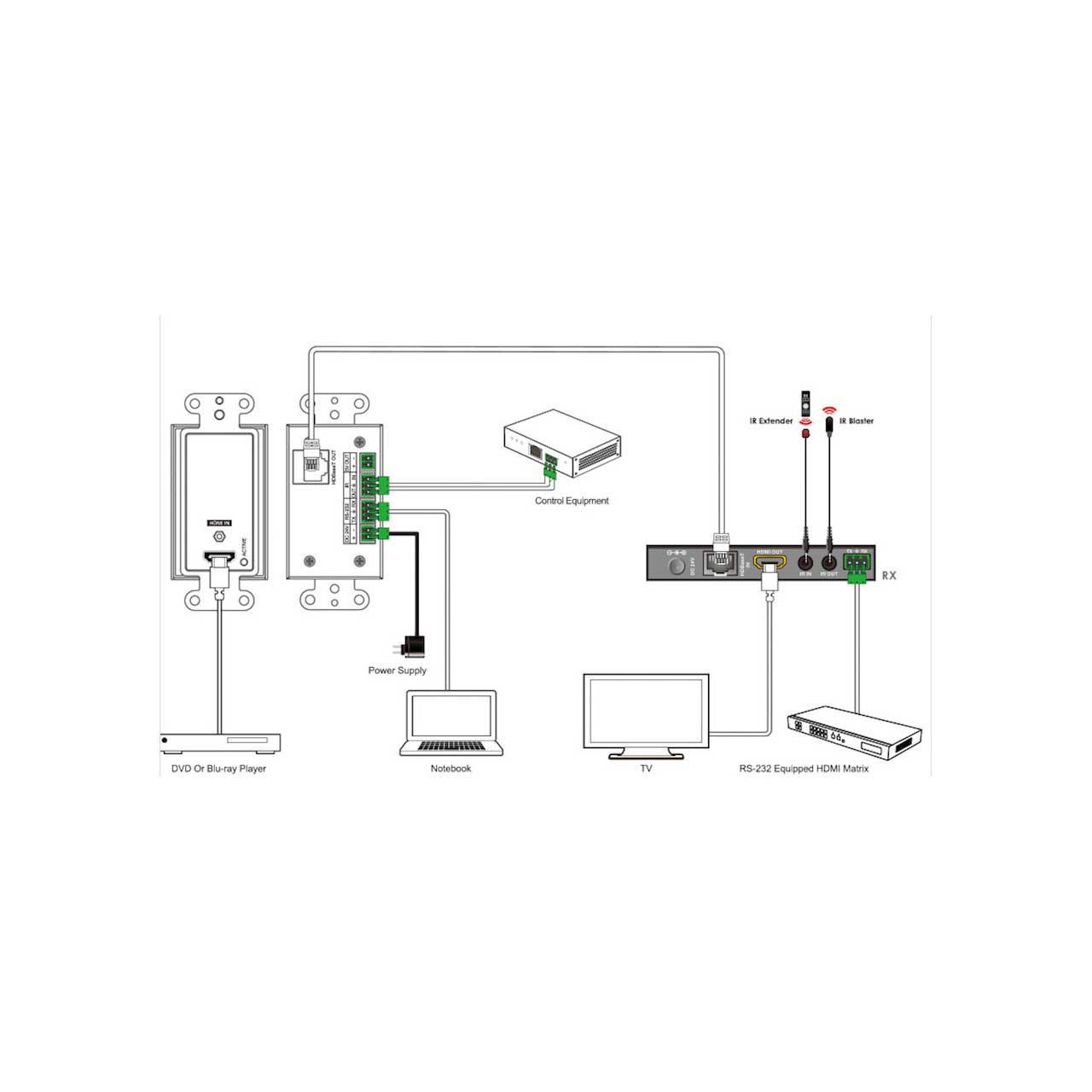

    Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual devices can be extended from a remotely located HDMI source device. This single-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling.

    • Features:

      • Single Gang, One HDMI Input wall plate over HDBaseT & Rx Set
      • Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
      • Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
      • Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
      • Digital Audio Support up to 7.1 channels of HD audio
      • HDCP 2.2 /1.4 Compliant
      • Bi-directional IR & RS-232C
      • Remote power support thru PoC (Either from Tx or Rx)
      • POC Power consumption is less than 10W
      • Simple point-to point transmission over CAT5e/6
      • Active LED status indicator
    • Specifications:

      • HDMI Compliance:
      • HDMI 2.0b HDCP
      • Compliance HDCP 1.4 & HDCP 2.2
      • Video Bandwidth: 18 Gbps
      • Video Resolutions: up to [email protected]/60Hz(YUV4:4:4),[email protected],
      • [email protected] 120Hz, & 1080p [email protected]
      • Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2
      • Color Depth 10-bit, 12-bit

        HDMI Audio Formats:
      • LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio,
        Dolby Atmos, DTS:X Optical Audio Formats
      • LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

        ESD Protection:
      • Human body model-±8kV (Air-gap discharge)
      • ±4kV (Contact discharge)

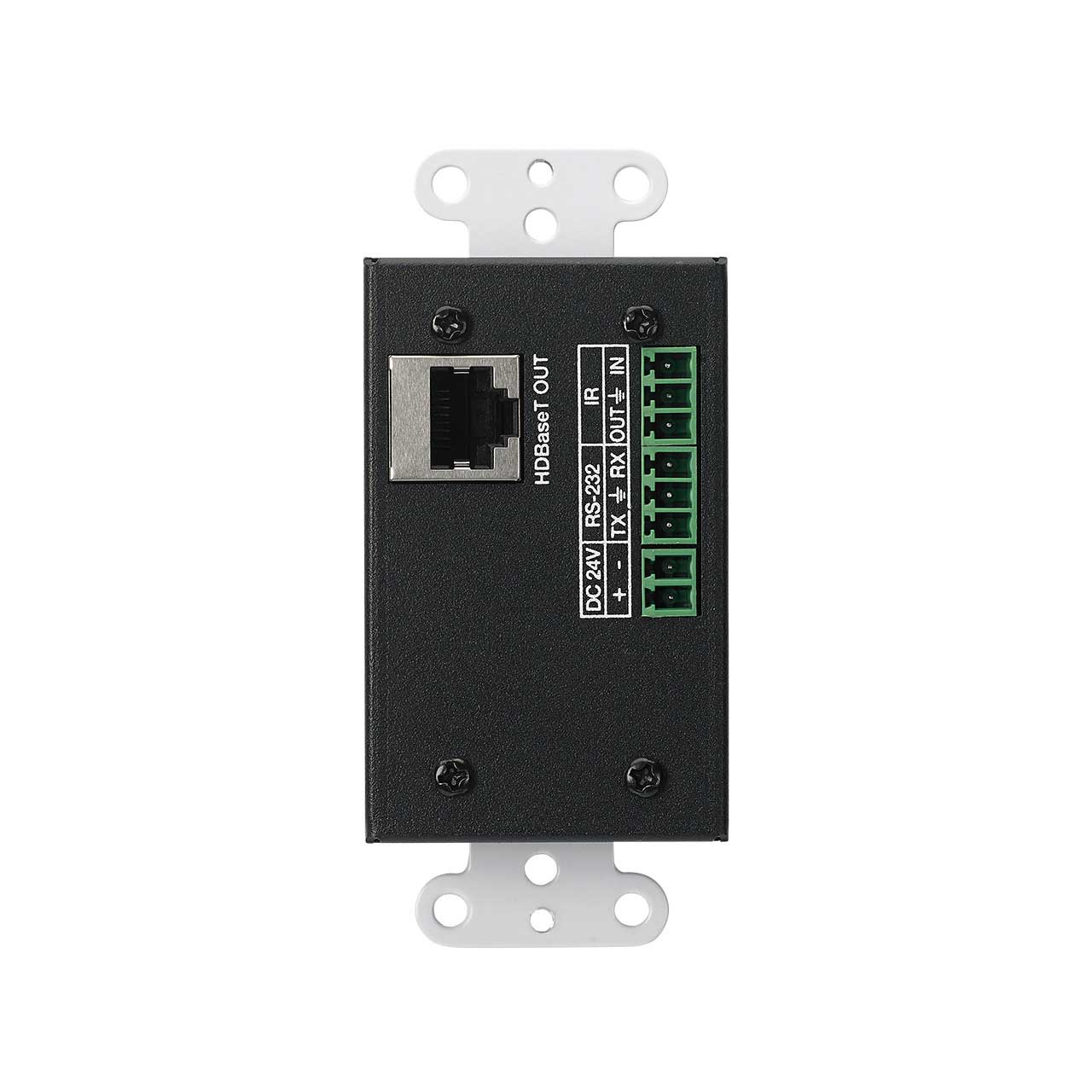

      • Transmitter Inputs:
      • 1x HDMI Type A [19-pin female]
      • 1x IR INPUT [Phoenix jack]
      • 1x RS-232 [Phoenix jack]

      • 1x HDBaseT Out [RJ45]
      • 1x IR OUTPUT [Phoenix jack]
      • 1x RS-232 [Phoenix jack]

        Power Supply:
      • Input: AC100 - 240V 50/60Hz
      • Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
      • Power Consumption: 9W (Max)

      • Housing: Metal Enclosure
      • Color: Black
      • Dimensions: 4.07[W] x 1.81[D] x 1.18[H]Inches
      • Weight: 0.34Lbs

      • Operating Temperature: 32 - 104°F / 0 - 40°C
      • Storage Temperature: -4 - 140°F / -20 - 60°C
      • Relative Humidity: 20 - 90% RH (no condensation)
      • Warranty: 3 Years Part & Labor
    • Item Includes:

      • 1x 18G HDMI Wall Plate Transmitter
      • 1x 18G HDBaseT Receiver EXT-WP70POC
      • 1x User Manual
    • Warranty:

      • 3 Years Parts & Labor
    • GTIN:
