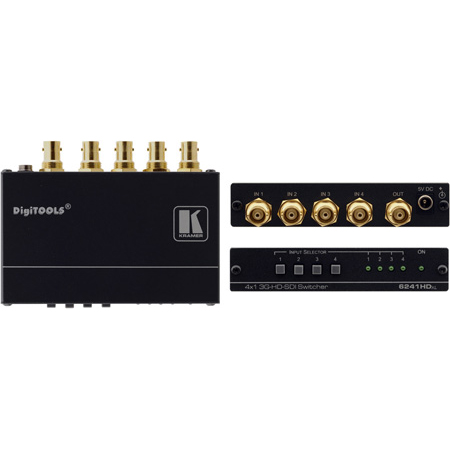

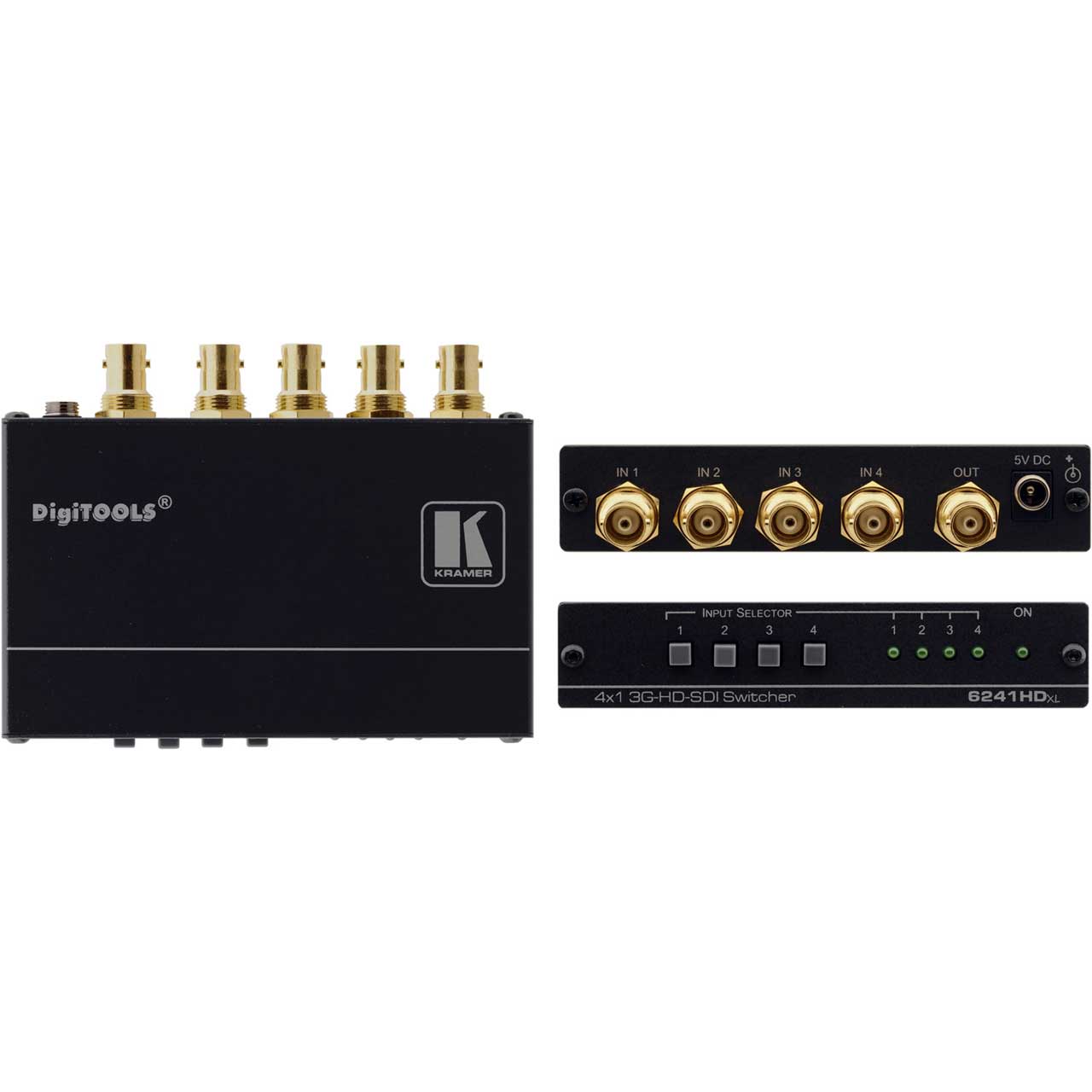

Kramer Tools 6241HDXL 4x1 3G/HD-SDI Video Switcher

ITEM #: KR-6241HDXL MFG #: 6241HDXL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-6241HDXL

6241HDXL - Overview

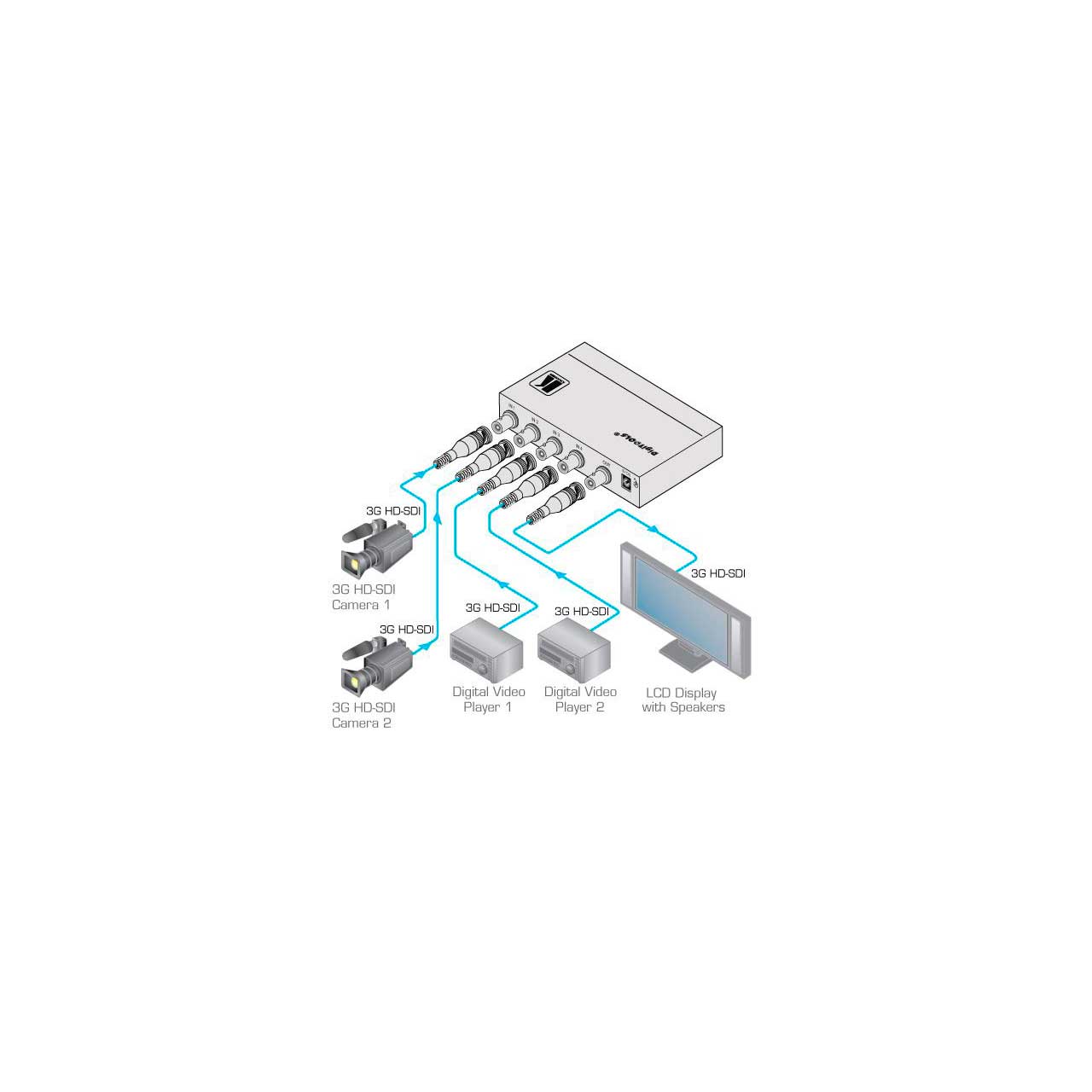

The 6241HDxl is a high-performance (3Gbps) switcher for 3G HD-SDI BNC video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.

Perfect for:
Video broadcast studios for signal routing.
Non-linear editing suites.
Video production studios.
Boardrooms and classrooms.

  • Features:

    • Max. Data Rate - 3Gbps.
    • HDTV Compatible.
    • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
    • Kramer Equalization & re-Klocking™Technology - Rebuilds the digital signal to travel longer distances.

  • Specifications:

    • INPUTS
    • 4 SMPTE 259M/344M serial digital video inputs (75Ω) on BNC connectors

      OUTPUTS
    • 1 SMPTE 259M/344M serial digital video output (75Ω) on BNC connectors

      MAX. DATA RATE
    • 2.97Gbps

      MAX. OUTPUT LEVEL
    • 800mVpp/75Ω

      EQUALIZATION
    • Automatic equalization for losses on 75Ω coaxial cable

      POWER CONSUMPTION
    • 5V DC, 410mA

  • Item Includes:

    • 6241HDXL Switcher
    • Power Supply
    • Mounting Bracket

  • Warranty:

    • 7 Year Limited Warranty

  • GTIN:

    7291063031237
