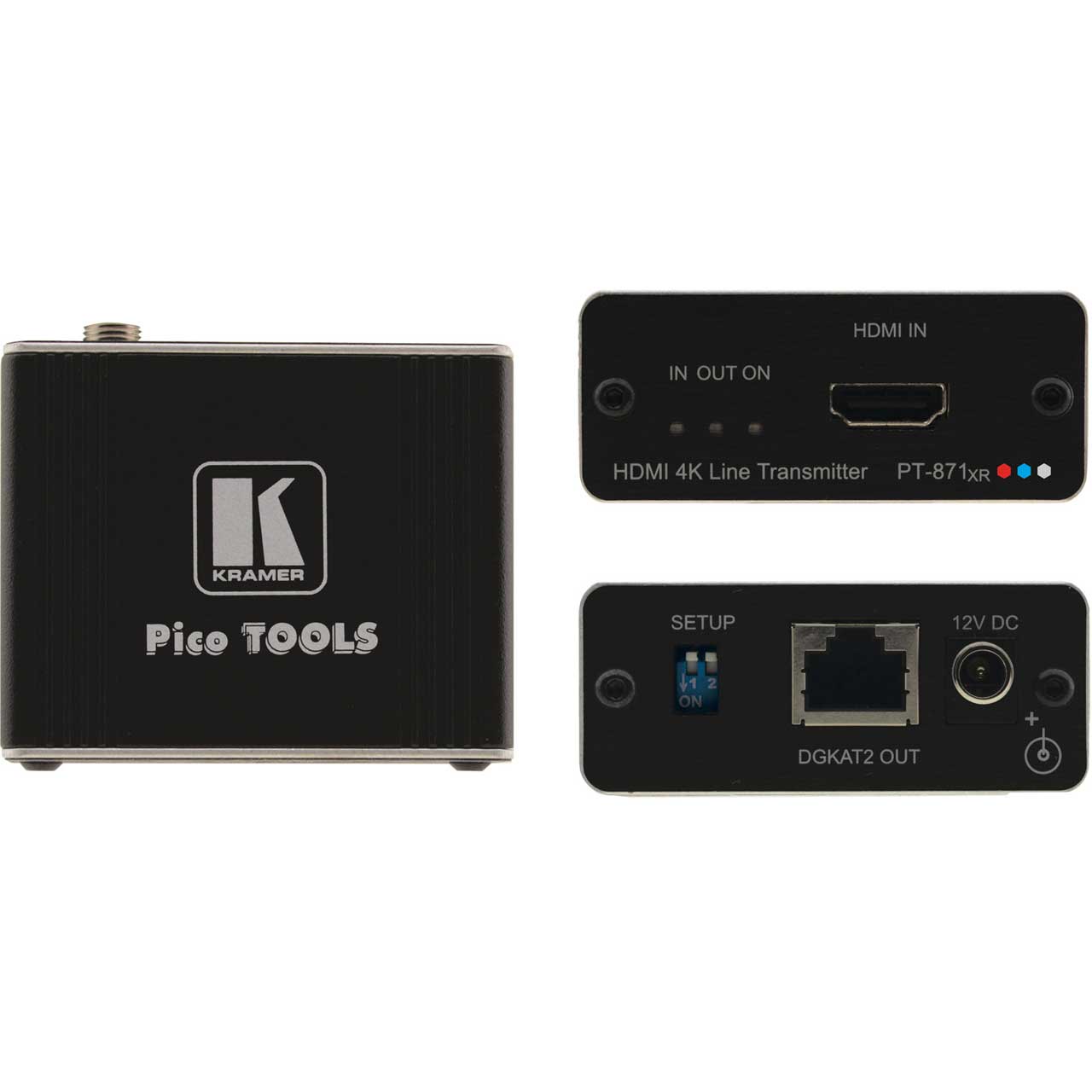

Kramer PT-871xr 4K HDR HDMI Compact PoC Transmitter over Long-Reach DGKat 2.0

ITEM #: KR-PT-871XR MFG #: PT-871XR

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-PT-871XR

PT-871XR - Overview

High Performance HDMI 2.0/HDCP 2.2 Extender

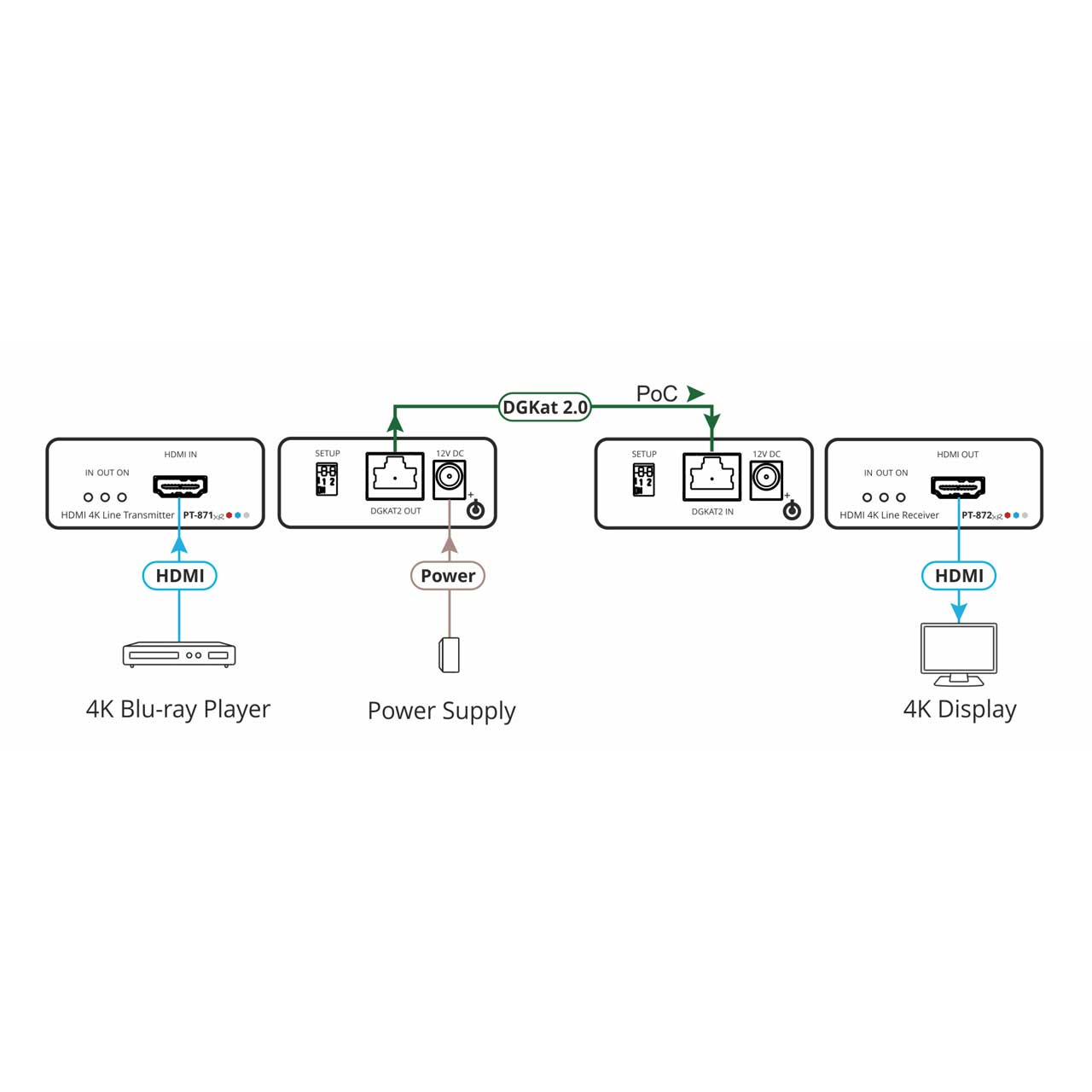

Kramer PT-871xr is a high-performance, long-reach DGKat™ 2.0 transmitter for 4K@60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals and 2-way powering over twisted pair that works with the KR-PT-872XR receiver (sold separately). It converts the HDMI signal into the transmitted DGKat™ 2.0 signal. PT-871xr extends the signal to up to 60m (200ft)* at 4K@60Hz (4:4:4) resolution and up to 70m (230ft)* at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.

*NOTE: Per Kramer to reach the distances listed, Kramer UNIKAT non-plenum bulk cable or pre-made assemblies are recommended.

Perfect for:
Long-distance AV signal extension for large room connectivity
AV extension in meeting rooms, boardrooms, hotels and corporate facilities

  • Features:

    • High Performance Extender
    • HDMI Signal Extension
    • EDID Pass-through
    • Multi-channel Audio Extension
    • Cost-effective Maintenance
    • Easy Installation


  • Specifications:

    • INPUTS
    • 1 HDMI: On an HDMI female connector

    • OUTPUTS
    • 1 DGKat: On an RJ-45 female connector for extension line

    • VIDEO
    • Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
    • Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
    • Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
    • Standards Compliance: HDR10, HDCP 2.2

    • HIGH COMPRESSION REACH EXTENSION
    • Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
    • Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)

    • STANDARD COMPRESSION REACH EXTENSION
    • Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

    • EXTENSION LINE
    • Signal Compression: Standard or high compression level applied to >1080p signals
    • Compliance: DGKat 2.0

    • USER INTERFACE
    • Indicators: IN, OUT, and ON LEDs
    • Controls: Dip-switches to define compression level

    • POWER
    • Source: 12V DC, 2A
    • Consumption: 600mA

    • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0° to +40°C (32° to 104°F)
    • Storage Temperature: -40° to +70°C (-40° to 158°F)
    • Humidity: 10% to 90%, RHL non-condensing

    • ENCLOSURE
    • Size: PicoTOOLS®
    • Type: Aluminum
    • Cooling: Convection ventilation


  • Item Includes:

    • PT-871xr HDMI 4K Line Transmitter
    • Power adaptor and cord (1)
    • Bracket Set (1)
    • Rubber Feet (4)


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063087449
