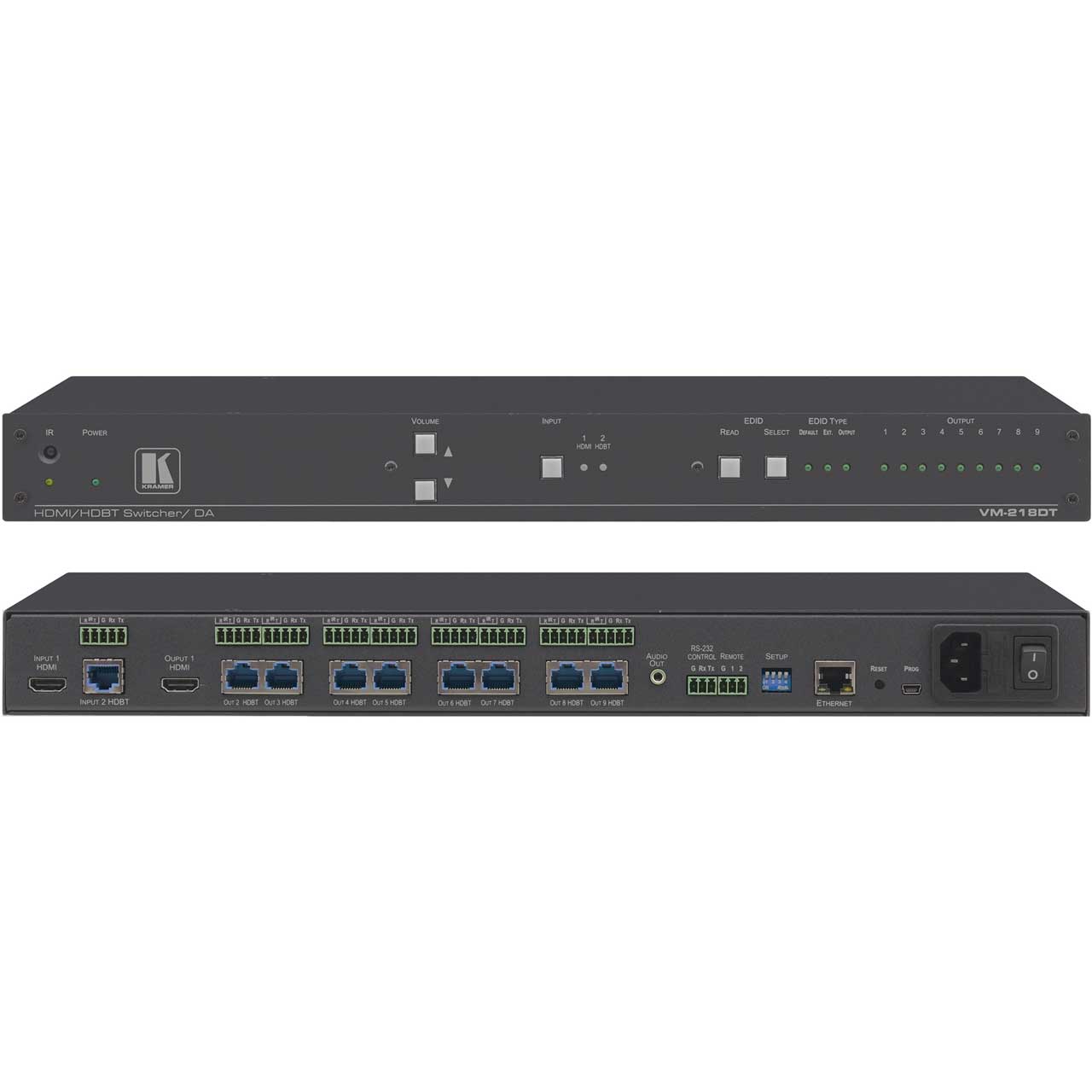

Kramer VM-218DT 2x1:8 4K60 4:2:0 HDMI and Long-Reach HDBaseT Switchable Distribution Amplifier

VM-218DT - Overview

High Performance Extender Distributor

• Features:

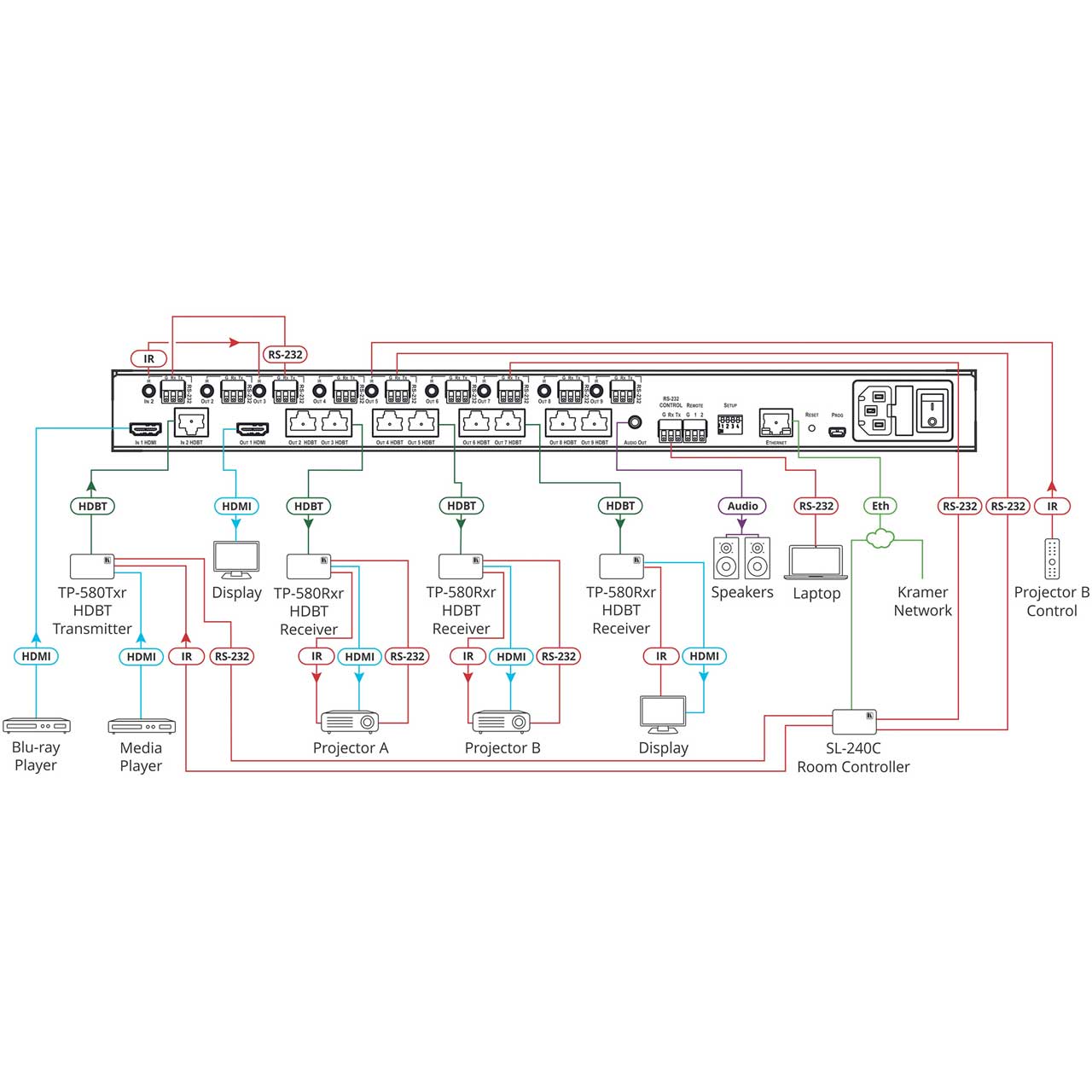

  • High Performance Extender Distributor - High-quality professional 1:8 distribution of native long-reach HDBaseT signals, for deploying mid-way between an AV source and multiple remote displays and gaining extra long-reach extension. It is coupled with both sides, input and output, extension of a maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 40m (130ft) long-reach over CAT copper cable, and even further reach for lower HD video resolution. The extender distributor is standard and capable of being connected to any market-available HDBaseT compliant extending product.
  • Cables - For optimum range and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Looping HDMI Output - Enables monitoring and cascading to additional DAs.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, on each extension line, enabling data transmission and control of devices.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, on each extension line, enabling remote control of peripheral devices located at either end of the extended line.
  • Audio De-embedding (Extraction) - The transmitted digital audio signal is converted to an analog signal and de-embedded to stereo unbalanced analog audio output. This enables user-selectable de-embedding of input digital audio to play at local hi-quality speakers separate from a remote receiver-connected AV sink device, such as a TV display or audio speakers, to provide higher quality audio playback.
  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports to facilitate easy local maintenance and troubleshooting. Remote IP device management via built-in web pages or RS-232 control connection. Local and remote firmware upgrade via mini-USB, control RS-232 or Ethernet connection and the K-Upload tool to ensure long field-proven deployment.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Rack mountable enclosure for mounting in a 1U rack space with included `ear' rack adapter.


• Specifications:

  • INPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 HDBT: On an RJ-45 female connector


  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 8 HDBaseT: On RJ-45 female connectors
  • 1 Stereo Analog Audio: On a 3.5mm mini jack


  • PORTS
  • 1 Ethernet: On an RJ-45 female connector
  • 8 IR: On 3.5mm mini jacks
  • 8 RS-232: On 3-pin terminal blocks


  • VIDEO
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
  • HDMI Support: Deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • EXTENSION LINE
  • Range Extension (Input or Output Each Side): Up to 40m (130ft) at 4K @60Hz (4:2:0), up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • Range Extension (Input or Output Each Side): Note: When using Kramer HDBaseT cables


  • USER INTERFACE
  • Controls: Input select, volume, and EDID read/select buttons. RS-232 device control, Ethernet, and DIP-switches
  • Indicators: Input select, EDID type, outputs and IR signal LEDs


  • POWER
  • Source: 100-240V AC 50/60Hz
  • Consumption: 800mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • ENCLOSURE
  • Cooling: Forced air, fan
  • Type: Aluminum


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Vibration: ISTA 1A in carton (International Safe Transit Association)
  • Safety: CE
  • Environmental: Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • VM-218DT HDMI/HDBT Switcher/DA
  • Power Cord (1)
  • Rack Ears (1 set)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063083205
