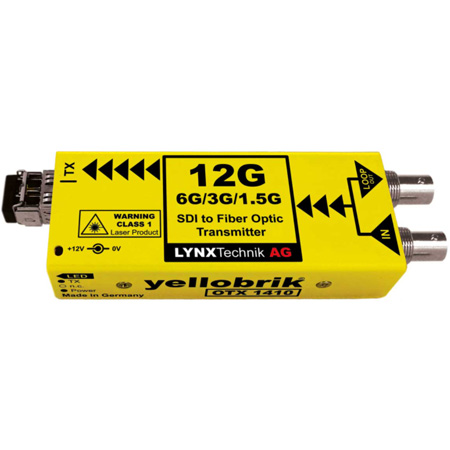

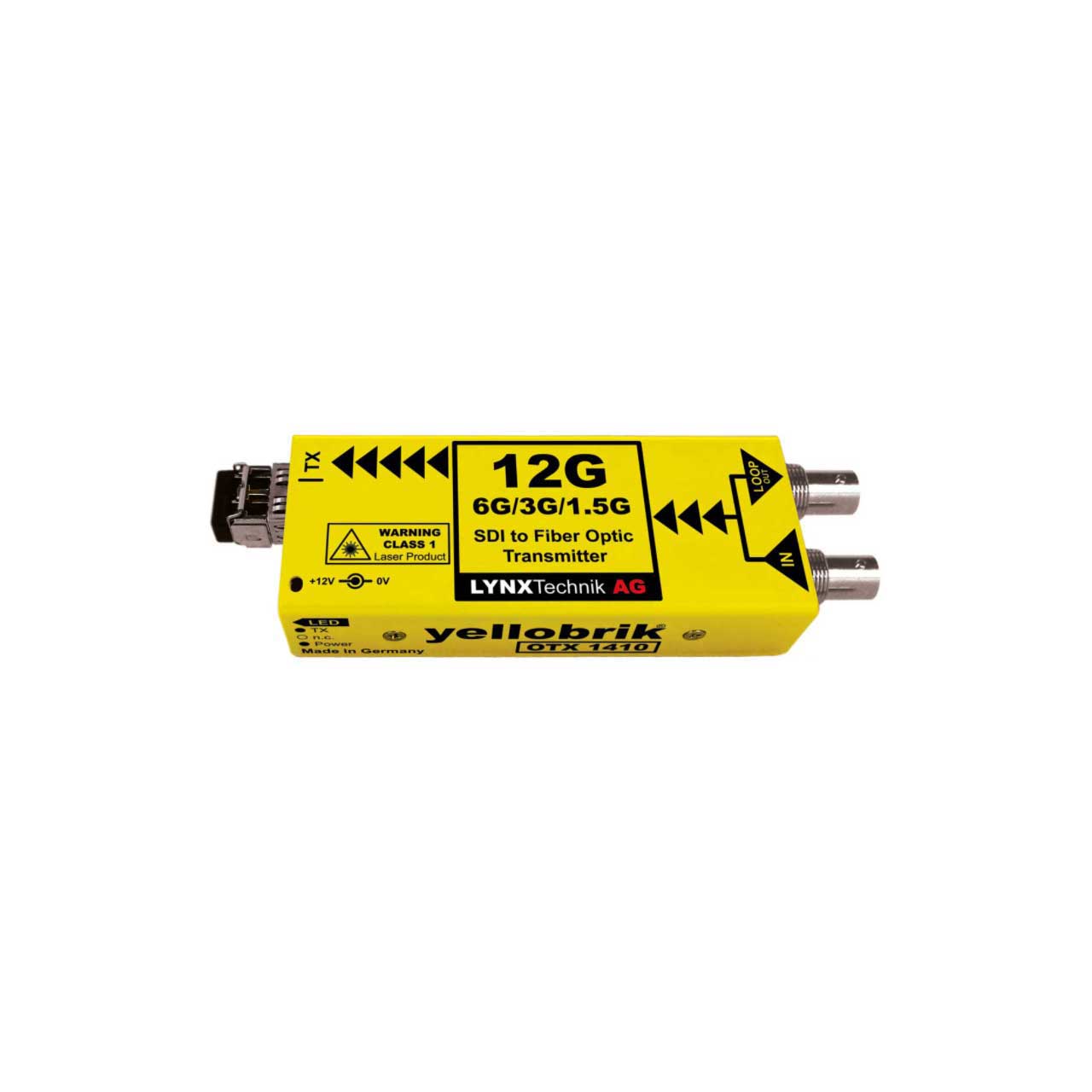

LYNX Technik OTX 1410 ST 12G SDI to Fiber Optic Transmitter - ST Singlemode Option

OTX 1410 ST - Overview

• Features:

  • Supports 12G, 6G, 3G and 1.5G SDI video inputs
  • 3Gbit Level A and Level B (support for all formats)
  • Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
  • Error free optical transmission
  • Reclocked SDI loop out connection

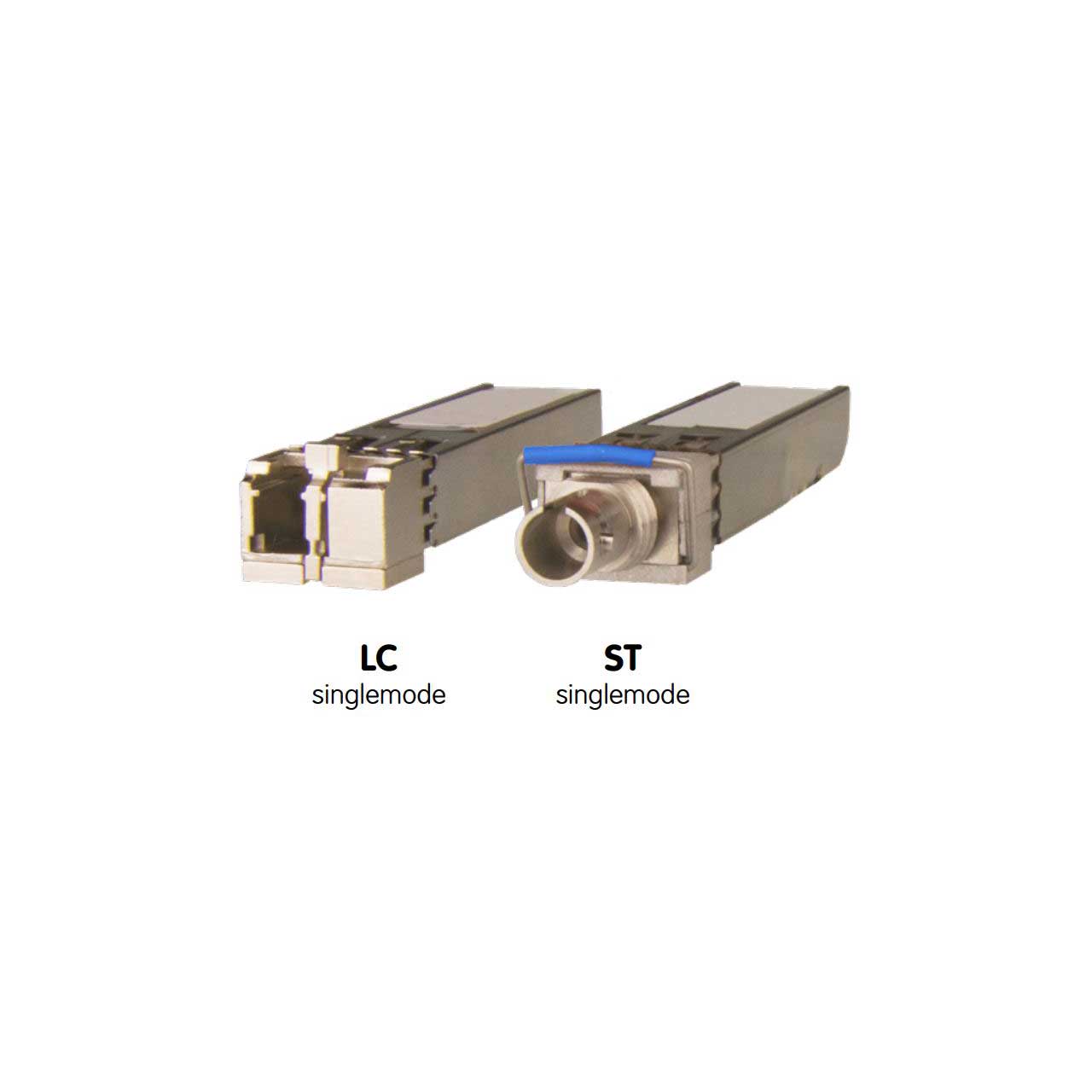

  • LC/PC and ST connection variants
  • Singlemode fiber connection
  • Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
  • Hot swappable and hot pluggable


• Specifications:

  • SDI Input
    1x SDI video input and 1 x SDI reclocked loop output
    75 Ohm BNC connectors
    SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
    Multi-standard operation from 1.5Gbit/s to 12Gbit/s
    Multirate reclocking: 1.5Gbit - 3Gbit - 6Gbit - 12Gbit
    Automatic cable EQ - 260m @ 1.5Gbit/s, 150m @ 3Gbit/s (Belden 1694A cable) - 90m @ 6Gbit/s, 80m @ 12Gbit/s (Belden 4794R cable)
  • Optical Output
    1x fiber optic output
    SMF (singlemode) using LC/PC or ST connection
    SMPTE 297M - 2006
    Wavelength 1310nm, typical Optical power -3dBm
    TX active LED on side of module
    Max. distance approx. 10km (6.2 miles) @ 12Gbit/s (SM) - depending on system
  • Power: +12VDC @ 2.2W nominal - (supports 7 - 24VDC input range)
  • Physical:
  • Dimensions: 5.51 x 1.65 x 0.86" (140 x 42 x 22mm) including connectors
    Weight: 0.27Lbs (125g)
  • Ambient Temperature: 41° to 104°F (5° to 40°C) 90% Humidity (non condensing)


• Item Includes:

  • 1x OTX 1410 ST Module
  • 1x AC power supply


• Warranty:

  • 3 Year Warranty


• GTIN:

  4250479327641
