    RCT-1012 - Overview

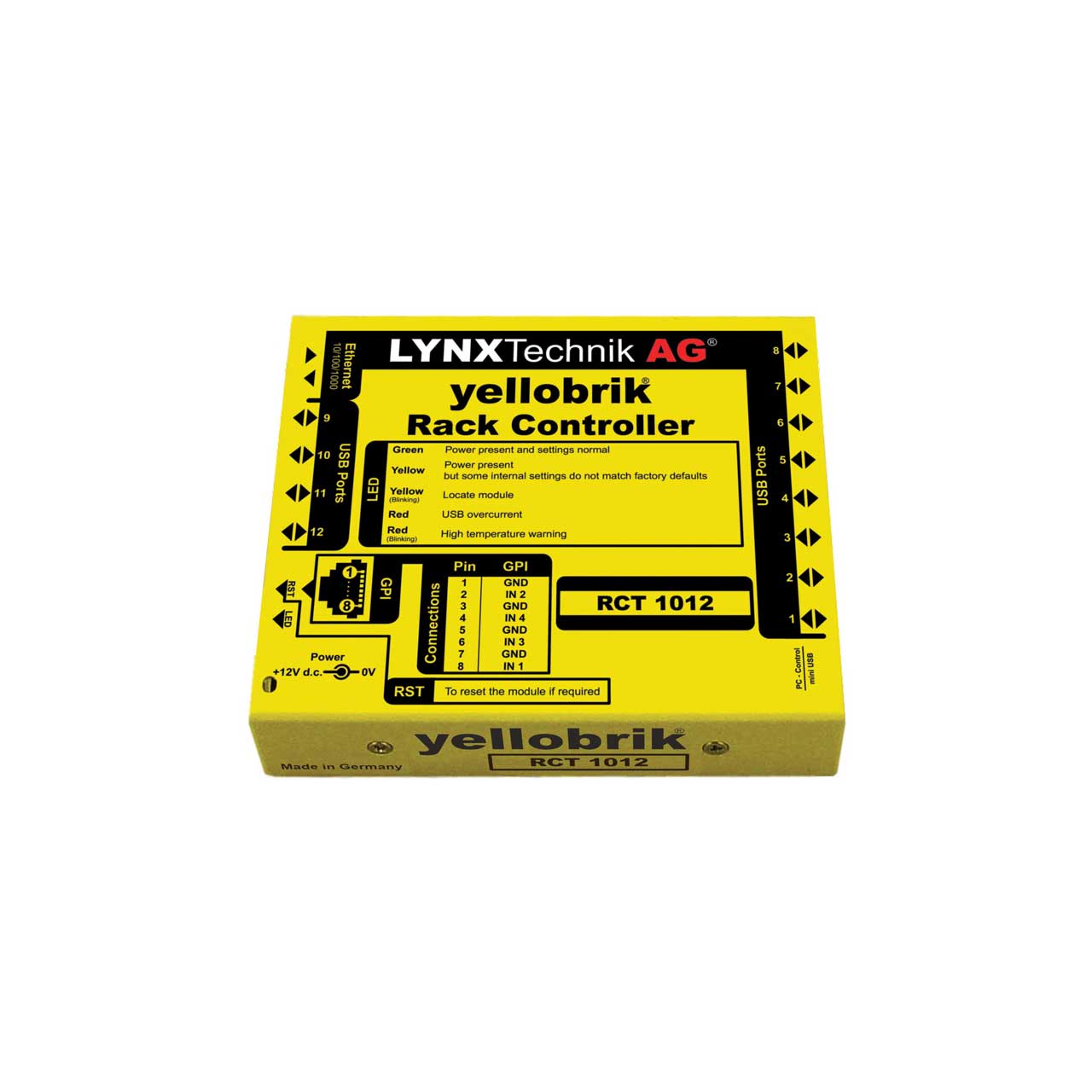

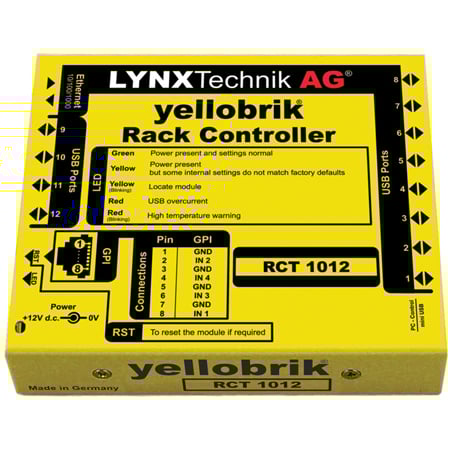

    The LYNX Technik RCT 1012 is a compact one slot yellobrik module designed to combine the control of up to 12 yellobrik modules to an ethernet port. It is a one-stop solution for the management and control of several yellobriks in an easy, fast, and efficient manner without requiring an individual connection to each module for setting parameters or updating the firmware. All connected yellobrik modules are visible on the network remotely.

    RCT 1012 automatically discovers the connected yellobrik modules and displays them in the device tree below the controller node. It allows bulk firmware updates of all the selected yellobrik modules and facilitates the configuration of all the connected yellobriks via the IP network.

    RCT 1012, when mounted on an RFR 1000-1 rack frame, will provide status information of the primary and redundant power supply via 4 GPI contacts.

    • Features:

      • One slot yellobrik module
      • Supports control up to 12 yellobriks
      • Provides 12 USB A ports for connection
      • 4x GPI connections for monitoring power supply status of RFR 1000-1
      • 1x Ethernet 10/100/1000
      • 1x Reset button for changing the settings to default values
      • 1x mini USB for maintenance
      • LED Status for power, USB overcurrent, and high temperature warning
      • APPolo GUI / Server compatible to access module settings
    • Specifications:

      • Network: 10/100/1000 Ethernet (RJ-45)
      • USB:
        12x USB Type A
        1x mini USB type B
      • GPI:
        Connector: RJ45 with 4x External GPI inputs
        GPI 1 to GPI 4: used for monitoring RFR 1000 primary and redundant power supplies
      • Power: +12VDC @ 4 W nominal - (supports 7 - 24VDC input range)
      • Dimensions: 108 mm x 90mm x 22mm (4.25" x 3.54" x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Temperature Range: 5° to 40°C (41° to 104°F)
      • Humidity (non condensing): 90%
    • Item Includes:

      • 1x RCT 1012 Module
      • 1x AC power supply
    • GTIN:
