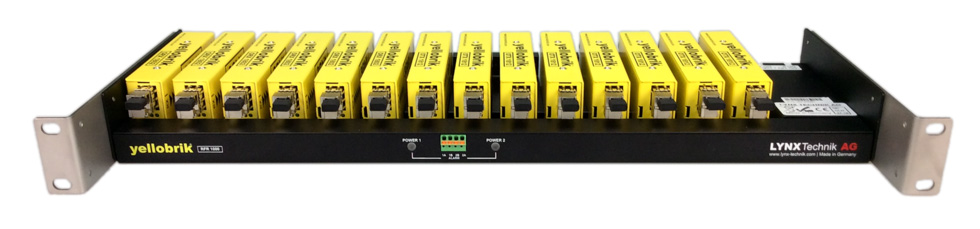

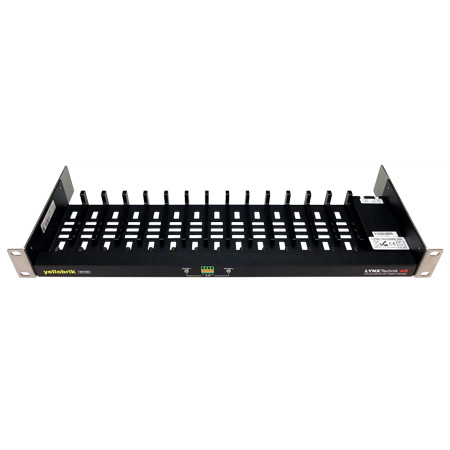

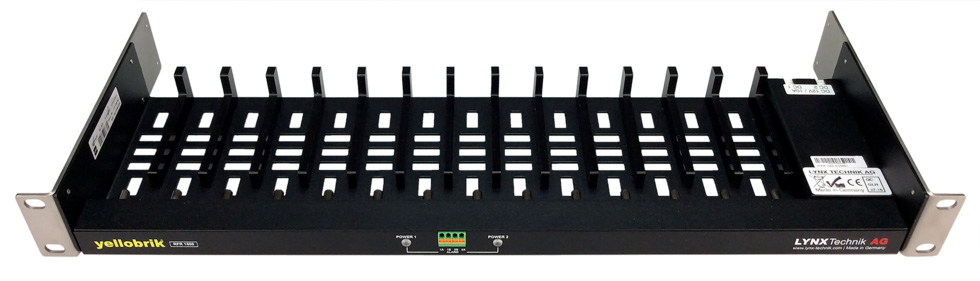

The LYNX Technik RFR 1000-1 is a compact 1 RU high mounting frame designed for yellobriks. Up to 14 yellobriks can be vertically mounted and are mechanically clamped securely in place. Each slot has its own integrated power connector on a central power bus.

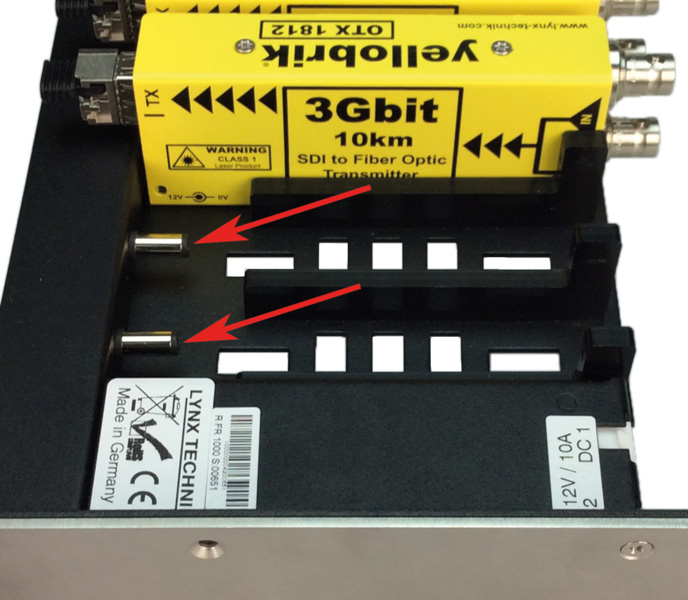

The rack has two external 12VDC inputs for power, one for primary power, the second for redundant backup. An optional external power brick is available which provides enough power for any combination of yellobriks. A second unit can be used for redundant backup.
Primary and redundant power LEDs are in the front panel as well as GPO connections for the power supply failure alarms. The RPS1000-1US power supply is required and sold seperately, 2 power supplies are required to provide redundant power.

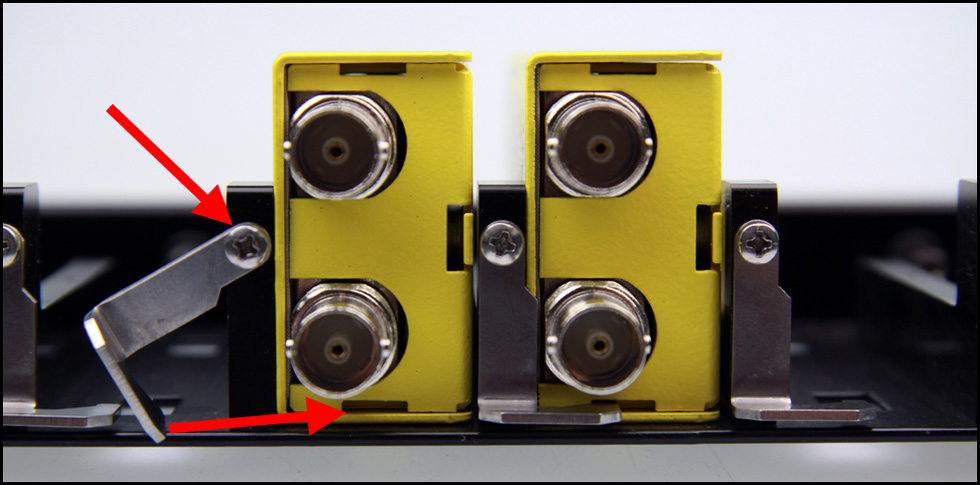

While the frame will accommodate all yellobriks, it is ideally suited for the yellobrik fiber converters, which are typically used in larger numbers. Fiber connections are on the front and the SDI copper connection in the rear. A space is left open on one side to route the fiber loops from front to rear making for a very clean installation. The module fiber RX and TX activity LEDs can be seen clearly from the front with the modules installed. To protect the fiber cables and connections the 19" mounting brackets can be repositioned to recess the rack frame.
