Blackmagic Design SWATEMMINIBPR ATEM Mini Pro Live Production HDMI Switcher Kit with HDMI/USB/CAT5 Cables for Mac

ITEM #: MTK-AMP-MAC MFG #: MTK-AMP-MAC

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$559.00

Our Price:

$529.95

Availability: In Stock
iAvailability Description Popup


    MTK-AMP-MAC - Overview

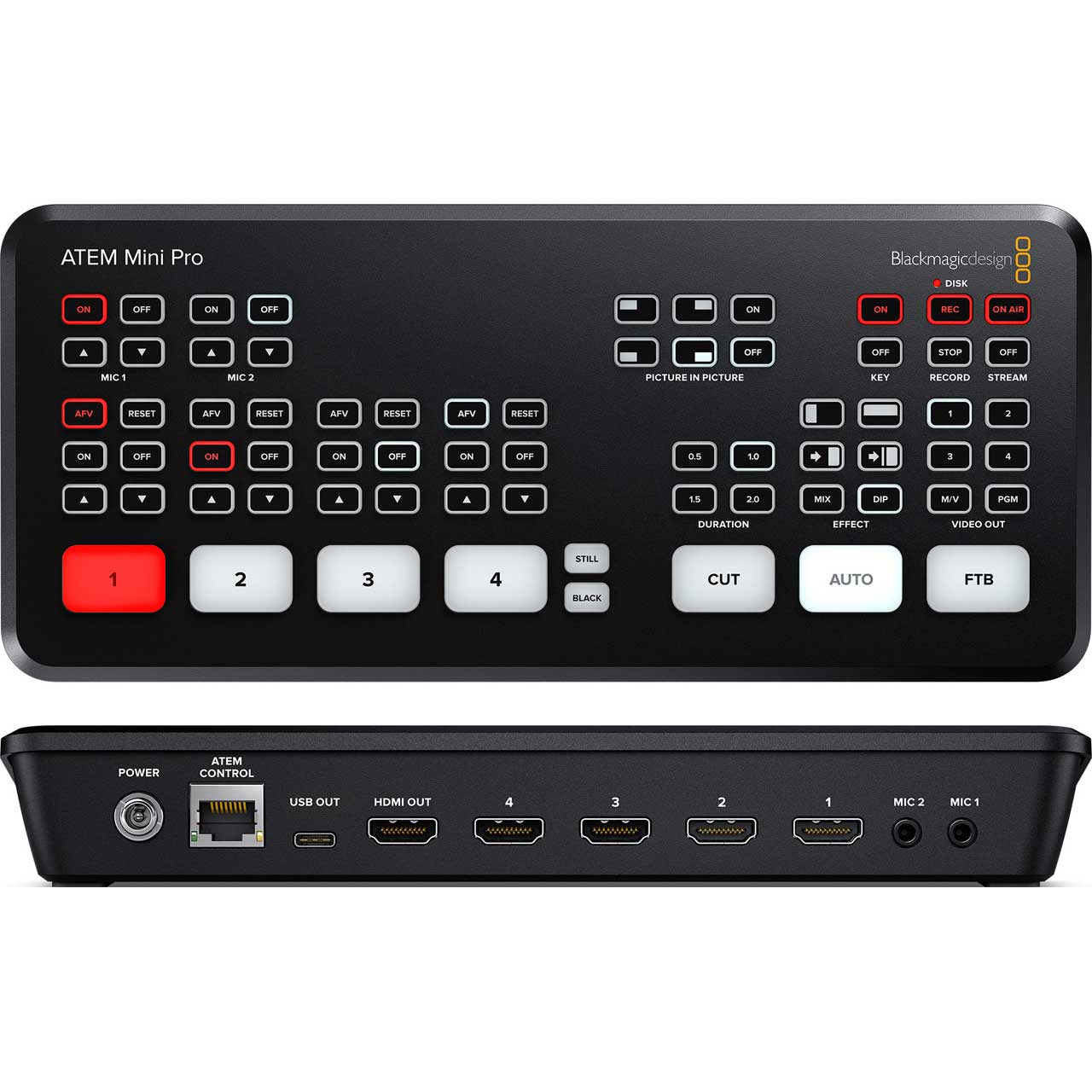

    The NEW ATEM Mini Pro - Live Stream, Live Record And Now With Multi-View!

    The Blackmagic Design ATEM Mini Pro is the latest in the ATEM product line. It includes all the same features as the ATEM Mini such as 4 HDMI inputs, USB-C webcam output, HDMI output, The ATEM Software Control includes a Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key and 20 stills media pool for titles and graphics. The ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube LIVE, Facebook LIVE and more. There's also a multiview feature for all 4 cameras, media, Preview and Program plus status of recording, streaming and audio.

    Outputs to HDMI Video and USB Webcam
    To ensure maximum compatibility, ATEM Mini features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Open Broadcaster for live streaming, or Skype for Powerpoint presentations. ATEM Mini works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Zoom, Twitch, Periscope, Livestream, Wirecast and more!

    Live Stream via Ethernet on ATEM Mini Pro
    The ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup and status, plus streaming status is also displayed in the multiview. Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can even hack the detailed streaming profiles in the XML preference file and load new services.

    Monitor Sources and Status with ATEM Mini Pro Multiview
    When doing larger live productions with multiple cameras, it's very useful to see all your video sources at the same time on a single monitor. The ATEM Mini Pro model includes a professional multiview that lets you see all 4 video inputs, plus Preview and Program on a single HDMI television or monitor! Simply select M/V on the front panel video output control buttons to select multiview. Each camera view includes tally indicators so you know when each source is on-air, and each view also has custom labels and audio meters. You can also see the media player so you know what graphic is selected. Plus multiview even includes status for recording, streaming and the Fairlight audio mixer.

    With the ATEM Mini Pro, it's never been easier to get started with live streaming and multi camera video production!

    Applications:
    Stream live interviews
    Business presentations via Skye
    Live stream eSport competitions
    Kickstarter and Investor updates
    Education and training
    Live sporting events
    Stream concerts and music videos

    • Features:

      • Connect up to 4 independent cameras
      • Outputs to HDMI video and USB webcam
      • Work with professional microphones
      • Includes free ATEM Software Control Panel
      • Includes new ATEM Advanced Chroma Key
      • Add professional broadcast transitions and effects
      • New multi-viewer funtionality for all 4 cameras along with Preview and Program

    • Specifications:

      • Connections
      • Video Inputs: 4
      • Outputs: 2
      • Aux Outputs: 1
      • SDI Rates: 1.5G, 3G
      • Audio Inputs: 2x 3.5mm stereo mini jack
      • Audio Outputs: None, embedded audio only
      • Timecode Connection: None
      • HDMI Video Inputs: 4x HDMI type A, 10bit HD switchable. 2-ch emb. audio
      • Video Input Re-Sync: On all 4 HDMI inputs
      • Frame Rate & Format Convertors: On all 4 HDMI inputs
      • HDMI Program Outputs: 1
      • Computer Outputs: 1x USB Type-C 3.1 Gen 1

        Standards
      • HD Video Input Standards
        720p50, 720p59.94, 720p60
        1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
        1080i50, 1080i59.94, 1080i60
      • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Ultra HD Video Standards: None
      • Video Sampling: 4:2:2 YUV
      • Color Precision: 10-bit
      • Color Space: Rec 709

        HDMI Input Resolutions from Computers
      • 1280x720p 50Hz, 59.94Hz and 60Hz; 1920x1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz; 1920x1080i 50 and 59.94Hz 60Hz
      • Colorspace Conversion: Hardware based real time

        Audio Mixer
      • 6 input x 2 channel mixer
      • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
      • Level and Peak metering
      • New Fairlight Audio Enhancements: Compressor, Gate, Limiter, 6-band EQ, Master gain control

        Product Specifics
      • Upstream Keyers: 1
      • Downstream Keyers: 1
      • Advanced Chroma Keyers: 1
      • Linear/Luma Keyers: 2
      • Transition Keyer: DVE only
      • Total Number of Layers: 4
      • Pattern Generators: 1
      • Color Generators: 2
      • DVE with Borders and Drop Shadow: 1
      • Interface: Minimum monitor resolution of 1366x768
      • Streaming: Direct live streaming over ethernet using RTMP
      • Recording: Via USB-C 3.1
      • Multi View Monitoring: 10 views monitoring - Program/Preview, 4 HDMI inputs, Media Player, Stream & Record status, and Audio Meters

        Media Player
      • Media Players: 1
      • Channels: Fill and key for each Media Player
      • Media Pool Still Image Capacity/Format: 20 with fill and key/PNG, TGA, BMP, GIF, JPEG and TIFF

        General
      • Power Supply: 1x External 12V power supply
      • Power Usage: 18W
      • Dimensions (HxWxD): 1.38" x 9.35" x 4.07" (35mm x 237mm x 103mm)
      • Weight: 1.21lbs (0.54kg)
      • Operating Temperature: 41°F - 104°F (5°C - 40°C)
      • Storage Temperature: 14°F - 140°F (-10°C - 60°C)
      • Relative Humidity: 0% - 90% non-condensing

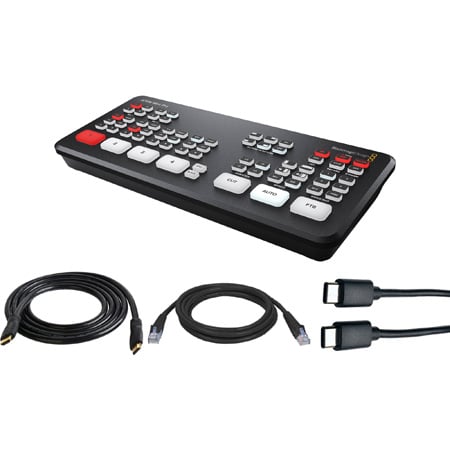

    • Item Includes:

      • 1x Blackmagic Design ATEM Mini Pro with Power Supply

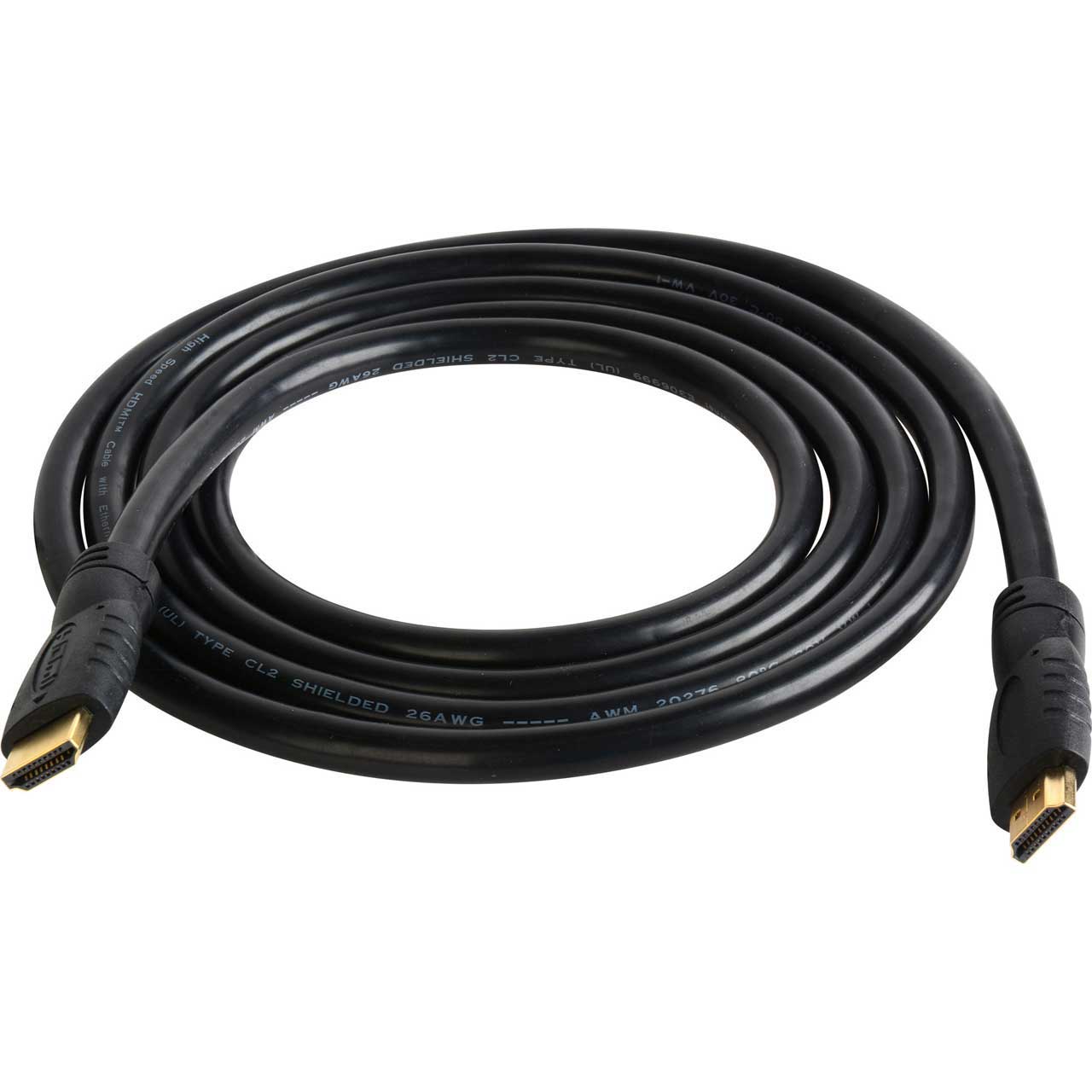

      • 1x 6ft 4K/8K HDMI Cable

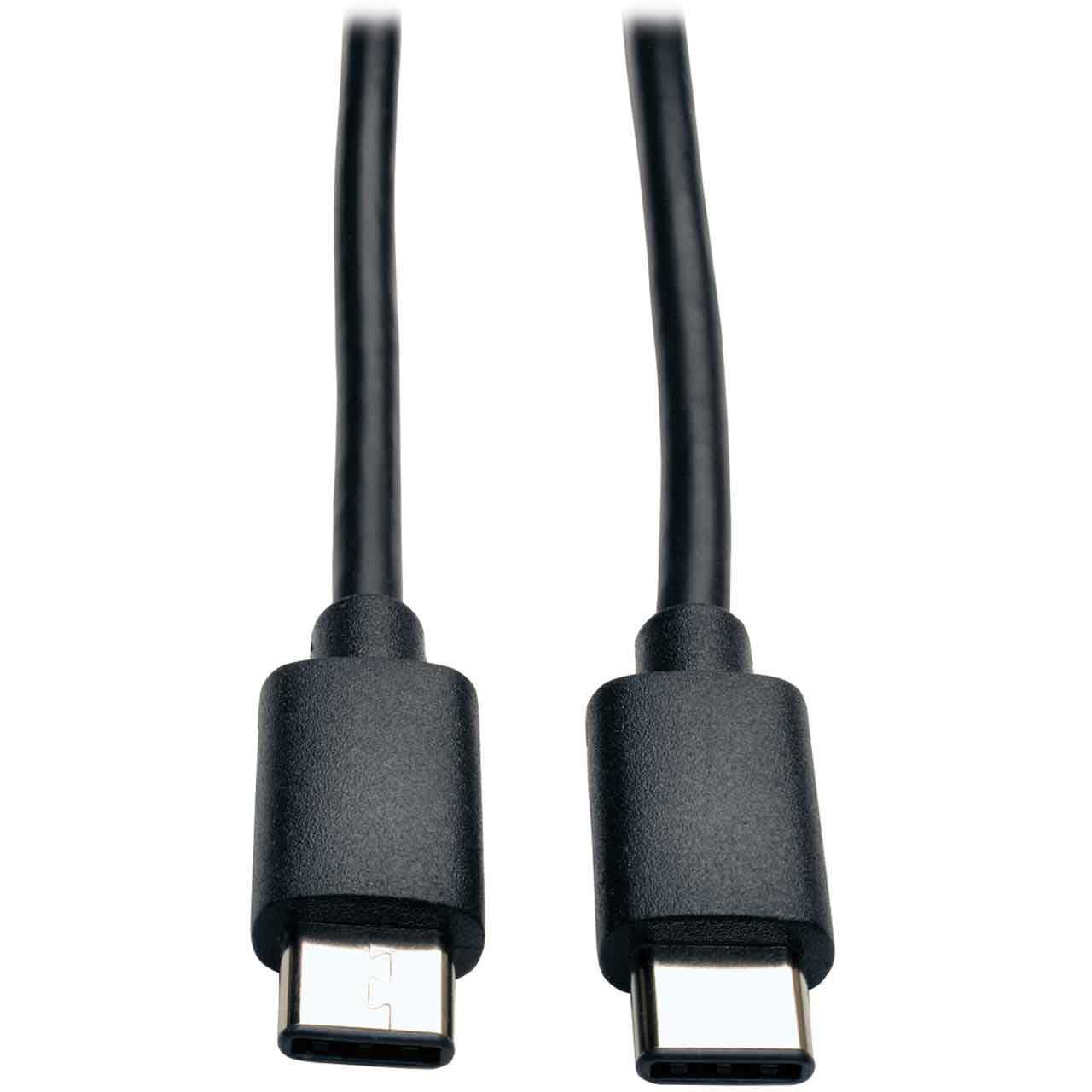

      • 1x 3ft USB-C to USB-C Cable

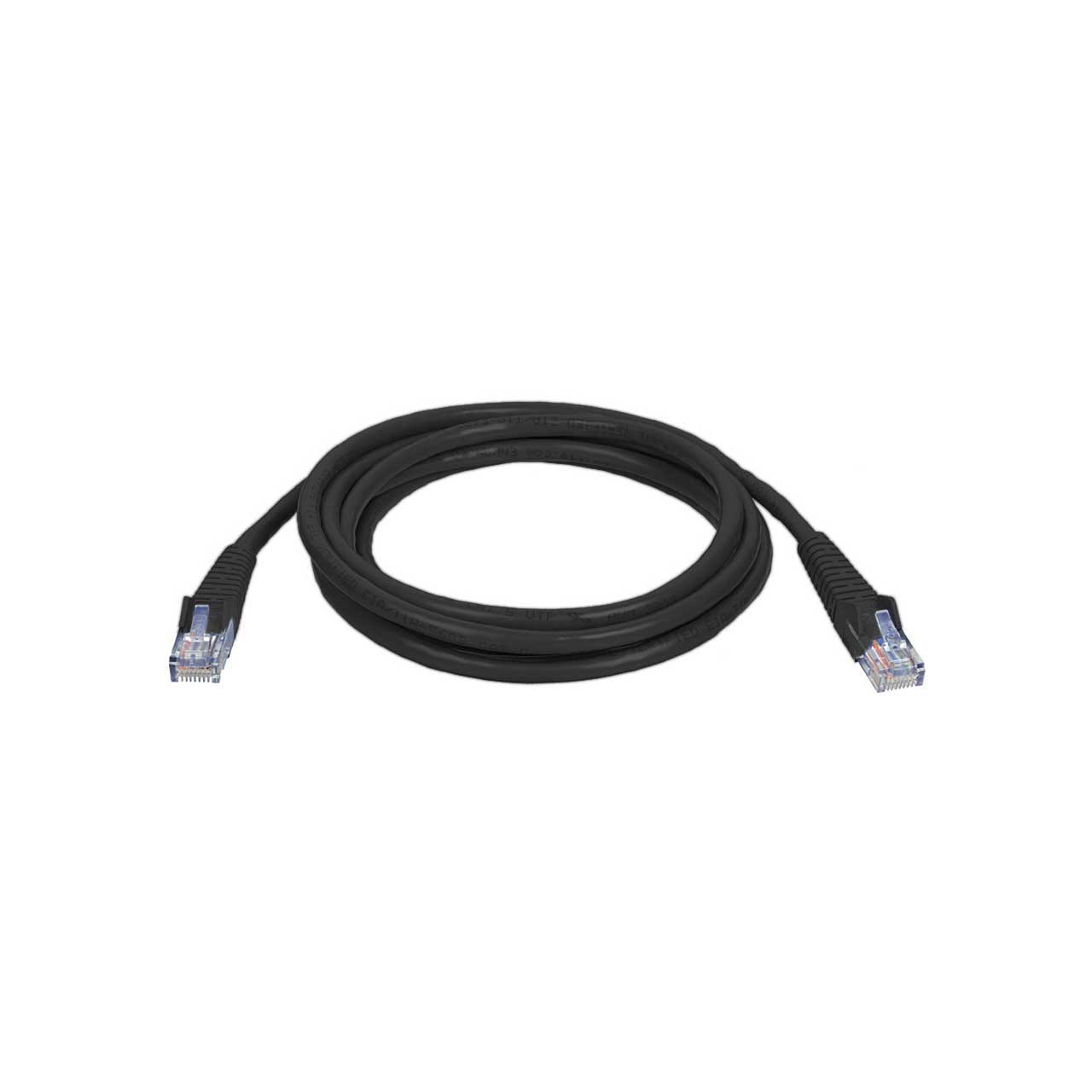

      • 1x 3ft CAT5e Patch Cable

    • Warranty:

      • 1 Year Limited Manufacturer's Warranty

    • GTIN:

      9338716006797
