    500841 - Overview

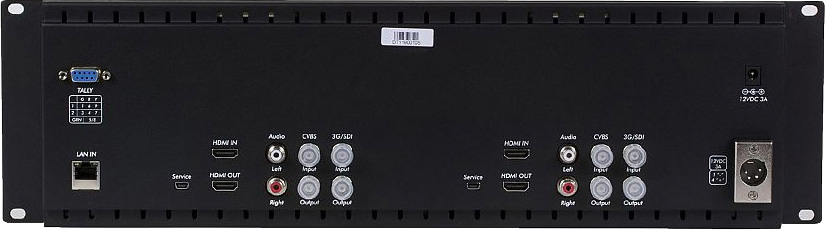

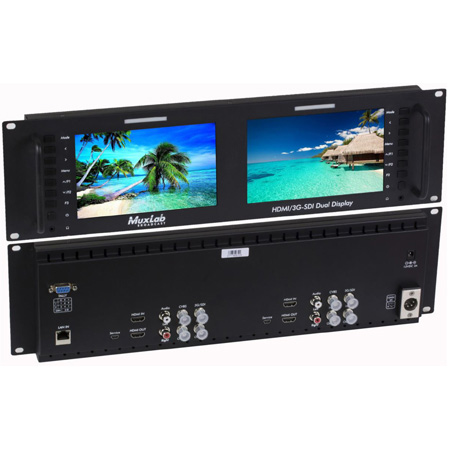

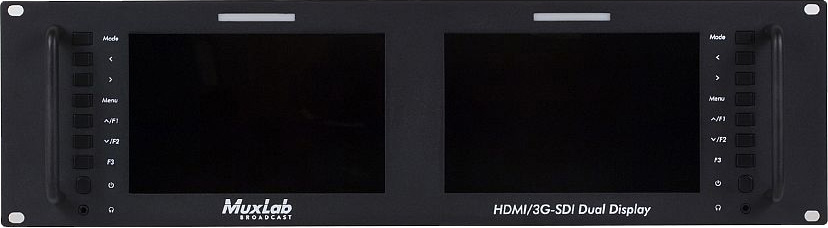

    The Muxlab 500841 HDMI/3G-SDI Dual Display supports two independent 7 inch IPS LCD displays mounted conveniently and securely on a 3 RU 19" rack. These devices save a significant amount of space in multi-display Pro AV and Broadcast applications.

    This unit supports input and loop-out of HDMI signals up to 1080p/60, SDI signals up to 3G-SDI, and CVBS signals with Audio. The unit supports a tri-color Tally light indicator per display, customizable buttons allowing customers to tailor them to their needs, and advanced functions such as Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P, and Image Freeze.

    This unit is a convenient and flexible solution for commercial and industrial application such as broadcast studios, film and television studios, IT departments and datacentres, AV testing environments (may be paired with 500830 & 500831 signal generator & analyzer), and general multi-display applications.

    • Features:

      • Dual 7-inch IPS LCD displays
      • Supports HDMI (1080p), 3G-SDI and CVBS with Audio
      • Fits 19-inch rackmount @ 3 RU
      • Tri-color Tally light indicator per display
      • Supports Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P & Image Freeze
      • Customizable buttons tailored to customer needs
      • Supports firmware update via mini USB
    • Specifications:

      • Environment: HDMI, SDI and Audio
      • Input Signal: Up to 1080p HDMI and 3G-SDI Video, and Audio(L/R)
      • Output Signal: Up to 1080p HDMI and 3G-SDI Video
      • HDMI Signal Support: 480i, 480p, 576i, 576p, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50),
      • 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
      • SDI Signal Support: SD-SDI, HD-SDI and 3G-SDI including:
      • 480i, 576i, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50),
      • 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
      • Display type and size: 7" IPS LCD displays, with LED backlight
      • Individual Screen Resolution: 1280x800 (RGB) per screen
      • Aspect Ratio: 16:10
      • Dot Pitch: 0.117 (W) x 0.117 (H) mm
      • Brightness: 400cd/m2
      • Contrast: 800:1
      • Response Time: Turn On = 14ms, Turn Off = 11ms
      • Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
      • Headphone Output: 2CH headphone output via 3.5mm jack
      • Input Voltage Range: 9.0 to 24 VDC
      • Power Source: One (1) 100/240VAC to 12VDC @ 3A power supply
      • Power Consumption: 20W
      • Temperature: Operating: -20° to 55°C Storage: -30° to 60°C
      • Humidity: Up to 95% non-condensing
      • Enclosure: Metal
      • Dimensions: 19.00" x 5.12" x 1.20" (482.6mm x 130.0mm x 30.5mm)
      • Weight: 4.16lbs (1.89kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
      • Warranty: 2 years
