Osprey 845e with Simulstream Video Capture Card

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

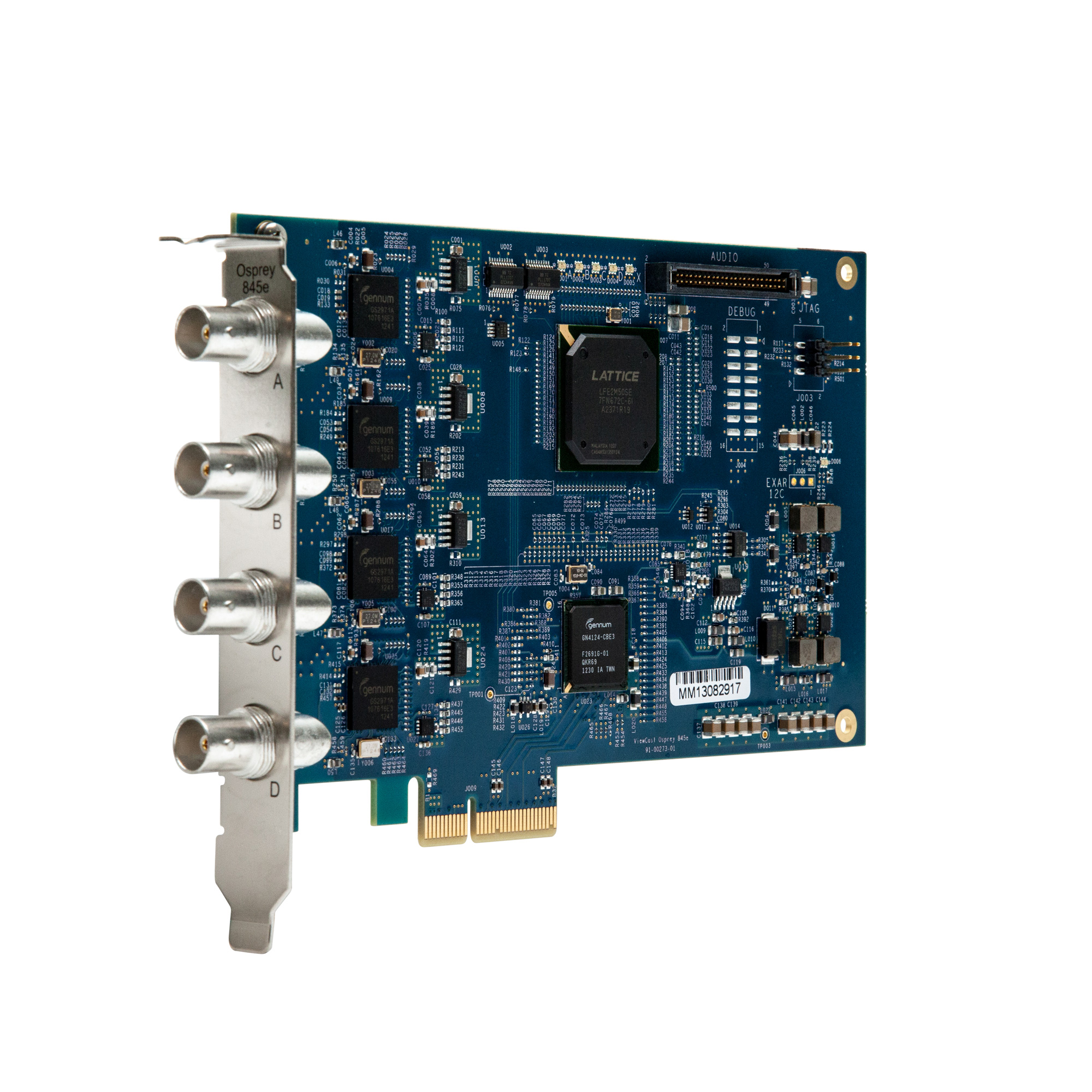

    Osprey 845e with Simulstream Video Capture Card

    Manufacturer: Osprey Video

    Item #: OSPREY-845E   •   MFG #: 845E




    Our Price:$2,055.00

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Osprey 845e 4-Channel SDI Capture Card is a video and embedded audio capture card for Windows and Linux. It features four SDI inputs that can simultaneously capture up to four channels of 1.5 Gbps HD-SDI video, or two channels of 3G-SDI video. In addition it can capture four stereo pairs (eight channels) of SDI-embedded audio per video source.

    The Osprey 845e is a versatile card that can be used for a wide range of applications, such as recording multiple streams of video to a computer or live streaming multi-camera productions. For Windows users, the card features drivers that expose it to the Microsoft DirectShow API, Windows' media device interface framework. This means that card is compatible with most Windows-based software that is capable of capturing or streaming video.

    For Linux users, there are a wide range of Open Source software options available via the Linux distribution's package manager or as source code from GitHub and other repositories. In addition, users looking for custom solutions can develop their own software using the software developer kit (SDK), which can tailored for unique applications.

    The Osprey 845e also features SimulStream. This driver enhancement provides the ability to feed multiple encoding applications at the same time. The most notable benefit of this feature is the ability to encode the same video source at different frame rates and resolutions to support a wider range of devices and Internet connection speeds, something encoding applications often lack the ability to do on their own.

    Because of the high data-rates involved in multi-channel video capture, it is important to consider the computer that will be used. While the exact system requirements will vary depending on the specific capture or streaming software that will be used, a quad-processor or better workstation computer with a direct- or North Bridge-connected x8 PCIe slot will likely be required.


    • Specifications

      • Description: Four channel SDI HD/SD DVB-ASI

      • Format:
      • PCIe X4
      • PCIe 1.1

      • Video Input:
      • 3G SMPTE 424M x 2
      • HD SMPTE 292M x 4
      • SD SMPTE 259M x 4
      • DVB-ASI x 4

      • Video Connector: SDI (BNC x 4)

      • Video Modes:
      • 1080i 50, 59.94, 60
      • 1080p 23.98, 24, 25, 29.97, 30
      • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
      • 720 x 480, 29.97, 30/i (NTSC)
      • 720 x 576, 25/i (PAL)
      • 720 x 576, 25, 50/p
      • 3G SDI 1080p, 59.94, 60

      • Audio Input: Four stereo pair embedded audio on each input

      • Driver Support:
      • Microsoft DirectShow
      • Linux

      • Video Pre-Processing:
      • VBI/VANC Closed Caption extraction/ on screen rendering
      • Logo/bitmap overlay
      • Scaling, cropping, de-interlacing and inverse telecine
      • ProcAmp control
      • Vector Scope and Lumi Scope

    • Item Includes

      • Osprey 845e with SimulStream Capture Card

    • GTIN:

      0850189006184
