StarTech ST122HD202 2-Port HDMI Splitter with HDR - 4K 60Hz

ITEM #: ST-ST122HD202 MFG #: ST122HD202

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$75.99

Our Price:

$65.79

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup

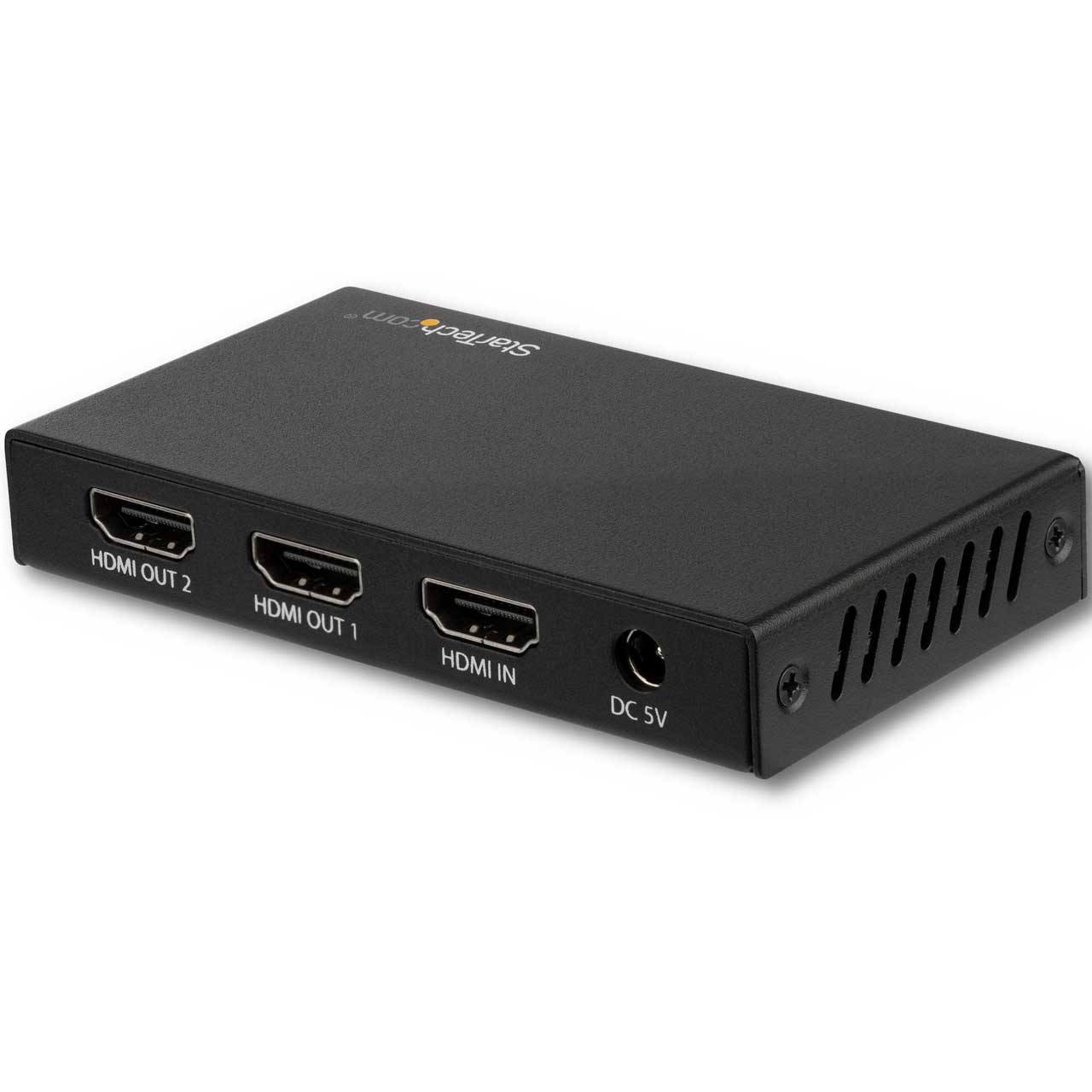

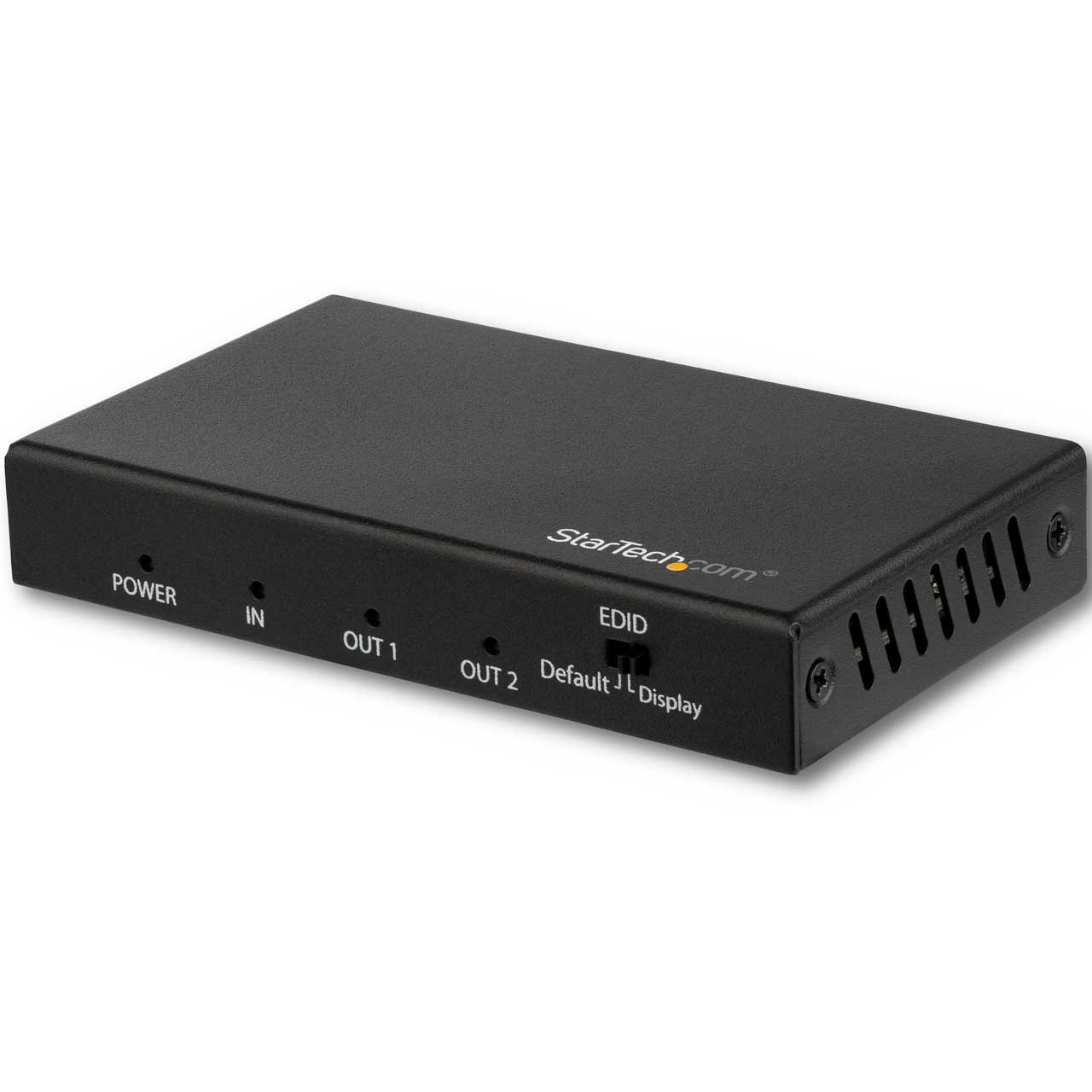

    ST122HD202 - Overview

    This StarTech ST122HD202 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

    True 4K at 60Hz and HDR
    With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

    The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

    Widely Compatible
    The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

    Easy Installation
    For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

    ST122HD202 is backed by a 2-year StarTech warranty and free lifetime technical support.

    Applications
    Distribute HDMI video to multiple displays in a conference room for presentations and meetings
    Display the same digital signage on multiple displays in different areas of shopping centers, arenas, or healthcare facilities
    Split the same image to multiple displays in storefronts

    • Features:

      • Astonishing picture quality with support for 4K 60Hz and HDR
      • Wide device compatibility with support for HDCP 2.2, backward compatible with virtually any HDMI device
      • Hassle-free setup with support for EDID emulation and plug-and-play installation
      • 4:4:4 chroma subsampling even at 4K 60Hz with bandwidth up to 18Gbps
      • Support for 7.1 surround sound audio including Dolbyr True HD and DTS HD Master Audio

    • Specifications:

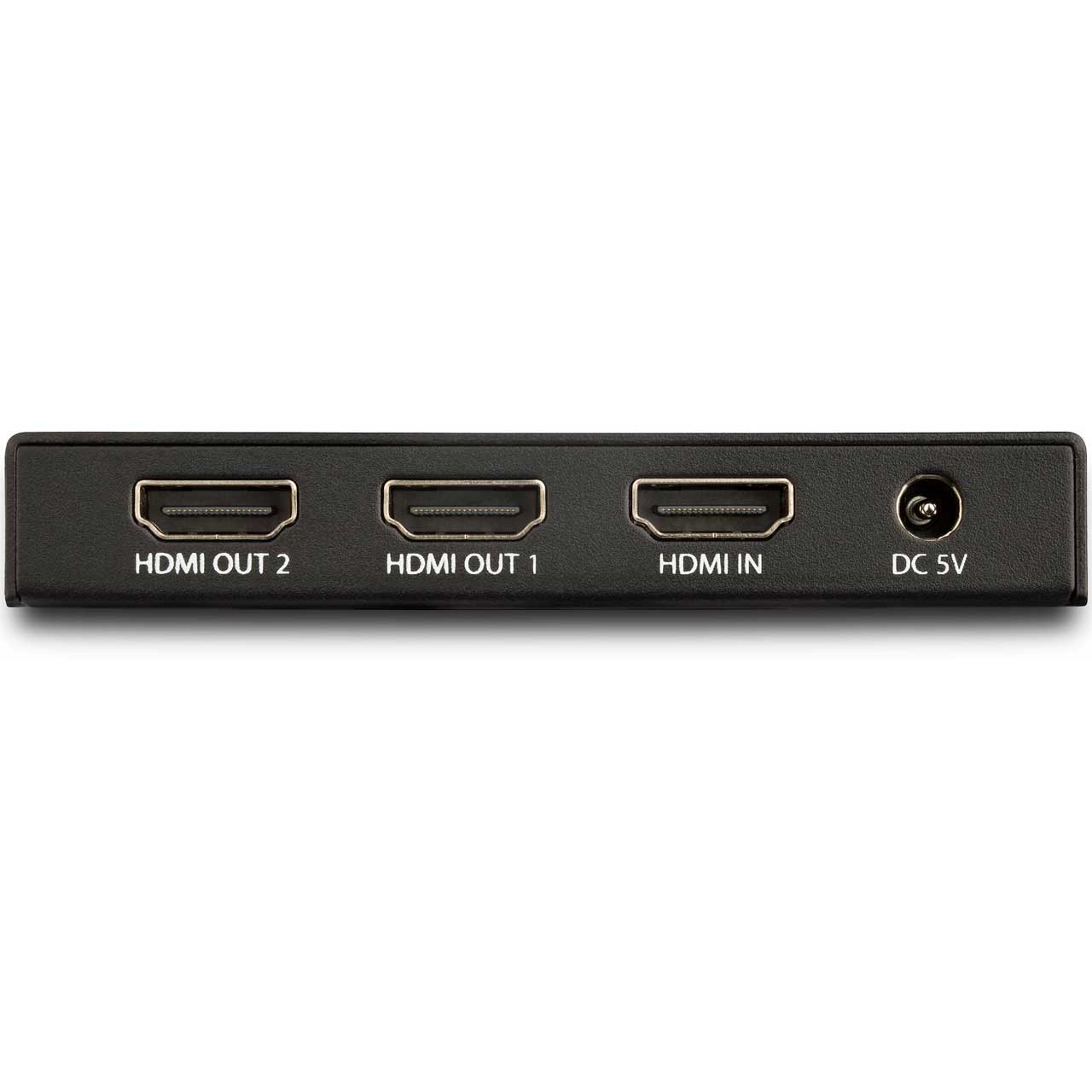

      • Connector(s)
      • Connector A: 1 - HDMI (19 pin)
      • Connector B: 2 - HDMI (19 pin)

        Environmental
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
      • Humidity: 20~90 % RH (non-condensing)

        Hardware
      • AV Input: HDMI
      • Ports: 2
      • AV Output: HDMI
      • Audio: Yes
      • Industry Standards: HDMI 2.0

        Indicators

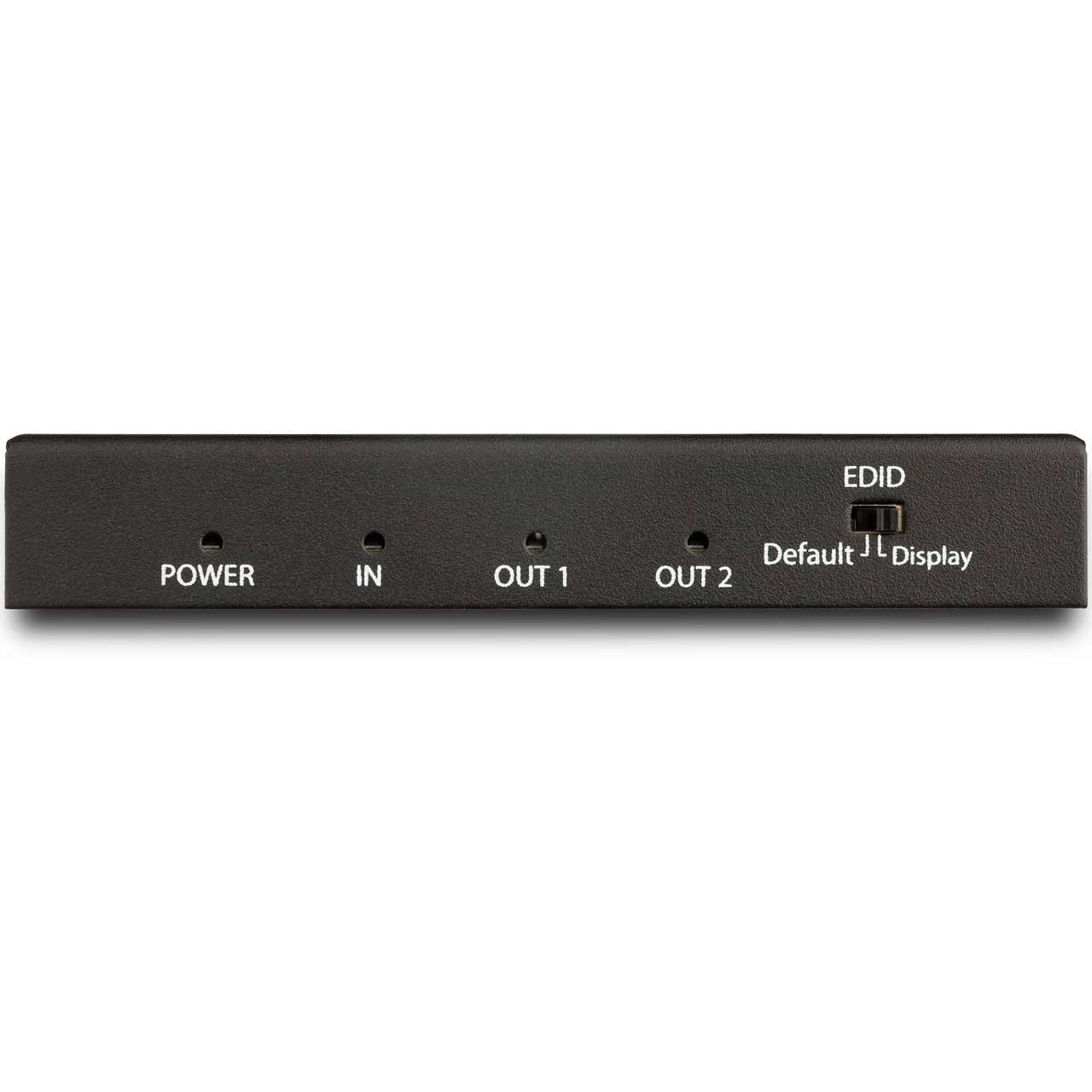

      • LED Indicators: 1 - Power LED, 1 - Input LED, 2 - Output LEDs

        Packaging Information
      • Shipping (Package) Weight: 0.9 lb [0.4 kg]
      • Package Length: 3.9 in [10 cm]
      • Package Width: 2.2 in [55 mm]
      • Package Height: 0.6 in [16 mm]

        Performance
      • Video Revision: HDMI 2.0
      • Maximum Data Transfer Rate: 18Gbps
      • Maximum Cable Length: 16.4 ft [5 m]
      • Maximum Digital Resolutions: 4096x2160 @ 60Hz, 3840x2160 (4K) @ 60Hz, 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p) - Wide Screen Supported: Yes

        Physical Characteristics
      • Color: Black
      • Material: Steel
      • Product Length: 8.4 in [21.4 cm]
      • Product Width: 5.8 in [14.7 cm]
      • Product Height: 2.2 in [5.5 cm]
      • Weight of Product: 13.9 oz [394 g]

        Power
      • Input Voltage: 100 - 240 AC
      • Input Current: 0.35
      • Output Voltage: 5 DC
      • Output Current: 1 A
      • Center Tip Polarity: Positive
      • Plug Type: M
      • Power Consumption (In Watts): 5

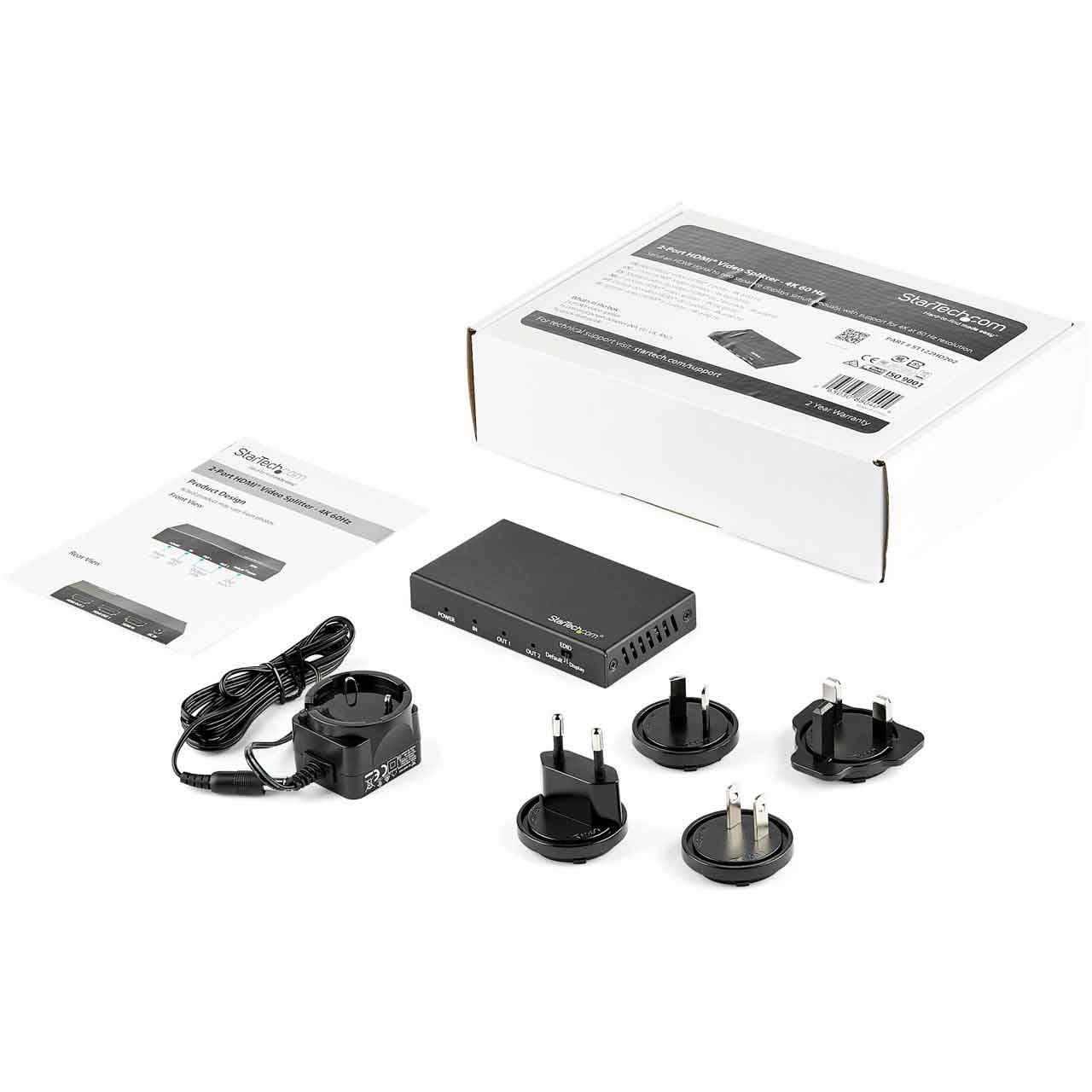

    • Item Includes:

      • 1x HDMI splitter
      • 1x Universal power adapter
      • 1x Quick-start guide

    • Warranty:

      • 2 Years

    • GTIN:

      0065030880404
