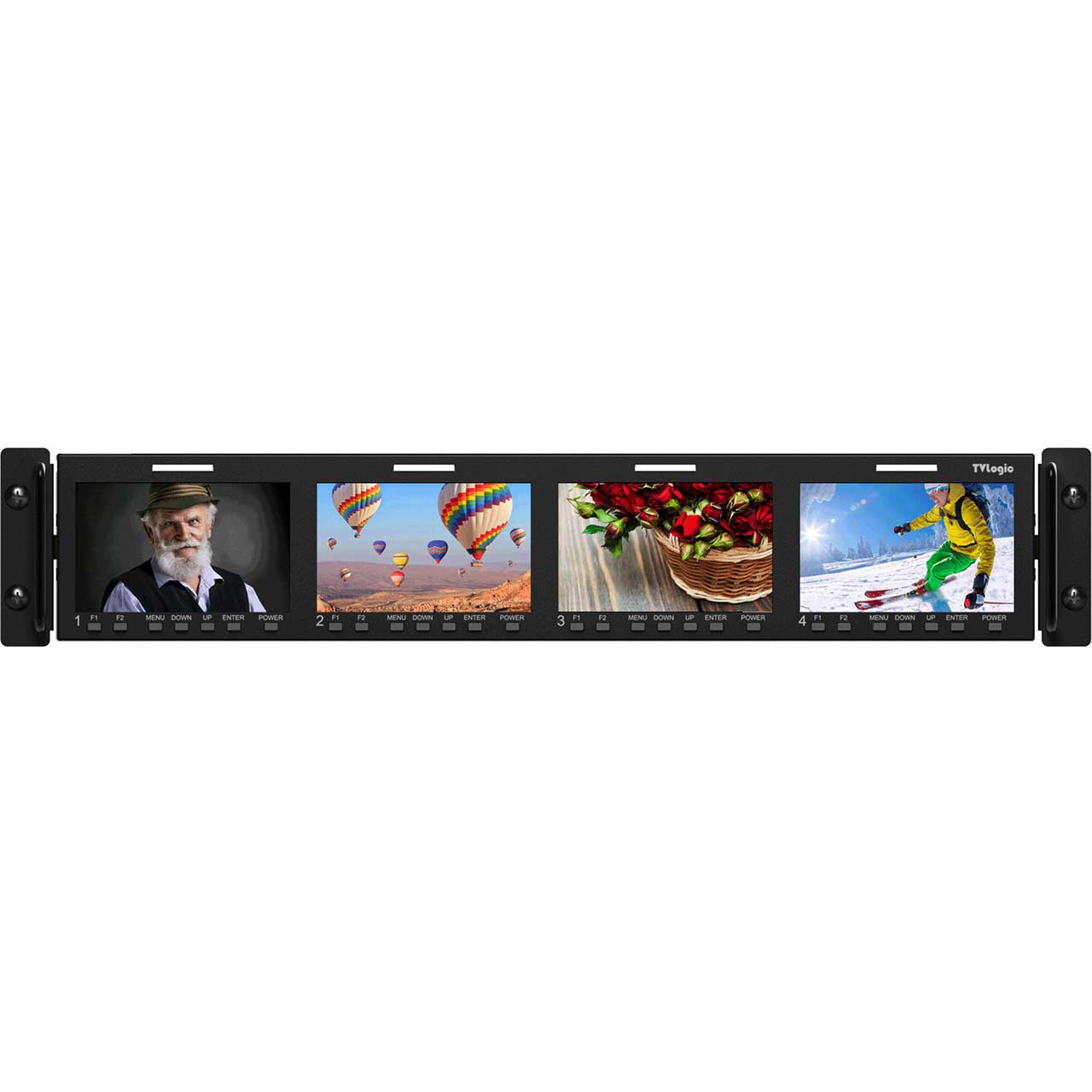

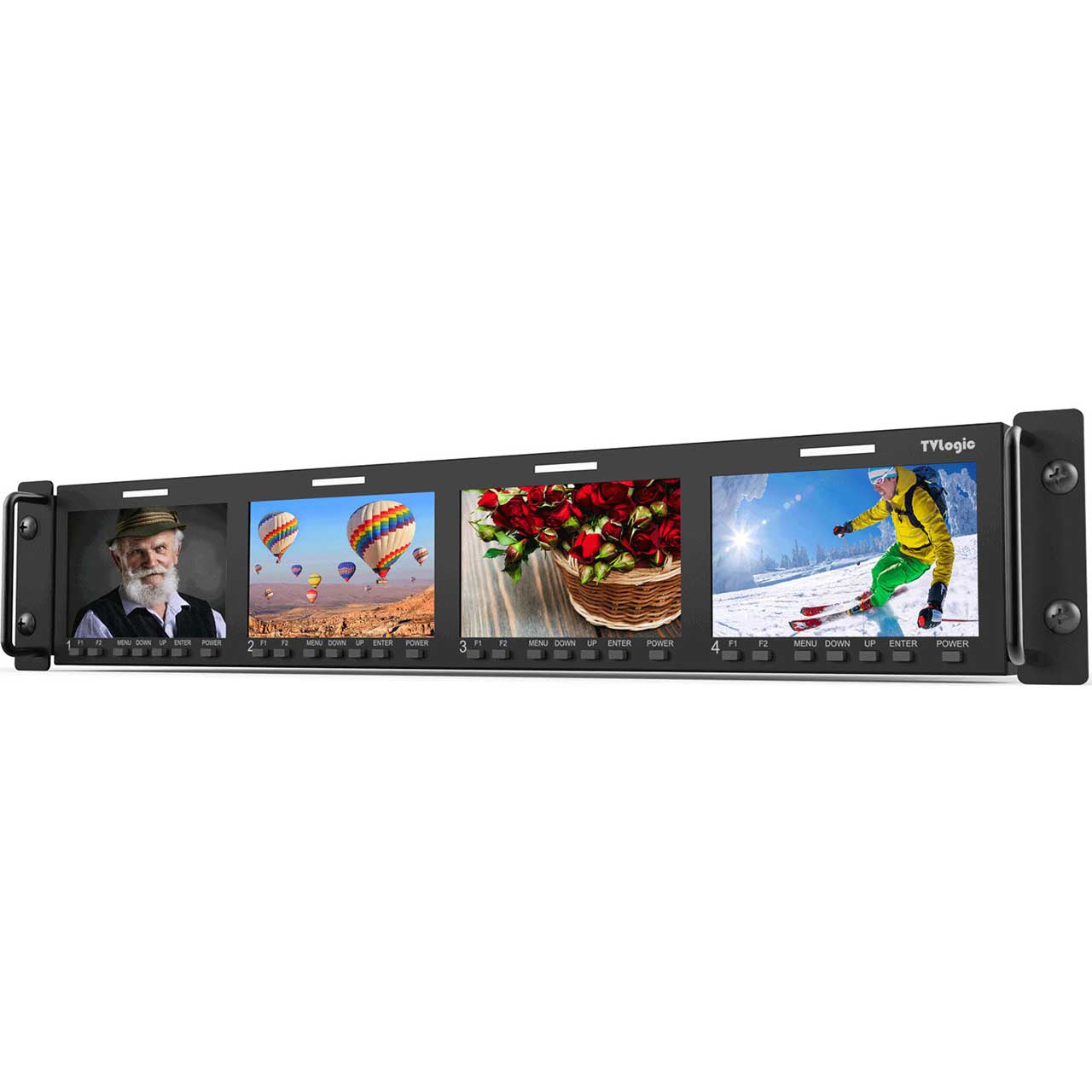

TVLogic RKM-443A 3G-SDI Multi-Channel Quad LCD Rack Monitor 2RU

RKM-443A - Overview

• Features:

  • Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
  • Focus Assist assigns a colour to the pixels on the boundaries of the image to inform the user to achieve the best focus
  • H/V Delay allows you to check the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the centre of the screen
  • Key Lock will lock the knob or key control
  • Luma (Y') Zone Check displays the Luma(Y') level of the input image in colours.
  • Displays various kinds of aspect ratios on the screen. Wide variety of markers and security are available with line colour and curtain transparency selection.
  • Time Code Display will display the timecode information on the screen
  • User aspect adjusts the width/height display ratio
  • Various scan modes control the size of the image
  • 1:1 Pixel Mapping Modes for SD/HD
  • 3G-SDI Level A/B
  • Audio Level Meter Display
  • Blue Only / Mono
  • Closed caption
  • Focus Assist
  • H/V Delay
  • Key Lock
  • Luma(Y') Zone Check


• Specifications:

  • Display Spec.
  • Size: 4.3"
  • Resolution: 800 x 480 (15:9)
  • Pixel Pitch: 0.117mm
  • Color Depth: 16.7M
  • Viewing Angle: 160°(H) / 160°(V)
  • Luminance: 600cd/m2
  • Contrast Ratio: 1000:1
  • Display Area: 93.6(H) x 56.16(V) mm

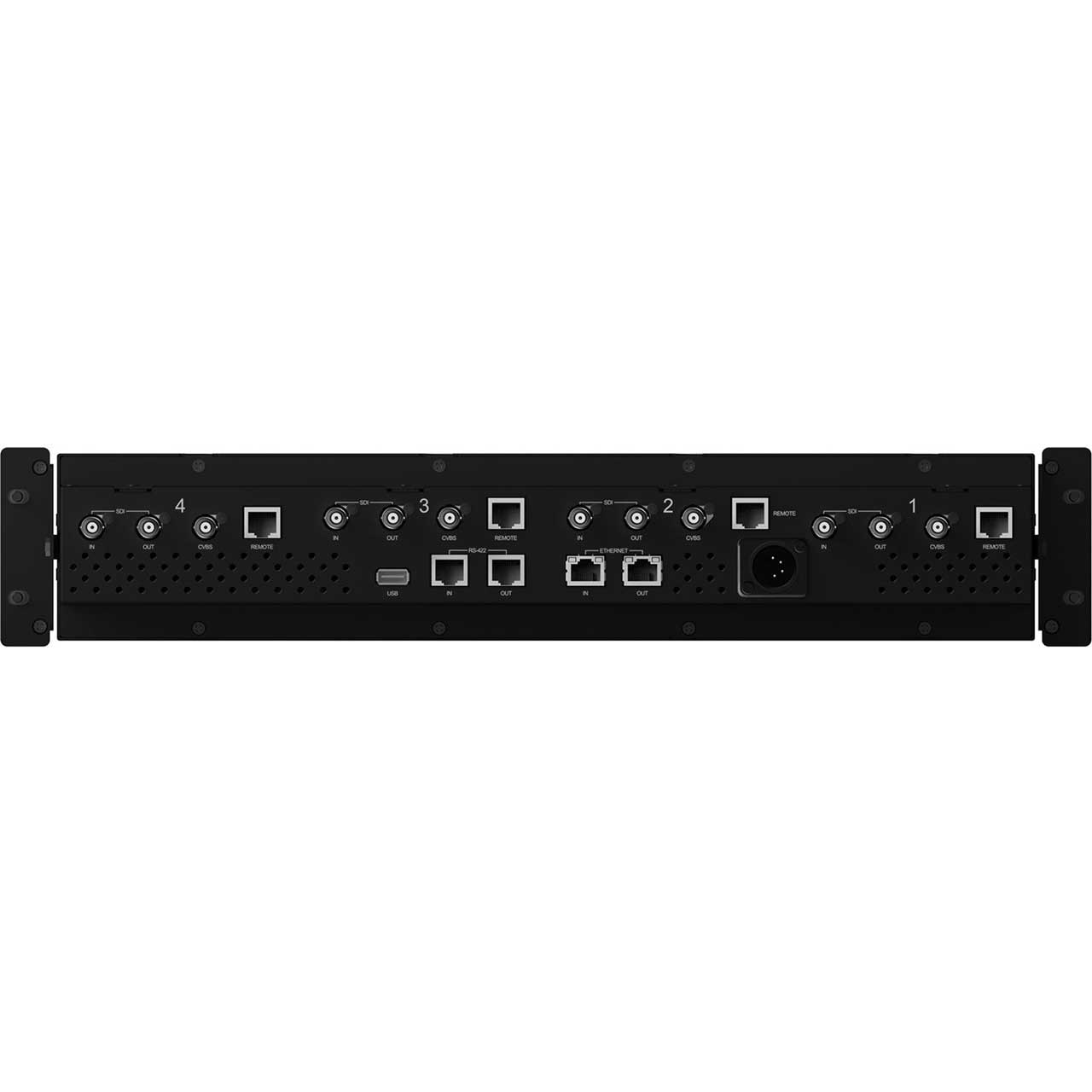

    Input
  • 1x BNC: Analog Input (Composite)
  • 1x BNC: 3G-SDI A Channel Input

    Output
  • 1x BNC: 3G-SDI Output

    Input Signal
  • Analog: CVBS
  • 3G SDI: 2.970Gbps
  • HD SDI: 1.485Gbps
  • SD SDI: 270Mbps
  • HDMI: 1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50) & VESA / IBM Modes

    SDI Input Signal Formats
  • SMPTE 425M-A/B: 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
  • SMPTE 296: 720p (60/59.94/50)
  • SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  • SMPTE 260: 1035i (60/59.94)
  • SMPTE 125: 480i (59.94)
  • ITU-R BT.656: 576i (50)
  • 2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

    FPGA Functions
  • 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom

    Closed Caption
  • CC-608 ANC, CC-608 LINE 21, CC-708

    Other Functions
  • USB: Firmware update by USB memory stick
  • Ethernet: Ethernet Control support


• Item Includes:

  • 1x TVLogic RKM-443A 3G-SDI Multi-Channel Quad LCD Rack Monitor
