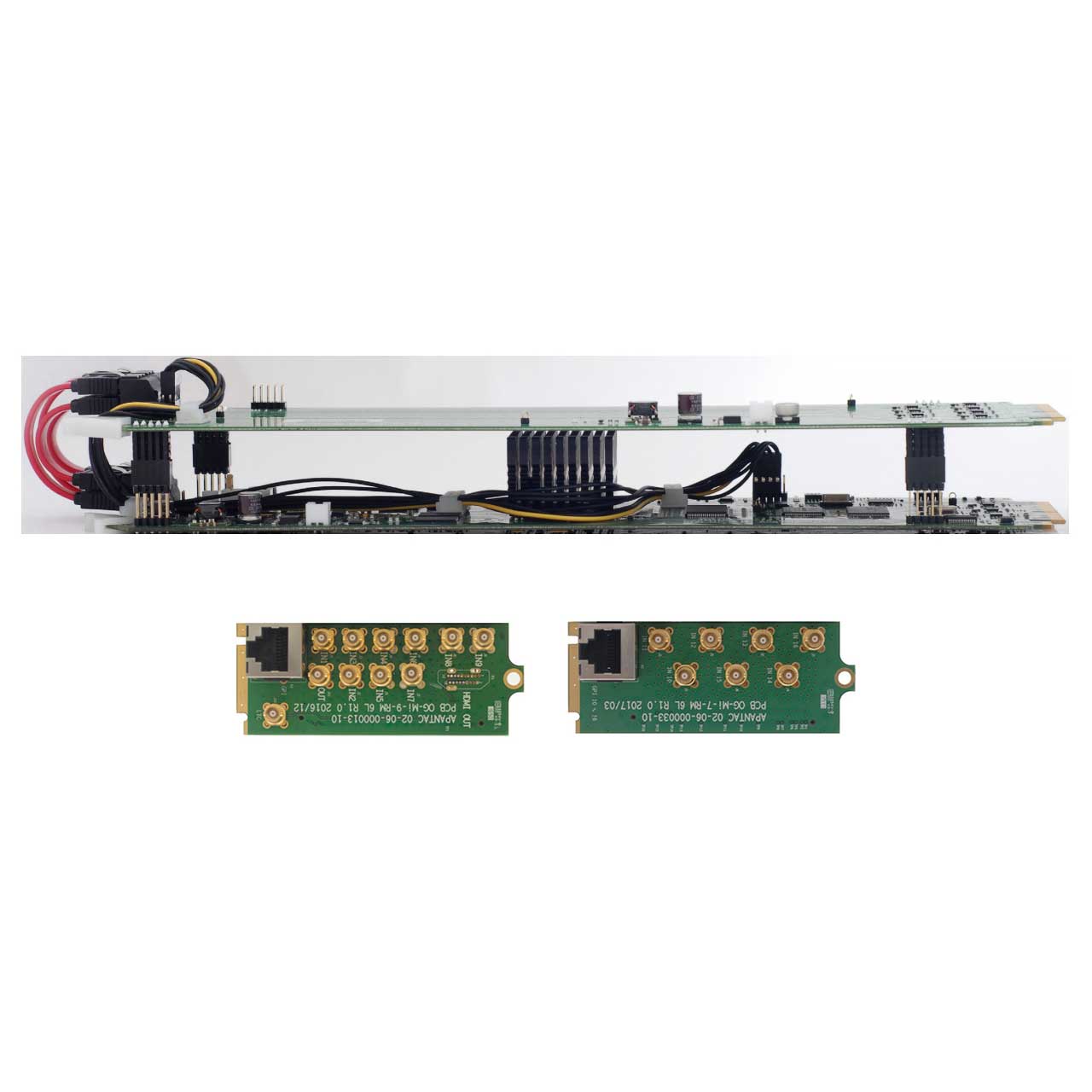

Apantac OG-MI-16#-SET-1 OpenGear 16x2 Multiviewer and Rear Module Bundle

OG-MI-16#-SET-1 - Overview

• Features:

  • OGX/3.0 card-based form factor
  • Low latency - single frame processing delay
  • 16 x auto-detect 3G (Level A/B)/HD/SD-SDI inputs
  • 2 independent outputs: 1 x HDMI and 1 x SDI
  • Low power consumption - 20W
  • Windows can be sized and moved freely
  • Decode up to 16 embedded audio per SDI input
  • Ethernet for configuration, dynamic labels and Tallies (TSL)
  • Standalone labels, customizable logo
  • 16 GPIs for tallies, count up/down trigger or preset recall
  • Built-in analog/digital clocks can sync with LTC/NTP
  • Borders can be turned on or off
  • Two sets of safe area makers
  • Visual alarm tags for video/audio alarm
  • HDMI and SDI outputs with embedded stereo audio pair


• Specifications:

  • Inputs: 16x 3G (level A/B)/HD/SD-SDI
  • Video Outputs: 1x SDI and 1 x HDMI
  • Connector Type: HD-BNC
  • Audio Output: Embedded HDMI and SDI
  • Total Windows: 16
  • Output Resolution: 1920x1080P 50/60Hz
  • Serial Digital: 3G/HD/SD-SDI in 50/59.94/60Hz
  • On Screen Display: Borders, Labels, Tallies, Audio meters, Alarm tags, Safe area markers
  • Equalization: 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
  • GPI: 16 inputs with RJ50 - DB9 connector
  • Return Loss: > 15db up to 1.485 Gbps > 10db up to 3G
  • Serial Port: N/A
  • Embedded Audio: SMPTE-272M-A
  • IP: 100 Base-T, TSL, AXP_Lite protocol
  • Alarms: No audio, audio high/low, no video, video format display
  • Electrical: 20 W


• Warranty:

  • 5 year limited warranty
