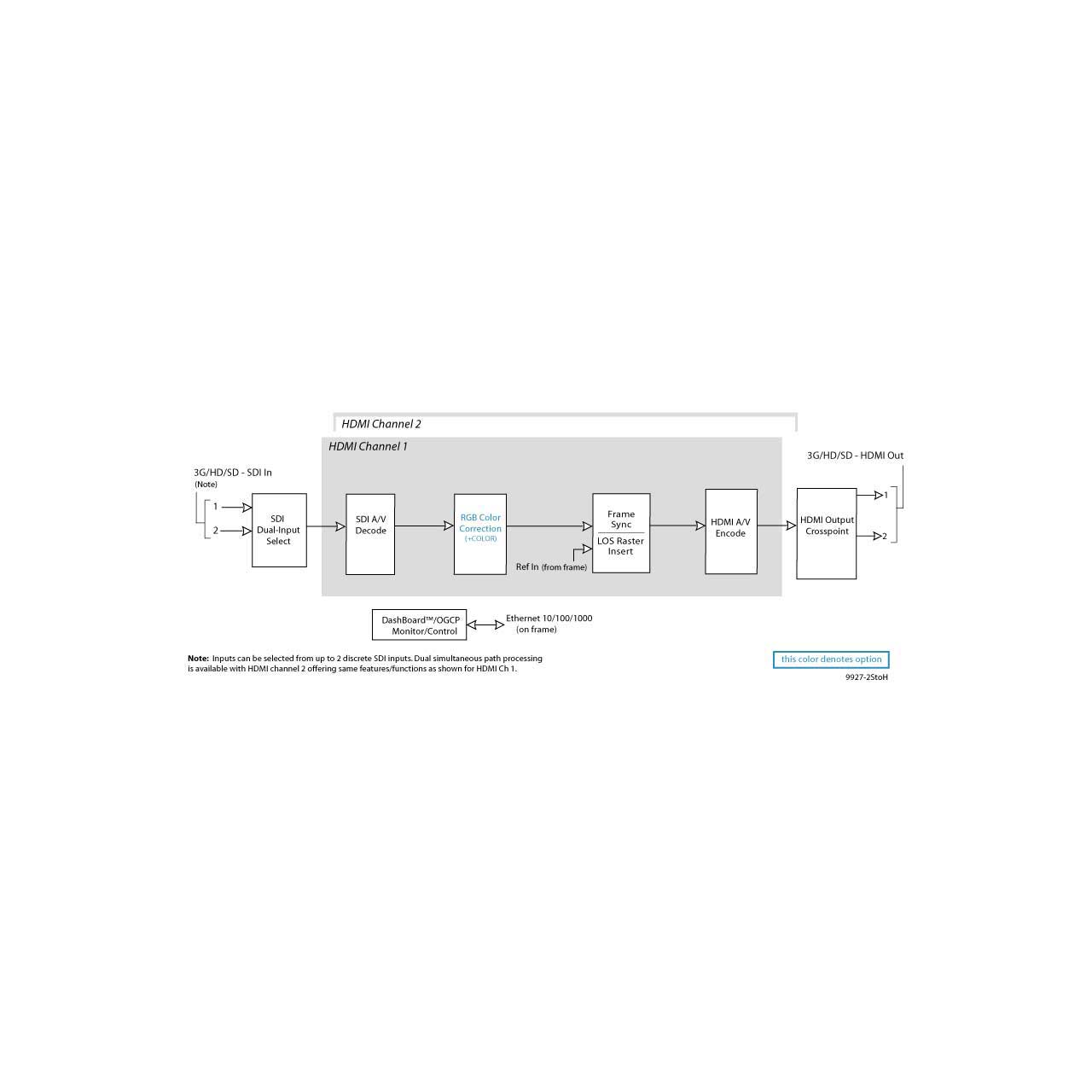

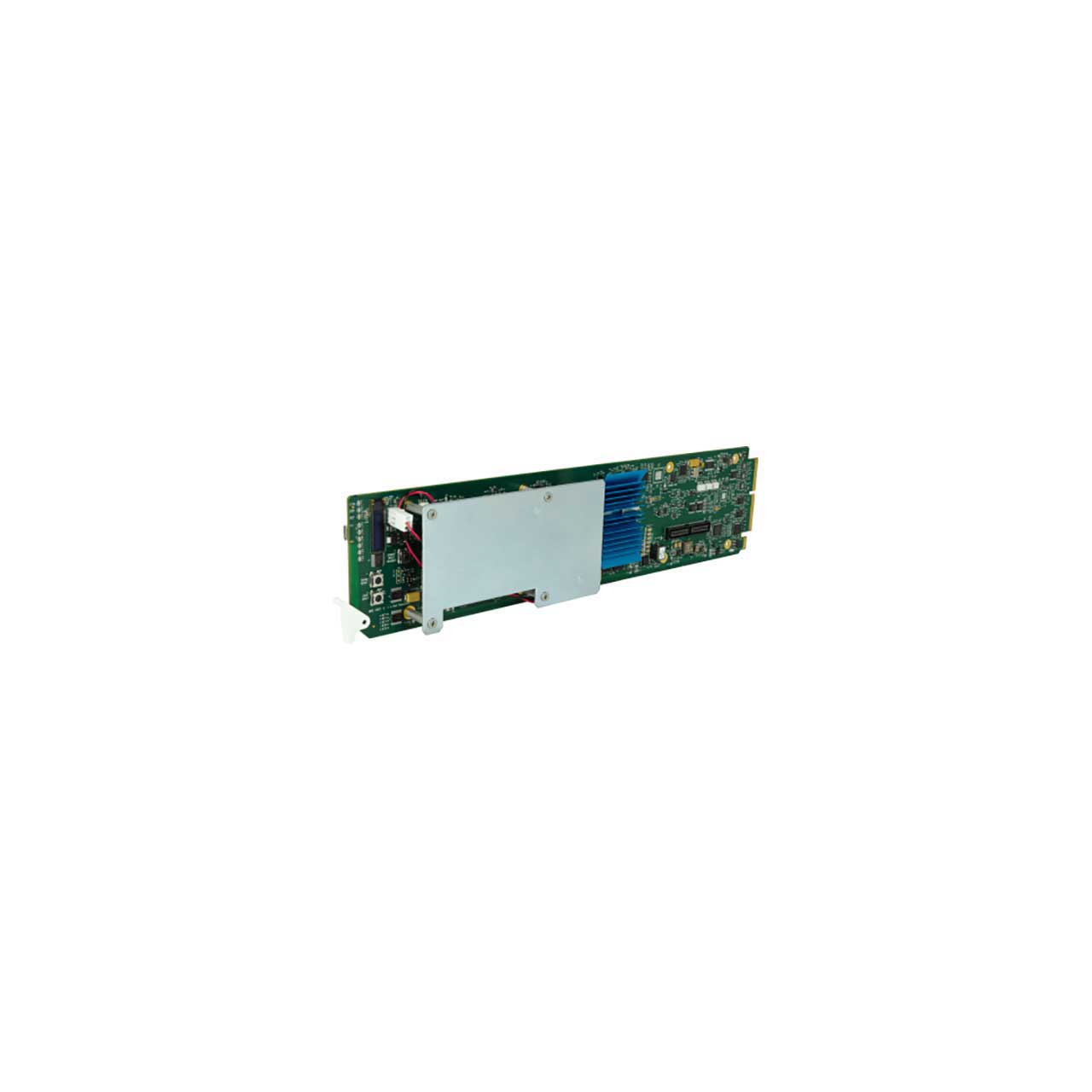

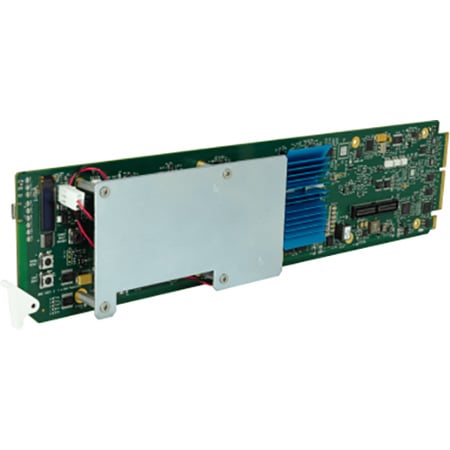

The 9927-2StoH 3G/HD/SD Dual-Channel openGear® SDI-To-HDMI Converter with Per-Channel Frame Sync provides two independent paths of true 3G and HD conversions from SMPTE 424M, 292M, or 259M SDI to HDMI. Each channel is equipped with full independent frame sync as well as full input and output audio crosspoints. Input and output SDI and HDMI crosspoints allow program sourcing and distribution across either of the two SDI inputs and two HDMI outputs.
In existing openGear® installations, the dual-channel capacity of 9927-2StoH can save space and lend to installation integrity over using throwdown devices. Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoardT or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
