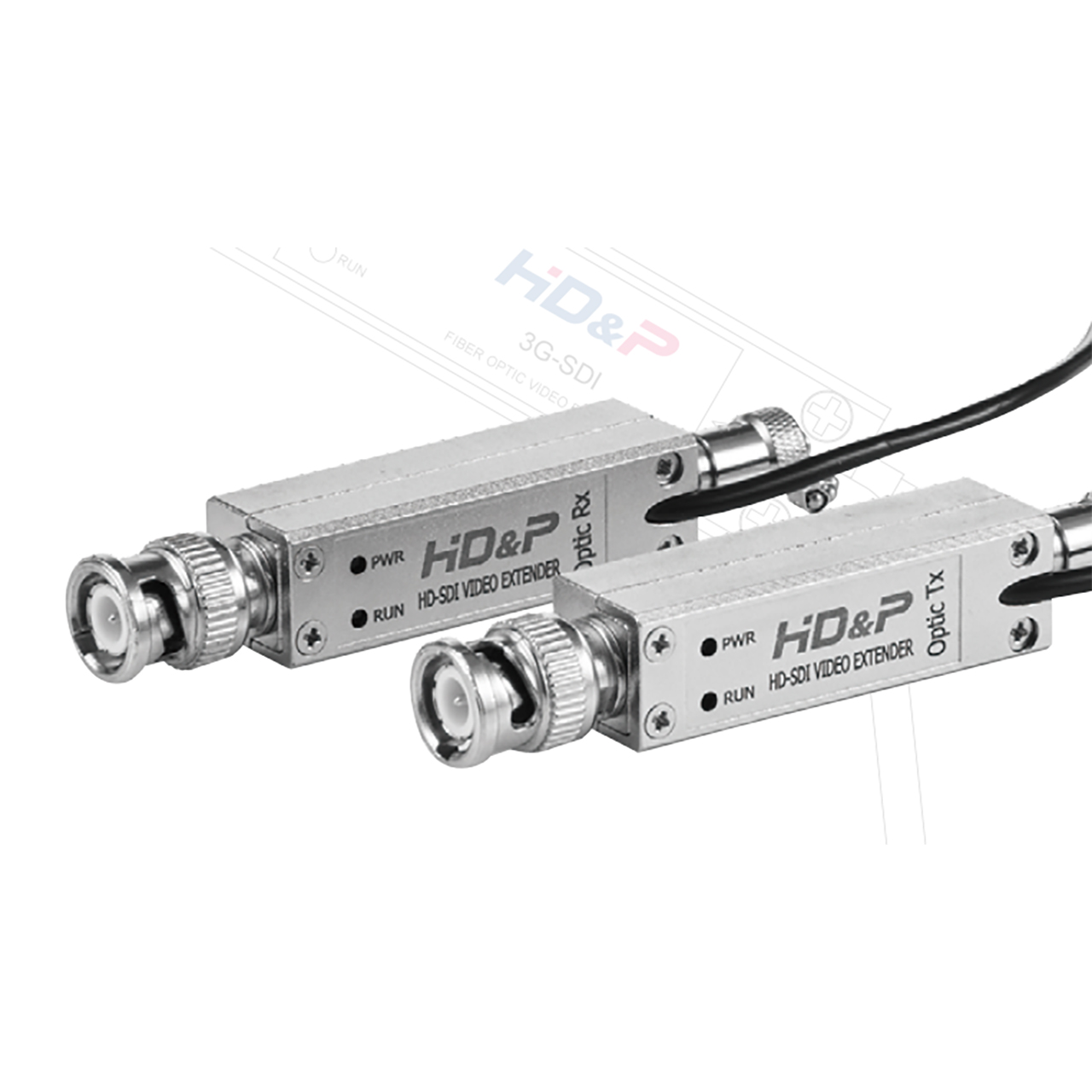

HD&P HDVE 1-Channel 3G-SDI Video Extender Module Set - ST Fiber Connector

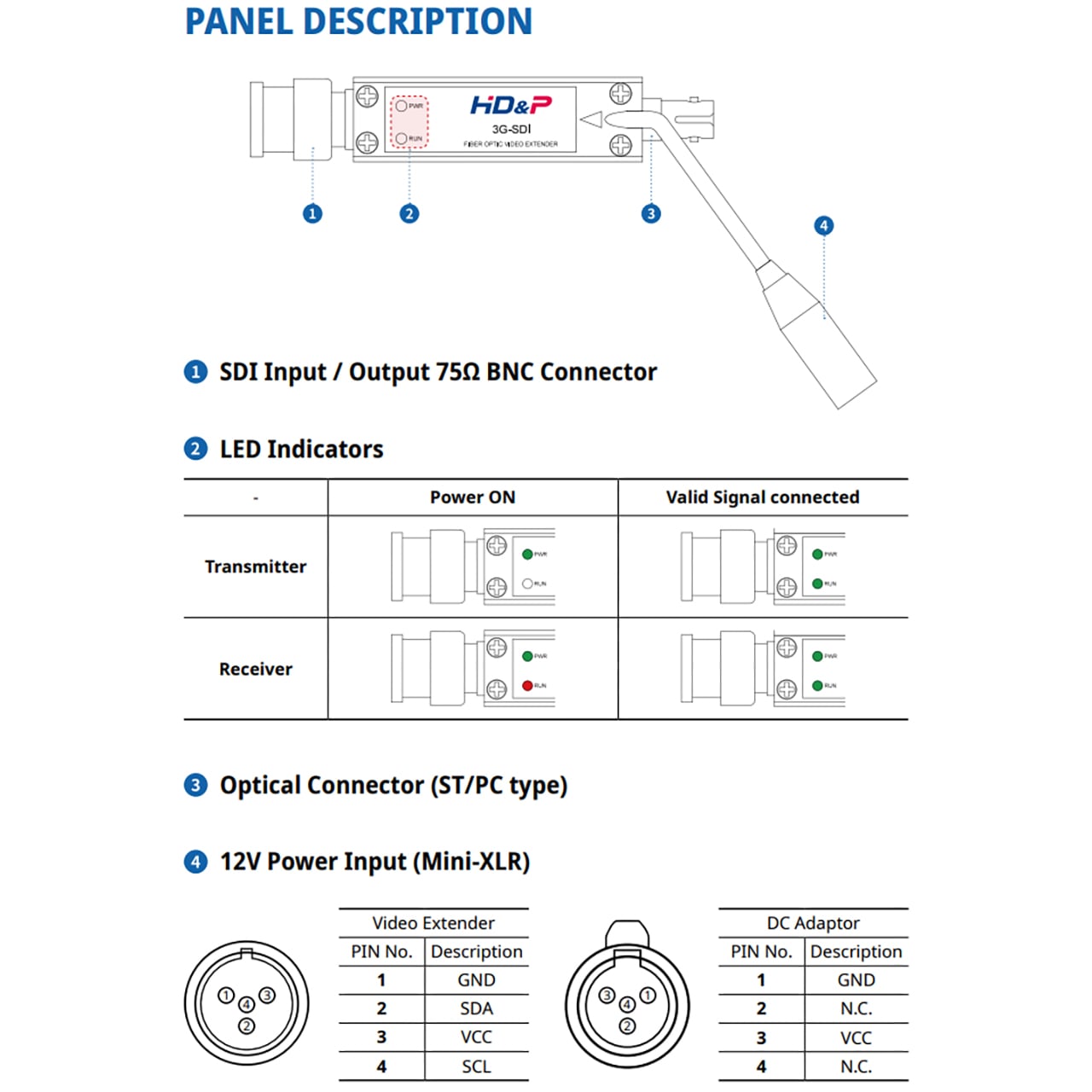

HDVE - Overview

• Features:

  • Extends 1 channel uncompressed 3G/HD-SDI video over fiber
  • More than 10km transmission distance (single mode fiber)
  • Compact size with mounting flanges for rack mountable
  • Supports 1 channel 3G/HD-SDI video
  • Supports SMPTE-424M, 292M, 259M and others
  • Bullet-type and slim package
  • 5V or 12V single supply voltage


• Specifications:

  Video
  • Signal Format: SMPTE-424M, SMPTE-292M, SMPTE-259M
  • Signal Level: 800 mV Vp-p ±50 mV
  • Data rate: Up to 2.97Gbps
  • Jitter*:
    - < 1.0 UI - Timing Jitter
    - < 0.2 UI - Alignment Jitter
  • Electrical Connector: BNC (75Ω)
    Note: *Total Jitter at the end of Receiver output Maximum value.

    Optical
  • Wavelength: 1310nm
  • Transmitter:
    - Output power: -7 ~ -3dBm
    - Extinction Ratio 7dB
  • Receiver:
    - Sensitivity -22dBm
    - Maximum Overload 0dBm
  • Distance (Typ.): 30km*
  • Fiber Type: Single mode and Multimode
  • Optical Connector: ST Connector
  • Number of Fibers: 1
    Note: *The maximum distance coverage may be greater than these typical numbers, depending on fiber type, fiber bandwidth, connector, splicing losses, chromatic dispersion, environmental factors, etc.

    Mechanical
  • Power Supply: DC5, 1A Adaptors
  • Operating Temperature: -4° to 167°F (-20° to 75°C)
  • Humidity: 0 to 95% RH, non-condensing
  • Dimensions (WxDxH): 0.61 x 2.09 x 0.65" (15.5 x 53 x 16.5mm)


• Item Includes:

  • 1x HDVE Tx
  • 1x HDVE Rx
  • 1x 12V 2A adaptor 2EA
  • 1x Instruction Manual


• Warranty:

  • 3 year warranty
