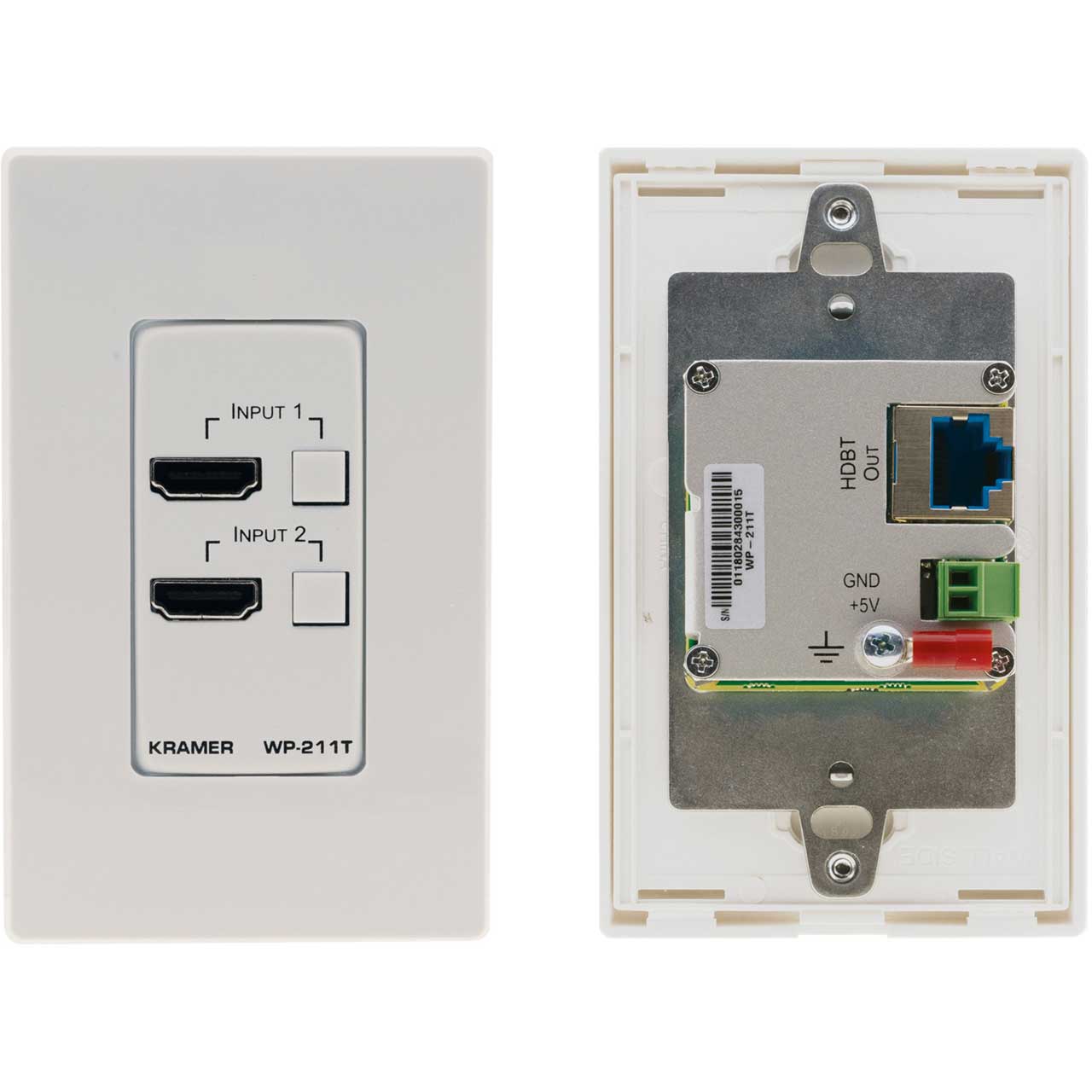

Kramer WP-211T/US(W/B) 4K60 4:2:0 HDMI Auto Switcher/Transmitter Wall-Plate over Long Reach PoE HDBaseT

WP-211T/US(W/B) - Overview

• Features:

  • Plug & Play Auto Switcher - Wall or podium mountable switcher, easily accessible for plugging user device to any of its HDMI input connections, it auto-plays switched source signal on connected display according to user-configured preferences.
  • Automatic Input Selection - Plug & play auto switching based on last connected input or manual selection.
  • High Performance Switcher Transmitter - Professional HDBaseT Switcher transmitter for providing long-reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market-available HDBaseT-compliant extension product.
  • HDMI Signal Switching - HDMI 2.0 and HDCP 2.2 compliant, it supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D.
  • Multi-channel Audio Switching - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing, locking and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Reliable PoE (Power over Ethernet) Powering - Auto-senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
  • Easy Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.


• Specifications:

  • INPUTS
  • 2 HDMI: On female HDMI connectors


  • OUTPUTS
  • 1 HDBaseT: On an RJ-45 connector


  • VIDEO
  • Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0)
  • Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)


  • EXTENSION LINE
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
  • Up to 70m (230ft): :
  • Note: When using Kramer HDBaseT cables
  • Compliance: HDBaseT 1.0


  • USER INTERFACE
  • Controls: Panel buttons, and last connected/priority DIP-switches


  • POWER
  • Source: 5V DC
  • PoE: Acceptor
  • Consumption: 780mA
  • Consumption with PoE: 9 watt


  • ENCLOSURE
  • Size: 1 Gang US, EU, or UK wall plate
  • Cooling: Convection ventilation


  • REGULATORY COMPLIANCE
  • EMC EN 55032
  • IEC 60950-1(ed.2)
  • IEC 60950-1(ed.2)am1
  • IEC 60950-1(ed.2)am2


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • WP-211T/US(W/B) Wallplate
  • Power adapter (1)
  • Power cord (1)
  • US Frame sets and faceplates (1 in black and 1 in white)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063089184
