LYNX Technik OTR 1A42 8K - 48G - Quad 12G - Fiber Transmission System (PAIR)

ITEM #: LNX-O-TR-1A42 MFG #: O TR 1A42

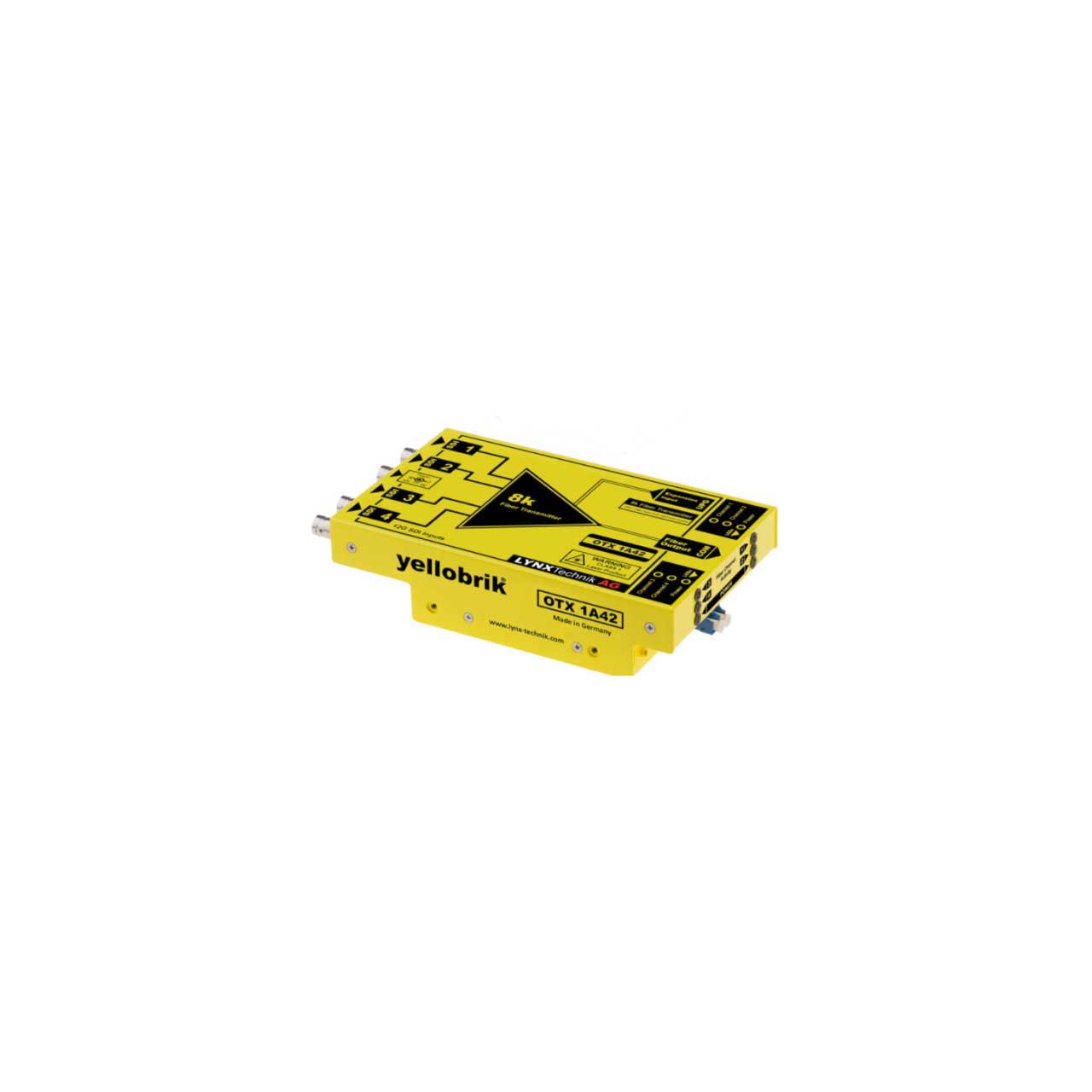

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$7,310.00

Our Price:

$6,944.50

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    O TR 1A42 - Overview

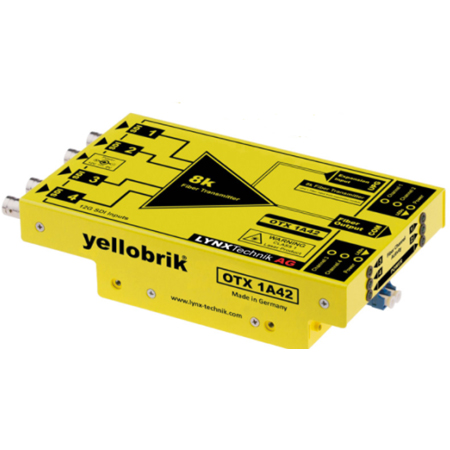

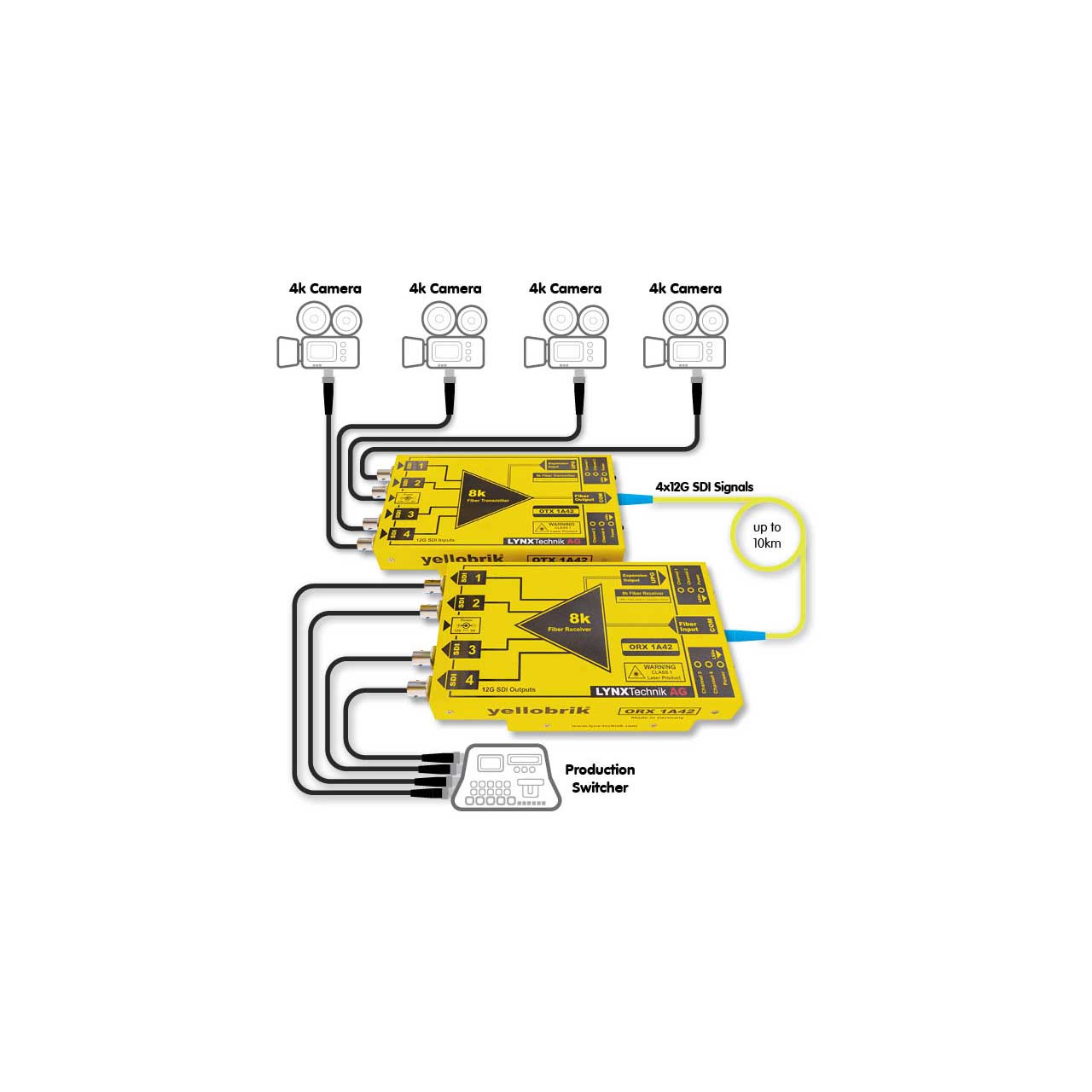

    The LYNX Technik OTR 1A42 is a self contained fiber transmission kit for the transport of four discreet 12G SDI signals (or 8k/48G uncompressed) over a single fiber link. The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams up to 12G.

    Each SDI channel is fully independent. For 8k use, the signal is split over four separate 12G SDI links (48G) and supports full 8k resolution at 60fps. The system can also be used for any combination of SDI signals, with a mix of formats and bit-rates if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s and 12Gbit/s.

    LED Indicators are provided for channel presence and power. An optional 19" rack mount tray is available which can accommodate up to four modules (RFR 1018).

    Note: Internal CWDM optical multiplexing is utilized within the modules. This kit should be considered a self contained point to point solution and should not be integrated into external CWDM systems.

    • Features:

      • Support for 4 independent 12G/6G/3G/1.5G/270M channels
      • Transport 8k (uncompressed) singals up to 10km (6.2miles)
      • Each channel supports resolutions up to 2160p/60Hz
      • Each channel individually reclocked
      • Embedded audio / metadata support for each channel
      • Integrated expansion port to add more channels
      • LED indicators for channel activity and power
      • Kit includes transmitter, receiver and power supplies
      • Optional 19" Rack tray to mount up to 4 modules

    • Specifications:

      • SDI Video
      • 4x SDI inputs on 75 Ohm BNC connections (OTX 1A42)
      • 4x SDI outputs on 75 Ohm BNC connections (ORX 1A42)
      • SMPTE 259M-2008, SMPTE 292-1:2012, SMPTE 292-2:2011, SMPTE 424M-2006, SMPTE ST-2081, SMPTE ST-2082
      • Multi-standard / Multi-format operation auto-detect.
      • Multi-Rate Reclocking:
        270Mbit/s
        1.5Gbit/s
        3Gbit/s
        12Gbit/s
      • Electrical Return Loss:
        to 1.5GHz >15dB
        to 3GHz >10dB
        to 6GHz >7dB
        to 12GHz >4dB
      • Automatic cable EQ:
        270Mbit/s - 250m - Belden 1694A
        1.5Gbit/s - 190m - Belden 1694A
        3Gbit/s - 140m - Belden 4794R
        12Gbit/s - 80m - Belden 4794R

        Fiber Optics
      • 1x Fiber optic I/O port (COM port)
      • 1x Fiber optic expansion port (UPG port)
      • Duplex (singlemode) LC/PC connections
      • SMPTE 297M - 2006
      • Internal CWDM Multiplexing
      • Wavelengths: 1350nm, 1370nm, 1390nm, 1410nm
      • Optical budget: 10.6dB
      • Max. Distance: 10km (6.2 miles)
      • Fiber activity LEDs for each channel

        General
      • Power: +12V DC - (Supports input range 7 - 24 V DC)
      • OTX 1A42: 5.4W | ORX 1A42: 4.4W
      • 2x Power LEDs on side per module
      • Physical (per module): (incl. connectors): 6.7 x 3.9 x 1.6" (170 x 99.7 x 40.5mm)
      • Weight: 600g (21.1oz)
      • Ambient Temperature: 5° to 40°C (41° to 104°F) 90% Humidity (non condensing)

    • Item Includes:

      • 2x OTR 1A41 Modules
      • 2x Power Supplies

    • Warranty:

      • 3 YEARS

    • GTIN:

      4250479328624
