Link Bridge Mini-3GHD-T/R-M-ST 3G HD-SDI Over ST Fiber Optic Extender System
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

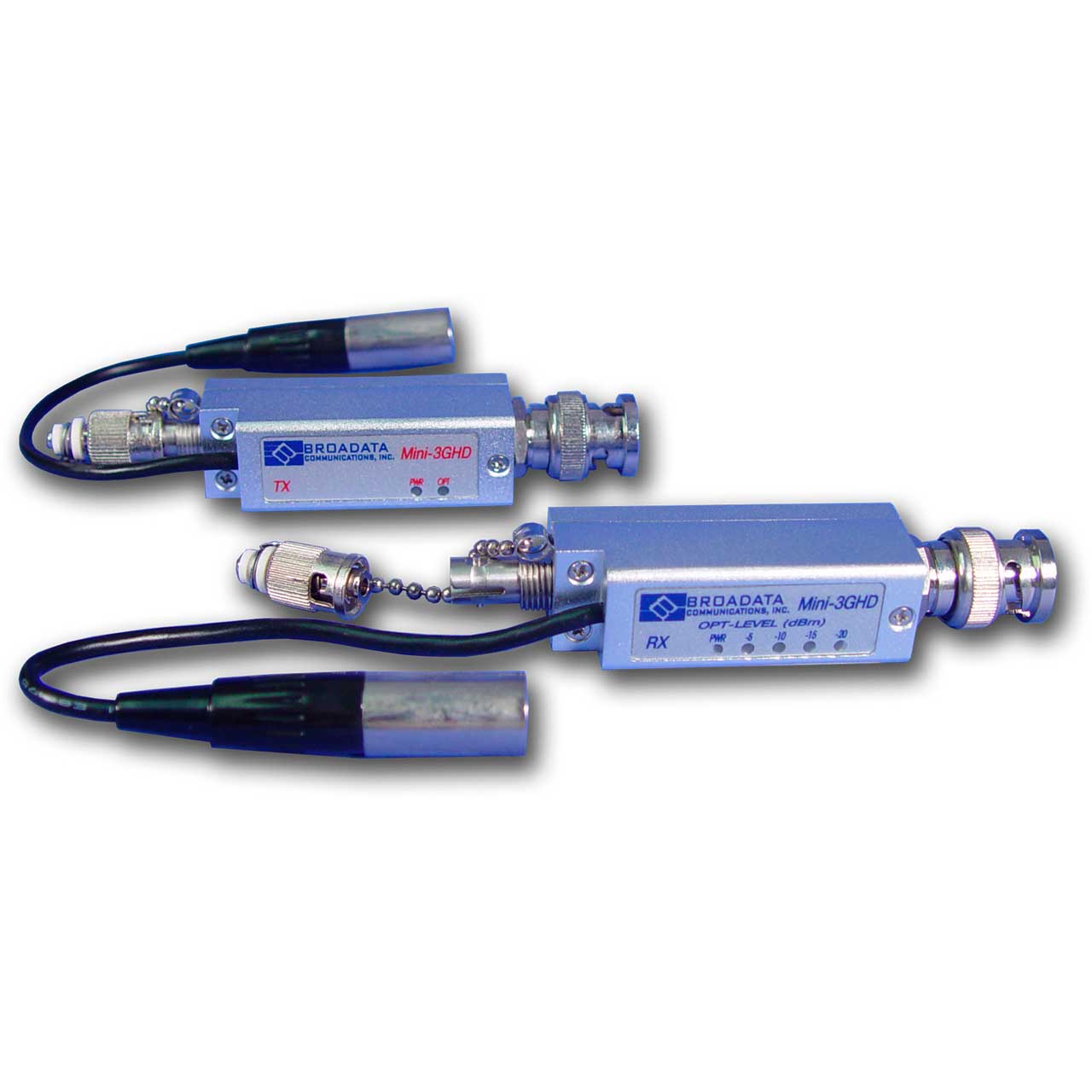

    Link Bridge Mini-3GHD-T/R-M-ST 3G HD-SDI Over ST Fiber Optic Extender System

    Item #: MINI-3GHD-TRMST   •   MFG #: MINI-3GHD-T/R-M-ST


    List Price:$1,555.40
    Our Price:$1,244.32

    free ship
    Availability: In Stock
    Item is Available for immediate shipping from our warehouse.



      The Mini-3GHD Series is a miniature, Fiber Optic 3Gb/s SDI Digital Video TransportSystem, supporting the new 1080p 3Gbps SDI format. The standard Mini-3GHD system is designed to transport one (1) channel SMPTE-424M 3Gb/s SDI,SMPTE-292M HD-SDI or SMPTE-259M SDI serial digital video signal over long distance through either single mode or multi-mode fiber with the same model.

      Due to the use of advanced digital fiber optic transmission technology, no user adjustments are required in the Mini-3GHD system, enabling quick setup and trouble-free operation. The Mini-3GHD can handle SDI, DVB-ASI, HD-SDI, 3G-SDI, and many other video formats. The power connector has a latch-locking mechanism, thus no power disruption due to mis-handling problem.

      The Mini-3GHD comes with a rugged, standalone, miniature unit. Panel connectors are provided for digital video (BNC connector) and fiber connection (ST-type for the singlemode and multi-mode version.

      • Features

        • Transport Multi-rate HD-SDI DigitalVideo Over Fiber
        • Reliable Transmission Over Multimodeor Singlemode Fiber
        • Video Pathological Test Code Compliant
        • Latch-Locking Power Connector
        • Same Model Compatible for either Multimode or Singlemode Fiber
        • Remote 3Gb/s SDI Video Transport
        • ENG/EFP 3Gb/s SDI VideoTransmission
        • Pre-production and Post-production3Gb/s SDI Video Links
      • Specifications

        • Signal Format: SMPTE-424M 3Gb/s SDI SMPTE-292M HD-SDI or SMPTE-259M SDI Digital Video and many others
        • Data Rate: 3 Gbps
        • Signal Level: 800mVp-p +/- 10%
        • Return Loss: >15 dB
        • Connector: 75 Ohm BNC
        • Optical Fiber Type: Multimode and Singlemode
        • Number of Fibers: 1
        • Fiber Optic Connector: ST (Multimode and Singlemode)
        • Dimension: (H x W x D) 0.75" x 0.65" x 2.0"
        • Power Level +5 VDC @ 0.5 A
        • Operating Temperature 0 to +50oC
        • Humidity 0 to 95% RH, non-condensing
      • Item Includes

        • 3G HD-SDI Over Fiber Transmitter
        • 3G HD-SDI Over Fiber Receiver
