The MSC-XD81L SDI routing switcher has 8 inputs and 1 output. All Matrix Switch Corporation SDI routers provide reclocking for standard 3G/HD/SD rates with automatic bypass for non-standard rates between 20 Mbit/s and 3 Gbit/s and pass all SDI embedded audio/ancillary data. In addition the MSC-XD81L supports output mute. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.

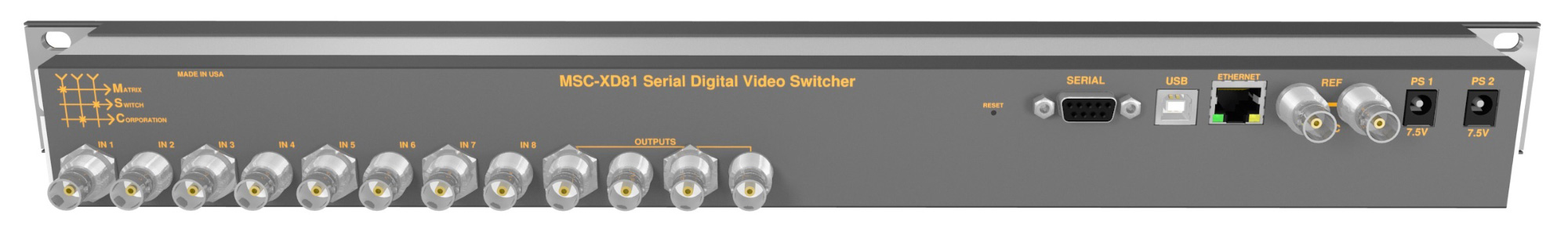

With 4 BNCs per SDI output on this router, the need for additional distribution amplifiers is often eliminated.
Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. In addition to Matrix Switch Corporation's powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, and TCP/IP over the Ethernet interface. Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP.

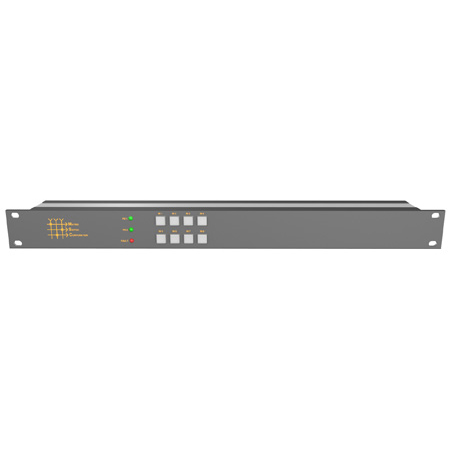

The built-in button panel provides an additional interface for directly changing the matrix routing state.
