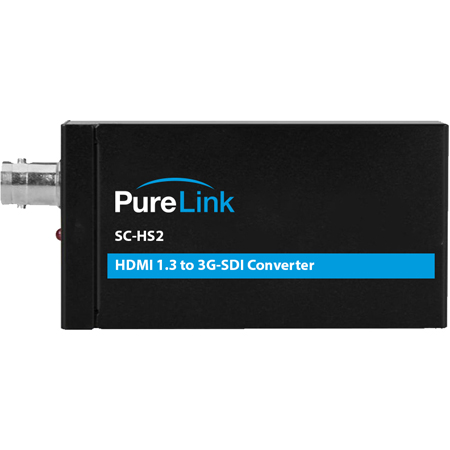

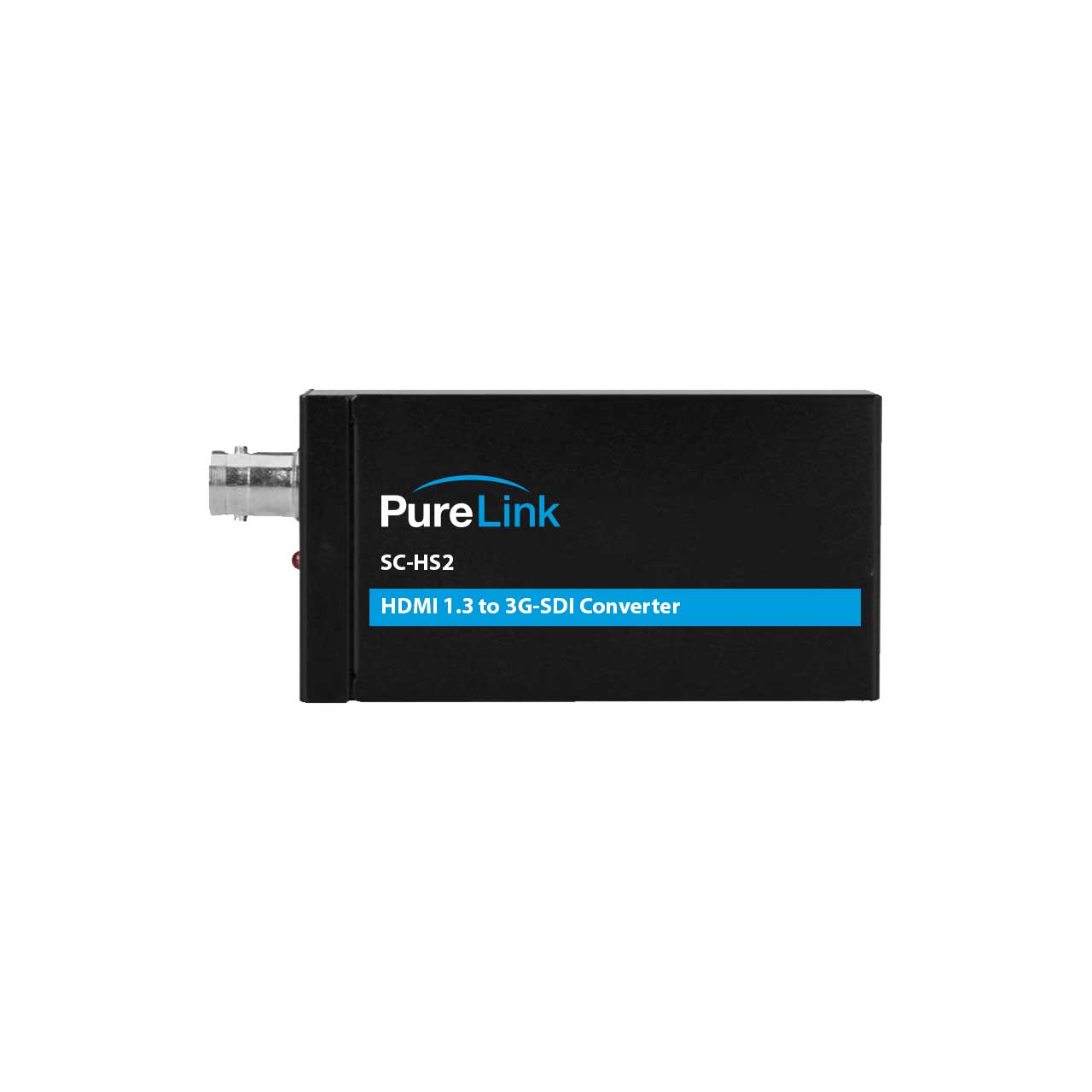

PureLink SC-HS2 HDMI Input to 3G/HD-SDI Output Format Converter - Full HD

Name: PureLink SC-HS2 HDMI Input to 3G/HD-SDI Output Format Converter - Full HD
Brand: PureLink
SKU: PLK-SC-HS2
Price: 189.99 USD
Availability: InStock

ITEM #: PLK-SC-HS2 MFG #: SC-HS2

PureLink

Our Price:

$189.99

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

SC-HS2 - Overview

The PureLink SC-HS2 provides HDMI to 3G-SDI conversion while boosting the signal quality and offering reliable transmission and features a 3 Gb/s serial link interface. The SC-HS2 can support native resolutions up to 1080p@60Hz and provides lossless video and audio transmission.

Features:
- Full HD 1080P input
- Supports SDI, HD-SDI, and 3G-SDI
- HDMI 1.3
- Small footprint, low power consumption
- High quality, lossless signal transport
Specifications:
- Hardware

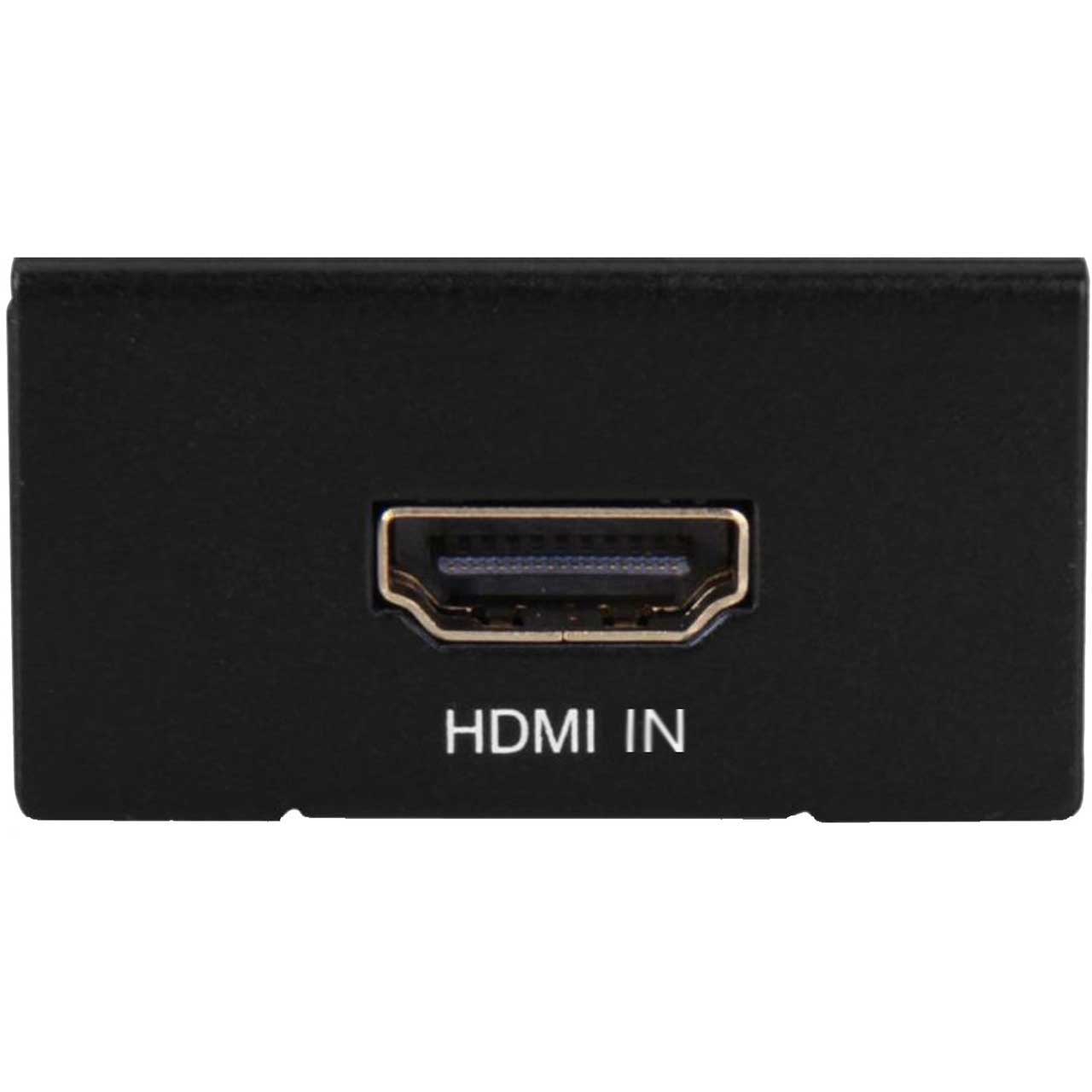

- Input Signal Types: (1) HDMI (Type A Female)

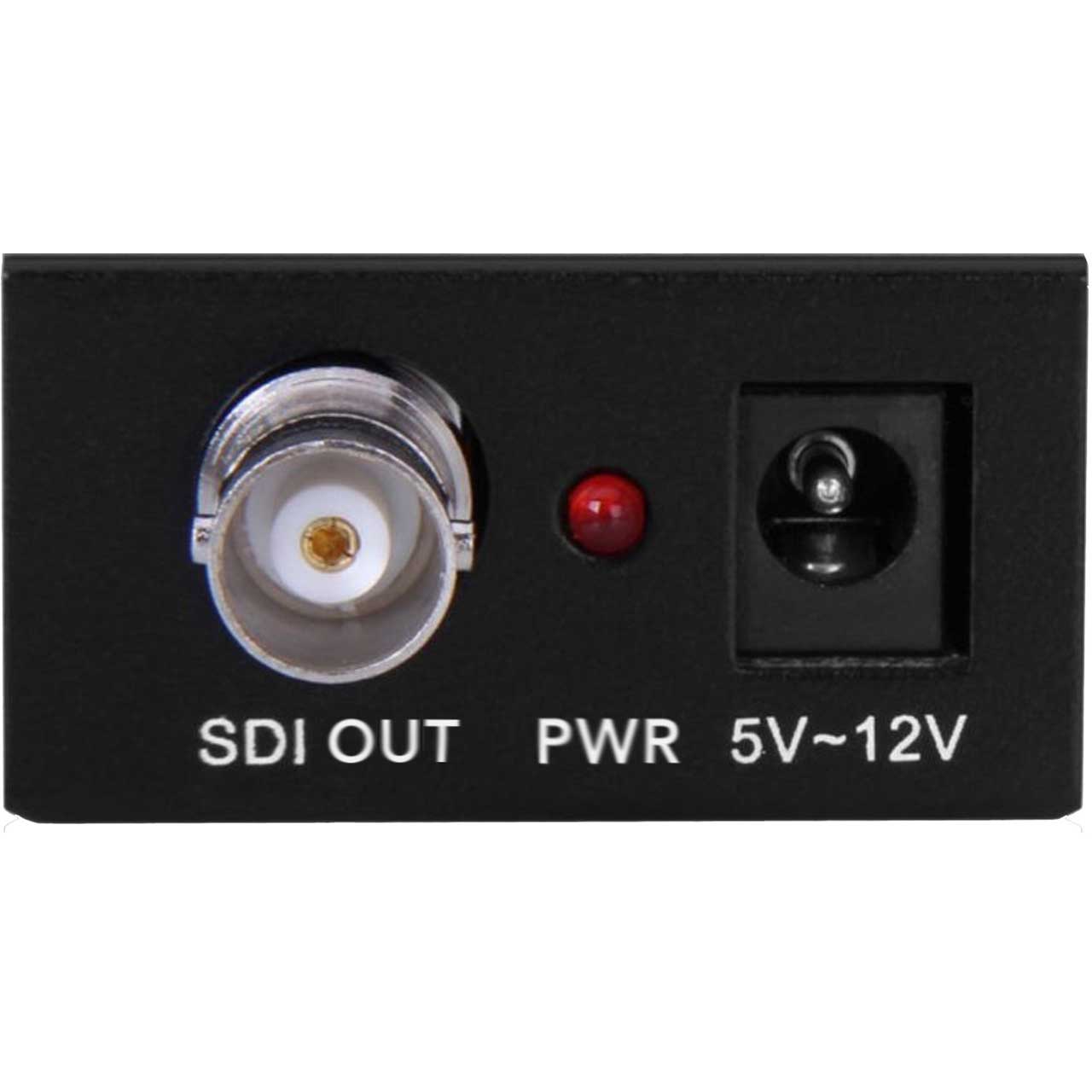

- Output Signal Types: (1) 3G-SDI (BNC)

  Performance
- Supported Resolutions: 480i, 576i
- 720P @ 50,59.94,60
- 1080i @ 50,59.94,60
- 1080P @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- ESD Protection: ±8kV air-gap, and ±4kV contact discharge
- Power Adapter: 100-240VAC 50/60Hz, output 5vDC/1A CE/FCC/UL
- Power Consumption: 2.5W
- Power Supply: 100-240VAC 50/60Hz
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: -4° to 140°F (-20° to 60°C)
- Relative Humidity: 20 to 90%, non-condensing
- MTBF: 50,000 hours
- Rack Mounting Option: -

  Enclosure
- Rack Mounting Option: -
- Product Dimensions: 3.74 x 2.36 x 0.98" (95 x 60 x 25mm)
- Shipping Weight: 0.57Lbs (260g)
Warranty:
- 3-Year Limited Warranty
