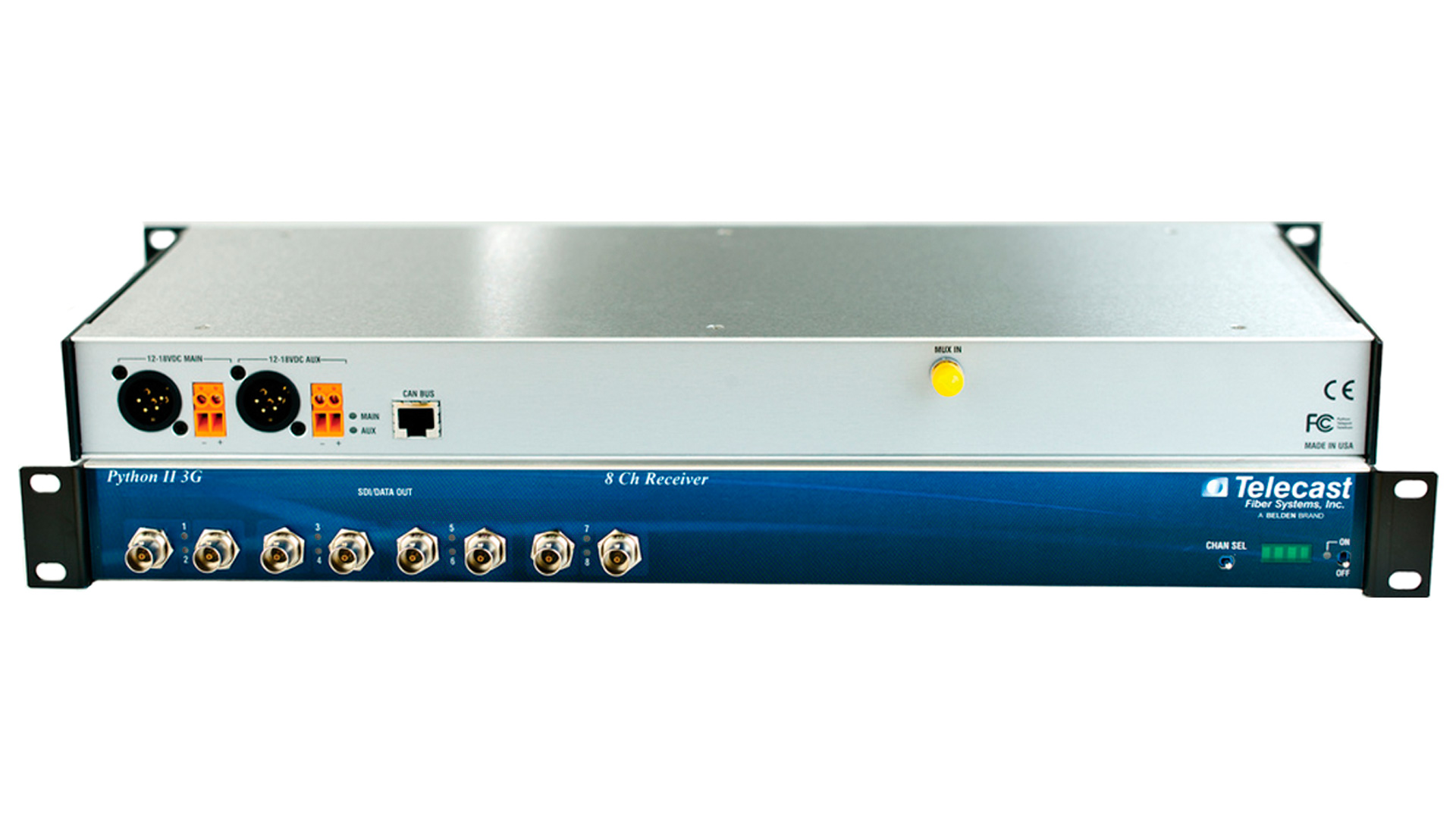

Telecast PY3-JKRR-W16 Python 3G Transceiver 8 HD/SDI RX and 8 HD/SDI TX On 1 Fiber
  • Telecast PY3-JKRR-W16 Python 3G Transceiver 8 HD/SDI RX and 8 HD/SDI TX On 1 Fiber
  • Telecast PY3-JKRR-W16 Python 3G Transceiver 8 HD/SDI RX and 8 HD/SDI TX On 1 Fiber
Questions? Ask a Markertek Expert:
800-522-2025 Email

Telecast PY3-JKRR-W16 Python 3G Transceiver 8 HD/SDI RX and 8 HD/SDI TX On 1 Fiber

Item #: TELE-PY3JKRRW16   •   MFG #: PY3-JKRR-W16


List Price:$17,980.00
Our Price:$15,348.95

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we’ll make it happen.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.



Required Accessories

The Python 3G from Grass Valley, a Belden Brand, is your answer to lowering the cost of digital video distribution, simplifying your cable plant and eliminating all concerns about distance, interference and grounding.

The Python 3G converts up to two groups of 8-channels of HD-SDI to fiber optic transport, all in a compact 1 RU frame. Select a transmitter and a receiver frame for eight or 16 channels, for example, in one direction. Select two transceiver frames for eight channels in each direction.

In addition, Python 3G uses CWDM optical multiplexing options to carry up to 16 HD signals on a single optical fiber.

The Python 3G offers the industry's broadest range of digital transmission rates while maintaining the quality that broadcasters demand. It supports numerous interface standards, including applicable SMPTE, ATSC and DVB recommendations.

No matter what your format, from 19.4 Mb/s to3 Gb/s, the Python 3G allows you to implement it.
143 Mb/s NTSC composite
177 Mb/s PAL composite
270 Mb/s serial component
360 Mb/s serial component and compressed HD
540 Mb/s proprietary

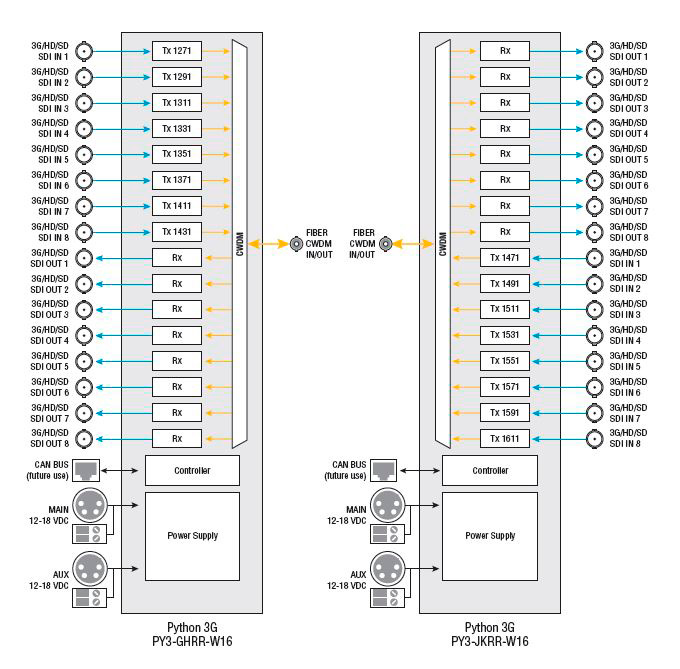

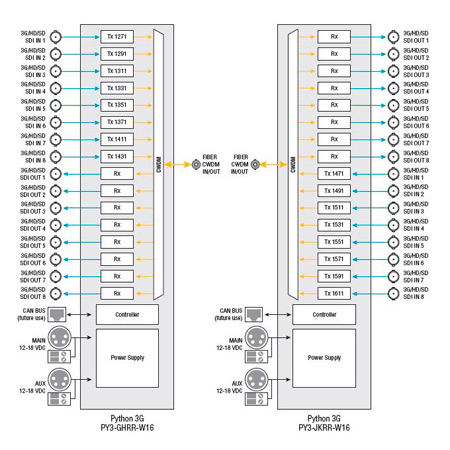

Bundle these two units together to create a single transport system:
PY3-GHRR-W16 8 channels each way, 1 fiber
PY3-JKRR-W16 8 channels each way, 1 fiber

  • Features

    • Economical, low profile packaging
    • 4 to 16 channels per 1 RU
    • Wide range of digital formats
    • 19.4 Mb/s to 3 Gb/s transport
    • Compatible with digital TV standards SMPTE 292M, 259M and 424M
    • Handles DVB/ASI signals
    • Immune to pathological data errors
    • Equalizes coax up to 3 Gb/s
    • BNC I/O
    • Wide optical budget
    • Low system jitter
    • Low power consumption
    • High reliability, durable design
    • CWDM multiplexing options
    • Compatible with other Telecast Series HD/SD-SDI transport systems
  • Specifications

    • Video
    • Transmission method: Digital
    • Input level: 800 mV p-p
    • I/O impedance: 75O
    • Return loss: >15 dB, 5 MHz - 1.5 GHz; >10 dB, 1.5 GHz - 3 GHz
    • Coaxial Input equalization: Maximum rate: 3 Gb/s; Equalization at 3 Gb/s: 120m (393 ft.) of Belden 1694A
    • Bit-error rate at -22 dBm Rx optical power: 10-12
    • Jitter (using pathological data pattern): <0.2 UI
    • Electro-Optical
    • Operating wavelength: 1310 nm or 1550 nm, optional CWDM available
    • Link margin: Up to 22 dB
    • Transmitter output power options: -7 dBm
    • Receiver sensitivity: -20 dBm
    • Optical source: Laser diode
    • Optical detector: PIN
    • Fiber type: Single-mode
    • Mechanical/Environmental
    • Dimensions (W x H x D): 266.7 x 44.45 x 424.18 mm (10.5 x 1.75 x 16.7 in.)
    • Weight, each end: 2.27 kg (5 lbs.)
    • Connectors: Electrical: BNC
    • Optical: ST
    • Input voltage: 12-24 VDC
    • Power consumption: <15W
    • Indicators: Power On, SDI data presence, optical power
    • Temperature range: -20° to 55° C (-4° to 131° F)
    • Humidity range: 0 to 95% non-condensing
