AVPro Edge AC-CXWP-KVM-KIT ConferX HDMI and Bi-Directional USB Wall Plate Transmitter and Receiver via HDBaseT Kit


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with Minimum Order Banner

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    AC-CXWP-KVM-KIT - Overview

    The AVPro Edge AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps supported HDBaseT wall plate extender kit over single CAT UTP/STP. This device can take in any HDMI signal and transfer it long distances; simultaneously, it's able to send a USB 2.0 signal (bi-directionally) through the same cable. This makes for the ideal solution for classrooms and conference rooms to work with modern laptops and desktop computers.

    Invisible Compression Technology: ICT is a revolution in HDMI extension technology, it allows AVPro Edge Products to deliver high bandwidth 4K signals over category cable. Normally when this is done, the video is left with compression artifacts and banding. Using AVPro Edge's proprietary ICT solution allows us to deliver a stable picture without any degradation.

    USB 2.0 and KVM Integration: The AC-CXWP-KVM-KIT supports the extension of USB signals, which may be switched and routed over the HDBaseT link along with the other AV signals and can be managed separately via a control system. USB 2.0 host and device ports are provided on both the TX and RX units, allowing you to connect a USB mouse, keyboard, USB microphone, or any other USB device to be connected at one unit and routed to a computer or other host at another unit.

    Down Scaling: The AC-CXWP-KVM-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K to 1080P. Essential when working with projectors or displays that are only 1080p.

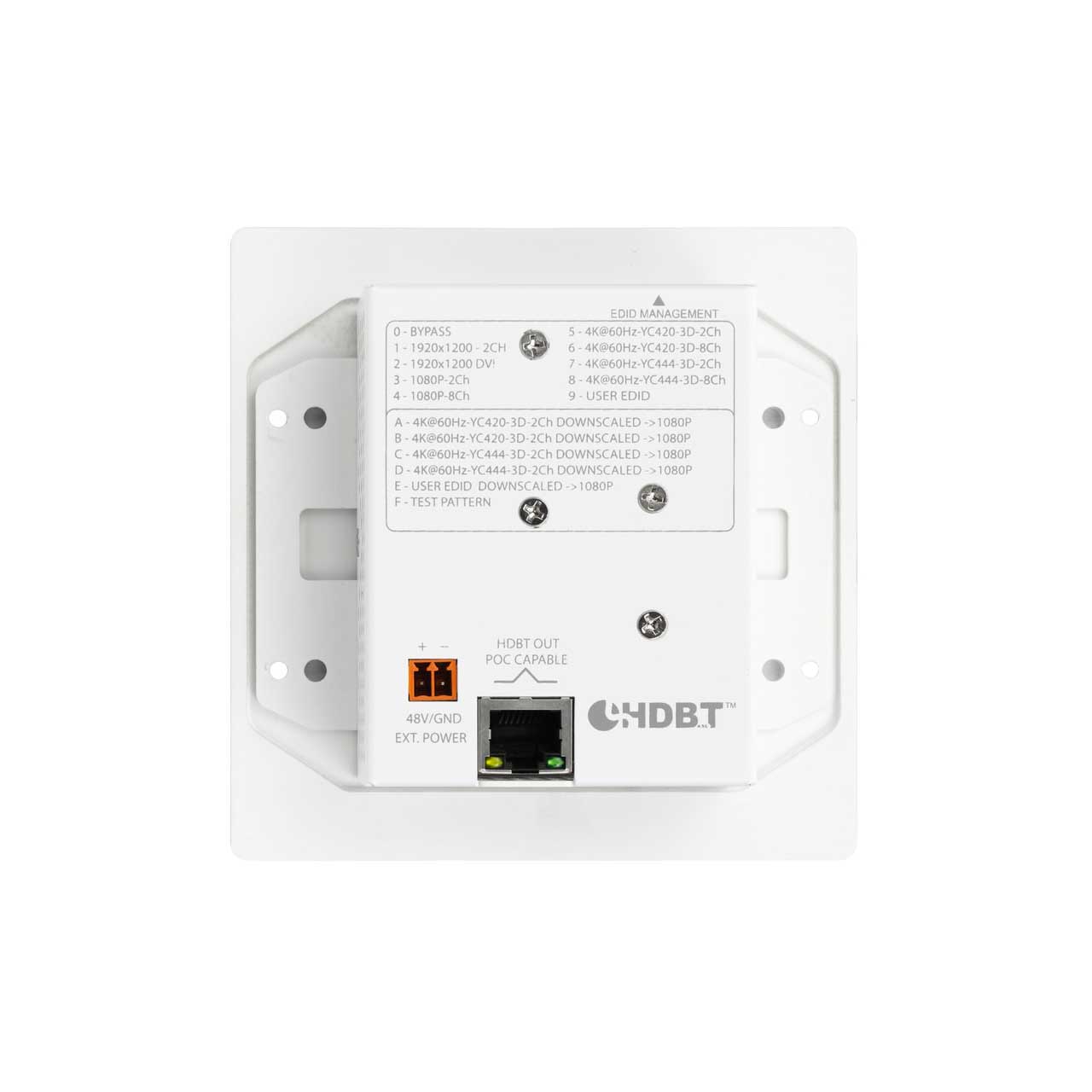

    Total EDID Management: The AC-CXWP-KVM-KIT has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:

    EDID Bypass
    1080P 2CH Audio
    1080P 8CH Audio
    4K60 4:2:0 2CH Audio
    4K60 4:2:0 8CH Audio
    4K60 4:4:4 HDR 2CH Audio
    4K60 4:4:4 HDR 8CH Audio

    The EDID Copy Function allows you to copy and save from any display or projector you want to.

    Audio Return Channel (ARC): The Audio Return Channel in HDMI 1.4 and 2.0 enables a TV, via a single HDMI cable or Toslink, to send audio data "upstream" to an A/V receiver or surround audio controller, our extender will continue the upstream audio all the way to the Transmitter. There it can be connected via HDMI ARC.

    On Board Troubleshooting: This unit allows you to generate a 1080P or 4k test pattern to identify external problems (source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of problems quickly should they arise, without having to worrying if the source or sink is working properly. You can generate a test pattern from the Tx or the Rx so you can verify total system infrastructure integrity.

    HDMI and USB Extension Applications:
    Connecting an Interactive Display/Smart Board to your desktop or laptop computer from across the room or building
    For use as a KVM - to control remote computer via local keyboard and mouse
    For extending USB for remote device control in PTZ cameras and other USB equipped devices
    For use in retrofit jobs where category cable is available and re-engineering is not an option
    For extending IR and RS232 to control devices at the TX and RX
    For use in returning Display/Projector audio signals to the TX for use in distributed audio matrix (ARC HDMI/SPDIF)
    For use in tough installs where advanced EDID management and troubleshooting tools (patterns) are necessary to dial in a signal - excellent results with even marginal repeaters and sink devices
    For use with legacy 1080p projectors and displays

    • Features:

      • HDMI 2.0(a/b)
      • Bi-Directional USB Support
      • Sleek Wall Plate Finish
      • 18Gbps Bandwidth Support
      • 4K --> 1080P Down-scaling for mixed systems
      • EDID Management and EDID emulate
      • 2Ch Audio Extraction at Transmitter
      • Digital Audio Input at the Receiver (Toslink)
      • 40M 4K (up to 4K60 4:4:4, HDR) (Cat6a)
      • Full HDR Support (HDR, HDR10+ and HLG)
      • Audio Return Channel on HDMI
      • 4K & HD Test Patterns built into Tx and Rx for troubleshooting
      • HDCP 2.2 (and all earlier versions supported)
      • CEC Pass Through
      • 3D Support
    • Specifications:

      • Video
      • Video Resolutions: Up to 4K 60Hz 4:4:4
      • VESA Resolutions: Up to DCI 4K (4096x2160)
      • HDR Formats/Resolutions: 420, 422, 444 (10 and 12 deep color) HDR10, HDR10+, Dolby Vision (24/30 frames), HLG
      • Color Space: YUV, RGB (CSC: REC 601, REC 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 supported
      • Deep Color: Up to 16 bit (1080), up to 12 bit (4K)
      • Down Scaling: 4K (and HDR) down to 1080p

      • Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1 Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby ATMOS
      • Audio Formats Supported Extracted (TOSLink): Pcm 2 Ch, LPCM 6 Ch, LPCM 7 Ch, Dolby Digital, Dolby Digital Plus, DTS-HD Master Audio
      • ARC: You can select to extract audio from ARC, or from the HDMI source.

      • HDBaseT Distance (4K): 131 Feet (CAT6A)
      • HDBaseT Distance (Full HD): 230 Feet (CAT6A)
      • HDMI Lead In/Out (4K60 4:4:4): Up to 50 feet (using Bullet Train HDMI)
      • HDMI Lead In/Out (with AOC cable/4K60 4:4:4): Up to 130 feet (using Bullet Train AOC)

      • Bandwidth: 18GBPS (uses ICT above 10.2 gbps signals)
      • HDCP: HDCP 2.2 and earlier

      • Version: USB 2.0
      • TX/RX: USB host = USB Type A (x1)
      • TX/RX: USB device = USB Type B (x1)

      • Operating Temperature: 23 to 125°F (-5 to 51°C)
      • Storage Temperature: - 4 to 140°F (-20 to 60°C)
      • Humidity Range: 5-90% RH (no condensation)

      • Power Consumption: 12 watts max
      • Power Supply: Input - AC 100-240V ~ 50/60Hz; Output - DC 48V 0.5A (mini USB)

      • Dimensions (TX Wallplate): 4.5 x 1.41 x 4.56 inch
      • Dimensions (HDBaseT RX): 0.86 x 4.48 x 7.75 inch
      • Dimensions (Packaged): 3 x 7.25 x 12.31 inch
      • Weight (TX unit): 1 lbs
      • Weight (RX unit): 1.2 lbs
      • Weight (Kit Packaged): 3.2 lbs
    • Item Includes:

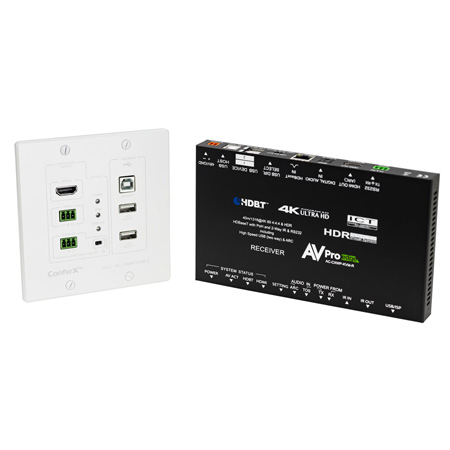

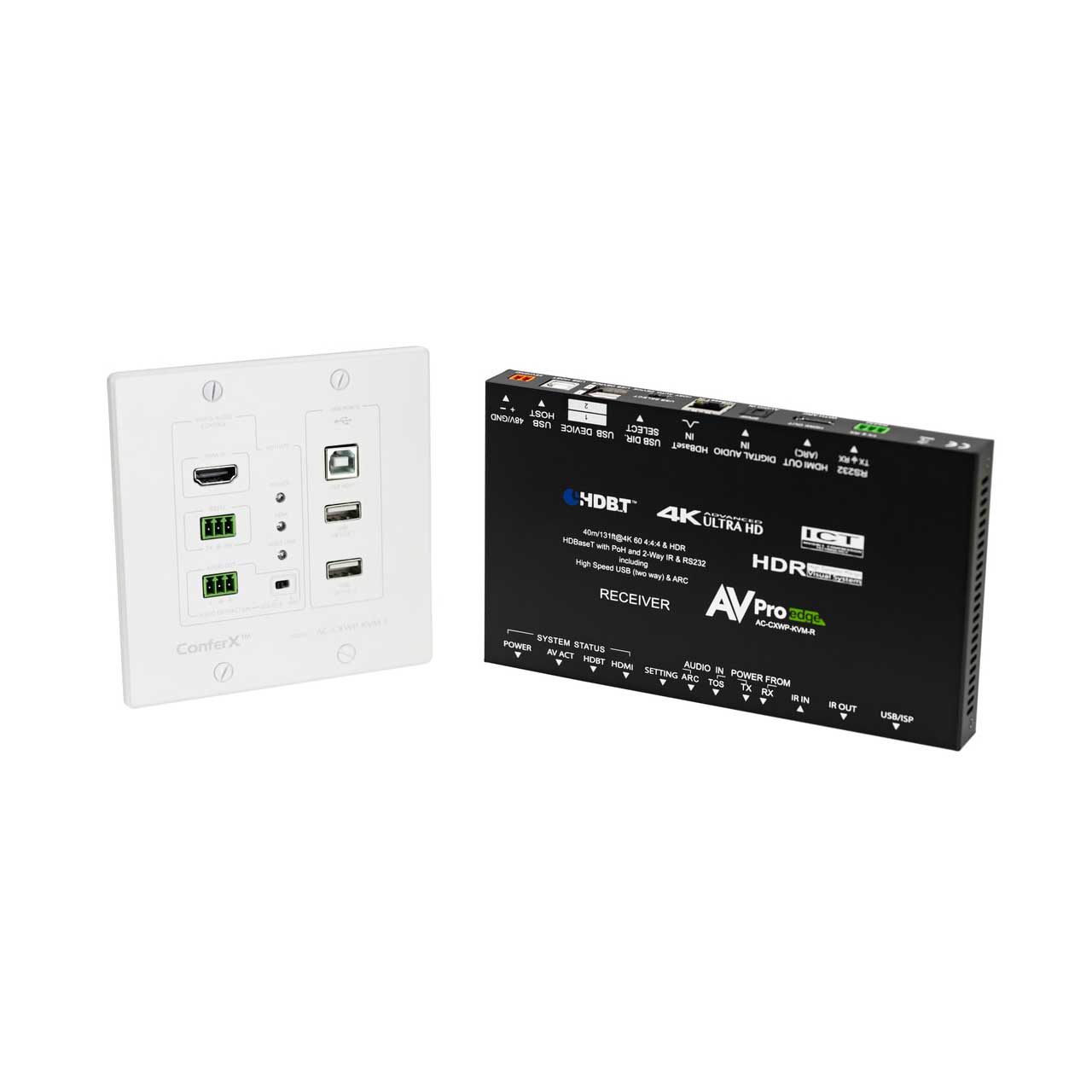

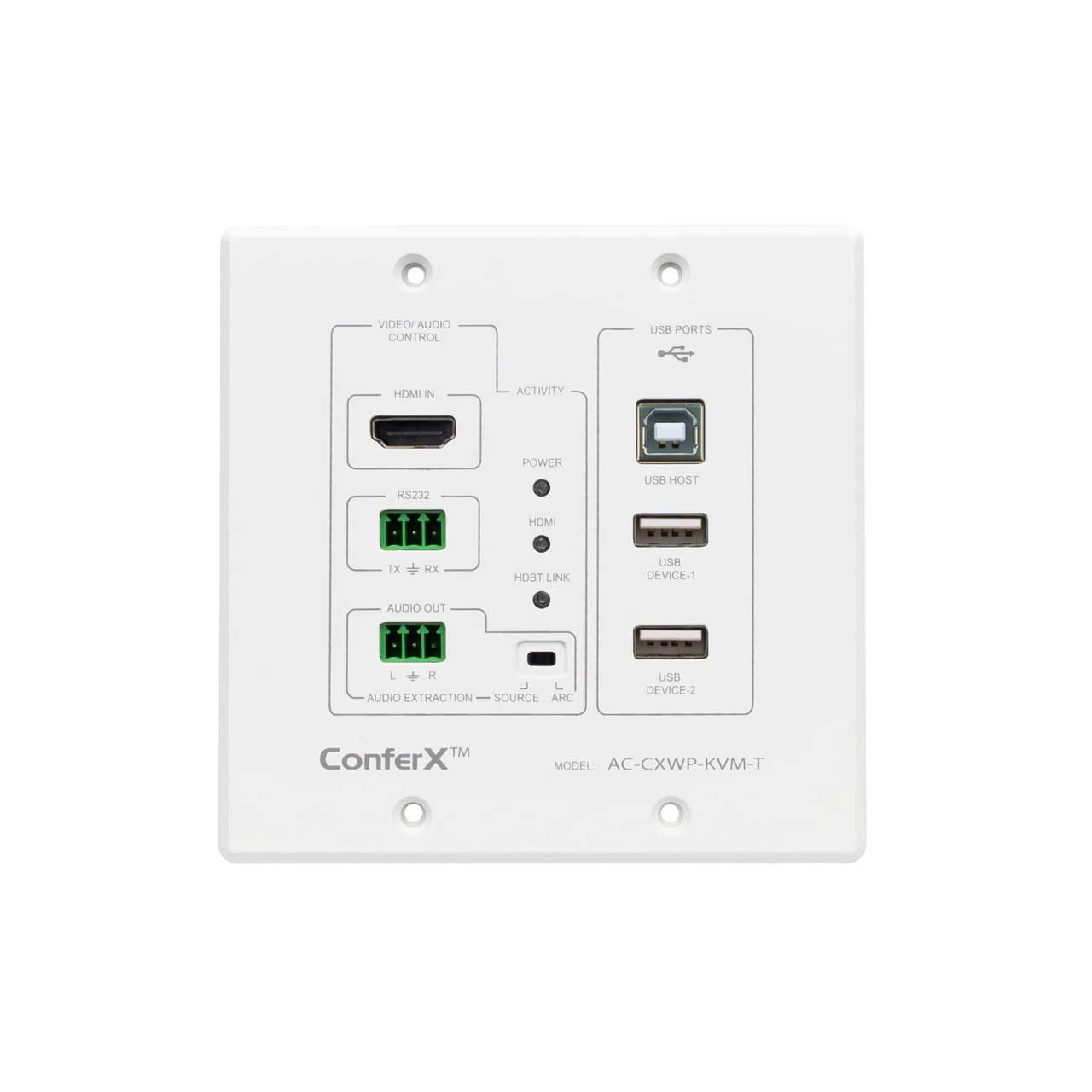

      • 1x AC-CXWP-KVM-T (Transmitter)

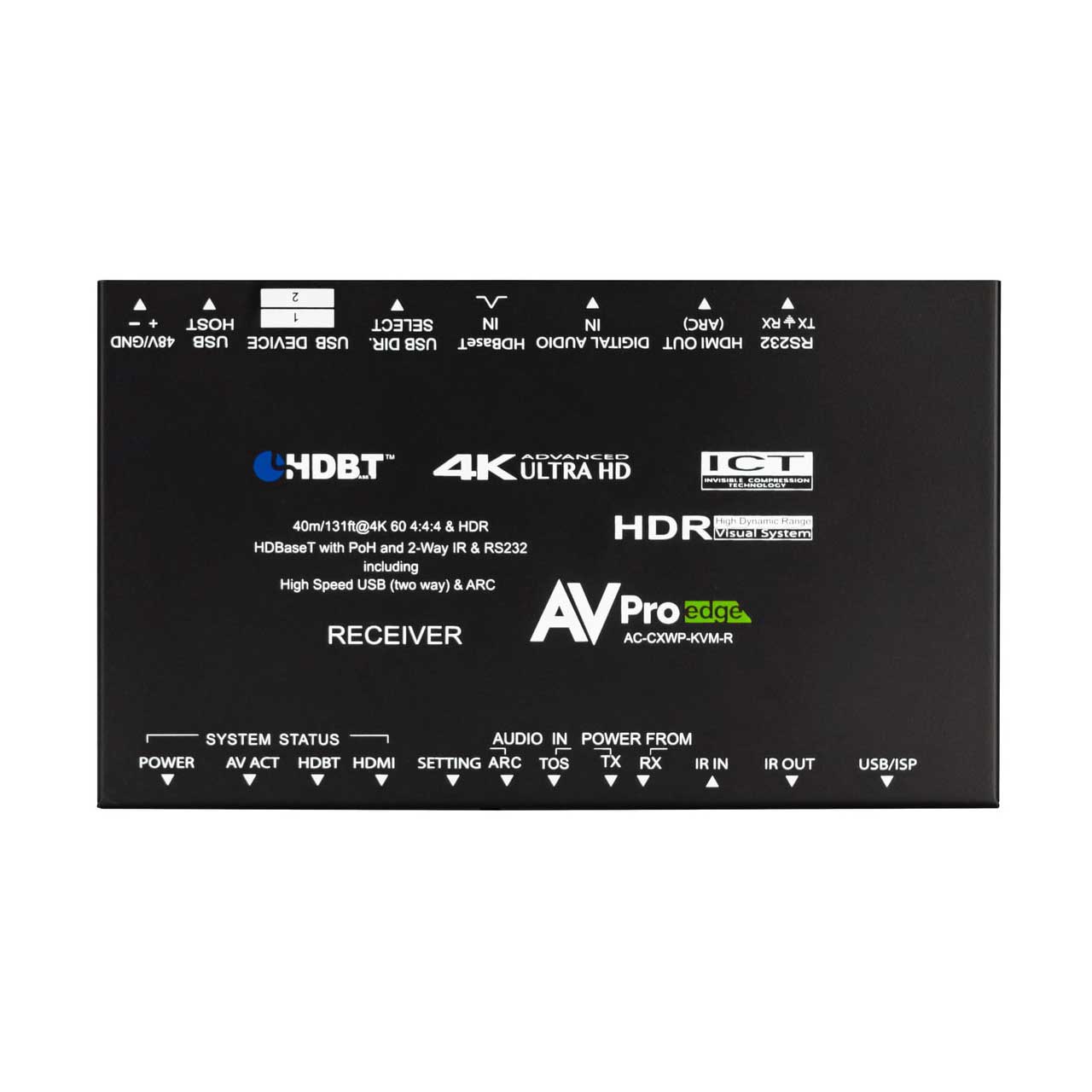

      • 1x AC-CXWP-KVM-R (Receiver)

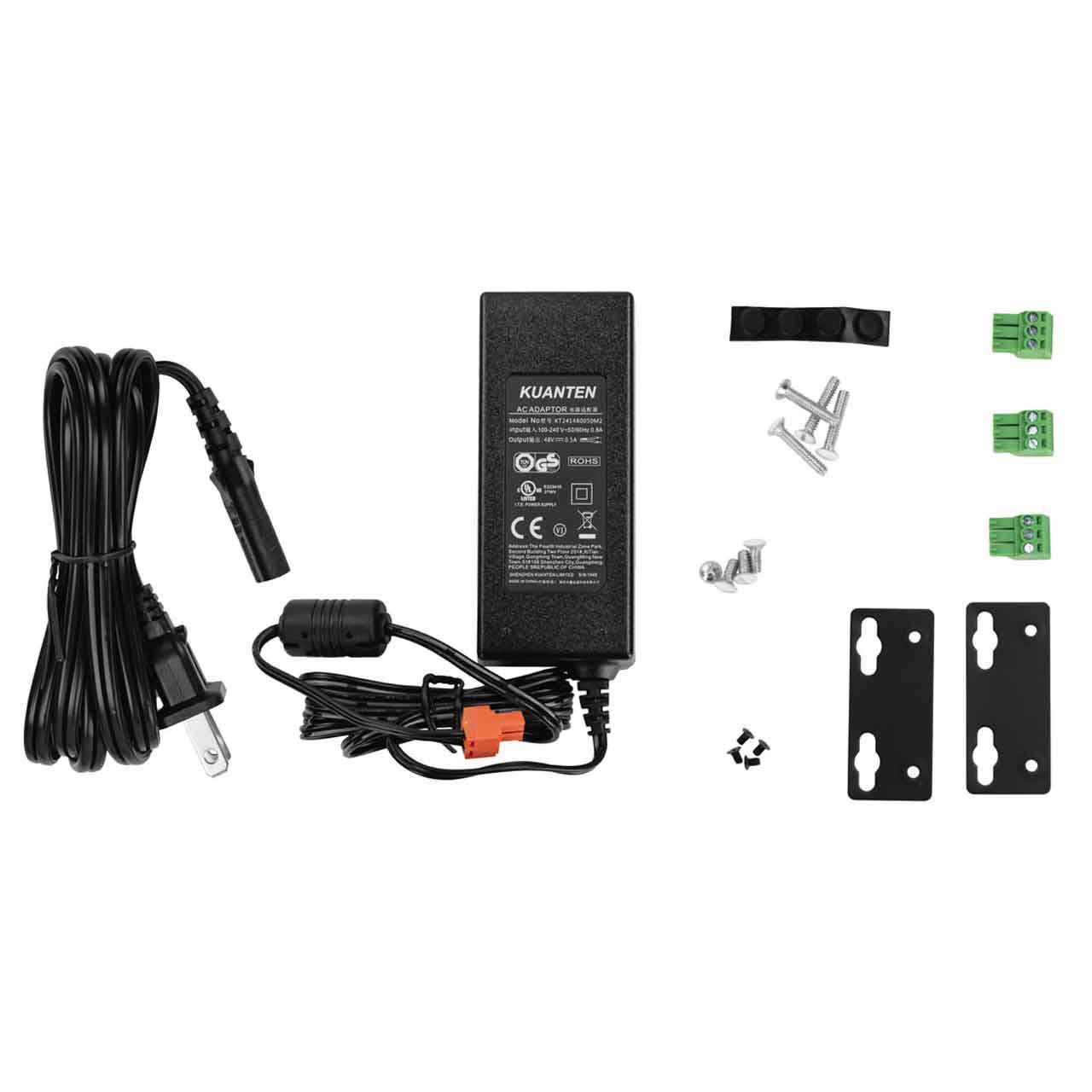

      • 1x 48V Power Supply (One supplied)
      • 1x IR Tx Unit
      • 1x IR Rx Unit
      • 4x 3 Pin Terminal blocks for Audio and RS232 Ports
      • 1x Mounting Ears
