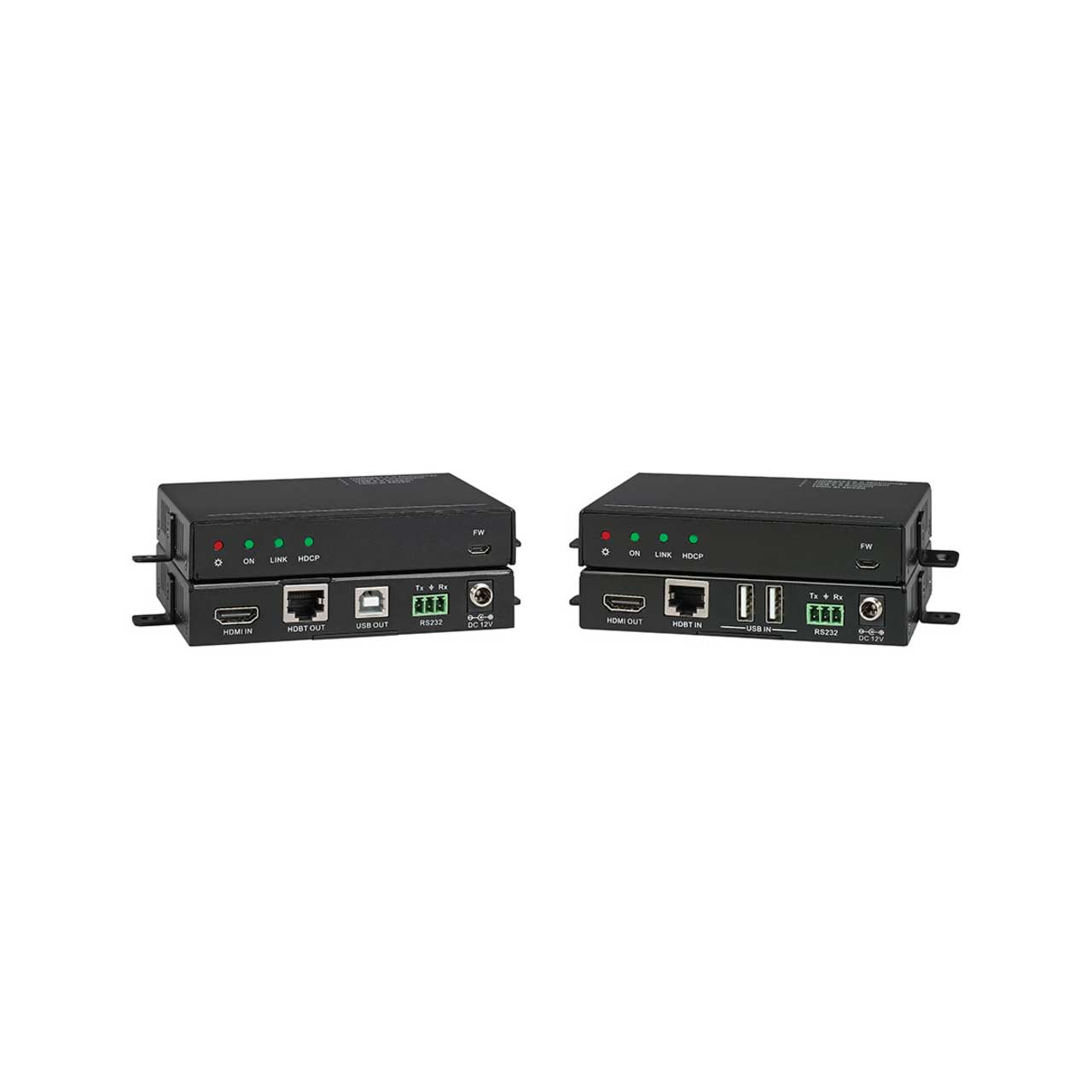

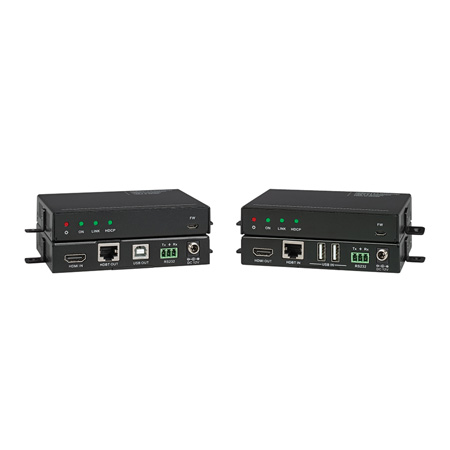

KanexPro EXT-HDBTKVM100 4K HDMI Extender over HDBaseT 2.0 with USB 2.0

ITEM #: KAN-EXTHDBTKVM10 MFG #: EXT-HDBTKVM100

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$1,049.95

Our Price:

$810.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    EXT-HDBTKVM100 - Overview

    The KanexPro EXT-HDBTKVM100 is an HDCP 2.2 compliant, 4K HDMI Extender set developed with the latest HDBaseT 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoH over a single CAT5e/6 cable. The PoH compliant extender comes with only one power supply, which means that, it can be powered from either Tx or Rx to save installers time and added cost to installing a power outlet.

    Long-reach mode & USB 2.0
    The HDMI extender runs on shielded CATx up to 100 meters providing full [email protected] or up to 150 meters providing full HD 1080p/60 or [email protected] One USB type B port is added on the Transmitter for connecting to PC or USB peripherals and two USB 2.0 ports are provided on the receiver side to work like a KVM or USB based Touch Panel using USB HID to create remote USB data and video extension up to 492 feet (150 meters).

    • Features:

      • Extend USB 2.0, 4K UHD video and audio up to 100 meters over HDBaseT
      • Driverless USB 2.0 for webcam video emulation and AEC speakerphone audio
      • USB 2.0 also supports touch-screen functionality and keyboard-video-mouse (KVM)
      • Bi-directional power via PoH from Tx to Rx or vice versa
      • Distribute [email protected] & 60Hz signals
      • Supports standard 1080p & WUXGA resolutions
      • HDCP 2.2 compliant
      • CEC & EDID Pass-thru
      • Smart 100m to 150m switch for long-reach mode over CAT6
      • Supports latest High Speed HDMI 2.0 Specifications
      • Supports Dolby Digital, DTS, DTS-HD
      • Bi-directional control over RS-232
      • Front-panel LED's provides real-time I/O connection status
      • Locking power supply
      • Removable mounting ear kits
      • Universal power supply for worldwide compatibility

    • Specifications:

      • Audio & Video EXT-HDBTKVM100T
      • Input: 1 HDMI (19 pin Type-A male)
      • Output: 1 HDBT (RJ45 female), 1 USB OUT (Type-B)
      • Other: 1 RS-232 (3-pin pluggable terminal block)
      • Signal Standard: HDMI2.0 & HDCP2.2
      • Transmission Mode: HDBaseT 2.0
      • HDMI Embedded audio: PCM/Dolby Digital/DTS/DTS-HD

        Audio & Video EXT-HDBTKVM100R
      • Input: 1 HDBT (RJ45 female), 2 USB IN (Type-A)
      • Output: 1 HDMI (19 pin Type-A male)
      • Other: 1 RS-232 (3-pin pluggable terminal block)
      • Signal Standard: HDMI2.0 & HDCP2.2
      • Transmission Mode: HDBaseT 2.0
      • HDMI Embedded audio: PCM/Dolby Digital/DTS/DTS-HD

        General EXT-HDBTKVM100T
      • EDID Management: EDID Pass-Thru
      • Transmission Distance: 1080p = 150m, 4Kx2K = 100m
      • Temperature: -20 - 65° C
      • Reference Humidity: 10% ~ 90%
      • Power Supply: Input: 100V~240V AC; Output: DC 12V 2A
      • Power Consumption: 5.7W
      • Dimension (WxHxD): 4.5"x0.86"x3.74"
      • Weight: 1.78 lb.

        General EXT-HDBTKVM100R
      • EDID Management: EDID Pass-Thru
      • Transmission Distance: 1080p = 150m, 4Kx2K = 100m
      • Temperature: -20 - 65° C
      • Reference Humidity: 10% ~ 90%
      • Power Supply: Input: 100V~240V AC; Output: DC 12V 2A
      • Power Consumption: 8W
      • Dimensions (WxHxD): 4.5"x0.86"x3.74"
      • Weight: 1.78 lbs

    • Warranty:

      • 3 Years

    • GTIN:

      0813982020580
