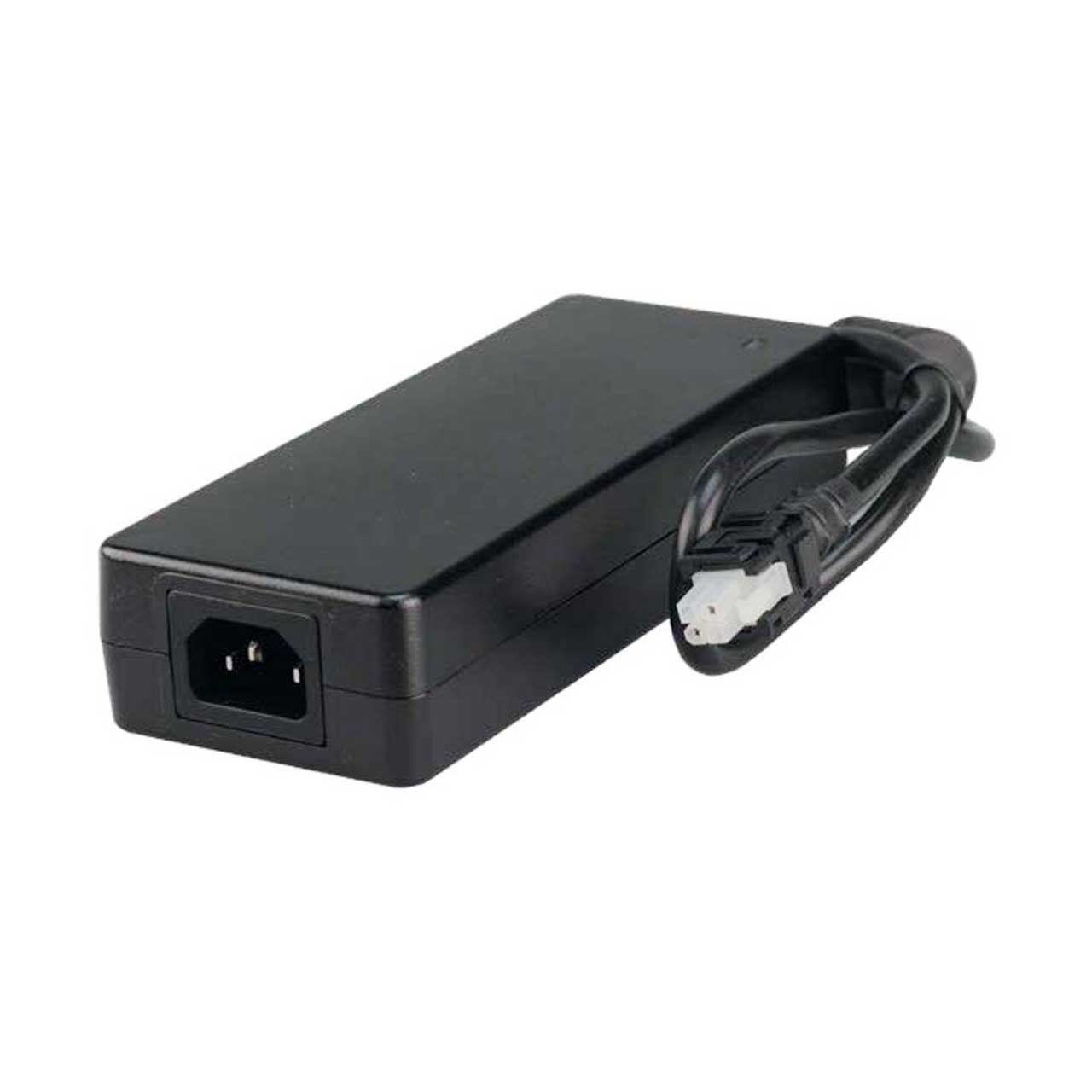

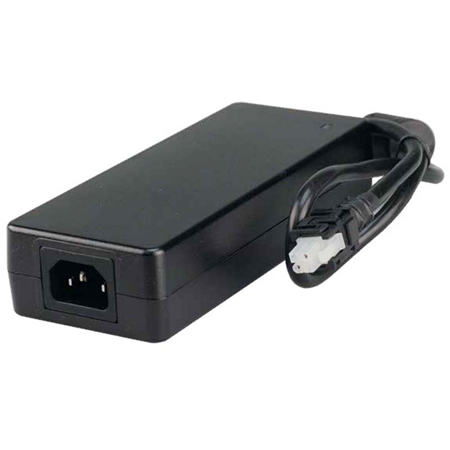

LYNX Technik R PS 1010-US External Power Supply for R FR 1000 - US Power Cord - Order 2 for Redundant Power

R PS 1010-US - Overview

• Specifications:

  • Output
  • DC Voltage: 12V
  • Rated Current: 8.5A
  • Current Range: 0~8.5A
  • Rated Power (max.): 102 W
  • Ripple & Noise (max): 120mVp-p
  • Voltage Tolerance: ±5.0%
  • Line Regulation: ±1.0%
  • Load Regulation: ±5.0%
  • Setup, Rise Time: 2000ms, 30ms / 230V AC, 2500ms, 30ms / 115V AC at full load
  • Hold Up Time: 20ms / 230V AC, 20ms / 115V AC at full load

    Input
  • Voltage Range: 85~264V AC, 120~370V DC
  • Frequency Range: 47~63Hz
  • Power Factor (Typ.): PF>0.93 / 230V AC, PF>0.97 / 115V AC at full load
  • Efficiency (Typ): R7B: 88.5% / P1M ---
  • AC Current: 1.4A / 115V AC, 0.7A / 230V AC
  • Inrush Current (max.): Cold start 35A / 115V AC, 70A / 230V AC
  • Leakage Current (max.): 0.75mA / 240V AC

    Protection
  • Overload:
  • 105~160% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed
  • Overvoltage:
    105~135% rated output voltage
    Protection type: Shut down o/p voltage, re-power on to recover
  • Over Temperature: Shut down o/p voltage, re-power on to recover

    Environment
  • Operating Temperature: -22° to 158°F (-30° to 70°C)
  • Operating Humidity: 20 to 90% RH non-condensing
  • Storage Temperature: -40° to 185°F (-40° to 85°C)
  • Storage Humidity: 10 to 95% RH non-condensing
  • Temperature Coefficient: ±0.03% / °C (0~45 °C)
  • Vibration: 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

    Others
  • MTBF: min. 368.75k hrs. [MIL-HDBK-217 F] (25 °C)
  • Dimension (LxWxH): 6.57 x 2.64 x 1.38" (167 x 67 x 35mm)
  • Weight: 1.37Lbs (620g)

    Safety Standards
  • UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1, BSMI CNS14336, CCC, GB4943.1, PSE J62368-1,AS/NZS 60950.1, BIS IS13252, KC K60950-1, EAC TP TC 004


• Item Includes:

  • 1x R PS 1010-US Power Supply


• Warranty:

  • 3 YEARS


• GTIN:

  4250479327634
