Muxlab 500759-TX-Dante HDMI/Dante Over IP PoE Transmitter UHD-4K

ITEM #: MUX-500759-TX-DA MFG #: 500759-TX-DANTE

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$853.00

Our Price:

$584.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    500759-TX-DANTE - Overview

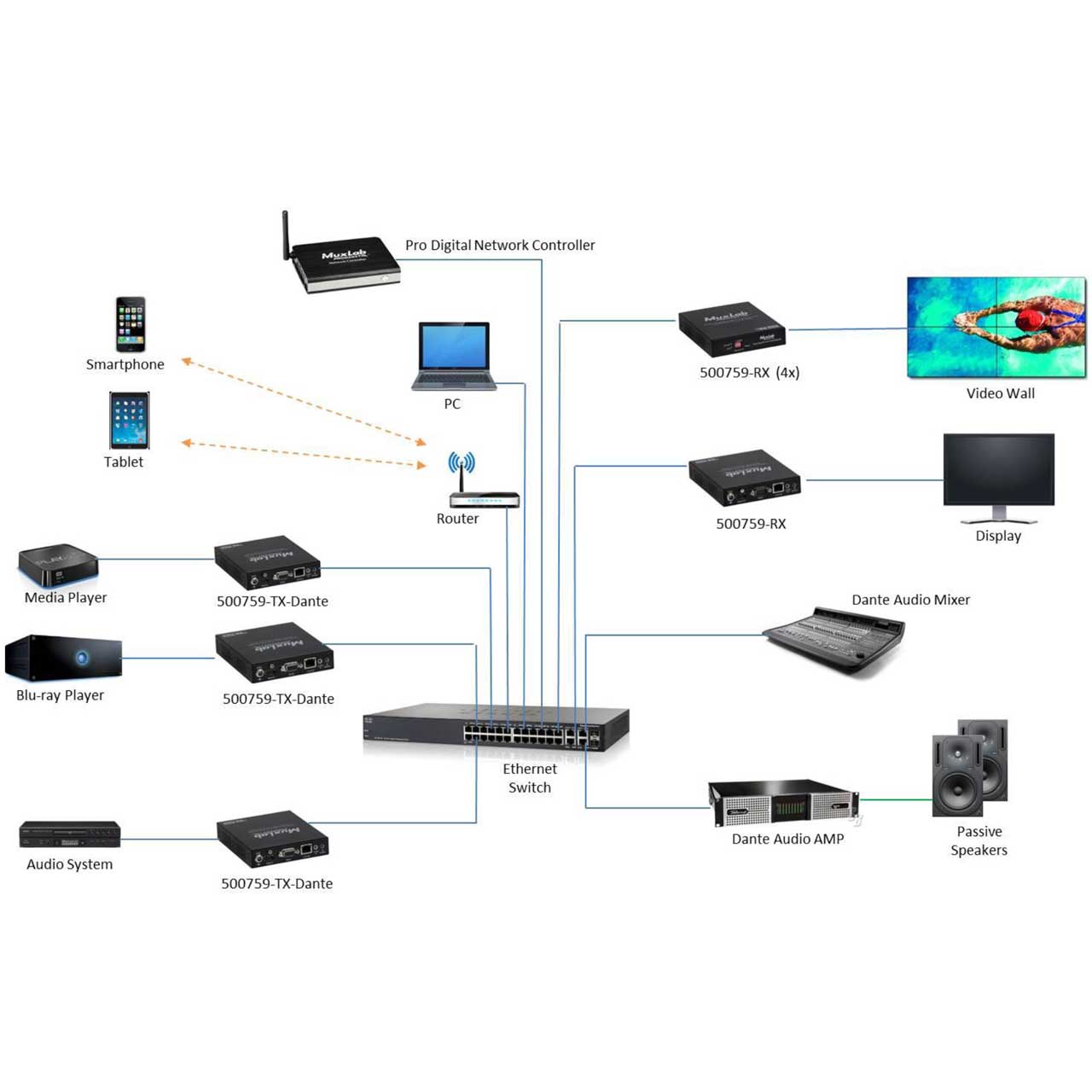

    The Muxlab 500759-TX-DANTE is an HDMI/Dante over IP PoE Transmitter. UHD-4K allows HDMI video equipment supporting up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0), plus Dante audio equipment to be connected and extended to create an independently distributed audio and video network. 100's of Single Displays and Video Wall Displays of user configurable size (X by Y) may be supported, depending on network bandwidth. Audio can be independently distributed to 100's of Dante supported audio devices. Supports HDR at up to 4K @ 30Hz (4:2:2).

    This unit can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch, and supports PoE (PD) when powered by a PoE (PSE) Ethernet Switch. An IR Emitter or IR Sensor, if required, may be purchased separately for IR based remote control applications. The MuxLab Pro Digital Network Controller (500811) and MuxControl App are available to simplify configuration and management of this and other MuxLab AV over IP networked devices via Smartphone and Tablet.

    • Features:

      • Configure a Video Wall array with 100's of displays, depending on network bandwidth
      • Supports video up to 4K @ 30Hz (4:4:4), 4K @ 60Hz (4:2:0) and HDR at 4K @ 30Hz (4:2:2)
      • Visually lossless video (1 frame latency)
      • Distribute audio to 100's of Dante supported devices
      • Supports 2CH audio insert - Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
      • Transmission up to 330ft (100m) over Cat5e/6
      • RS232 and Directional IR for remote control of end-devices
      • PoE powered
      • HDMI AV managed via Pro Digital Network Controller (500811), MuxControl App and 3rd Party Control Apps
      • Dante Audio managed by Audinate software

    • Specifications:

      • Environment: HDMI 2.0b and 2CH Dante Audio
      • Devices: Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI, and Dante supported audio gear.
      • Bandwidth: 300MHz
      • Signals: HDMI 2.0b, HDCP 2.2, and 2CH Dante
      • Maximum Distance: Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0).
      • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
      • Compression: JPG2000
      • Bandwidth: Up to 500Mbps
      • Network Requirement: 1 Gig Ethernet with IGMP, Jumbo Frames and PoE
      • IR Frequency: 38 to 56KHz (IR Emitter and IR Sensor sold separately)
      • Cable: One (1) Cat 5e/6 or better twisted pair cables required
      • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE
      • (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
      • PoE: IEEE 802.3af
      • Power Consumption: 6 W
      • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Dimensions: 4.40" x 5.67" x 1.00" (112mm x 144mm x 25mm)
      • Weight: 1.7lbs (0.77kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
      • Warranty: 3 years

    • GTIN:

      0627699917596
