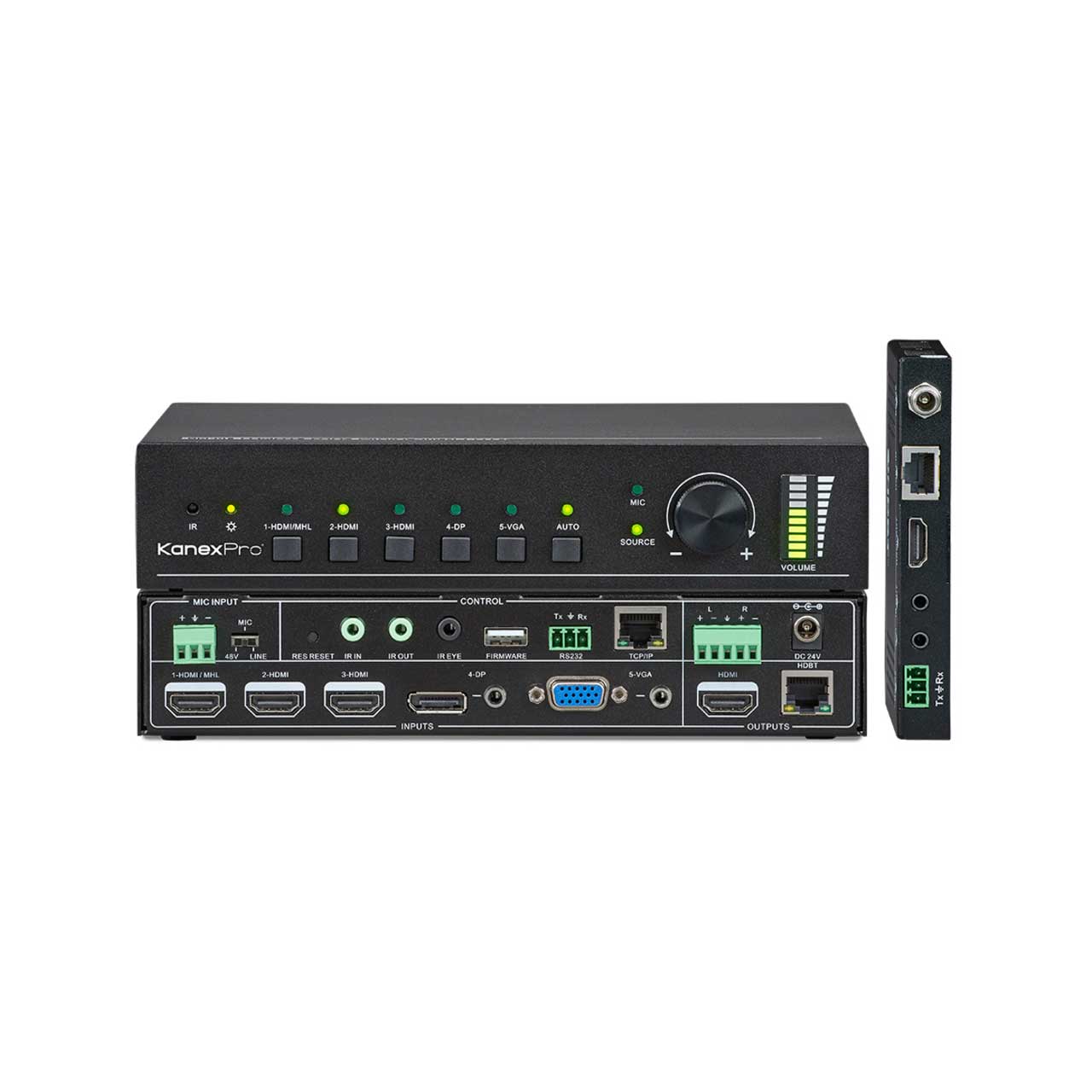

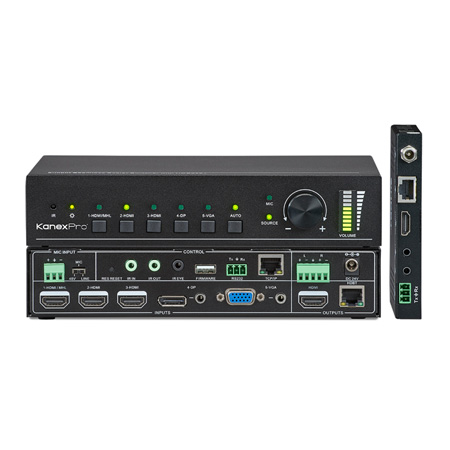

The KanexPro SW-HDSC51HDBT is a seamless switcher with 5-inputs (3 HDMI, 1 DP &1 VGA), with one local HDMI output and one HDBaseT output designed to switch and scale up to 5 devices to one or more displays (mirrored). It supports instant seamless switching from one device to another with zero latency no matter what its connected to. Fully compliant with the latest HDCP 2.2 specs, this switcher supports CEC commands and EDID management. The output of the switcher can be extended with via PoH (power over HDBaseT) to up to 230 feet. (70m) with the receiver included in the system.
The switcher can be controlled using one IR input, one IR output & one RS-232 port, the IR & RS-232 signals can be broadcasted bi-directionally between the seamless scaler-switcher and the HDBaseT receiver. In addition, the switcher can also be controlled via web-based GUI, front panel buttons, RS 232 commands and through IR remote.
