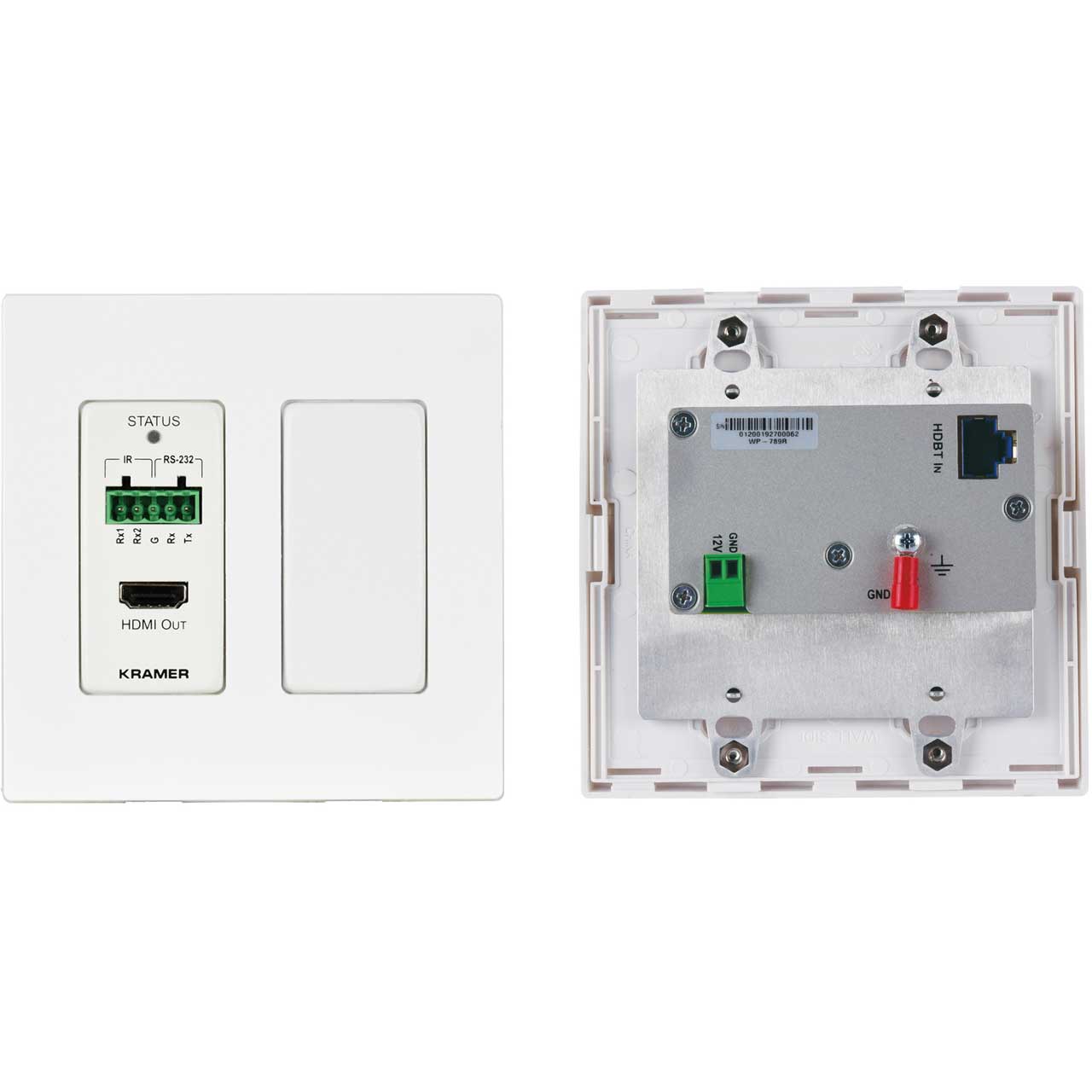

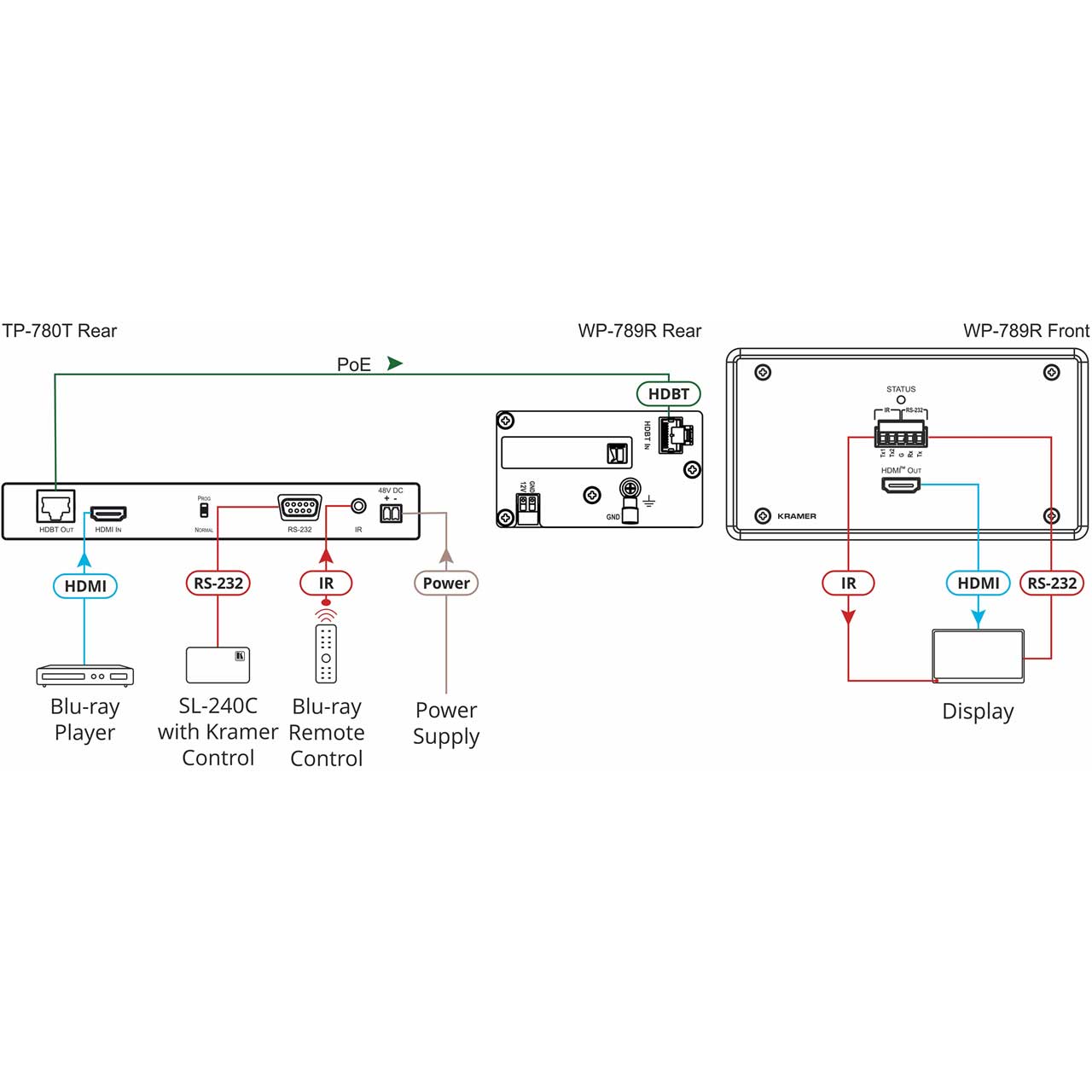

Kramer WP-789R/US-D(W) 4K60 4:2:0 HDMI 2-Gang PoE Wall-Plate Receiver with RS-232/IR over Long-Reach HDBaseT

WP-789R/US-D(W) - Overview

HDBaseT 1.0 receiver

• Features:

  • High Performance Receiver - Professional HDBaseT receiver for providing long-reach signals over twisted pair copper infrastructures. WP-789R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • Reliable PoE (Power over Ethernet) Powering - Auto-senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
  • HDMI Signal Extension - Supports HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Low Profile Wall-Plate - Designed for elegant, in-wall deployment behind a wall-mounted flat panel display. Minimizes the depth of the installation, especially when connected with a Kramer right-angle HDMI cable.
  • Cost-Effective Maintenance - Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.
  • Easy Installation - Fits into standard US, EU and UK 2-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.


• Specifications:

  • INPUTS
  • HDBT: On a female RJ-45 connector


  • OUTPUTS
  • HDMI: On a female HDMI connector
  • IR: On 2-pin terminal block connectors (Tx-1 or Tx-2 and G) for signal extension over HDBT line


  • PORTS
  • RS-232: On 3-pin terminal block connectors (G, Rx, Tx) for signal extension over HDBT line
  • RS-232: On 3-pin terminal block connectors (G, Rx, PROG) for upgrading the FW


  • VIDEO
  • Max Bandwidth: 10.2Gbps
  • Max Resolution: 4K@60Hz (4:2:0)
  • Compliance: Supports HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • EXTENSION LINE
  • Up to 40m (130ft): At 4k@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)


  • EXTENDED RS-232
  • Baud Rate: 300 to 115200 baud


  • EXTENDED IR
  • Frequency: Wide-range 20kHz to 100kHz modulated or 38kHz fixed


  • POWER
  • Source: 12V DC Power Adapter or PoE
  • Consumption of Unit with Power Adapter: 500mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE
  • Environmental: RoHs, WEEE


• Item Includes:

  • Kramer WP-789R/US-D(W) Wall-Plate Receiver
  • Power adapter
  • Power cord
  • Installation accessories
  • US-D white frame set and faceplate


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063091071
