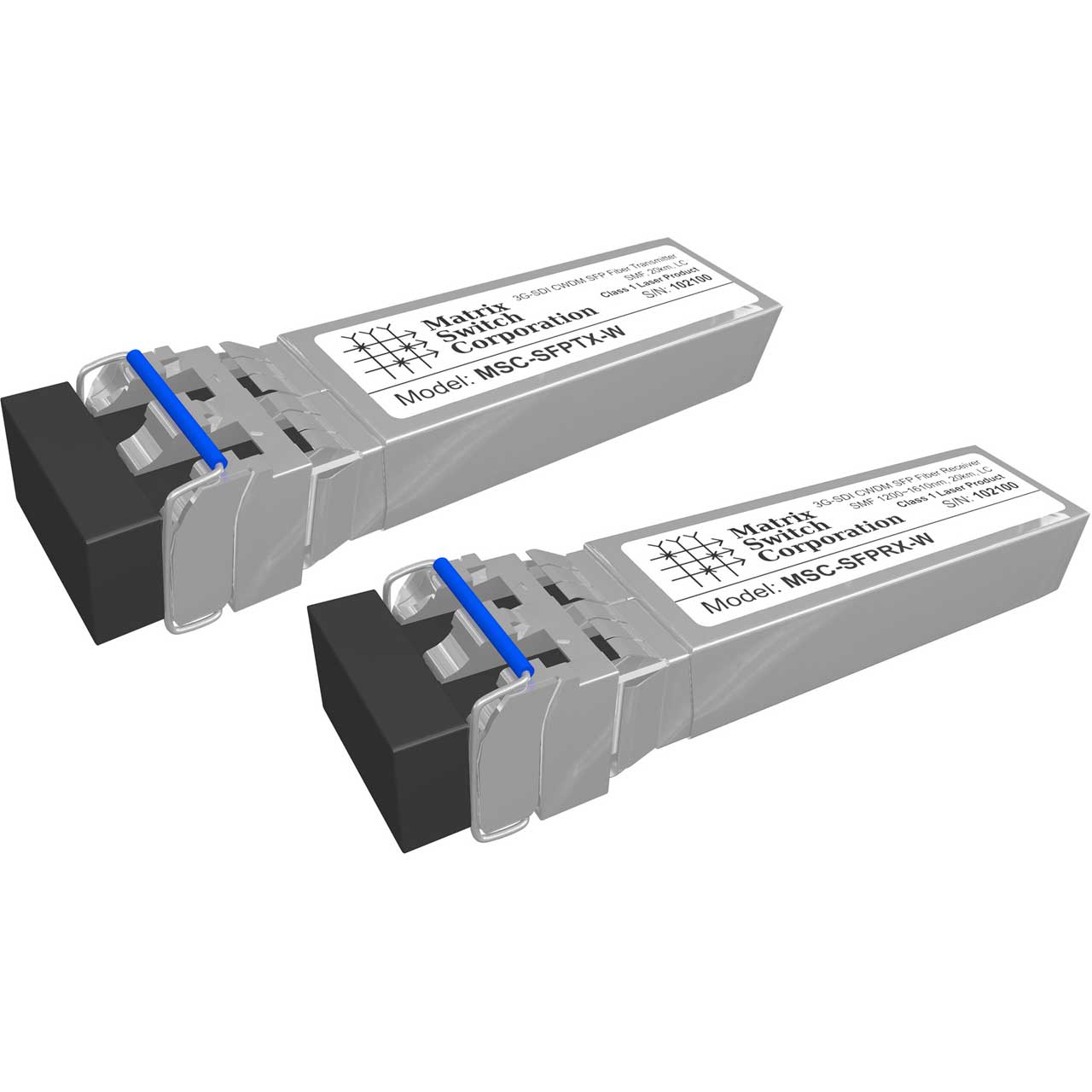

Matrix Switch Corporation MSC-SFL-117 fiber solutions are complete systems. These systems take SDI copper BNC inputs and then convert them using SMPTE MSA SFP plug in's, to single mode optical fiber for distances of up to 20KM and back to SDI BNC copper video outputs.

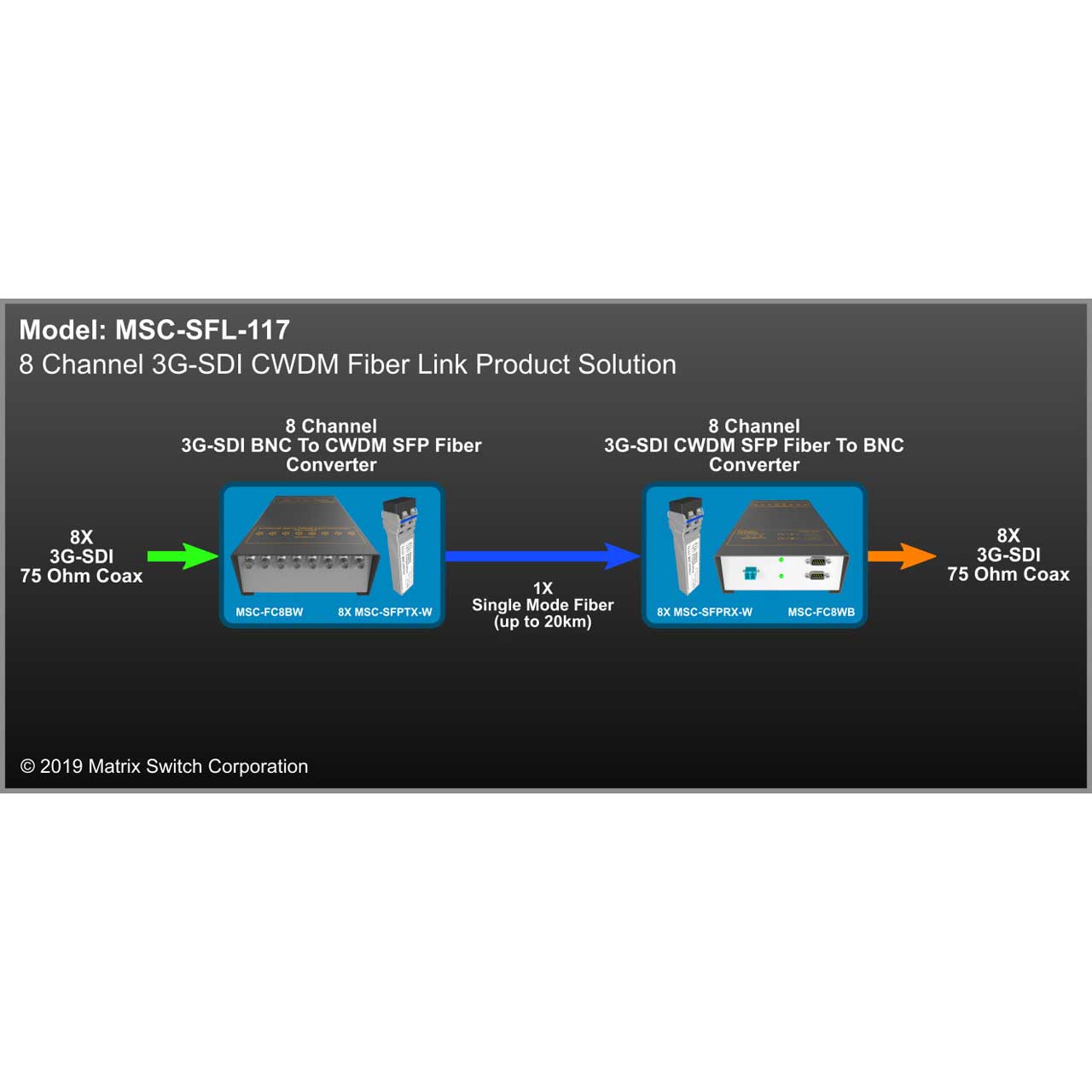

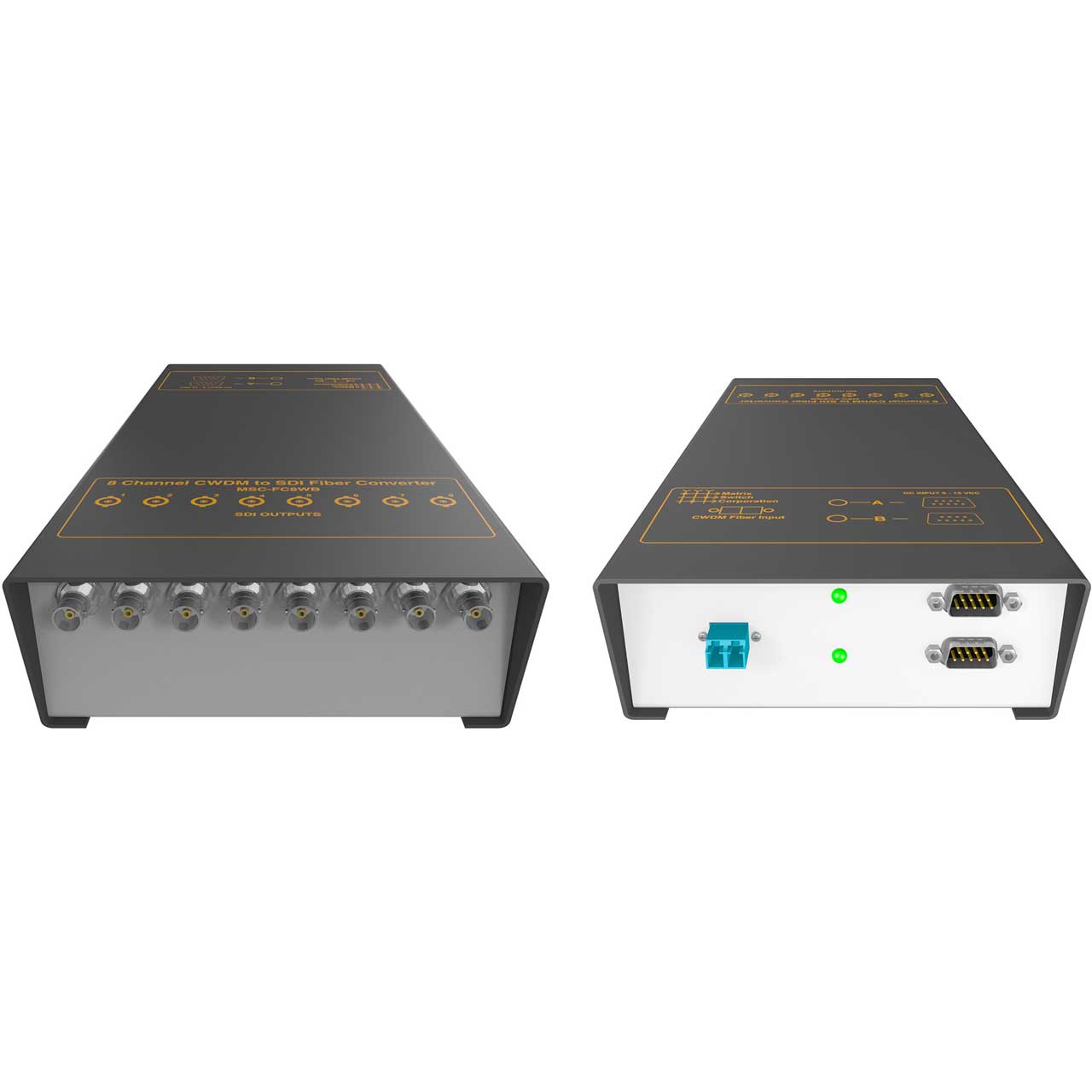

The Model MSC-SFL-117 System is an eight channel 3G-SDI to single Fiber CWDM multiplexing solution using compact rugged 'thrown-down' counter top type enclosures at both endpoints.

  • Features:

    • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.485 Gbit/s), and SD (270 Mbit/s)
    • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
    • Passes SDI embedded audio and ancillary data
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements
    • Backed by a full 2 year manufacturer parts and labor warranty


  • Specifications:

    • General
    • Inputs: 8
    • Outputs: 8
    • Size: 13" x 2.50" x 6"
    • Weight: 0.8 lbs
    • Made in: USA
    • MTBF: 50,000+ Hours
    • MTTR: < 48 Hours

      SDI Inputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Impedance: 75 Ohms +/- 1%
    • Input Level: 800 mV P-P +/- 20%
    • Cable Equalization: 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)

      SDI Outputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
    • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Output Impedance: 75 Ohms +/- 1%
    • Output Level: 800 mV P-P +/- 5%
    • Output Jitter: < 0.2 UI

      SDI Standards
    • SD Formats: 625i25 PAL and 525i29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94,
      720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97,
      1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556p23.98/24/25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE
      425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M

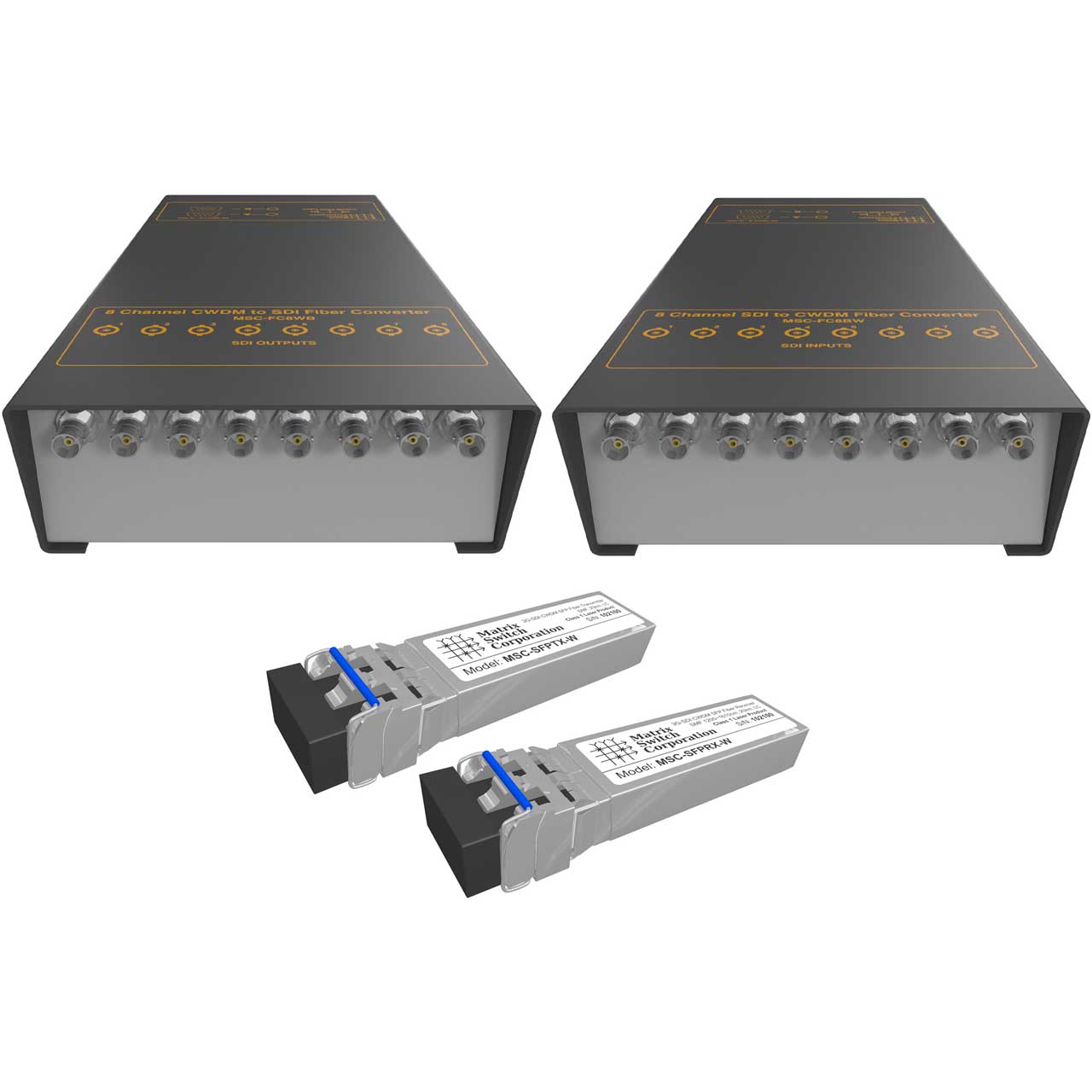

  • Item Includes:

    • 1x MSC-FC8BW
    • 1x MSC-FC8WB
    • 8x MSC-SFPRX-W
    • 8x MSC-SFPTX-W


  • Warranty:

    • Backed by a full 2 year manufacturer parts and labor warranty
