Connectronics CTX-SDI2SDI12G Dual-Link 6G-SDI or Quad-Link 3G-SDI to Single-Link 12G-SDI Converter

Name: Connectronics CTX-SDI2SDI12G Dual-Link 6G-SDI or Quad-Link 3G-SDI to Single-Link 12G-SDI Converter
Brand: Connectronics
SKU: CTX-SDI2SDI12G
Price: 689.95 USD
Availability: InStock

ITEM #: CTX-SDI2SDI12G MFG #: SDI2SDI12G

Connectronics

List Price:

$778.00

Our Price:

$689.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

SDI2SDI12G - Overview

The Connectronics SDI2SDI12G is an SDI to 12G SDI Convertor. You can convert Dual Link 6G-SDI or Quad Link 3G-SDI to 12G-SDI with multi-standard support. The small form factor combined with tough all-metal construction make it perfect for tight spaces in Rigs, Broadcast trucks, Data Centers and more.

Features:

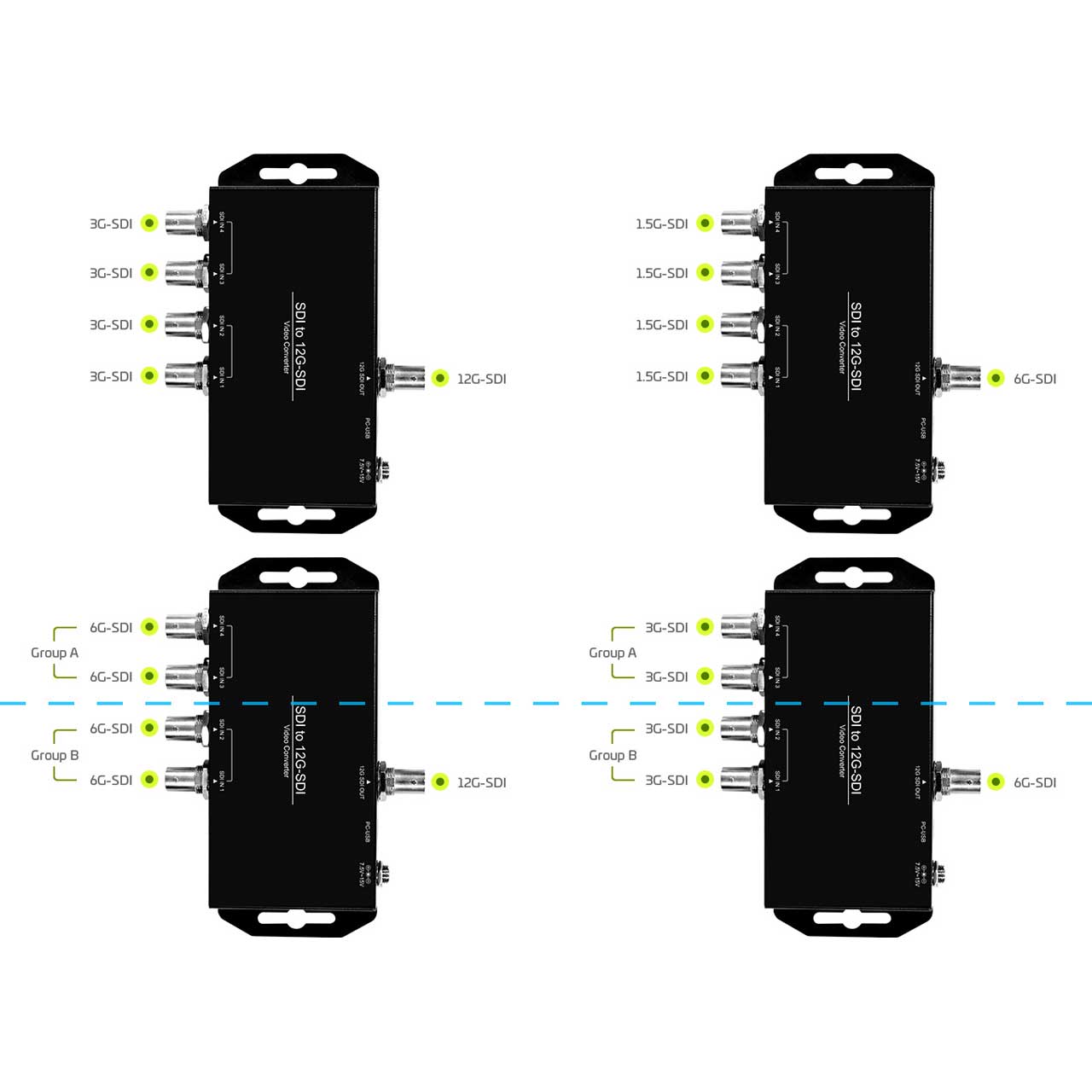

- Quad-Link 2 Sample Interleave (2SI) Input Supported
- Quad-Link 3G-SDI Input Support
- Dual-Link 6G-SDI Input Supported
- Multi-Standard Support (12g/6G/3G/HD/SD-SDI)
- 3G-SDI Level A/B Dual-Link/B-Dual stream support
Specifications:
- Input Interface Video:
- 12G-SDIx1 6G-SDIx3
  Output Interface:
- 12G-SDI x1
  Supported Video Input Format SDI
  Dual-Link 6G-SDI / Quad-Link 3G-SDI
- 4096x2160p@60/50fps
- 3840x2160p@60/50fps
  6G-SDI / Dual-Link 3G-SDI / Quad-Link HD-SDI
- 4096x2160p@30/25/24fps
- 3840x2160p@30/25/24fps
  3G-SDI / Dual-Link HD-SDI
- 1920x1080p@60/50fps
  HD-SDI
- 1920x1080p@30/25/24fps
- 1920x1080i@60/50fps
- 1280x720p@60/50fps
  SD-SDI
- 720x480i@60fps
- 720x576i@50fps
  Supported Video Output Format:
  SDI/12G-SDI: 4096x2160p@60/50fps 3840x2160p@60/50fps
  Audio Input Format: SDI : 8 Channels, 24bit, 48KHz
  Plug & Play: V
  DC In: 7.5v to 15v
